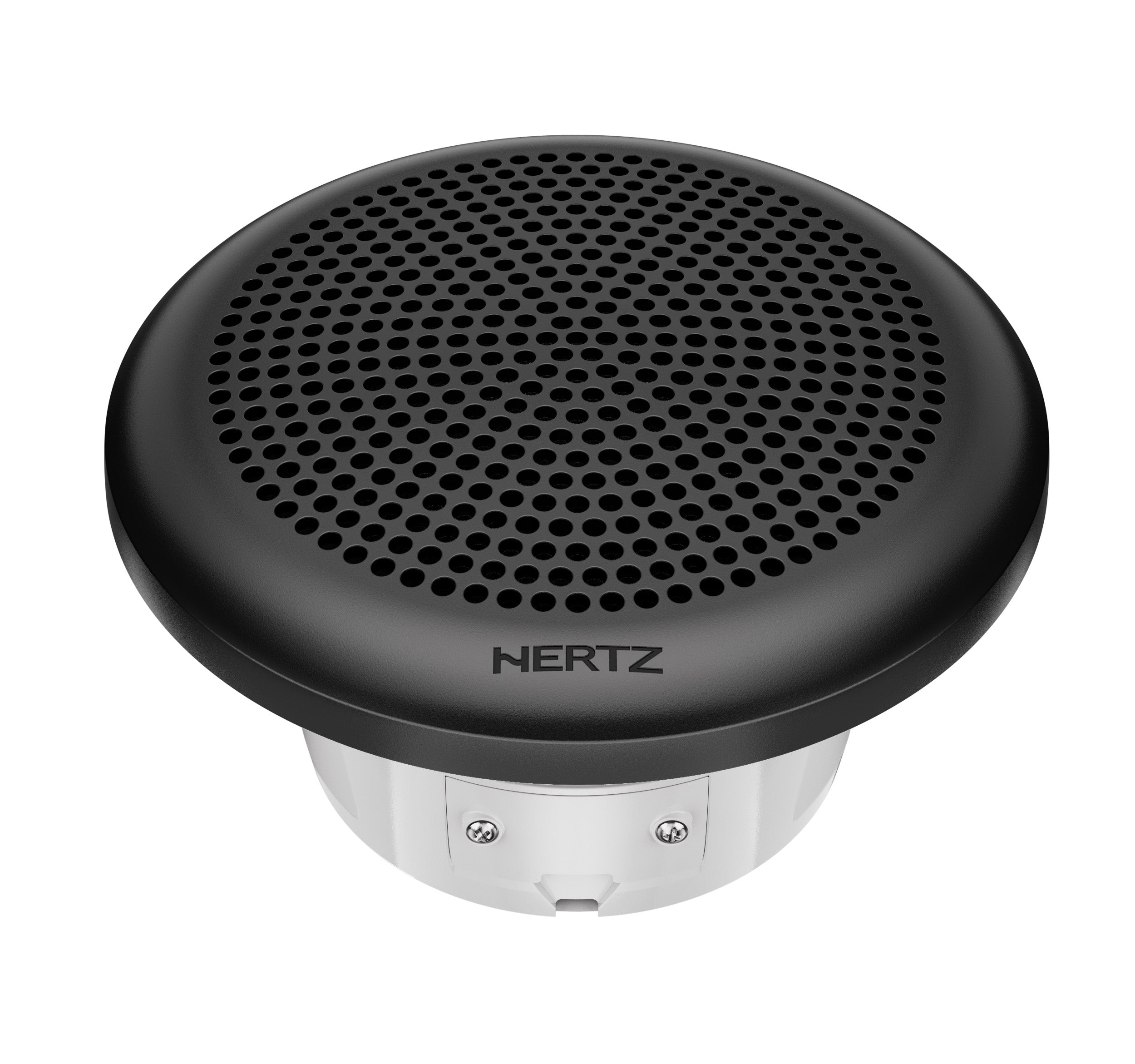

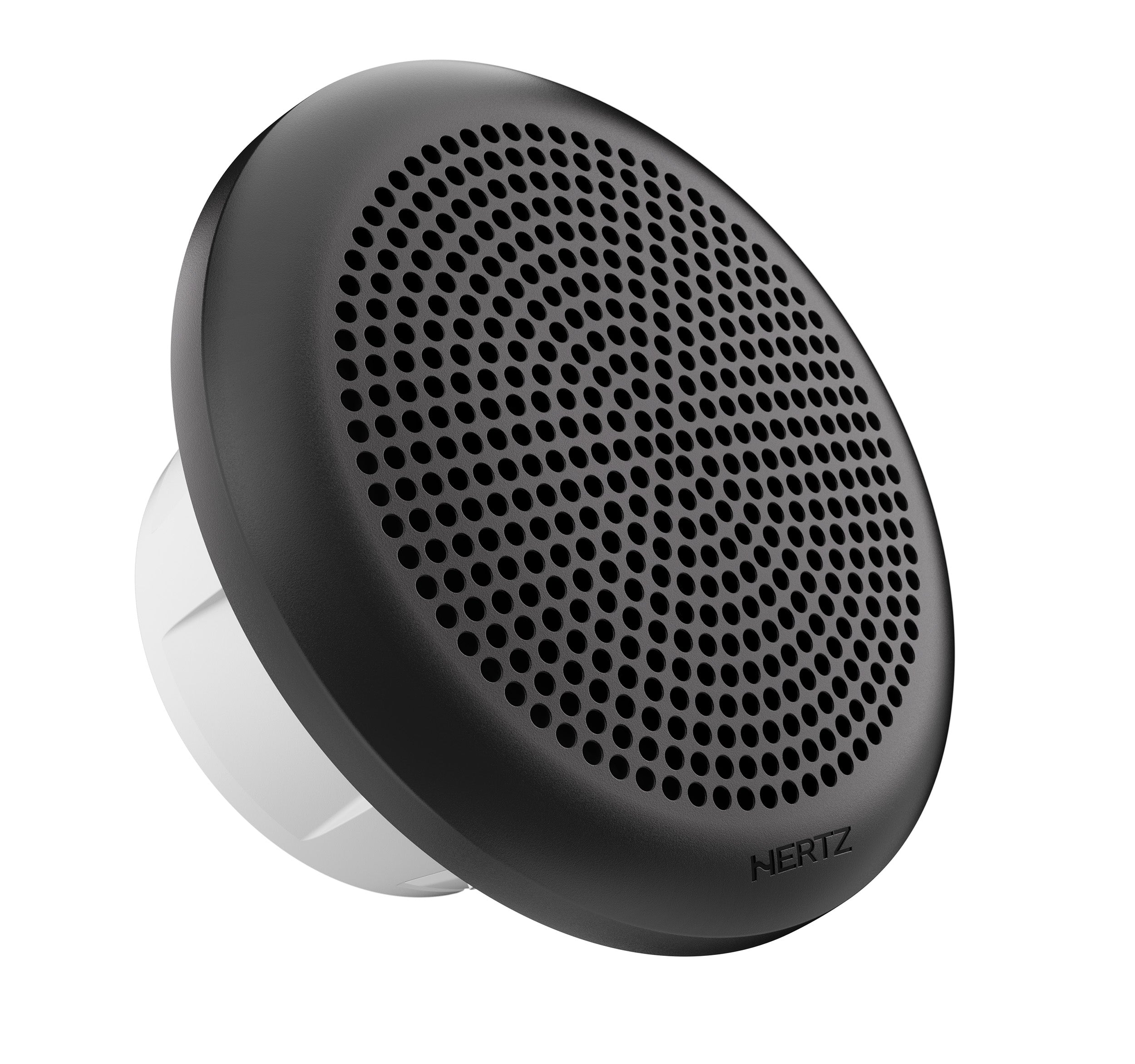

Hertz HEX4CC 4" Marine Coaxial 30W RMS IP65 Black Grille Certified Compact

Hertz 4" Marine Coaxial Speaker 30W RMS / 60W Peak, IP65, ASTM UV & Salt Fog Certified, Black Classic Grille, Twist-Lock, 52mm Mounting Depth.

Product Overview

The Hertz HEX 4 C-C extends the Pure Marine HEX range into the compact 4-inch format engineered for consoles, cabins, T-tops, and secondary listening areas where installation space is limited and depth is at a premium. At just 52.3mm mounting depth and a 95mm cutout diameter, the HEX 4 C-C fits where larger speakers cannot while delivering the same Pure Marine certified acoustic performance and build quality as the rest of the HEX range.

Hertz Pure Marine Certified IP65 water jet, ASTM-D4329 UV, and ASTM-B117 salt fog tested. The FEM-optimised neodymium tweeter delivers wide off-axis dispersion for in-boat listening, and the 25mm woofer voice coil is tuned specifically for infinite baffle applications. Sealed integrated crossover with resettable solid-state tweeter protection, nickel-plated corrosion-resistant terminals, and the Black Classic sound-transparent mesh grille with twist-and-lock mounting complete the package.

Key Specifications

• Component type: Coaxial
• Size: 102mm (4")
• Power handling continuous: 30W
• Power handling peak: 60W
• Impedance: 4Ω
• SPL: 87dB
• Frequency response: 100Hz – 20kHz
• Mounting depth: 52.3mm (2.05")
• Outer diameter (A): 134.5mm (5.29")
• Cutout diameter (B): 95mm (3.74")
• Woofer voice coil: 25mm (1")
• Tweeter voice coil: 20.4mm (0.8")
• Tweeter diaphragm: 20mm (0.8")
• Woofer magnet: High-density flux ferrite
• Tweeter magnet: Neodymium
• Cone: Polypropylene with UV inhibitors
• Dome: PEI
• IP rating: IP65
• UV standard: ASTM-D4329
• Salt fog standard: ASTM-B117
• Weight (single speaker): 0.7kg (1.5lb)

Features & Benefits

• Hertz Pure Marine certified: IP65 water jet, ASTM-D4329 UV, and ASTM-B117 salt fog tested and certified
• Compact 52mm mounting depth: 52.3mm depth suits shallow installations in consoles, T-tops, cabins, and secondary listening positions
• FEM-optimised neodymium tweeter: Wide off-axis dispersion for consistent sound throughout the boat regardless of listening position
• 25mm woofer voice coil infinite baffle tuned: Polypropylene cone with UV inhibitors and tuned for sealed and open-baffle marine installations
• Black Classic grille: Sound-transparent mesh in a black finish suits dark-finished interiors and modern marine aesthetics
• Twist-and-lock grille system: Tool-free installation and removal
• Sealed integrated crossover with resettable tweeter protection: Resettable solid-state protection eliminates fuse replacement after overload events
• Nickel-plated corrosion-resistant terminals: Reliable connections in marine environments

Technical Specs

Thiele-Small / Electro-Acoustic Parameters

Physical Dimensions

HEX Marine Coaxial Comparison (this session)

Frequently Asked Questions

What is the mounting cutout diameter?

95mm (3.74") confirm this matches your mounting location before purchasing.

How shallow is the mounting depth?

52.3mm (2.05") one of the shallowest mounting depths in the Hertz Marine range, suited to tight console, T-top, and cabin installations.

What marine certifications does this speaker carry?

Hertz Pure Marine IP65 water jet, ASTM-D4329 UV resistance, and ASTM-B117 salt fog resistance.

Is this speaker sold individually or as a pair?

Pack quantity not confirmed in supplier data confirm with the retailer before purchasing.
