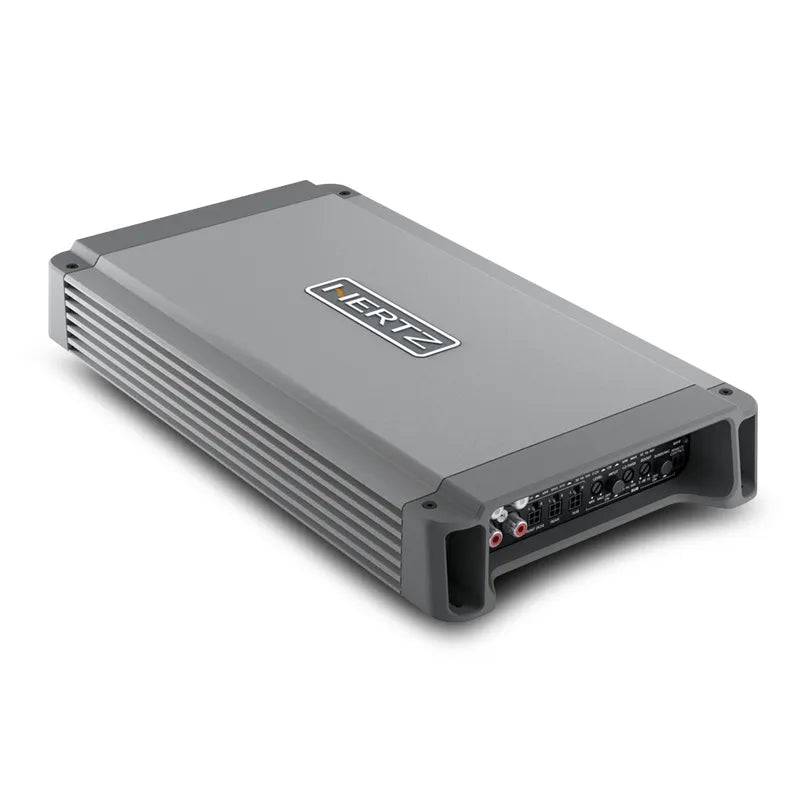

Hertz HCP5MD 4x105W + 1x330W 5-Channel Marine Amplifier

Nature Proof Engineered and Tested for The Real Environment of Application

Completed Filter Section Large Array of Filters Customized for Each Model, to Achieve Maximum Versatility: Lo-Pass, Hi-Pass, Bass Boost, Phase and Mono. -Bridge Operation Mode Bridge Operation Mode to Drive a Subwoofer or To Create a Powerful Dual-Mono System. -Bass Boost Bass Boost Adjustable via Selector, for More Punch from Speakers.

Features:

• Channel mode: 5/3 Output Power (RMS) @ 14.4 VDC 5 Ch 65 W x 4 + 200 W x 1 (4Ω) 5 Ch 105 W x 4 + 330 W x 1 (2Ω) 3 Ch 210 W x 2 (4Ω) + 200 W x 1 (4Ω) 3 Ch 210 W x 2 (4 Ω) + 330 W x 1 (2 Ω)
• Filters Hi-Pass: A Ch: 50 ÷ 5 kHz @ 12 dB/Oct. B Ch: 50 ÷ 500 Hz @ 12 dB/Oct.
• Lo-Pass: C Ch: 50 ÷ 500 Hz @ 24 dB/Oct.
• Band-Pass: A Ch: 50 ÷ 500 Hz(Hi) @ 12 dB/Oct. B Ch: 50 ÷ 5 kHz(Lo) @ 12 dB/Oct.
• Subsonic: 25 Hz @ 24 dB/Oct.
• Distortion: THD (100Hz @ 4Ω) 0.02% S/N Ratio (A weighted @ 1V) 100
• Damping factor: (100Hz @ 4Ω) A & B Ch 100 C Ch 250
• Size W x D x H mm (in.): 345 x 190 x 50 (13.58 x 7.48 x 1.97)
