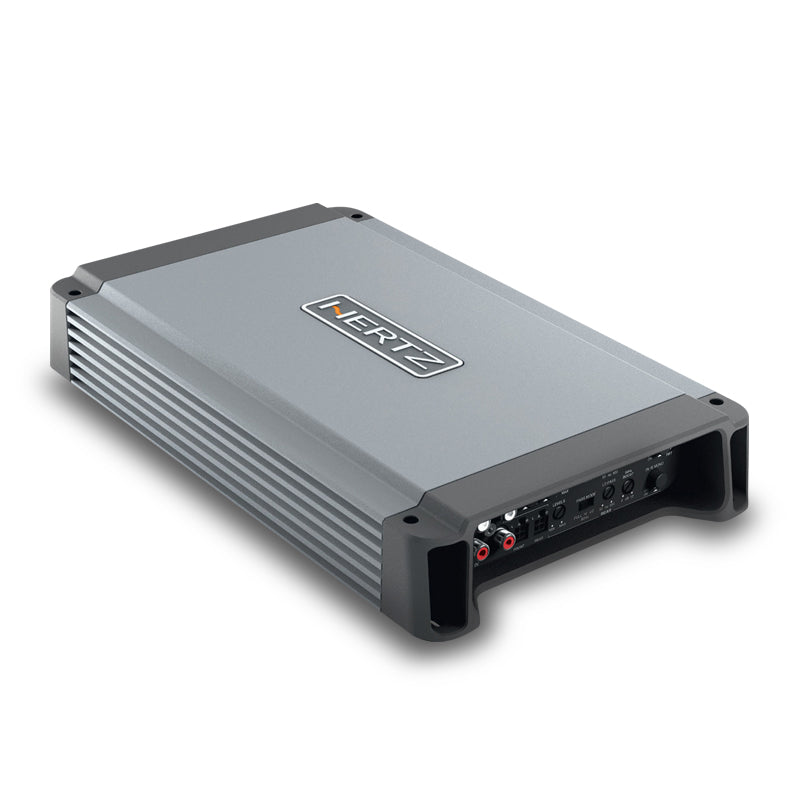

Hertz HCP 4MDK 150W x 4 RMS 4-Channel 2Ω D-Class Marine Amplifier
Click to open expanded view
HERTZ logo

In-Store Only

Hertz HCP 4MDK 150W x 4 RMS 4-Channel 2Ω D-Class Marine Amplifier

SKU: HCP4MDK
Price
$765
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Design Ready to Face the Open Water Environment, Providing Tons of Clean Power!

4-Channel D-Class Marine Amplifier
The Hertz HCP 4MDK features the latest generation D-Class 2Ω stable output stage reaching the impressive power RMS of 150W x 4 with the excellent S/N ratio of 105dB. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (Selectable Mode), providing the ability to build a two zone stereo or a single zone stereo system with subwoofer.

The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier. The HCP 4MDK four channels marine amplifier feature a compact design ready to face the open water environment, providing tons of clean power.

The HCP M amplifiers crossover section ensure extreme flexibility: fully adjustable Lo-pass, Hi-pass filters with 12 dB/Oct. slopes and Bass Boost to enhance low frequencies.

Features:

  • Engineered and tested for the real environment of application (UV, salt-fog, vibrations, high/low temperature, thermal shock, dust)
  • Compact design built from extruded aluminium heatsink with top side ensuring effective heat transfer
  • Latest generation D-Class 2Ω stable output stage ensuring very high power with an excellent S/N ratio
  • Lo-Pass and Hi-Pass 12 dB adjustable (50 Hz to 3200 Hz) filters, providing the ability to build a two zone stereo or a single zone stereo system with subwoofer
  • Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system
  • Bass Boost adjustable via selector, for more punch from speakers
  • Special balanced input circuitry to reject electro-magnetic disturbances
  • Hi-Level and lo-level inputs to be compatible with any source
  • Short-circuit and thermal protections with auto resetting

Specifications:

  • Channel Mode: 4 - 3 - 2
  • Output Power (RMS) @ 14.4 VDC:
    • 4 Ch: 150W x 4 (4Ω)
    • 4 Ch: 250W x 4 (2Ω)
    • 3 Ch: 150W x 2 (4Ω) + 520 W x 1 (4Ω)
    • 3 Ch: 250W x 2 (2Ω) + 520 W x 1 (4Ω)
    • 2 Ch: 520W x 2 (4Ω)
  • Filters:
    • Bypass: Yes
    • Hi-Pass: A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.
    • Lo-Pass: A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.
    • Band-Pass: -
    • Subsonic: No
  • Distortion – THD (100Hz @ 4Ω): 0.03%
  • S/N Ratio (A Weighted @ 1V): 105 dB
  • Damping Factor (100Hz @ 4Ω): 200
  • Dimensions: (W) 315mm x (D) 190mm x (H) 50mm (12.40" x 7.48" x 1.97")
