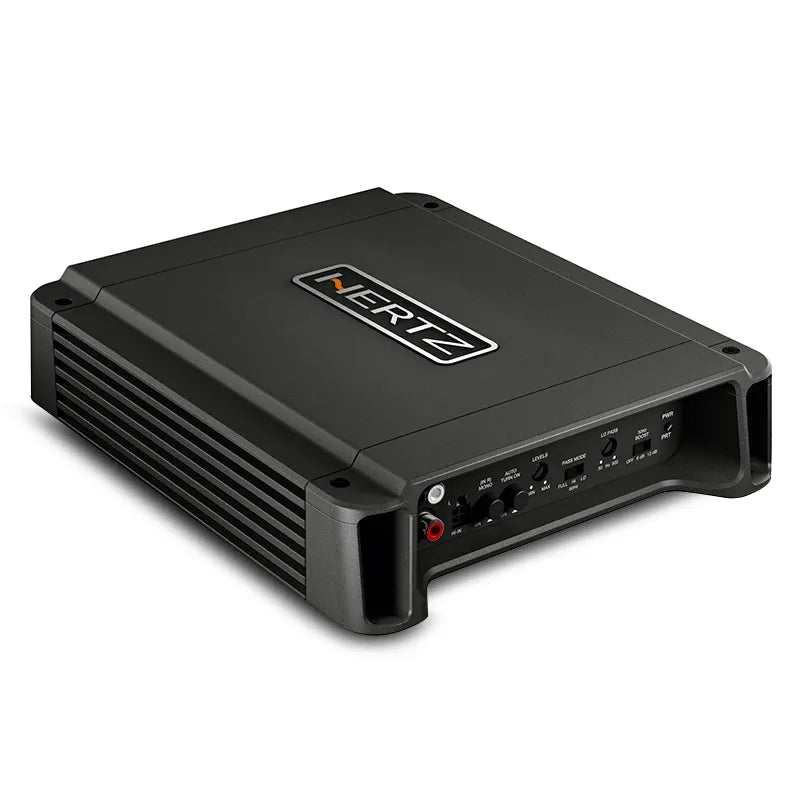

Hertz HCP 2 400W 2-Channel AB-Class Stereo Amplifier

Designed to Expand or Modify with Maximum Easiness the Factory System

2 x 100W Stereo Amplifier
The Hertz HCP 2 is a stereo, 400W car audio amplifier, designed to expand or modify with maximum easiness the factory system: featuring pre-amplified (Pre-In) inputs as well as high-level (Speaker-In) inputs, for connection with any head units. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system.

The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier. With HCP 2 high power systems can be realized: settable both in mono, to drive the subwoofer, and together with another amplifier, for more complex systems; it also features a Bass Boost filters (0 - 12 dB) to enhance low frequencies.

Features:

• Refined Heatsink With High Convection Capability:
  The extruded aluminium heatsink provides high efficiency thermal performance; using the top side of the heatsink to effectively dissipate the heat generated by the electronic components. The internal temperature remains constant at all power levels.
• Completed Filter Section:
  Large array of filters customized for each model, to achieve maximum versatility: Lo-Pass, Hi-Pass, Band-Pass, Full Range, Subsonic, Bass Boost, Phase and Mono. Filtered pre-amplified outputs along with multiple adjustments are featured on the HCP 1D, offering the user endless connection possibilities with any source.
• HCP Electronics:
  Special balanced input circuitry rejects electro-magnetic disturbances present on the Pre-amplified or Speaker level inputs. Power supply stage features a multiple winding transformer and Low-ESR 105C capacitors, selected to ensure high efficiency and current capability.
• ART:
  Automatic Remote Turn-On/Off function, automatically turns the amplifier on and off with the OEM radio; eliminates the need for a remote signal from the source when using the Speaker-In. This function can also be disabled.

Specifications:

• Channels: 2 - 1
• Power Supply:
  • Power Supply Voltage/Fuse: 11 ÷ 15 VDC / 1 x 20 A
  • Idling Current (Power On/Off) 0.4 A / 0.04 mA
• Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): 12 A
• Remote In: 7 ÷ 15 VDC - 1 mA
• ART: Automatic Remote Turn-On/Off with Speaker-In
• Amplifier Stage:
  • Distortion - THD (100 Hz @ 4 Ω): 0.01 %
  • Bandwidth: 10 ÷ 65k Hz
  • S/N Ratio (A Weighted @ 1 V): 103 dB
  • Damping Factor (100 Hz @ 4 Ω): 200
  • Pre-In Sensitivity: 0.2 ÷ 5 VRMS
  • Speaker-In Sensitivity: 0.8 ÷ 20 VRMS
  • Load Impedance (Min.):
    • @ 2 Ch: 2 Ω
    • @ 1 Ch: 4 Ω
  • Max Size: 215mm x 190mm x 50mm (8.46" x 7.48" x 1.97")
  • Weight: 1.80kg (3.96lbs)
  • Adjustable Crossovers: Yes
• Inputs / Filters:
  • Inputs: Pre-In / Speaker-In
  • Pre-Out Full Range (Front) Yes
  • Filters Full: Yes
  • Hi-Pass: 80 Hz @ 12 dB/Oct
  • Lo-Pass: 50 ÷ 500 Hz @ 12 dB/Oct
  • Mono (On/Off): Yes
  • Boost 50 Hz (Select): (0 / 6 / 12) dB
• Output Power:
  • Output Power (RMS) @ 14.4 VDC, THD 1%:
    • 2 Ch: 55 W x 2 (4Ω)
    • 2 Ch: 85 W x 2 (2Ω)
    • 1 Ch: 170 W x 1 (4Ω)
  • Output Power (RMS) @ 14.4 VDC, THD 10%:
    • 2 Ch: 65 W x 2 (4Ω)
    • 2 Ch: 100 W x 2 (2Ω)
    • 1 Ch: 200 W x 1 (4Ω)
  • CEA 2006-A Ratings:
    • RMS Power (4Ω, ≤ 1 % THD + N, 14.4 V): 50 W x 2 Ch
    • S/N Ratio (Ref. 1 W Output): 82 dBA
  • Total Power RMS: 400W
• Packaging Type: Giftbox
