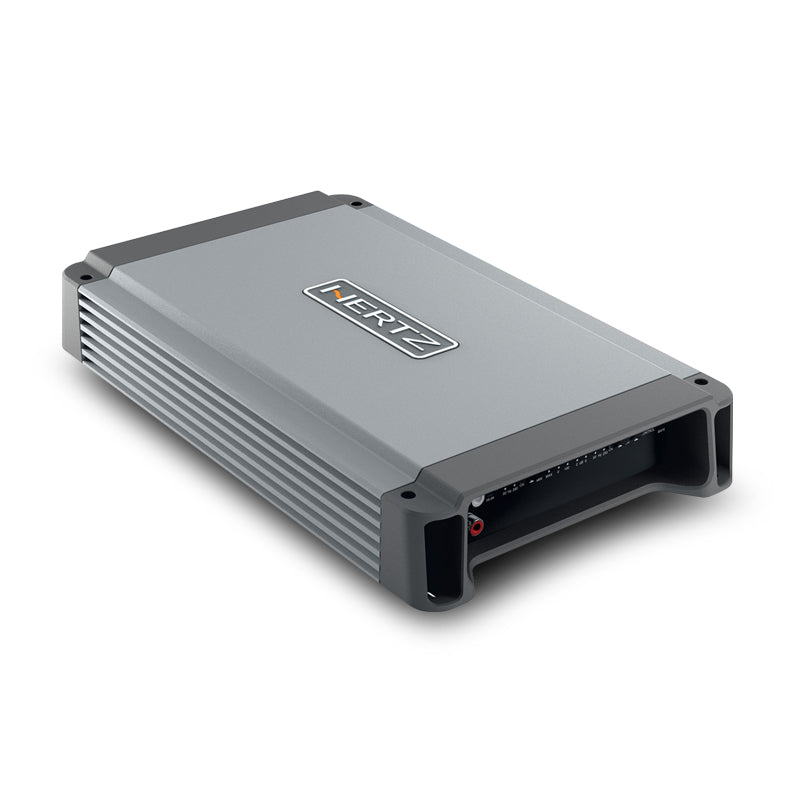

Hertz HCP 1MDK 1240W Marine D-Class Mono Amplifier
Click to open expanded view
HERTZ logo

In-Store Only

Hertz HCP 1MDK 1240W Marine D-Class Mono Amplifier

SKU: HCP1MDK
Price
$944.99
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Improving the Sound Quality of Your Audio System as Well as Your Listening Experience!

1240W Mono Marine Amplifier
The Hertz HCP 1MDK features the latest generation D-Class 2Ω stable output stage reaching the impressive RMS power of 740 W x 1 (4 Ω). Engineered and tested for the real environment of application (UV, salt-fog, vibrations, high/low temperature, thermal shock, dust), HCP 1MDK features a compact design built from extruded aluminium heatsink with a top side ensuring effective heat transfer.

The special balanced input circuitry rejects electro-magnetic disturbances and the Hi-Level and lo-level inputs are compatible with any source. The Adjustable Bass Boost (50 Hz) with continuity between 0 dB and 6 dB adds more punch to the subwoofer and SUBSONIC filter (24 dB – 25 Hz), removes very low subsonic frequencies from music signal to prevent damage to the subwoofer.

The continuously adjustable PHASE control (0 to 180°) optimises the alignment of woofer bass frequencies with sub ones. The Optional Remote Volume Control (HRC) provides the ability to adjust the subwoofer volume level from the dashboard.

Features:

  • 2Ω Stable: Power supply featuring multiple winding transformer, Low-ESR 105°C capacitors, D-Class 2 Ω stable output stage.
  • Latest Generation D-Class: Latest generation D-Class 2Ω stable output stage reaching the impressive RMS power of 150W x 4 with the excellent S/N ratio of 105dB.
  • Corrosion Protection: Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marine grade (Epoxy Coated) PCB boards.
  • Salt Fog Tested: To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.
  • Water Jet Tested: The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.

Specifications:

  • Channels: 1
  • Power Supply Voltage / Fuse: 11-15 VDC (3x30A)
  • Idling Current (Power On/Off): 0.8A / 1mA
  • Consumption @ 2Ω, 14.4 VDC (Max Musical Power): 45A
  • Remote In: 7-15 VDC - 1mA
  • ART: Automatic Remote Turn-On/Off With Speaker-In
  • Distortion - THD (100Hz @ 4Ω): 0.25%
  • Bandwidth: 10-500Hz
  • S/N Ratio (A Weighted @ 1V): 100dB
  • Damping Factor (100Hz @ 4Ω): >100
  • Pre-In Sensitivity: 0.2 - 5V RMS
  • Speaker-In Sensitivity: 0.8 - 20V RMS
  • Load Impedance (Min) @ 1Ch: 2Ω
  • Adjustable Crossovers: Yes
  • Inputs: Pre-In / Speaker-IN
  • Pre Out Hi-Pass: 50 - 250Hz @ 12 dB/Oct.
  • Filters Full: Yes
  • Lo-Pass: 50 - 250Hz @ 24 dB/Oct.
  • Subsonic (on/off): 25 Hz @ 24 dB/Oct.
  • Boost 50Hz (adjust): (0 - 6) dB
  • Phase (Adjust): (0-180) Deg.
  • Remote Volume Control (Adjust): (-50 - 6) dB
  • Output Power (RMS) @ 14.4 VDC, THD 1%:
    • 1 Ch: 600W x 1 (4Ω)
    • 1 Ch: 1100W x 1 (2Ω)
  • Output Power (RMS) @ 14.4 VDC, THD 10%:
    • 1 Ch: 740W x 1 (4Ω)
    • 1 Ch: 1240W x 1 (2Ω)
  • Max Size: 315 x 190 x 50mm
  • Weight: 3.00kg
