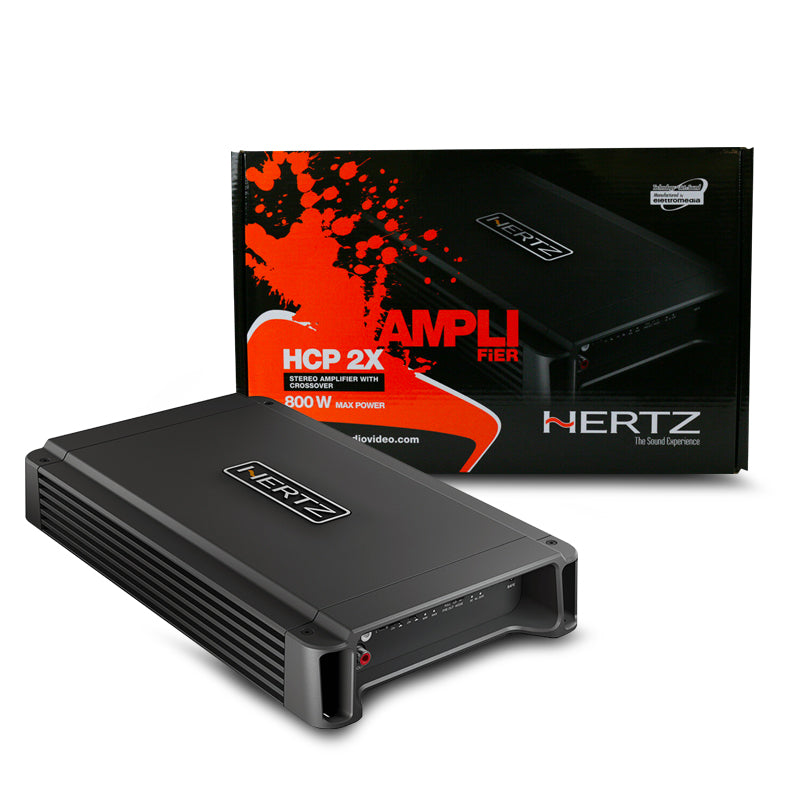

Hertz HCP 2X 800W 2-Channel High Power AB-Class Stereo Amplifier

Designed to Expand or Modify with Maximum Easiness the Factory System

Hertz Compact Power Amplifier
The Hertz HCP 2X is a brand new stereo car audio amplifier, 800W amplifier, designed to expand or modify with maximum easiness the factory system: featuring pre-amplified (Pre-In) inputs as well as high-level (Speaker-In) inputs, for connection with any head units.

All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.

With HCP 2X high power systems can be realized: settable both in mono, to drive the subwoofer, and together with another amplifier, for more complex systems; it also features a Bass Boost filters (0 - 12 dB) to enhance low frequencies.

Features:

• Refined Heatsink With High Convection Capability: The extruded aluminium heatsink provides high efficiency thermal performance; using the top side of the heatsink to effectively dissipate the heat generated by the electronic components. The internal temperature remains constant at all power levels.
• Completed Filter Section: Large array of filters customized for each model, to achieve maximum versatility: Lo-Pass, Hi-Pass, Band-Pass, Full Range, Subsonic, Bass Boost, Phase and Mono. Filtered pre-amplified outputs along with multiple adjustments are featured on the HCP 1D, offering the user endless connection possibilities with any source.
• HCP Electronics: Special balanced input circuitry rejects electro-magnetic disturbances present on the Pre-amplified or Speaker level inputs. Power supply stage features a multiple winding transformer and Low-ESR 105C capacitors, selected to ensure high efficiency and current capability.
• ART: Automatic Remote Turn-On/Off function, automatically turns the amplifier on and off with the OEM radio; eliminates the need for a remote signal from the source when using the Speaker-In. This function can also be disabled.

Specifications:

• Channels: 2 - 1
• Power Supply Voltage / Fuse: 11 ÷ 15 VDC / 2 x 20 A
• Idling Current (Power On/Off): 0. 6 A / 0.4 mA
• Consumption @ 2Ω, 14.4 VDC (Max Musical Power): 20A
• Remote In: 7 ÷ 15 VDC - 1 mA
• ART: Automatic Remote Turn-On/Off with Speaker-In
• Distortion - THD (100 Hz @ 4Ω): 0.03 %
• Bandwidth: 10 ÷ 65k Hz
• S/N Ratio (A Weighted @ 1V): 105dB
• Damping Factor (100 Hz @ 4Ω): 300
• Pre-In Sensitivity: 0.2 ÷ 5 VRMS
• Speaker-In Sensitivity: 0.8 ÷ 20 VRMS
• Load Impedance (Min):
  • @ 2 Ch: 2 Ω
  • @ 1 Ch: 4 Ω
• Max Size: 315 x 190 x 50mm (12.40" x 7.48" x 1.97")
• Weight: 2.57kg (5.66lbs)
• Adjustable Crossovers: Yes
• Output Power (RMS) @ 14.4 VDC, THD 1%:
  • 2 Ch: 100W x 2 (4Ω)
  • 2 Ch: 160W x 2 (2Ω)
  • 1 Ch: 320W x 1 (4Ω)
• Output Power (RMS) @ 14.4 VDC, THD 10%:
  • 2 Ch: 120W x 2 (4Ω)
  • 2 Ch: 200W x 2 (2Ω)
  • 1 Ch: 400W x 1 (4Ω)
• RMS Power (4Ω, ≤ 1 % THD + N, 14.4 V): 100W x 2 Ch
• S/N Ratio (Ref. 1W Output): 83 dBA
• Total Power RMS: 800W
• Pre Out Full: Yes
• Hi-Pass: 50 ÷ 3200 Hz @ 12 dB/Oct
• Lo-Pass: 50 ÷ 3200 Hz @ 12 dB/Oct.
• Mono (On/Off): Yes
• Boost 50 Hz (Select): (0 / 3 / 6) dB
