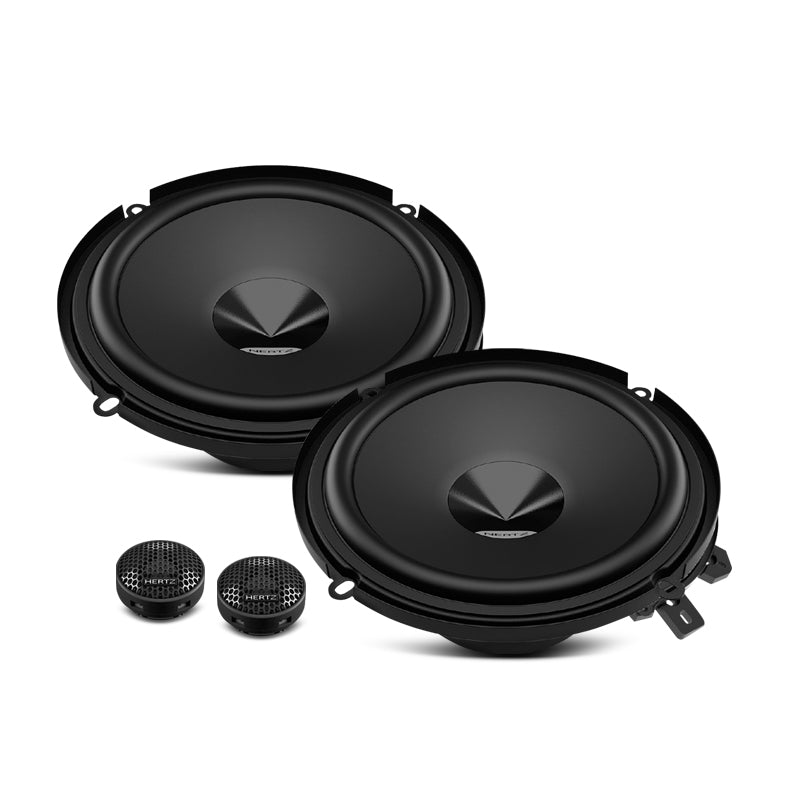

Hertz DSK 160.3 Dieci 6" 160W 2 Way Component Speakers Pair

The Hertz DSK 160.3 is a Dieci series 6 inch 2 Way component set with a 160mm V Cone woofer and a 24mm PEI dome tweeter. It handles 80W continuous and 160W peak at 4 ohms with 93dB sensitivity.

An adaptor ring for GM and Honda models and a lead with a built in tweeter crossover make it an easy OEM upgrade.

Problems it solves

• No room for a separate crossover box. The tweeter lead has its crossover built in.
• Speakers that will not fit GM or Honda doors. An adaptor ring for those models is supplied.
• Muddy midrange from factory speakers. The V Cone gives clear mid and high detail off axis.

DSK1603 specifications

• Woofer: 160mm, water repellent pressed paper V Cone, 25mm voice coil
• Tweeter: 24mm PEI dome, neodymium magnet
• Power: 80W continuous, 160W peak
• Impedance: 4 ohm
• Sensitivity: 93dB
• Frequency response: 50Hz to 23kHz
• Crossover: high pass
• Weights: woofer 0.73kg, tweeter 0.03kg, crossover 0.16kg
• Cut out: 127mm
• Mounting depth: 56.5mm

Fitment and compatibility

Cars with 6 inch speaker openings, with an adaptor ring for GM and Honda models.

What is in the box

• 2 DV 160.3 woofers
• 2 DT 24.3 tweeters
• Cables with built in crossover
• Adaptor ring for GM and Honda models
• Tweeter mounting accessories for surface or flush mounting

Install notes

Tweeters can be surface or flush mounted with the supplied accessories.

The butyl rubber cover protects the woofer motor from knocks in the door.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

DSK1603 FAQs

Where is the crossover on the DSK 160.3?

It is built into the tweeter cable.

What sensitivity does the Hertz DSK 160.3 have?

93dB.

Can the DSK 160.3 tweeters be flush mounted?

Yes, accessories for external or embedded mounting are included.

Do the DSK 160.3 woofers suit 6.5 inch factory doors?

They want a 127mm opening and 56.5mm of space behind the mounting face; compare that with your door, or ask us with your vehicle details.
