Hertz DBA 201 Dieci Series 8" 440W Double Passive Radiator Loaded Active Subwoofer Enclosure

Offers High Performance, Precise Control & Maximum Output From A Compact, Stylish Design!

Dieci Series 8" 440W Active Loaded Subwoofer

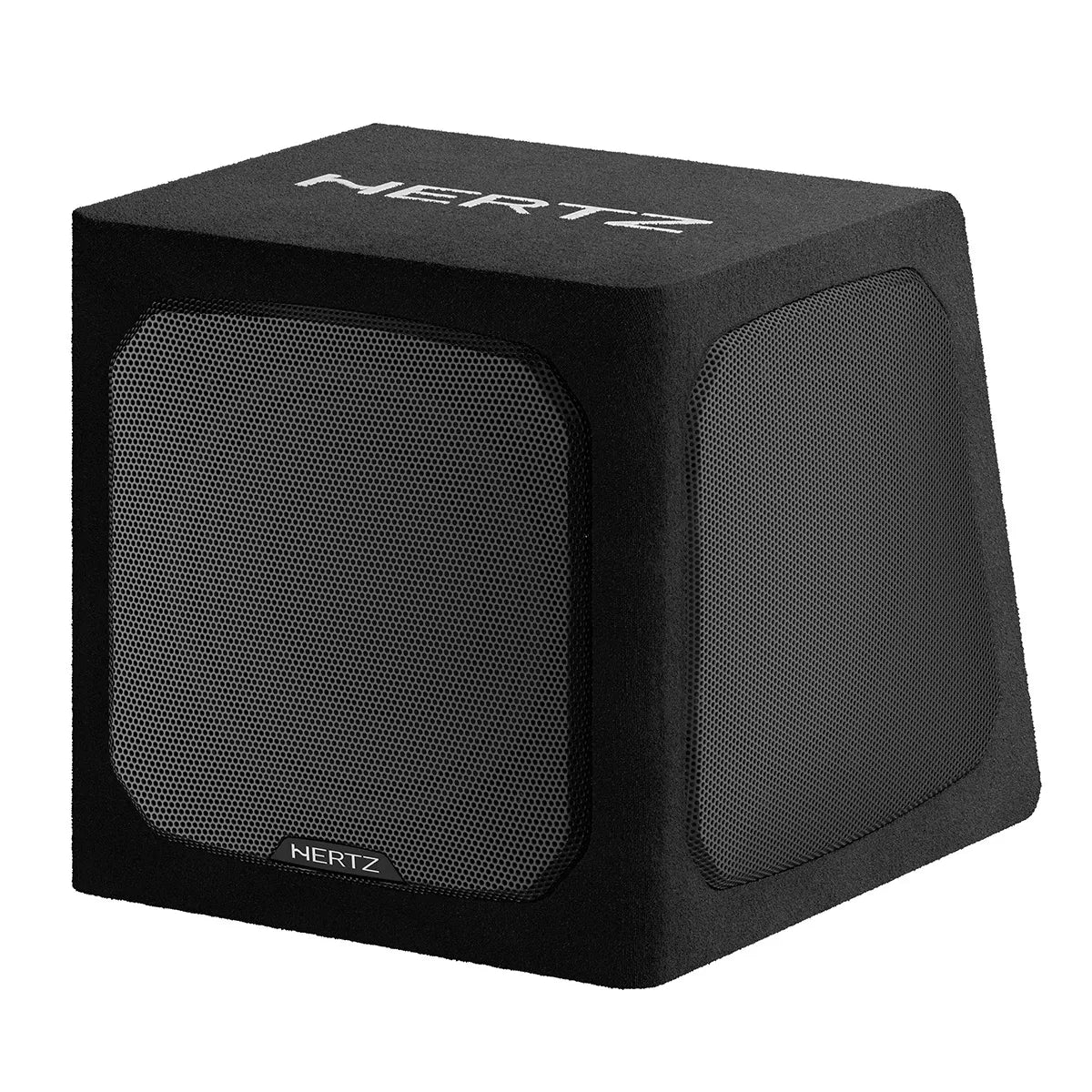

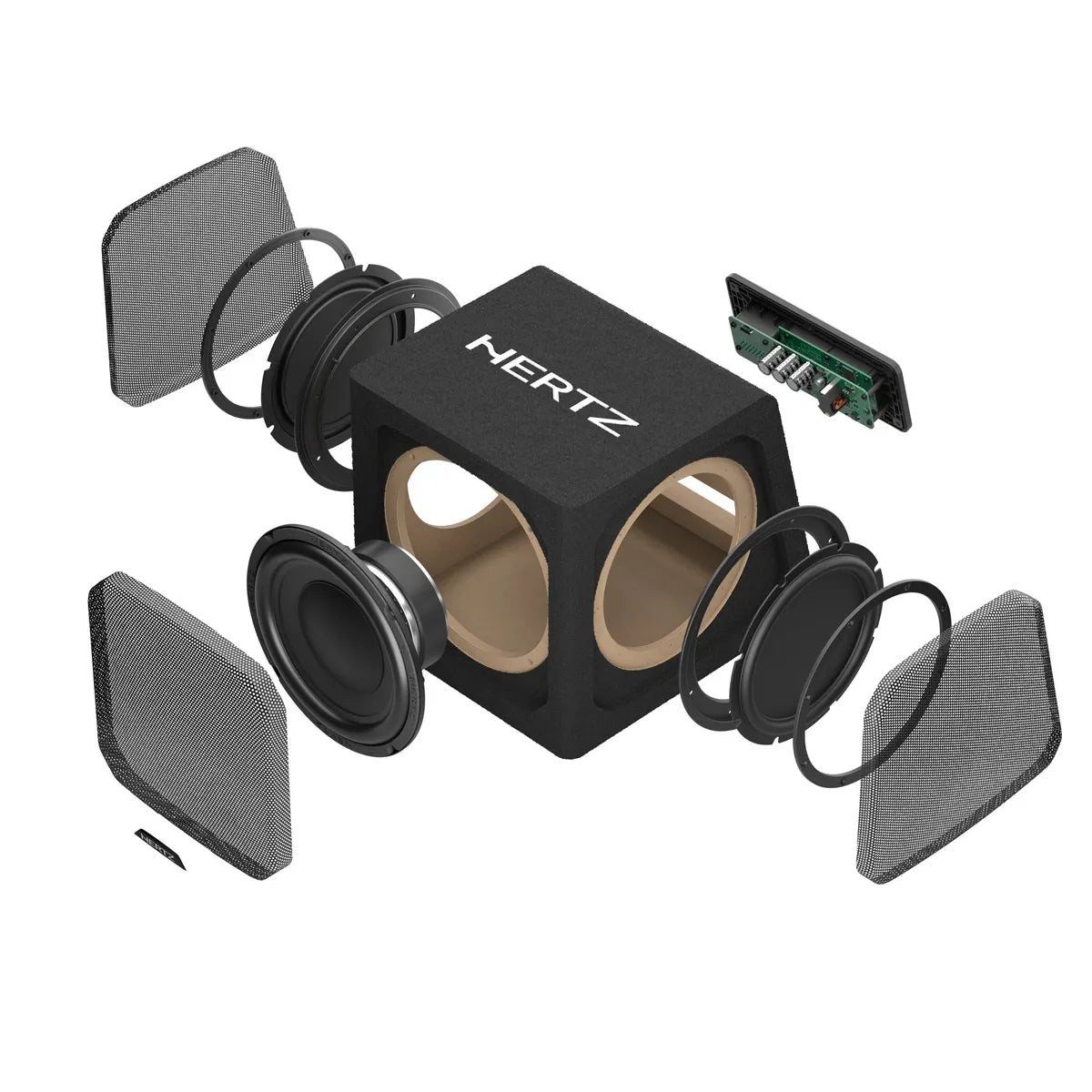

The Hertz DBA 201 (Order Code DBA201) active subwoofer box features a double passive radiator enclosure made with solid MDF and optimized with FEM simulation to ensure superior performance, maximizing the subwoofer output. The massive magnet of the 8-in. driver provides optimal control during the highest cone excursion.

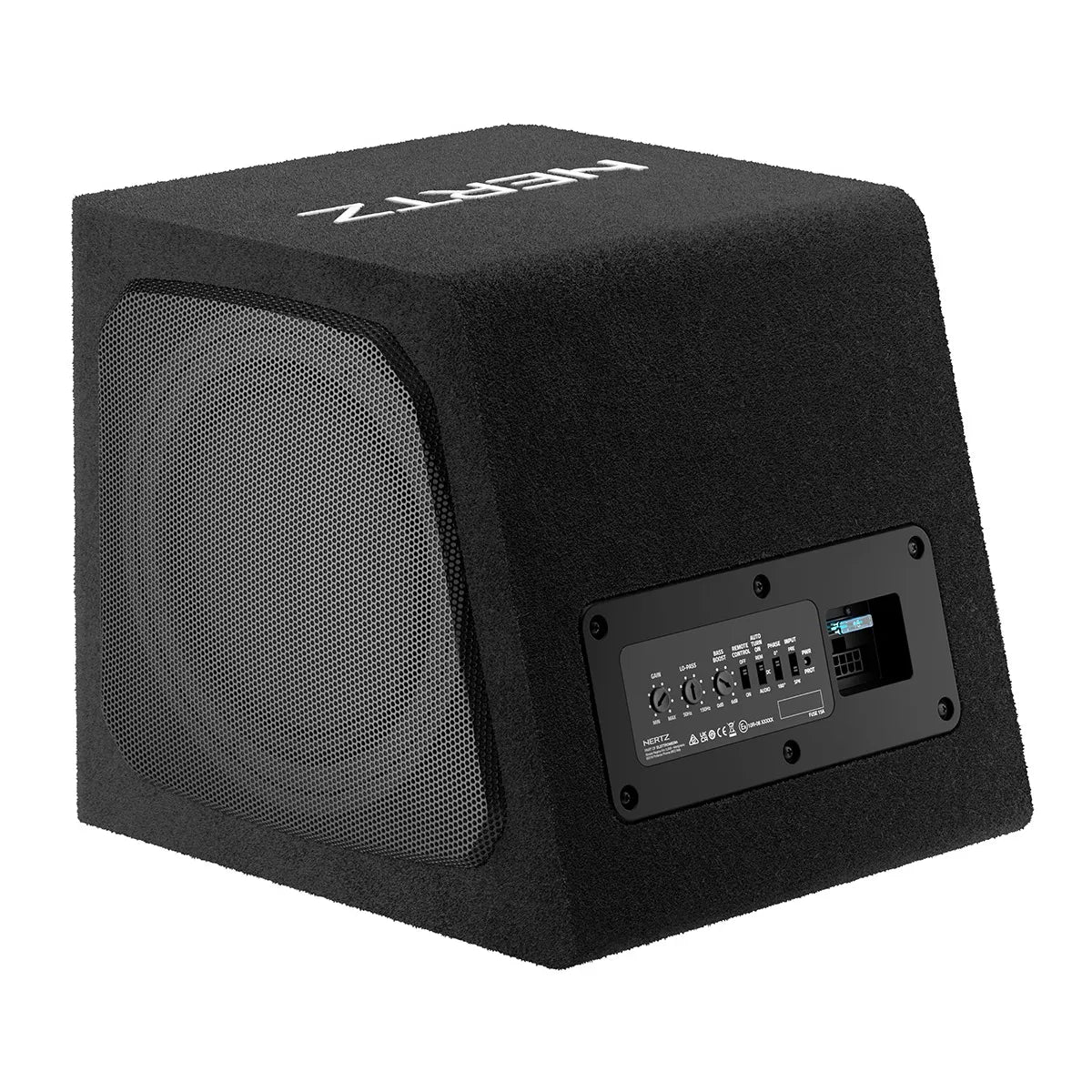

Extra Full Set Controls For Fine-Tune In-Car Performance
The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the Hertz DBA 201 to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization.

With the phase inverter (0-180°), you can optimize phase alignment between the Hertz DBA 201 and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.

Auto Turn-On & Standby Mode
The built-in audio sense circuit allows the Hertz DBA 201 to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.

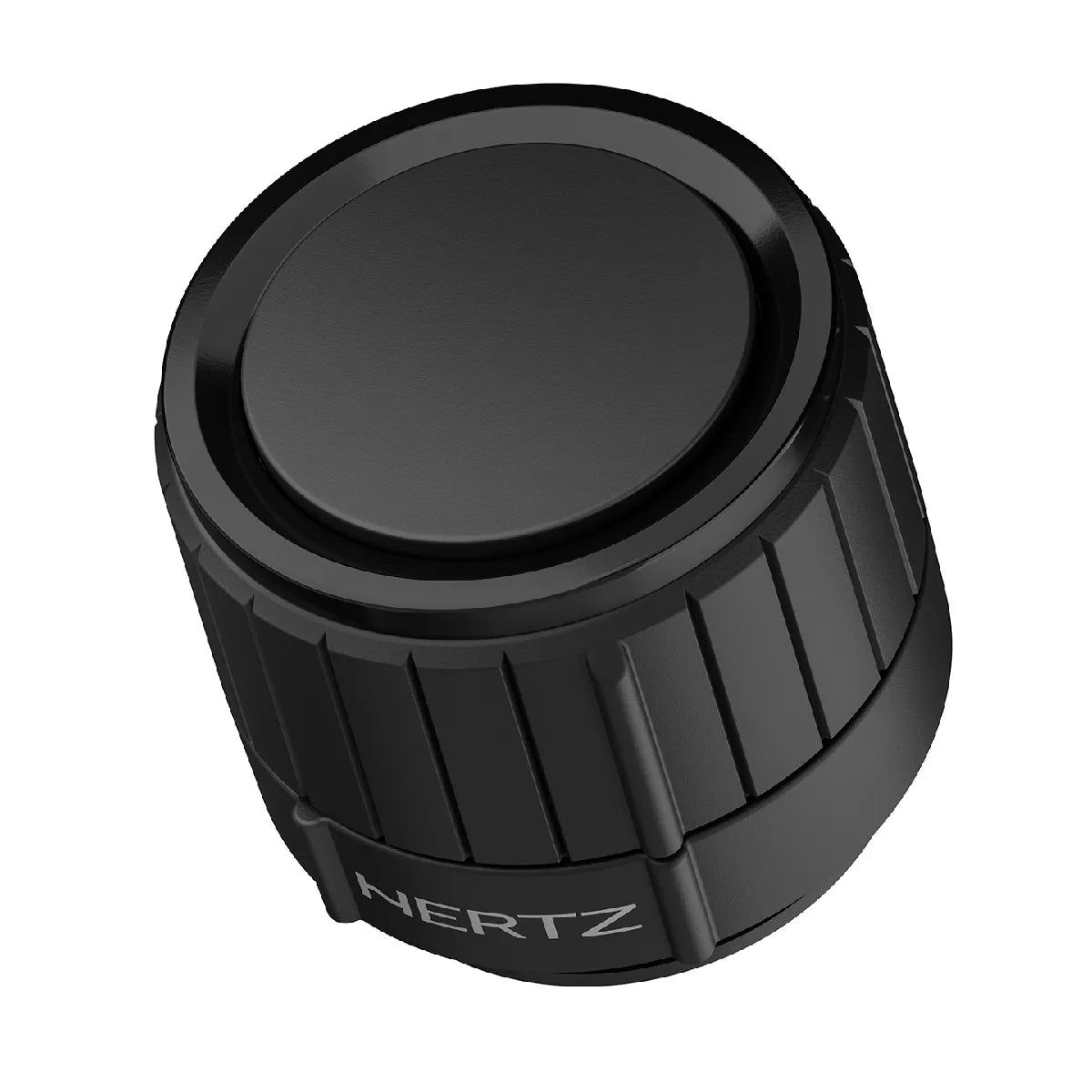

Provided Remote Level Control
The Hertz DBA 201 level can be adjusted (-15 dB ÷ 0 dB) using the stylish remote control. The remote control is ready for tape surface mounting, screw surface mounting, and recessed mounting, thanks to the provided accessories.

Features:

• 440-Watt Peak Class-D Amplifier
• Compatible with every car audio system.
• Plug & Play Connection
• High performance in a compact stylish design.
• Extra full set of controls to fine-tune the in-car performance.
• Auto Turn-On & Standby Mode
• Provided Remote-Level Control

Specifications:

• Woofer Size: 200mm (8")
• Power Handling - Continuous: 220W
• Power Handling - Peak: 440W
• Impedance: 0.4-Ohm
• Design: Active Subwoofer Box With Double Passive Radiators
• Voice Coil: 38.6mm (1.5")
• Frequency Response: 32 - 400Hz
• Magnet Size: (D) 115mm x (D) 47mm x (H) 25mm
• Magnet: High-Density Flux Ferrite
• Cone: Pressed Paper
• Voice Coil Type: Copper
• Power Supply Voltage: 6.5 - 18V DC
• Start - Stop Voltage: 6V DC
• Idling Current (Power ON/OFF): 260mA / 1mA
• Consumption @ 14.4V DC (Max Musical Power): 8.5A
• Remote In: 4 - 15V DC - 1mA
• Pre Input Signal Turn ON: 10V RMS (mV)
• Speaker Input DC Turn ON: 2V DC
• Distortion - THD (100Hz @ 4-Ohm): 0.15%
• Bandwidth: 15 - 150Hz
• S/N Ratio (A-Weighted @ 1V): 100dB
• Output Power (RMS) @ 14.4V DC, 1% THD: 220W
• Pre-ln Sensitivity: 0.2 - 5V RMS
• Lo-Pass: 50 - 150Hz
• Phase Switch: Yes
• Remote Control: 0 ~ -15dB
• Unit Measurements: (W) 291mm x (D) 315mm x (H) 264mm
• Component Weight: 6.70kg
