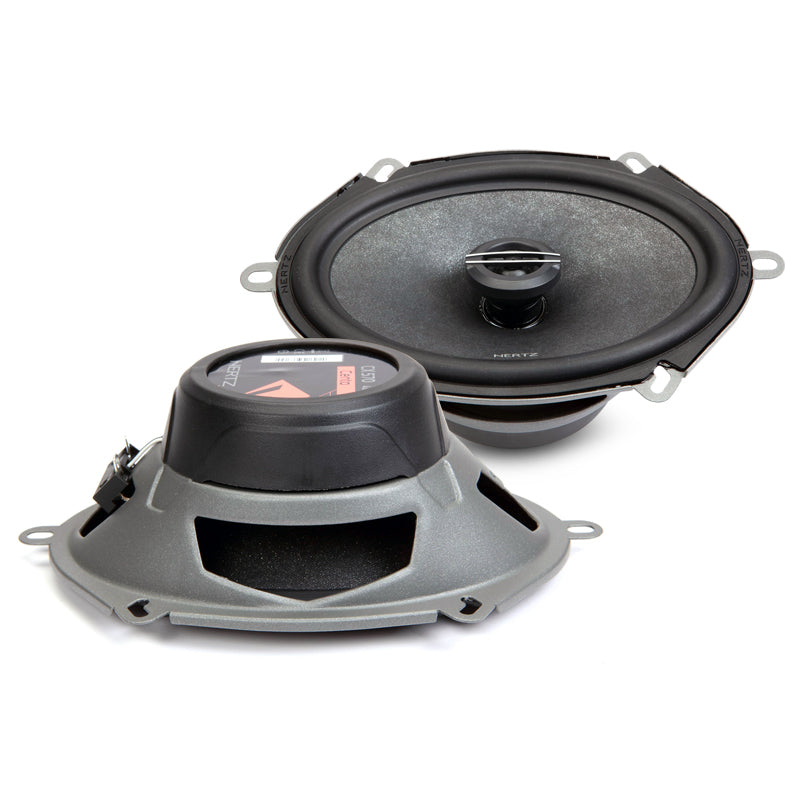

Hertz CX570 5x7" 210W Cento 2-Way Coaxial Speaker System

Coaxial Loudspeakers Represent a Major Design Challenge Due to Their Acoustic Outputs Critical Nature!

Being installed in an OEM placement often unfavorable to reproduction, our R&D experts made strides to achieve high performance, while promptly addressing the problem. Hence, the Cento two-way coaxials CX570 features the new 24-millimetre (0.9") Tetolon ® dome tweeter that delivers a more musical and detailed sound compared to ones made from traditional plastic materials. Plus, the dispersion has been optimised for off-axis listening by adding in the SPP-M cone (Semi Pressed Paper-Mica) that ensures superior acoustic and damping characteristics across the board.

Features:

• Soft Tetolon ® fiber 24-millimetre dome tweeter cooled with ferrofluid, for extended and natural high frequencies
• RHFCâ„¢ (Rotary High Frequency Contour) directable tweeter for optimal offaxis frequency response and dispersion on the listening point
• Adjustable high frequency system for perfect frequency response to any listening point
• Tweeter faceplate geometry optimised with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations
• 25-millimetre woofer voice coil featuring an aluminum former to guarantee high excursion and power handling
• 5x7" semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping
• High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels
• Compact and transparent three-spoke basket acoustically combined with a rubber magnet cover for total damping of spurious vibrations
• Includes an elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh

Specifications:

• Speaker System: 2-Way Coaxial
• Size:
  Woofer: 5x7"
  Tweeter Diaphragm: 24mm (0.9")
• Voice Coil Size:
  Woofer: 25mm (1")
  Tweeter: 13mm (0.5")
• Power Handling:Sensitivity: N/A
  Peak: 210W
  Continuous: 70W
• Impedance: 4Ω
• Frequency Response: 55 ÷ 22KHZ
• Woofer Magnet Size: 85mm <3.35"> (D) x 32mm <1.26"> (D) x 15mm <0.59"> (H)
• Tweeter Magnet Size: 13mm <0.51"> (D) x 2mm <0.08"> (D)
• Woofer Magnet: High Density Flux Ferrite
• Tweeter Magnet: Neodymium
• Cone: Semi-Pressed Paper & Mica
• Dome: Tetolon
• Weight of One Speaker: 1.0kg (2.2lbs)
• Xmech Length: 4.9mm (0.19")
