Hertz CBA 250 Cento Series 10" 500W Active Flat Sealed Box Subwoofer Enclosure

High-Performance Amplification Module that Enhances All the Passive Box Technologies!

10" Active Flat Sealed Subwoofer Box
The Hertz CBA 250 Active Subwoofer Box, with the 10-inch driver, features a dedicated high-performance amplification module that enhances all the passive box technologies, such as the 2S²(2 Sides / 2 Sounds) design, the Plug & Play terminal block and ultra-compact size. The SSP (Sub Smart Plug) terminal block is provided with a single Plug & Play connector to be able to disconnect the box easily and safely. The amplification module, with power outputs of 250W RMS, is developed with he-li technology (High Efficiency / Low Impedance), which thanks to the absence of the DC-DC voltage booster reaches the impressive 90% efficiency level, very close to the theoretical limit of the D-Class.

The Butterworth low pass filter at 12dB/Oct. with variable cut-off frequency (50-200 Hz) can be bypassed when used with an external processor with pre-out output dedicated to the sub. The adjustable bass-boost control (0 ÷ 6 dB) at 45 Hz allows the user to emphasize the response on the lower side of the spectrum and the Phase control (0 - 180°) completes the equipment. The high-level speaker-in input on the multi-pole connector eases the integration with OEM audio systems while the low-level input on RCA is dedicated to the connection with after-market sources.

High-Efficiency, Low Impedance
Integrated 500 W peak/250 W RMS @ 0.4 Ω D-Class amplifier featuring he-li technology (high efficiency / low impedance) without switching power supply, for a performance next to ideal.

Sub Smart Plug
The SSP (Sub Smart Plug) terminal block is provided with a Plug&Play connector to be able to disconnect the box easily and safely.

2 Side, 2 Sound
Two sides, and two sound designs provide the ability to select between Down-Firing positioning to increase the low-frequency extension and Up-Firing installation to obtain more punch and definition.

Features:

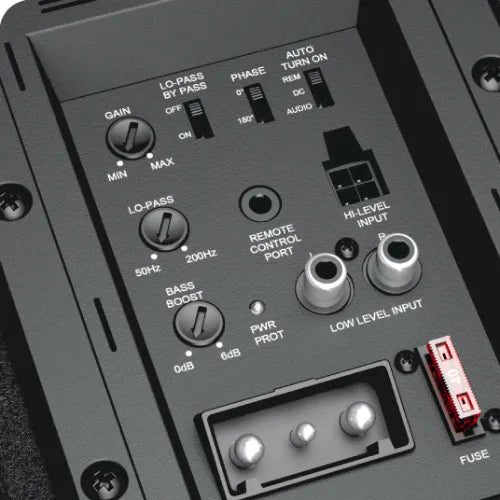

• Butterworth low-pass filter at 12dB/Oct. with variable cutting frequency (50-200 Hz), Subsonic filter, phase control (0 – 180°), and adjustable bass-boost 0÷6 db @ 45Hz.
• Defeatable filter to use the sub-dedicated output of a processor.
• High-level audio input on multi-pin connector for maximum OEM integration and low level on RCA for aftermarket sources.
• ART turn-on function (Automatic Remote Turn-On) is selectable among Remote-in, Hi-level, and Audio signals.
• Box with ultra-low profile (6.22 in. / 158 mm) in air suspension, designed to take full advantage of the performance of the 10-inch high-impedance driver.
• Down-firing leveling feet with Velcro inserts included for a secure grip with the carpet, ensuring extreme ease of removal.
• Rounded corners allow easy placement in the trunk and act as a reinforcement to reduce enclosure resonances.
• The exclusive design of the cone, dust-cap, and basket geometry to achieve a wide linear excursion (9 mm in one direction), keeping the depth required for the assembly to a minimum.
• HRC AP Remote Control Included
• A sturdy metal grille is included, for total protection of the subwoofer driver.

Specifications:

• Size: 250mm (10")
• Power Handling - Continuous: 250W
• Power Handling - Peak: 500W
• Impedance: 0.4Ω
• Design: Active Sealed Subwoofer Box
• Voice Coil: 60mm (2.36")
• Frequency Response: 20 - 200Hz
• Magnet Size: 140mm x 70mm x 30mm
• Magnet: High-Density Flux Ferrite
• Cone: Pressed Paper
• Xmech: 14.75mm
• Voice Coil Type: Copper
• Weight: 13.48kg
