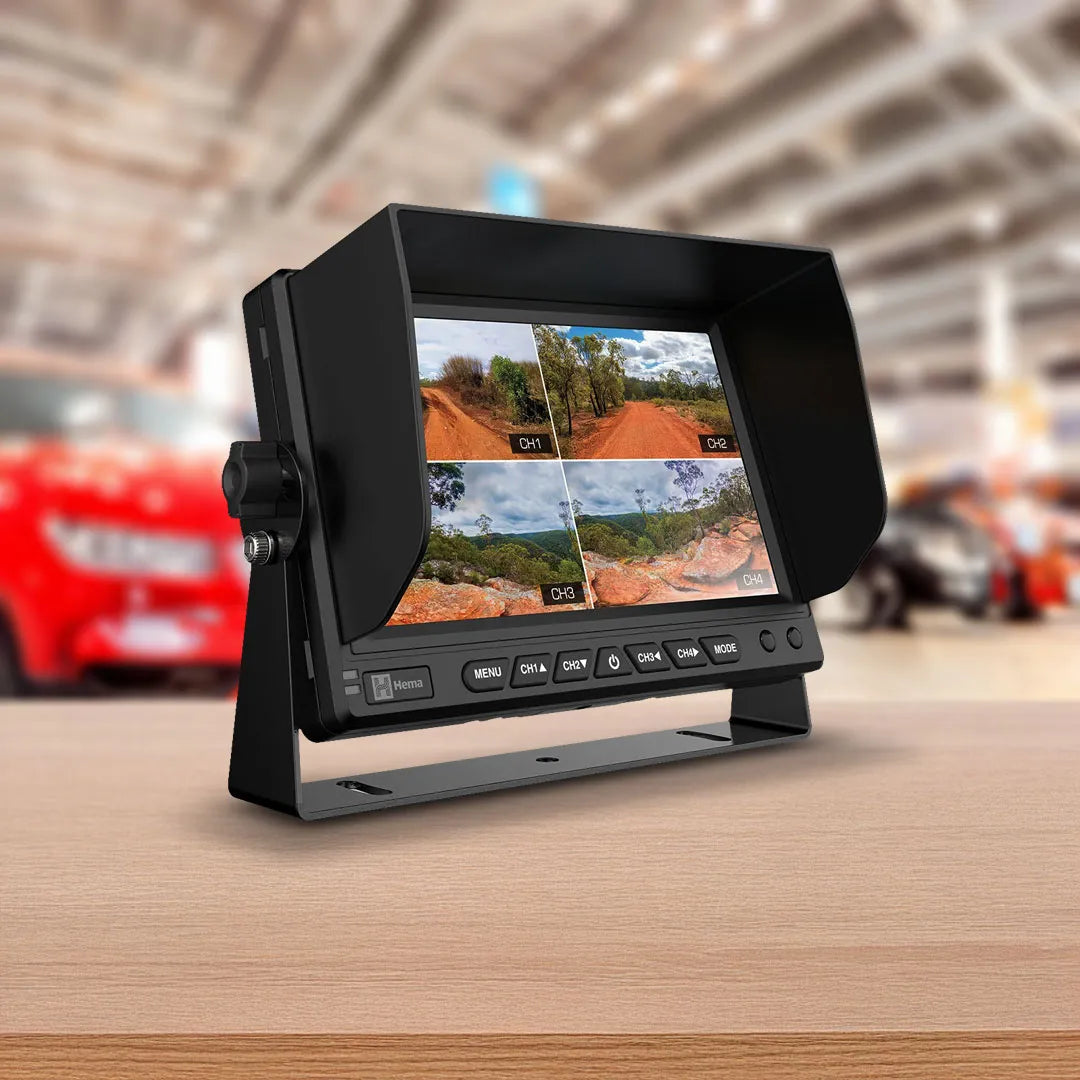

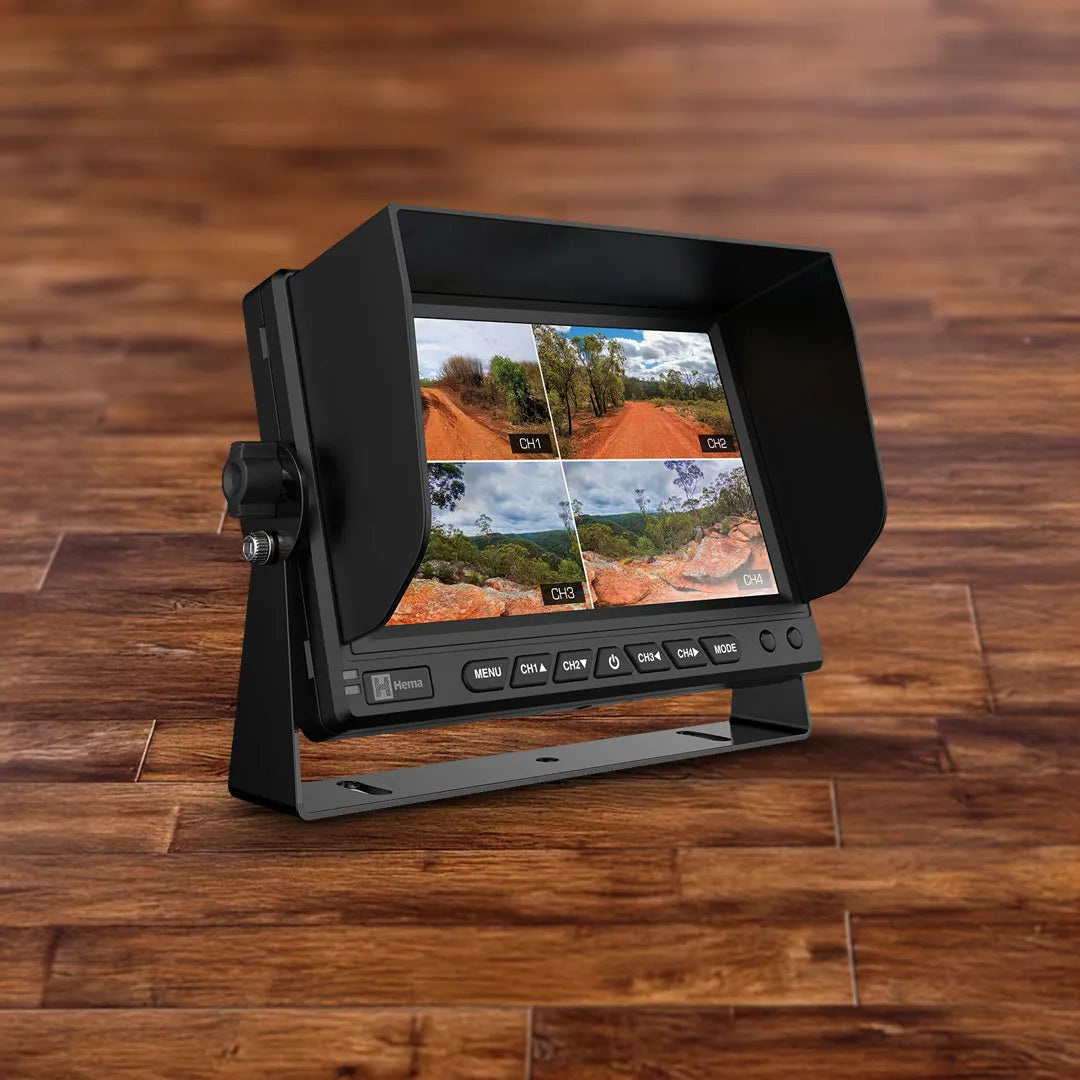

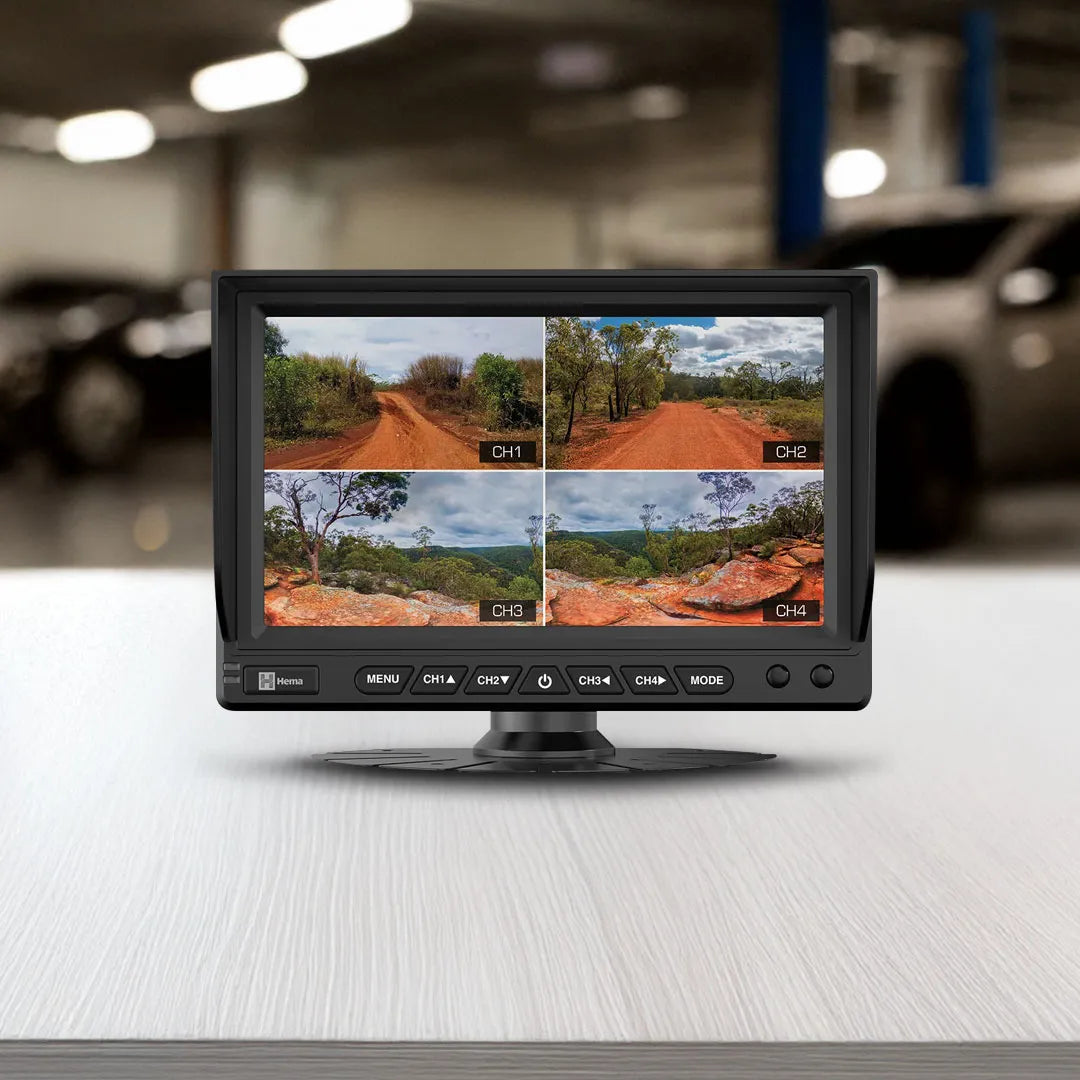

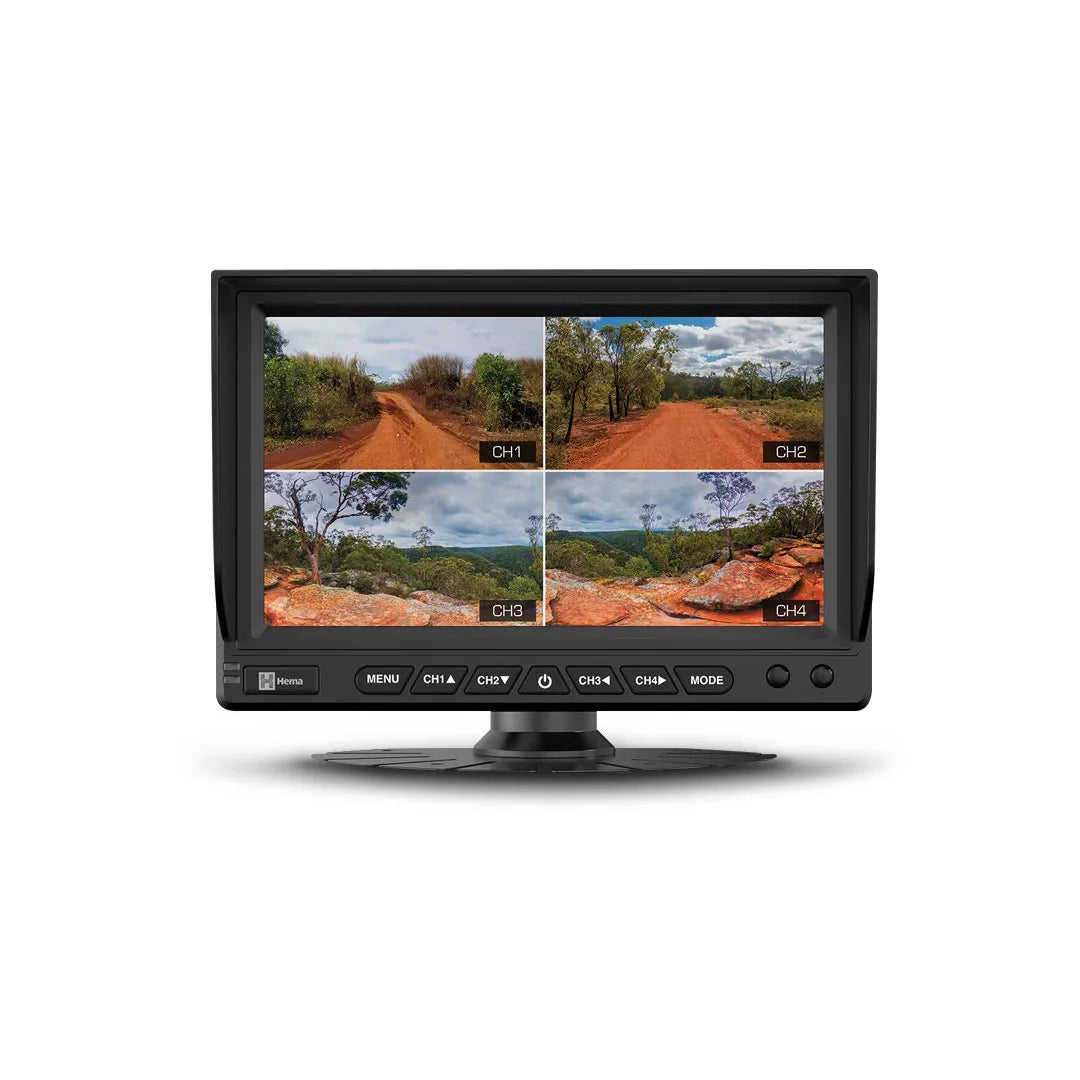

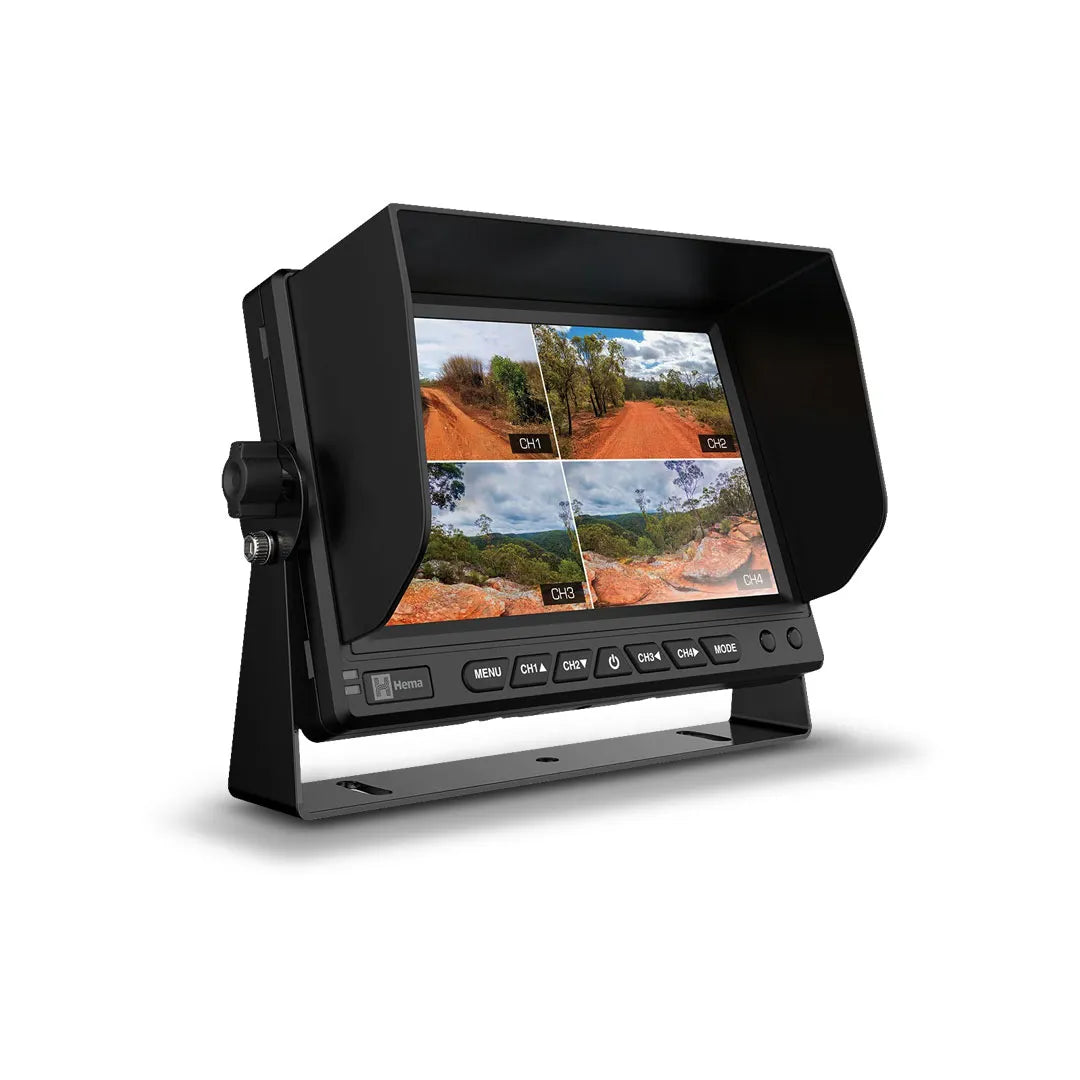

Hema HM-MNT 4-Channel AHD Quad Display Touchscreen Reversing Monitor

Designed to Seamlessly Integrate with Hema HM-CAM15 & HM-CAM202 Rear Cameras!

AHD Quad Display Touchscreen Reversing Monitor
Experience unmatched safety and convenience with the Hema HM-MNT AHD Quad Display Touchscreen Reversing Monitor. Designed to seamlessly integrate with Hema HM-CAM15 and HM-CAM202 rear cameras, this 7” touchscreen monitor allows connection to up to four cameras, providing 360° coverage for your vehicle. Compatible with CBVS and AHD camera technologies, it ensures versatility and high-resolution clarity.

Dual mounting options cater to various dashboard preferences, while the included remote control adds convenience. Packed with advanced features like quad display mode and image rotation control, the monitor guarantees optimal control and customisation. With a reliable 6-pin gold-plated connector and a detachable sun visor for bright conditions, this monitor is suitable for anyone with a caravan, camper trailer, fifth-wheeler, or truck, offering 12V/24V compatibility for a versatile and reliable driving experience.

Please Note: The initial installation of the reversing camera needs to be wired by a qualified auto electrician. Compatible Reversing Cameras are sold separately.

Features:

• Versatile Connectivity - comprehensive 360° coverage around your vehicle, ensuring unparalleled awareness of your surroundings. Compatible with both CBVS and AHD camera technologies.
• Crystal-Clear Display - a vibrant 1024 x 600 AHD Screen Resolution and 7” touchscreen display, delivers high-quality resolution with sharp images and fine details.
• Convenient Dual Mounting Options - offers installation flexibility, catering to various dashboard configurations. A U-she bracket mount and a 3M dashboard mount are included.

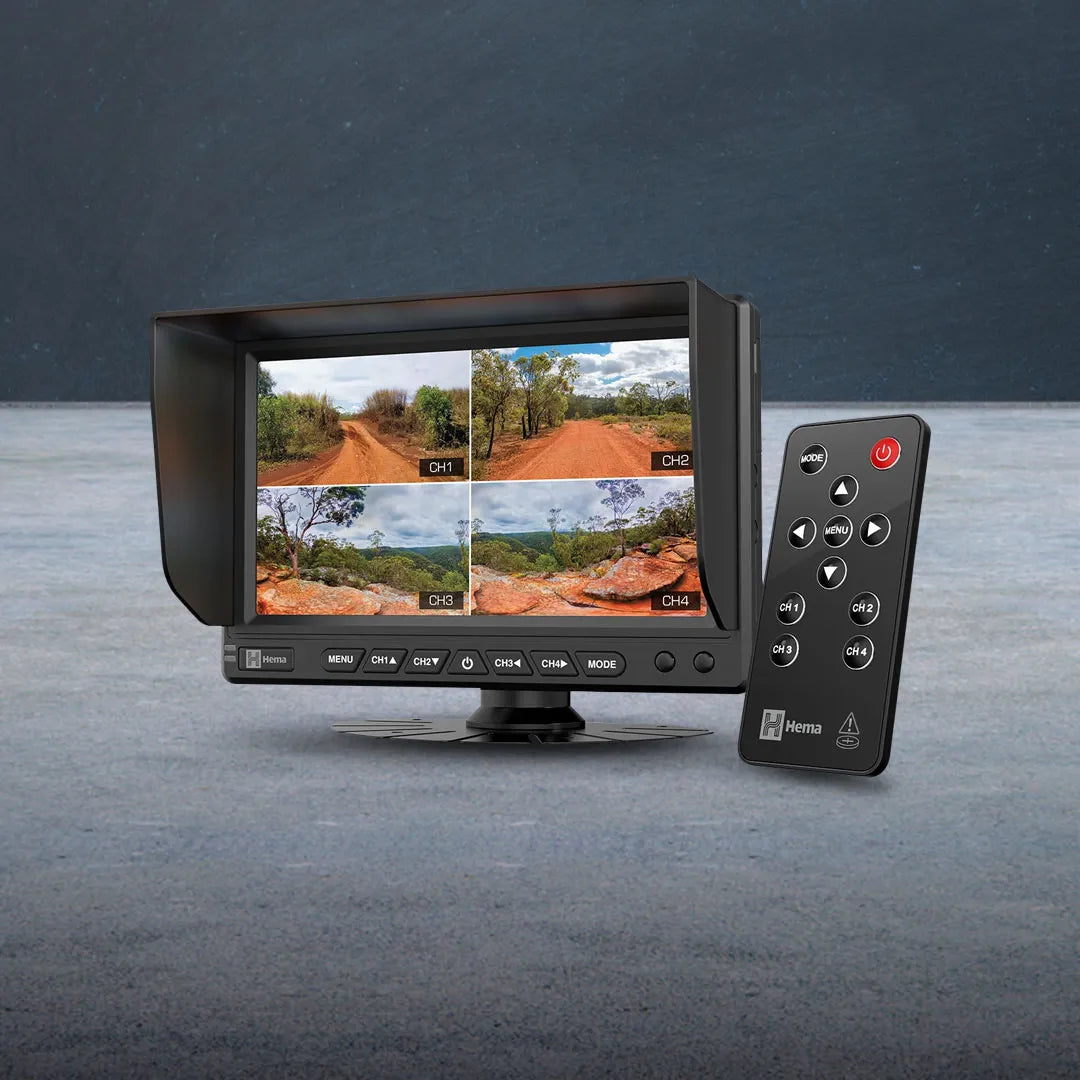

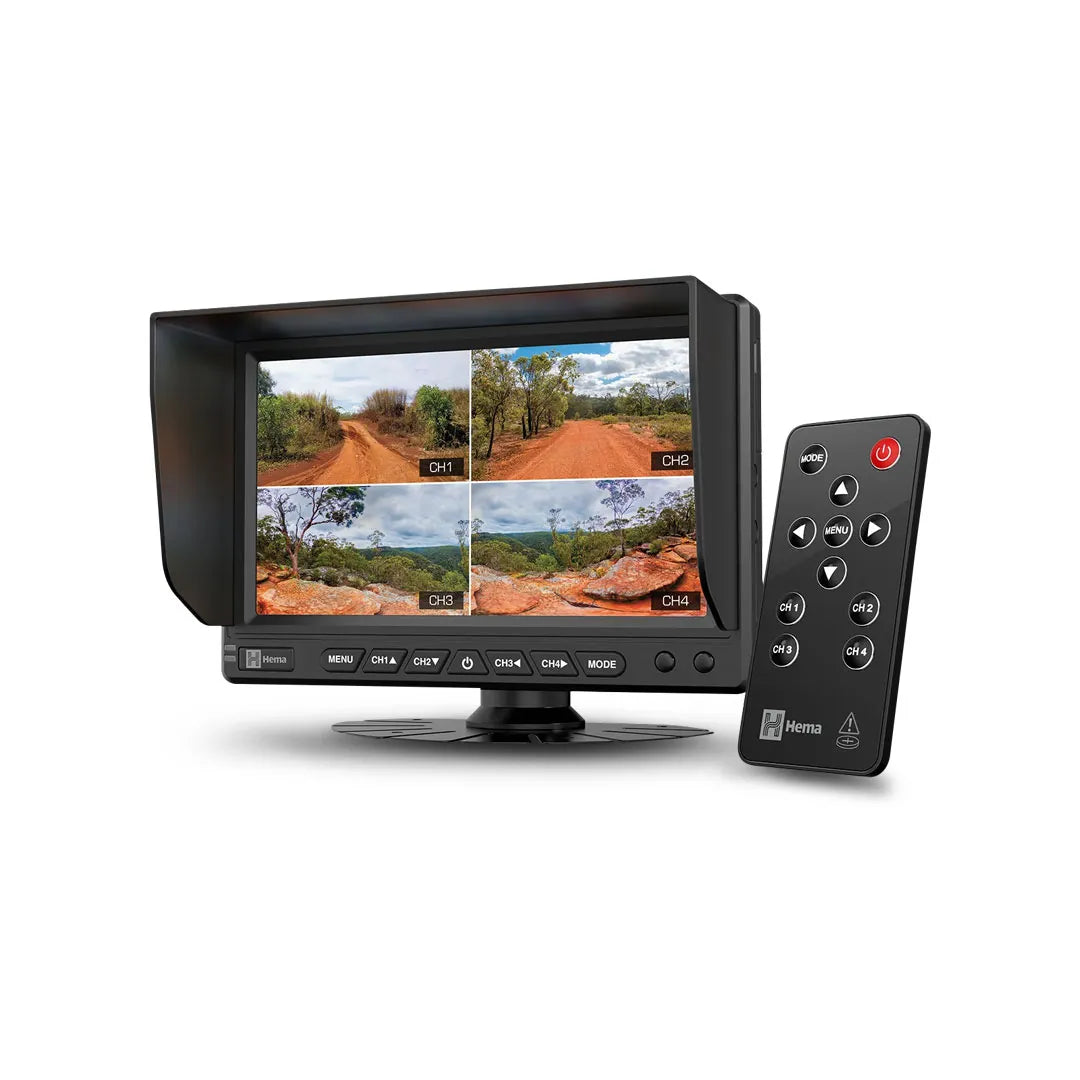

• Remote Control for Added Convenience - To enhance user convenience, a remote control is included with the monitor. This is particularly useful when the monitor is mounted on larger dashboards, allowing you to control and navigate the features with ease without reaching for the device.
• Reliable connectivity - Equipped with a 6-pin gold-plated connector, the HM-MNT AHD Display Monitor ensures a secure and reliable connection with your cameras.
• Sun Visor for Bright Conditions - enhance visibility in bright sunlight with the detachable sun visor.
• All-around visibility - With four cameras installed, never miss a spot with all-around vehicle coverage.

Specifications:

• Compatibility: Hema HM-CAM15 7 HM-CAM202 Rear Cameras
• LCD Size: 7" Analogue High Definition (AHD) IPS Touchscreen
• Brightness: 600 cd/m2
• Touchscreen: Yes
• Backlight: LED
• Screen Resolution: 600 (H) x 1024 (W)
• Video System: PAL/NTSC auto
• Camera Compatibility: AHD (720P, 960P, 1080P) / CVBS Compatible
• Viewing Angle: Left/Right/Up/Down: 90°
• Quad Split: Built-In Quad Interface

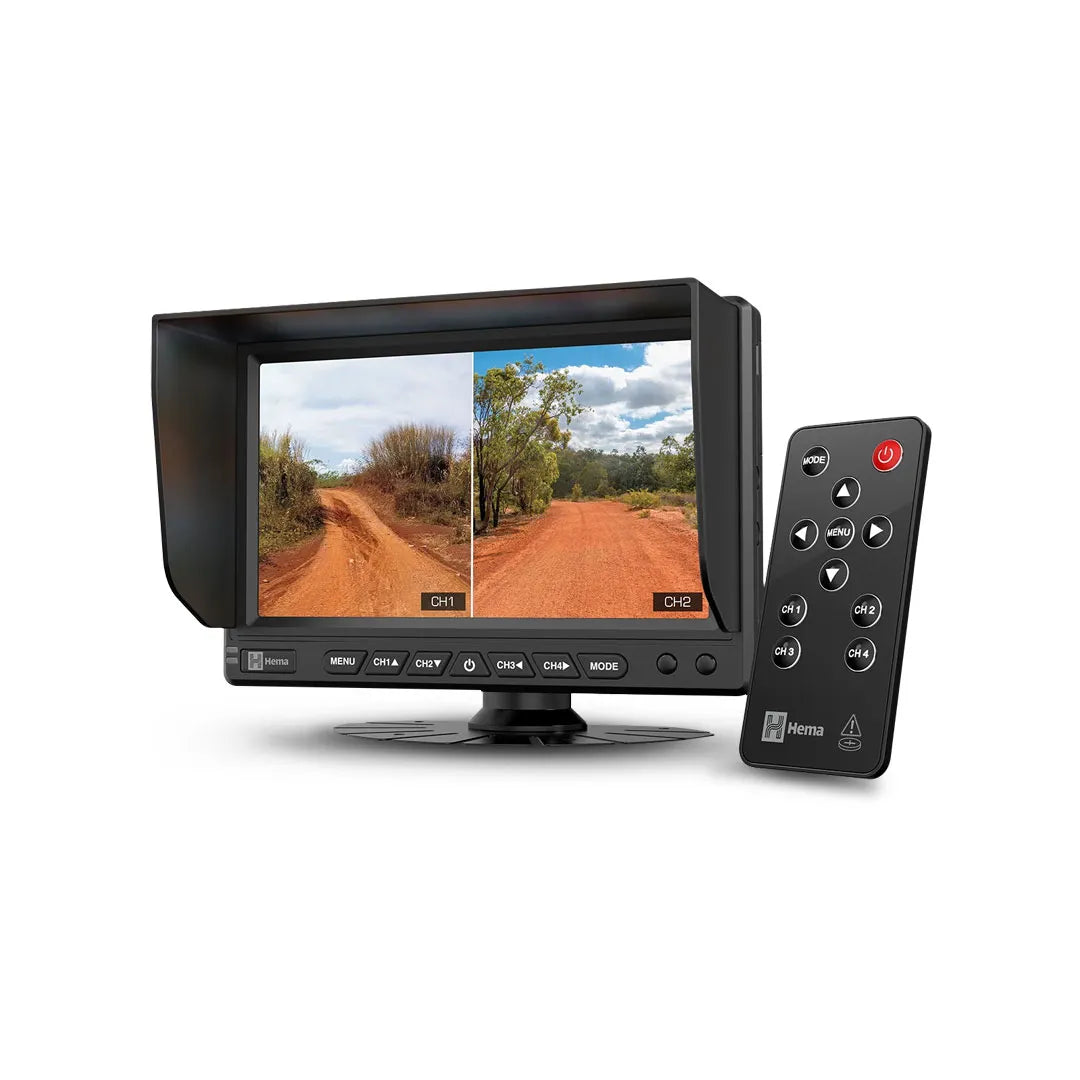

• View Mode: Selectable Single / Dual / Quad View
• Trigger Priority: CH 1 > CH 2 > CH 3 > CH4
• Trigger Specification: 12V-32V DC (Adjustable Delay Time 0-20 Seconds)
• Input Voltage: 12V - 32V DC
• Input Current: 700mA @ 12V DC
• Working Temperature: -10°C @ 65°C
• Menu Language: English
• Mirror Image: Mirror Image & Rotation Available
• Camera Inputs: 4
• Sun Visor: Detachable
• Remote Control: Included
