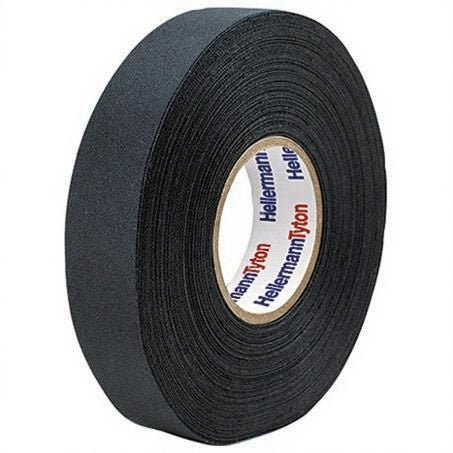

Roll of HellermannTyton PROTECT250 black polyester cloth harness tape, 19mm wide
Roll of HellermannTyton PROTECT250 black polyester cloth harness tape, 19mm wide
Click to open expanded view

HellermannTyton PROTECT250 High Temp Cloth Tape 19mm x 25m Heat Resistant Roll

SKU: PROTECT250
Price
$28
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Roll of HellermannTyton PROTECT250 black polyester cloth harness tape, 19mm wide

HellermannTyton PROTECT250 High Temp Cloth Tape 19mm x 25m Heat Resistant Roll

$28

Product features

PROTECT250 is a 19mm wide, 25m roll of polyester cloth tape from HellermannTyton, rated from minus 40°C to 150°C. It is the tape for wrapping looms that live near heat and rub against metal, where vinyl electrical tape goes gummy and falls off.

Why vinyl tape lets you down

Open up any older engine bay and you will find PVC tape hanging in sticky strips off the loom. Heat softens the adhesive and the wire is left bare to chafe. A polyester fabric tape like this one holds its adhesion across a wide temperature range and resists abrasion, which is why it is used on factory style harness wraps.

It is also flexible enough to follow branches and tight bends in a loom without wrinkling into gaps.

Specifications

Width 19mm
Length 25m roll
Material Polyester fabric
Temperature range Minus 40°C to 150°C
Resistance Abrasion, humidity and ageing
Sold as Each roll

Wrapping a loom properly

Start on a clean, dry section and overlap each turn by about half the tape width. Work from the trunk out to each branch so the end of the wrap faces away from the direction it would get dragged. Finish with a couple of flat turns rather than a stretched end, which can lift over time.

Typical uses

  • Wrapping new accessory wiring to match a factory loom
  • Retaping old harnesses during an engine bay tidy
  • Binding sensor leads near the exhaust side of the engine bay, kept off the hot surfaces themselves
  • Quietening rattling looms behind dash panels

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ

How hot can it get?

HellermannTyton rates it to 150°C, and down to minus 40°C.

Is it the same as gaffer tape?

No. It is a polyester cloth harness tape made for wiring, not a general purpose duct tape.

How much tape is on the roll?

25 metres at 19mm wide.

Which looms suit it?

Vehicle wiring looms, including runs near engine heat, because HellermannTyton rates it from minus 40°C to 150°C. Wrap the loom, not the exhaust or turbo surfaces themselves.

What do I get?

You get one roll, 25 metres long and 19mm wide, sold each.
