Large-format 597mm Triple Jumbo-S LED rear combination lamp delivering stop, tail, indicator, and reverse functions with integrated 24cm² red retro reflectors, IP69K sealed construction, full ADR compliance across four separate standards, and 5-year warranty for trucks, trailers, and heavy commercial vehicles on 12–24V systems.

Product Overview

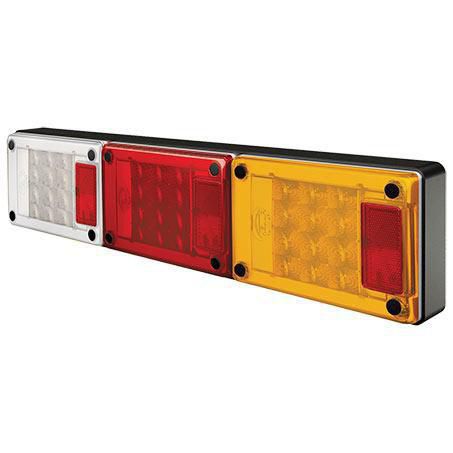

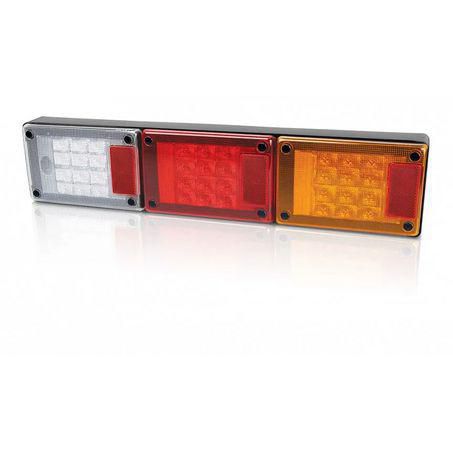

The HELLA 2431 is a large-format rear combination lamp from HELLA's Jumbo-S series, stepping up from the 2430 to add a reverse lamp function and integrated 24cm² red retro reflectors alongside the stop, tail, and indicator functions. Delivering four fully ADR-compliant rear lighting functions plus reflector compliance across a substantial 597 x 133 x 59mm footprint, the 2431 is the more comprehensive rear lighting solution in the Jumbo-S range, suited to semi-trailers, curtainsider trailers, and heavy commercial vehicle bodies where a single large-format unit covering all primary rear lighting and reflector requirements is preferred. The 2431 carries compliance across four separate Australian Design Rules: ADR 49/00 for stop and tail functions, ADR 6/00 Category 2a for the indicator, ADR 1/00 for the reverse lamp, and ADR 47/00 for the integrated 24cm² red retro reflectors. This multi-ADR compliance makes the 2431 a comprehensive single-unit solution for rear lighting compliance on heavy vehicles without requiring separate reflector fitment. Current draw is clearly specified across all functions: 0.8A stop, 0.08A tail, 0.5A indicator, and 0.4A reverse, providing precise electrical load data for trailer wiring and circuit protection calculations. All LED modules are factory-assembled and pre-wired into the housing, allowing the complete unit to be installed and connected as a single assembly without field wiring of individual modules. The high-impact acrylic lens provides robust resistance against stone strikes and road debris, while the IP69K sealed, shockproof construction withstands water submersion and high-pressure washing. Both horizontal and vertical mounting orientations are supported, and the 497mm centre-to-centre mounting distance suits standard large-format rear panel mounting positions. Universal 12–24V input covers the full range of heavy truck and trailer electrical systems, and HELLA's five-year warranty provides long-term confidence for fleet operators and trailer manufacturers.

Features & Benefits

Four Functions Plus Integrated Reflectors: Combines stop, tail, indicator, and reverse lamp functions with integrated 24cm² red retro reflectors in a single large-format unit, providing comprehensive rear lighting and reflector compliance without requiring separate reflector fitment on the rear panel.

Full Multi-ADR Compliance: Meets ADR 49/00 for stop and tail, ADR 6/00 Category 2a for the indicator, ADR 1/00 for the reverse lamp, and ADR 47/00 for the retro reflectors, confirming complete road-legal compliance across all four rear lighting and reflector functions for heavy vehicles on Australian roads.

Large 597mm Triple Jumbo-S Format: The extended three-module 597mm housing delivers a wide, high-visibility rear lighting signature across the full rear panel width, maximising conspicuity to following drivers and road users in all weather and visibility conditions.

Specified Current Draw Per Function: Current draw is defined for each function at 0.8A stop, 0.08A tail, 0.5A indicator, and 0.4A reverse, providing precise electrical load data for accurate trailer wiring calculations, circuit protection sizing, and load assessments on trailer electrical systems.

Pre-Assembled and Pre-Wired Modules: All LED modules are factory-assembled and pre-wired into the housing, allowing the complete unit to be installed and connected as a single assembly. This eliminates field wiring of individual modules and significantly reduces installation time on trailer builds and refurbishments.

IP69K Sealed Construction: Rated to IP69K, confirming protection against high-pressure, high-temperature water jets, making the 2431 fully suited to the exposed rear panel environments of trailers and truck bodies subject to pressure washing and harsh operational conditions.

Shockproof Build: Built to withstand the vibration and physical shock typical of heavy transport operation, including rough road surfaces, loading dock impacts, and the sustained vibration of long-haul trucking without compromising LED performance or optical integrity.

High-Impact Acrylic Lens: Provides robust resistance against stone strikes, road debris, and physical knocks common in rear trailer and truck body environments, maintaining optical integrity and physical protection over extended service life.

Horizontal and Vertical Mounting: Supports both horizontal and vertical installation orientations, providing flexibility to suit a wide range of trailer body panel configurations, rear door frames, and body rail layouts.

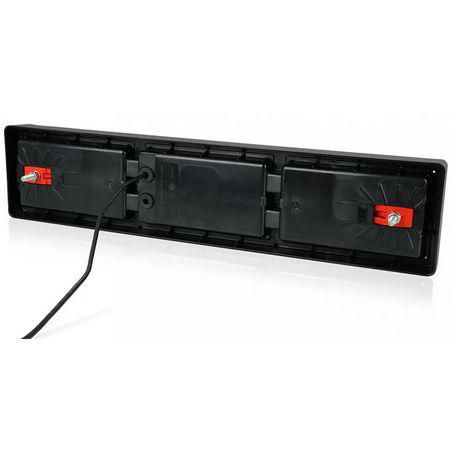

Pre-Wired Connector: Factory-fitted pre-wired connector eliminates the need for additional connectors at the lamp unit, simplifying connection into the trailer or vehicle rear wiring loom.

12–24V Universal Input: Single unit compatible with both 12V light commercial vehicles and 24V heavy trucks and trailers, eliminating the need for separate voltage variants across mixed fleets.

HELLA 5-Year Warranty: Backed by HELLA's five-year warranty, providing long-term confidence for fleet operators, trailer manufacturers, and transport companies specifying quality lighting for extended service life.

Technical Specs

Compatible With / Goes Well With

The HELLA 2431 is suited to any 12V or 24V truck, trailer, or heavy commercial vehicle requiring a large-format fully ADR-compliant rear combination lamp with reverse and reflector functions included. Primary applications include semi-trailers and B-trains requiring comprehensive rear lighting and reflector compliance in a single unit, curtainsider and tautliner trailers, flatbed and drop-deck trailers, refrigerated and box body trailers with large rear door frames, tipper bodies and tipping trailers, rigid trucks and bus bodies, car carriers, livestock trailers, and heavy plant transport trailers.

Pairs well with the HELLA 2430 Twin Stop/Tail and Indicator lamp for matched Jumbo-S series installations where separate units are specified per side, HELLA marker light packs including the 2051BULK, 2053BULK, 2054BULK, 2026BULK, and 2307BULK for a complete HELLA truck and trailer lighting solution, reverse alarms and cameras for comprehensive reversing safety, trailer wiring looms and junction boxes, and waterproof cable connectors and heat-shrink terminals for professional rear lighting installations.

Frequently Asked Questions

How does the 2431 differ from the HELLA 2430 Triple Jumbo-S lamp?

Both lamps share the same 597mm Triple Jumbo-S housing, high-impact acrylic lens, shockproof sealed construction, horizontal and vertical mounting, and 12/24V compatibility. The 2431 adds a reverse lamp function and integrated 24cm² red retro reflectors not present on the 2430, and carries a broader ADR compliance set covering four standards versus the 2430's stop/tail and indicator functions. The 2431 is the more comprehensive single-unit solution where reverse lamp and reflector compliance are required from a single fitting.

What ADR standards does the 2431 comply with?

The 2431 carries compliance across four Australian Design Rules: ADR 49/00 covers the stop and tail lamp functions, ADR 6/00 Category 2a covers the indicator, ADR 1/00 covers the reverse lamp, and ADR 47/00 covers the integrated 24cm² red retro reflectors. This multi-ADR compliance confirms the 2431 meets the legal requirements for all four rear lighting and reflector functions on heavy vehicles operating on Australian public roads.

What are the current draw figures for each function and why do they matter?

The 2431 draws 0.8A on the stop function, 0.08A on the tail, 0.5A on the indicator, and 0.4A on the reverse lamp. These specified current draw figures are important for accurately sizing trailer wiring conductors, selecting appropriate fuse or circuit breaker ratings, and calculating total electrical load across the trailer lighting circuit. Precise current data is particularly valuable for trailer builders, auto electricians, and fleet engineers specifying new trailer builds or refurbishments.

What does IP69K mean for this combination lamp?

IP69K certifies protection against high-pressure, high-temperature water jets directed at the lamp from any angle, typically at 80°C and 80–100 bar pressure at close range. This is the most demanding ingress protection standard for water exposure and confirms the 2431 can withstand the high-pressure washdowns commonly used to clean trailer bodies, refrigerated units, and truck rear panels in transport and agricultural operations without compromising sealed integrity or LED performance.

Is the 2431 suitable for retrofitting onto an existing trailer?

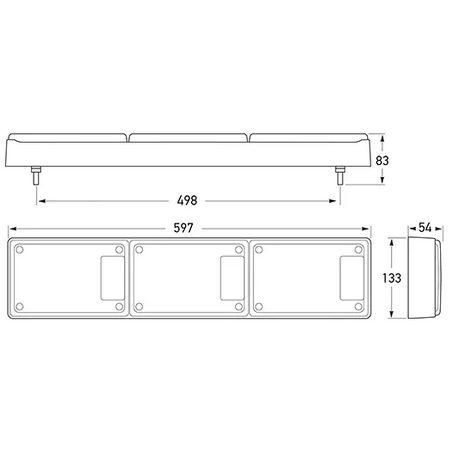

Yes. The 2431 is well suited for retrofitting onto existing trailers as an upgrade from older incandescent or smaller combination lamp configurations, provided the rear panel has sufficient space to accommodate the 597 x 133mm footprint and the 497mm centre-to-centre mounting distance can be matched to existing or new fixing positions. The integrated reflectors eliminate the need for separate reflector fitment when upgrading. A qualified auto electrician is recommended for retrofitting combination lamp wiring on heavy vehicles to ensure correct function connections and ADR compliance.
