HELLA 2430 Rear Triple Jumbo-S LED Combination Lamp - Twin Stop/Tail & Indicator 12V/24V

HELLA 2430 Rear Triple Jumbo-S LED Combination Lamp - Twin Stop/Tail & Indicator 12V/24V

Large-format 597mm Triple Jumbo-S LED rear combination lamp delivering twin stop/tail and indicator functions in a single pre-assembled unit, with high-impact acrylic lens, shockproof sealed construction, horizontal and vertical mounting capability, and 5-year warranty for trucks, trailers, and heavy commercial vehicles on 12/24V systems.

Product Overview

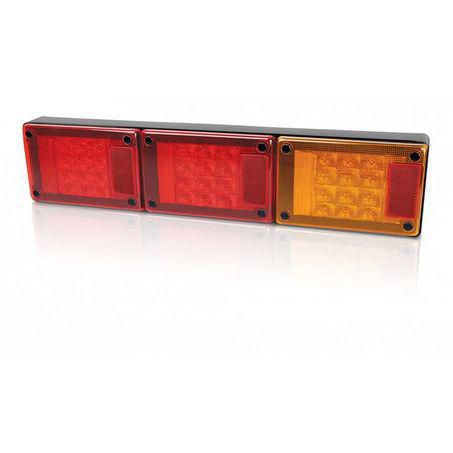

The HELLA 2430 is a large-format rear combination lamp from HELLA's Jumbo-S series, delivering high-visibility twin stop/tail and indicator rear lighting across a substantial 597 x 133 x 59mm footprint suited to the rear panels of trucks, semi-trailers, curtainsider trailers, and heavy commercial vehicle bodies requiring maximum rear light presence and conspicuity. The Triple Jumbo-S designation reflects the extended three-module housing that accommodates twin stop/tail and indicator functions across the full 597mm lamp length, providing a wide rear lighting signature that is highly visible to following drivers even in adverse weather and low-visibility conditions. A key installation advantage of the 2430 is its pre-assembled and pre-wired modular construction — all LED modules are factory-assembled and wired into the housing, allowing the complete unit to be installed and connected as a single assembly without the need to wire individual modules or manage multiple connectors in the field. The high-impact acrylic lens provides robust resistance against stone strikes, debris, and physical knocks common in rear trailer environments, while the shockproof and fully sealed construction withstands both water submersion and high-pressure washing without compromising LED performance or ingress integrity. Both horizontal and vertical mounting orientations are supported, providing flexibility to suit different rear panel configurations, trailer door frames, and body rail layouts. The 497mm centre-to-centre mounting distance is suited to standard large-format rear panel mounting positions on semi-trailers and rigid truck bodies. Universal 12/24V input covers the full range of heavy truck and trailer electrical systems in a single unit, and HELLA's five-year warranty provides long-term confidence for fleet operators and trailer manufacturers.

Features & Benefits

Large 597mm Triple Jumbo-S Format: The extended three-module 597mm housing delivers a wide, high-visibility rear lighting signature across the full rear panel width, maximising conspicuity to following drivers and road users in all weather and visibility conditions.

Twin Stop/Tail and Indicator Functions: Integrates twin stop/tail lamp functions alongside an indicator in a single pre-assembled unit, consolidating multiple rear lighting requirements into one large-format lamp and simplifying rear panel wiring compared to fitting separate individual units.

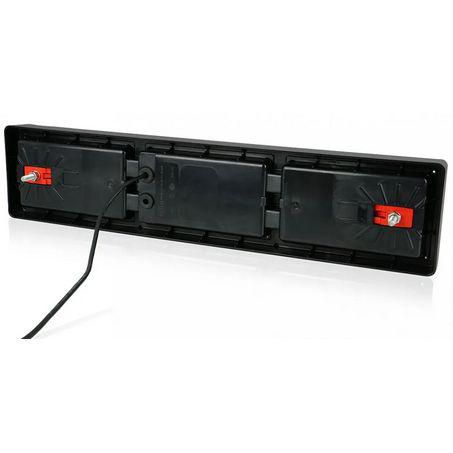

Pre-Assembled and Pre-Wired Modules: All LED modules are factory-assembled and pre-wired into the housing, allowing the complete unit to be installed and connected as a single assembly. This eliminates field wiring of individual modules and significantly reduces installation time on trailer builds and refurbishments.

High-Impact Acrylic Lens: The high-impact acrylic lens provides robust resistance against stone strikes, road debris, and physical knocks common in rear trailer and truck body environments, maintaining optical integrity and physical protection over extended service life.

Shockproof and Fully Sealed Construction: Built to withstand the vibration, shock, water submersion, and high-pressure washing typical of heavy transport operation, ensuring reliable long-term performance in the exposed rear panel environment of trailers and truck bodies.

Horizontal and Vertical Mounting: Supports both horizontal and vertical installation orientations, providing flexibility to suit a wide range of trailer body panel configurations, rear door frames, and body rail layouts.

LED Light Technology: Maintenance-free LED modules deliver a significantly longer operational lifespan than incandescent combination lamp alternatives, reducing fleet downtime, replacement costs, and the maintenance burden of large trailer fleet lighting management.

12/24V Universal Input: Single unit compatible with both 12V light commercial vehicles and 24V heavy trucks and trailers, eliminating the need for separate voltage variants across mixed fleets.

HELLA 5-Year Warranty: Backed by HELLA's five-year warranty, providing long-term confidence for fleet operators, trailer manufacturers, and transport companies specifying quality lighting for extended service life.

Technical Specs

Compatible With / Goes Well With

The HELLA 2430 is suited to any 12V or 24V truck, trailer, or heavy commercial vehicle requiring a large-format ADR-compatible rear combination lamp with maximum rear panel presence. Primary applications include semi-trailers and B-trains requiring wide rear lighting coverage, curtainsider and tautliner trailers, flatbed and drop-deck trailers, refrigerated and box body trailers with large rear door frames, tipper bodies and tipping trailers, rigid trucks and bus bodies requiring a prominent rear lighting signature, car carriers, livestock trailers, and heavy plant transport trailers.

Pairs well with other HELLA Jumbo-S series combination lamps for matched rear lighting suites on large trailers, HELLA marker light packs including the 2051BULK, 2053BULK, 2054BULK, 2026BULK, and 2307BULK for a complete HELLA truck and trailer lighting solution, reverse lamps and reverse alarms, trailer wiring looms and junction boxes, and waterproof cable connectors and heat-shrink terminals for professional rear lighting installations.

Frequently Asked Questions

What does "Triple Jumbo-S" mean in the product name?

The Triple Jumbo-S designation refers to the extended three-module housing format in HELLA's Jumbo-S rear combination lamp series. The three-module configuration accommodates twin stop/tail and indicator functions across the full 597mm lamp length, creating a wide rear lighting signature. The Jumbo-S series is designed for trucks, semi-trailers, and heavy commercial vehicles requiring a large-format rear combination lamp with maximum rear panel presence and conspicuity.

What does "twin stop/tail" mean on the 2430?

Twin stop/tail refers to the 2430 incorporating two separate stop/tail lamp modules within the single housing, rather than a single stop/tail function. This provides a wider, more prominent stop and tail light signature across the rear panel, improving visibility to following drivers particularly during braking. The dual stop/tail configuration is commonly specified on large semi-trailers and heavy commercial vehicles where maximum rear conspicuity is a safety and compliance priority.

Why are the LED modules pre-assembled and pre-wired into the housing?

Pre-assembling and pre-wiring all LED modules into the housing during manufacture eliminates the need for field wiring of individual modules during installation. The complete unit can be mounted and connected as a single assembly, significantly reducing installation time on trailer builds and refurbishments compared to fitting and wiring individual lamp modules separately. This also reduces the risk of wiring errors during installation and ensures all module connections are factory-tested before leaving the production line.

Can the 2430 be mounted in both horizontal and vertical orientations?

Yes. The 2430 supports both horizontal and vertical mounting orientations, providing flexibility to suit different trailer body panel layouts, rear door frame configurations, and body rail mounting positions. Confirm the intended orientation suits the applicable ADR visibility angle requirements for the specific vehicle type and mounting position before installation.

Is the 2430 suitable for retrofitting onto an existing trailer?

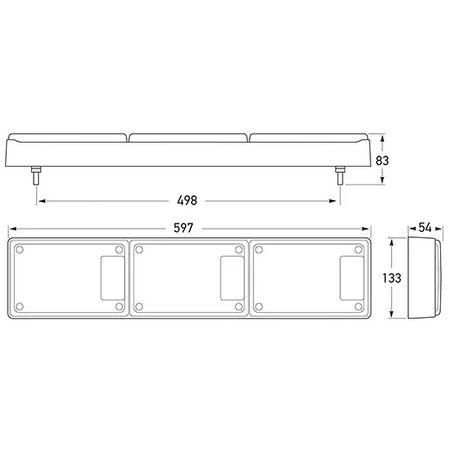

Yes. The 2430 is well suited for retrofitting onto existing trailers as an upgrade from older incandescent or smaller combination lamp configurations, provided the rear panel has sufficient space to accommodate the 597 x 133mm footprint and the 497mm centre-to-centre mounting distance can be matched to existing or new fixing positions. A qualified auto electrician is recommended for retrofitting combination lamp wiring on heavy vehicles to ensure correct function connections and compliance.
