HELLA 2332-H24 Stop/Tail Light LED 9 to 33V

HELLA 2332-H24 Stop/Tail Light LED 9 to 33V

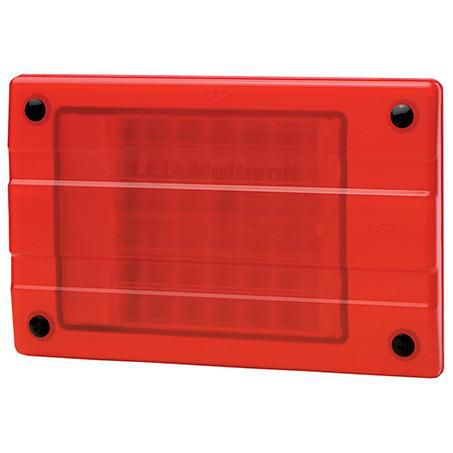

Multivolt LED stop/tail module with EDT enhanced stop signal technology, Ultra Wide Visibility Optics, IP67 sealed construction, and ADR 6/00 Category 2a compliance, purpose-built to upgrade existing surface mount Designline combination lamp housings to LED technology across 9–33V electrical systems.

Product Overview

The HELLA 2332-H24 is a dedicated LED stop/tail module designed specifically to upgrade existing surface mount Designline series combination lamp housings from incandescent to LED technology without replacing the entire lamp assembly. This makes the 2332-H24 a cost-effective and practical solution for fleet operators and transport companies managing large trailer inventories fitted with existing HELLA Designline housings, enabling a targeted LED upgrade of the stop and tail functions while retaining the existing lamp body and mounting arrangement. A key differentiator of the 2332-H24 over standard stop/tail modules is its EDT (Enhanced Deceleration Technology) for the stop signal function. EDT is a HELLA-developed flash pattern technology that causes the stop lamp to pulse rapidly when heavy braking is detected, providing an additional visual cue to following drivers that the vehicle is decelerating quickly. This active safety feature is particularly valuable on heavy trucks and semi-trailers where rear-end collision risk during emergency braking is a significant road safety concern. The UWVO (Ultra Wide Visibility Optics) technology extends the horizontal visibility angle of both the stop and tail functions beyond the standard forward-facing visibility cone of conventional modules, improving side visibility to adjacent traffic and road users approaching from the side. Acrylic lens and base construction provide chemical resistance and physical durability suited to rear trailer panel environments. Fully sealed to IP67 against dust and moisture ingress, the module is pre-wired with 200mm of cable for connection into the existing Designline housing wiring circuit. The 195 x 125 x 34mm surface mount footprint is engineered to fit directly into compatible Designline lamp housings in a horizontal mount orientation. Multivolt 9–33V input covers standard 12V and 24V heavy vehicle electrical systems without requiring voltage-specific variants, and HELLA's five-year warranty provides long-term confidence for fleet operators and trailer manufacturers.

Features & Benefits

Purpose-Built Designline LED Upgrade Module: Designed specifically to replace incandescent stop/tail modules in existing HELLA Designline surface mount combination lamp housings, enabling a targeted LED upgrade without replacing the entire lamp assembly, mounting hardware, or trailer panel wiring.

EDT Enhanced Deceleration Technology: HELLA's EDT technology causes the stop lamp to pulse rapidly during heavy braking events, providing a dynamic visual warning to following drivers that the vehicle is decelerating quickly. This active safety feature significantly improves rear conspicuity during emergency braking on heavy trucks and semi-trailers where rear-end collision risk is elevated.

UWVO Ultra Wide Visibility Optics: HELLA's Ultra Wide Visibility Optics technology extends the horizontal visibility angle of the stop and tail functions beyond the standard forward-facing cone, improving side visibility to adjacent traffic, pedestrians, and road users approaching from the side for enhanced all-round conspicuity.

ADR 6/00 Category 2a Compliant: Meets Australian Design Rule 6/00 Category 2a for stop and tail lamp functions on heavy vehicles, confirming the 2332-H24 is road-legal as a stop/tail function module in combination lamp housings on trucks and trailers operating on Australian public roads.

Acrylic Lens and Base Construction: Both lens and base are constructed from acrylic, providing increased chemical resistance against fuel, cleaning agents, and road contaminants that degrade standard lamp materials over time in heavy transport rear panel environments.

IP67 Sealed Construction: Fully dust-tight and protected against temporary water immersion, providing robust moisture and ingress protection for the demanding rear panel environments typical of heavy transport operation.

Multivolt 9–33V Input: Covers the full range of 12V and 24V heavy vehicle electrical systems in a single module without requiring voltage-specific variants, simplifying procurement for mixed fleet and workshop environments.

Pre-Wired 200mm Cable: Factory-fitted 200mm cable provides a short, neat wiring connection into the existing Designline housing wiring circuit, suited to the close-proximity internal wiring arrangement within a combination lamp body.

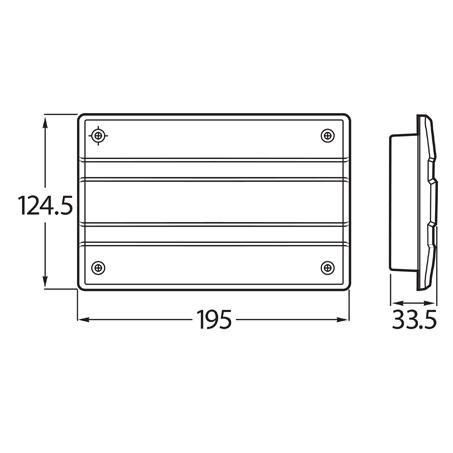

Horizontal Surface Mount: The 195 x 125 x 34mm footprint is engineered for horizontal surface mount installation directly into compatible HELLA Designline lamp housings for a straightforward drop-in upgrade.

HELLA 5-Year Warranty: Backed by HELLA's five-year warranty, providing long-term confidence for fleet operators, trailer manufacturers, and transport companies specifying quality LED upgrade modules for extended service life.

Technical Specs

Compatible With / Goes Well With

The HELLA 2332-H24 is compatible with existing HELLA Designline series surface mount combination lamp housings requiring an LED stop/tail module upgrade. Suited to semi-trailers and B-trains, curtainsider and tautliner trailers, flatbed and drop-deck trailers, refrigerated and box body trailers, tipper bodies, rigid trucks, bus bodies, car carriers, and livestock trailers fitted with compatible HELLA Designline combination lamp housings.

Pairs well with the HELLA 2146-H24 rear indicator LED upgrade module for a complete LED conversion of existing Designline combination lamp housings, other complementary HELLA LED upgrade modules for reverse and additional lamp functions, HELLA Triple Jumbo-S combination lamps including the 2430 and 2431 for full lamp replacement where a complete unit upgrade is preferred, HELLA marker light packs including the 2051BULK, 2053BULK, 2054BULK, 2026BULK, and 2307BULK, and trailer wiring looms and waterproof connectors for professional installation.

Frequently Asked Questions

What is EDT Enhanced Deceleration Technology and how does it work?

EDT is HELLA's Enhanced Deceleration Technology for stop lamp functions. When the vehicle's braking system applies heavy deceleration, EDT causes the stop lamp to pulse rapidly in a flashing pattern rather than illuminating as a steady light. This dynamic flashing stop signal provides a stronger and more urgent visual warning to following drivers that the vehicle ahead is braking hard, improving reaction time and reducing rear-end collision risk. EDT is particularly valuable on heavy trucks and semi-trailers operating at highway speeds where the stopping distance of following vehicles is critical.

Which HELLA Designline lamp housings is the 2332-H24 compatible with?

The 2332-H24 is designed to upgrade existing HELLA Designline series surface mount combination lamp housings. Confirm compatibility between the 2332-H24 module dimensions of 195 x 125 x 34mm and the specific Designline housing model before purchase. Note that the 2146-H24 indicator module is described as compatible with both Jumbo and Designline housings, while the 2332-H24 specifies Designline housings specifically. Contact your HELLA supplier or refer to the HELLA compatibility guide to verify the correct module for your specific housing.

How does the 2332-H24 differ from the HELLA 2146-H24 indicator module?

Both modules are Multivolt LED upgrade modules for HELLA combination lamp housings, sharing the same 195 x 125mm footprint, IP67 rating, 9–33V input, 200mm pre-wired cable, and five-year warranty. The 2332-H24 covers the stop and tail functions with EDT and UWVO technology, while the 2146-H24 covers the indicator function with UWVO optics. The two modules complement each other for a complete LED conversion of the stop, tail, and indicator functions within a compatible combination lamp housing.

What does UWVO Ultra Wide Visibility Optics mean in practice?

UWVO (Ultra Wide Visibility Optics) is HELLA's optics technology that extends the horizontal visibility angle of the stop and tail functions beyond the standard forward-facing cone of conventional modules. In practice, this means following drivers, adjacent traffic, and road users approaching from the side can see both the stop and tail lamps activating across a wider horizontal arc, improving all-round conspicuity of braking and running light signals on large trucks and trailers.

Can the 2332-H24 be used on both 12V and 24V trailer systems?

Yes. The 2332-H24 operates across a Multivolt 9–33V input range, making it fully compatible with both 12V light commercial vehicle electrical systems and standard 24V heavy truck and trailer systems. A single module covers both voltage levels without requiring separate variants, making it suitable for workshop and fleet environments managing mixed 12V and 24V trailer fleets.
