HELLA 2054BULK Front Marker Light Clear LED 9 to 33V - Pack of 4

HELLA 2054BULK Front Marker Light Clear LED 9 to 33V - Pack of 4

ADR 49/00 compliant clear LED front position and outline marker lights in a pack of 4, featuring a curved compact design that reduces tie-down catching risk, IP67 fully sealed construction, acrylic lens, and 5-year warranty — purpose-built for trucks, trailers, and heavy commercial vehicles operating across 9–33V electrical systems.

Product Overview

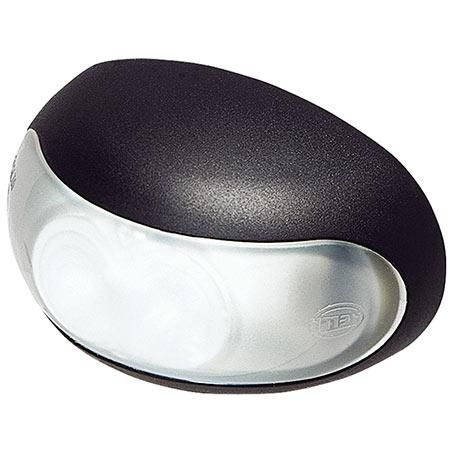

The HELLA 2054BULK is a bulk pack of four clear LED front marker lights delivering ADR 49/00 compliant front position and outline lamp illumination for trucks, trailers, semi-trailers, and heavy commercial vehicles. Designed specifically as a front position and outline lamp, the 2054BULK produces a clear light output that satisfies the front marker and outline lighting requirements for heavy vehicles under Australian Design Rules. A standout feature of the 2054BULK is its newly designed curved and compact body profile, which reduces the risk of load tie-downs catching on the lamp during freight securing and loading operations — a practical safety improvement over traditional flat-sided marker lamps commonly encountered on trailer side rails and front panels. The compact 60 x 38 x 32mm surface mount footprint installs neatly onto trailer front panels, body rails, and curtainsider frames, while the curved profile provides increased protection against stone damage from road debris striking the front face of the lamp. Each light is fully sealed to IP67 against dust and water ingress and features an acrylic lens for increased chemical resistance against fuel, oil, cleaning agents, and road contaminants. Pre-wired with a 0.5m multi-core cable and featuring a 29mm centre-to-centre mounting distance, the 2054BULK installs cleanly and quickly for both new fit-outs and refurbishment of existing trailer and truck front lighting. HELLA's five-year warranty provides long-term confidence for fleet operators, trailer manufacturers, and transport companies. Universal 9–33V input ensures compatibility with both 12V light commercial vehicles and 24V heavy truck and trailer electrical systems in a single unit.

Features & Benefits

Curved Compact Design — Reduces Tie-Down Catching Risk — The newly designed curved body profile significantly reduces the risk of cargo tie-down straps and load binders catching on the lamp during freight securing, a common cause of marker lamp damage and dislodgement on trailer side rails and front panels. The curved profile also provides increased protection against stone strike damage.

ADR 49/00 Compliant — Meets Australian Design Rule 49/00 for front and rear position lamps on heavy vehicles, confirming the 2054BULK is road-legal for front marker and outline lamp applications on trucks and trailers operating on Australian roads.

Clear LED Light Output — Produces a clear front position and outline lamp illumination as required for front marker and outline lighting applications on heavy commercial vehicles, with maintenance-free LED technology for significantly longer service life than incandescent alternatives.

Fully Sealed IP67 — Fully dust-tight and protected against temporary water immersion, providing robust moisture and ingress protection for the demanding front panel and side rail environments typical of heavy transport operation.

Acrylic Lens Construction — Increased chemical resistance compared to standard plastic lenses, protecting against fuel spills, oil, cleaning agents, diesel exhaust residue, and road contaminants that degrade standard marker light lenses over time.

Pre-Wired 0.5m Multi-Core Cable — Factory-fitted 0.5m cable eliminates the need for additional connectors at the light unit, simplifying installation onto trailer front panels and body rails for faster fit-out and refurbishment work.

9–33V Universal Input — Single light unit compatible with both 12V light commercial vehicles and 24V heavy trucks and trailers, eliminating the need for separate voltage variants across mixed fleets.

Compact 60 x 38mm Surface Mount Profile — Low-profile surface mount design installs neatly onto trailer front panels and body rails without excessive protrusion, maintaining a clean vehicle profile while delivering compliant front marker illumination.

HELLA 5-Year Warranty — Backed by HELLA's five-year warranty, providing long-term confidence for fleet operators, trailer manufacturers, and transport companies specifying quality lighting for extended service life.

Technical Specs

Compatible With / Goes Well With

The HELLA 2054BULK is suited to any 12V or 24V truck, trailer, or heavy commercial vehicle requiring ADR-compliant clear LED front position and outline marker lighting. Primary applications include semi-trailers and B-trains, curtainsider and tautliner trailers, flatbed and drop-deck trailers, refrigerated and box body trailers, tipper bodies and tipping trailers, rigid trucks and bus bodies, livestock trailers, car carriers, and heavy plant transport trailers requiring front outline and position lamp compliance.

Pairs well with the HELLA 2053BULK red/amber side marker light pack for a complete truck and trailer marker lighting solution, other HELLA truck and trailer lighting products for a matched lighting suite, LED rear combination lamps and reverse lights, trailer wiring looms and junction boxes, and waterproof cable connectors and heat-shrink terminals for clean and sealed wiring runs.

Frequently Asked Questions

What is the difference between the 2054BULK and the 2053BULK side marker pack?

The 2054BULK is a clear front position and outline lamp compliant to ADR 49/00, specifically designed for front marker and outline lighting applications on trucks and trailers. The 2053BULK is a red/amber side marker light compliant to ADR 45/01 for side marking applications. The two packs complement each other — the 2054BULK covers front position and outline requirements while the 2053BULK covers side marking, making them a natural pairing for a complete heavy vehicle marker lighting fit-out.

What does ADR 49/00 compliance mean for front marker lights?

ADR 49/00 is the Australian Design Rule covering front and rear position lamps on heavy vehicles. Compliance confirms the 2054BULK meets the legal requirements for front position and outline lamp applications on trucks and trailers operating on Australian public roads, including prescribed light output, colour, and visibility angles. Fitting ADR-compliant lighting is a legal requirement for heavy vehicle roadworthiness in Australia.

How does the curved design reduce tie-down catching risk?

Traditional flat-sided marker lamps present a flat edge that cargo tie-down straps and load binders can catch and lever against during freight securing, potentially dislodging or damaging the lamp. The 2054BULK's curved body profile eliminates these flat catching edges, allowing straps to slide past the lamp rather than hooking on it. The curved profile also deflects stone strikes more effectively than a flat face, reducing the risk of lens damage from road debris.

Can these front marker lights be used on both 12V and 24V vehicles?

Yes. The 2054BULK operates across a 9–33V input range, making it fully compatible with both 12V light commercial vehicle electrical systems and standard 24V heavy truck and trailer systems. A single light unit works across both voltages without modification, making the bulk pack ideal for workshop and fleet use across mixed vehicle types.

How is the 2054BULK installed — does it require additional wiring hardware?

Each light comes pre-wired with a 0.5m multi-core cable, eliminating the need for connectors at the light unit itself. Installation requires drilling a mounting hole to the 29mm centre-to-centre spacing, securing with fasteners through the surface mount base, and joining the pre-wired cable into the vehicle or trailer wiring loom. Waterproof connectors, heat-shrink terminals, and rubber grommets are recommended for a fully sealed, professional installation on trailer panels and body rails.
