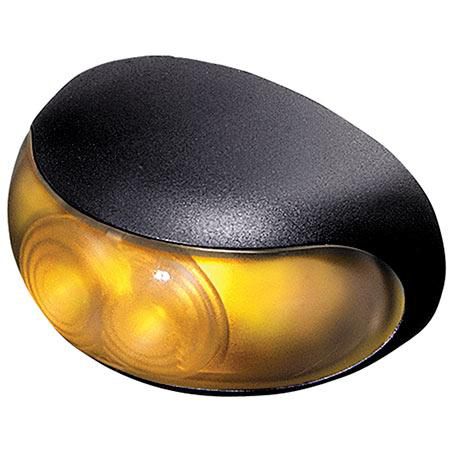

HELLA 2051BULK Front Marker Light Amber LED 9 to 33V 4 Pce

HELLA 2051BULK Front Marker Light Amber LED 9 to 33V 4 Pce

ADR 49/00 compliant amber LED front position and outline marker lights in a pack of 4, featuring a stealth clear-until-illuminated lens, curved compact design that reduces tie-down catching risk, IP67 fully sealed construction, and 5-year warranty — purpose-built for trucks, trailers, and heavy commercial vehicles operating across 9–33V electrical systems.

Product Overview

The HELLA 2051BULK is a bulk pack of four amber LED front marker lights delivering ADR 49/00 compliant front position and outline lamp illumination for trucks, trailers, semi-trailers, and heavy commercial vehicles. A defining feature of the 2051BULK is its stealth optical design — the acrylic lens appears completely clear when unlit, only revealing its amber illumination when powered on. This provides a clean, unobtrusive appearance on the vehicle profile during daylight hours while delivering bright amber front position and outline lamp output when activated, a premium aesthetic commonly specified by fleet operators and trailer manufacturers seeking a polished finished appearance. Like the 2054BULK, the 2051BULK features HELLA's newly designed curved and compact body profile, which reduces the risk of cargo tie-down straps and load binders catching on the lamp during freight securing operations — a practical safety improvement over traditional flat-sided marker lamps. The curved profile simultaneously provides increased protection against stone damage from road debris. The compact 60 x 38 x 32mm surface mount footprint installs neatly onto trailer front panels, body rails, and curtainsider frames, with a 29mm centre-to-centre mounting distance for quick, consistent positioning. Each light is fully sealed to IP67 against dust and water ingress, and the acrylic lens delivers increased chemical resistance against fuel, oil, cleaning agents, and road contaminants. Pre-wired with a generous 2.5m multi-core cable, the 2051BULK provides ample cable length for routing through trailer body panels and front frame structures without requiring additional extension wiring. HELLA's five-year warranty provides long-term confidence for fleet operators and trailer manufacturers. Universal 9–33V input ensures compatibility with both 12V and 24V vehicle electrical systems in a single unit.

Features & Benefits

Clear-Until-Illuminated Stealth Lens — The acrylic lens appears completely clear when unlit, giving the vehicle a clean and unobtrusive daytime profile. When powered, the lens produces bright amber front position and outline illumination — a premium stealth aesthetic widely specified for modern truck and trailer fit-outs.

Curved Compact Design — Reduces Tie-Down Catching Risk — The newly designed curved body profile significantly reduces the risk of cargo tie-down straps and load binders catching on the lamp during freight securing, a common cause of marker lamp damage on trailer side rails and front panels. The curved profile also provides increased protection against stone strike damage.

ADR 49/00 Compliant — Meets Australian Design Rule 49/00 for front and rear position lamps on heavy vehicles, confirming the 2051BULK is road-legal for front position and outline lamp applications on trucks and trailers operating on Australian roads.

Amber LED Light Output — Produces bright amber front position and outline lamp illumination with maintenance-free LED technology, delivering a significantly longer operational lifespan than incandescent alternatives and reducing fleet downtime and replacement costs.

Fully Sealed IP67 — Fully dust-tight and protected against temporary water immersion, providing robust moisture and ingress protection for the demanding front panel and side rail environments typical of heavy transport operation.

Acrylic Lens Construction — Increased chemical resistance compared to standard plastic lenses, protecting against fuel spills, oil, cleaning agents, diesel exhaust residue, and road contaminants that degrade standard marker light lenses over time.

Pre-Wired 2.5m Multi-Core Cable — Generous 2.5m factory-fitted cable provides ample length for routing through trailer body panels, front frame structures, and curtainsider rails without requiring extension wiring or additional connectors at the light unit.

9–33V Universal Input — Single light unit compatible with both 12V light commercial vehicles and 24V heavy trucks and trailers, eliminating the need for separate voltage variants across mixed fleets.

Compact 60 x 38mm Surface Mount Profile — Low-profile surface mount design installs neatly onto trailer front panels and body rails without excessive protrusion, maintaining a clean vehicle profile while delivering compliant front marker illumination.

HELLA 5-Year Warranty — Backed by HELLA's five-year warranty, providing long-term confidence for fleet operators, trailer manufacturers, and transport companies specifying quality lighting for extended service life.

Technical Specs

Compatible With / Goes Well With

The HELLA 2051BULK is suited to any 12V or 24V truck, trailer, or heavy commercial vehicle requiring ADR-compliant amber LED front position and outline marker lighting. Primary applications include semi-trailers and B-trains, curtainsider and tautliner trailers, flatbed and drop-deck trailers, refrigerated and box body trailers, tipper bodies and tipping trailers, rigid trucks and bus bodies, livestock trailers, car carriers, and heavy plant transport trailers requiring front outline and position lamp compliance.

Pairs well with the HELLA 2053BULK red/amber side marker light pack and 2054BULK clear front marker pack for a complete matched HELLA truck and trailer marker lighting solution, LED rear combination lamps and reverse lights, trailer wiring looms and junction boxes, and waterproof cable connectors and heat-shrink terminals for clean and sealed wiring runs.

Frequently Asked Questions

What does "clear until illuminated" mean on the 2051BULK lens?

The 2051BULK uses a stealth optical design where the acrylic lens appears completely clear and uncoloured during daylight when the light is off, giving the vehicle a clean and modern profile. When the light is powered on, the LED optics produce bright amber illumination through the clear lens. This design is popular with fleet operators and trailer manufacturers who want a polished, uncluttered vehicle appearance without sacrificing compliant amber marker light output when required.

How does the 2051BULK differ from the 2054BULK clear front marker pack?

Both packs share the same body dimensions, curved design, IP67 rating, ADR 49/00 compliance, mounting specifications, and 5-year warranty. The key differences are light output colour and cable length — the 2051BULK produces amber illumination through a clear-until-illuminated lens with a 2.5m cable, while the 2054BULK produces clear light output with a 0.5m cable. Choose the 2051BULK where amber front position lamp output is required, or the 2054BULK where clear outline lamp output is the application.

What does ADR 49/00 compliance mean for front marker lights?

ADR 49/00 is the Australian Design Rule covering front and rear position lamps on heavy vehicles. Compliance confirms the 2051BULK meets the legal requirements for front position and outline lamp applications on trucks and trailers operating on Australian public roads, including prescribed light output, colour, and visibility angles. Fitting ADR-compliant lighting is a legal requirement for heavy vehicle roadworthiness in Australia.

Can these front marker lights be used on both 12V and 24V vehicles?

Yes. The 2051BULK operates across a 9–33V input range, making it fully compatible with both 12V light commercial vehicle electrical systems and standard 24V heavy truck and trailer systems. A single light unit works across both voltages without modification, making the bulk pack ideal for workshop and fleet use across mixed vehicle types.

How is the 2051BULK installed — does it require additional wiring hardware?

Each light comes pre-wired with a 2.5m multi-core cable, eliminating the need for connectors at the light unit itself. The generous cable length accommodates routing through trailer body panels and front frame structures without extension wiring. Installation requires drilling a mounting hole to the 29mm centre-to-centre spacing, securing with fasteners through the surface mount base, and connecting the pre-wired cable into the vehicle or trailer wiring loom. Waterproof connectors, heat-shrink terminals, and rubber grommets are recommended for a fully sealed, professional installation.
