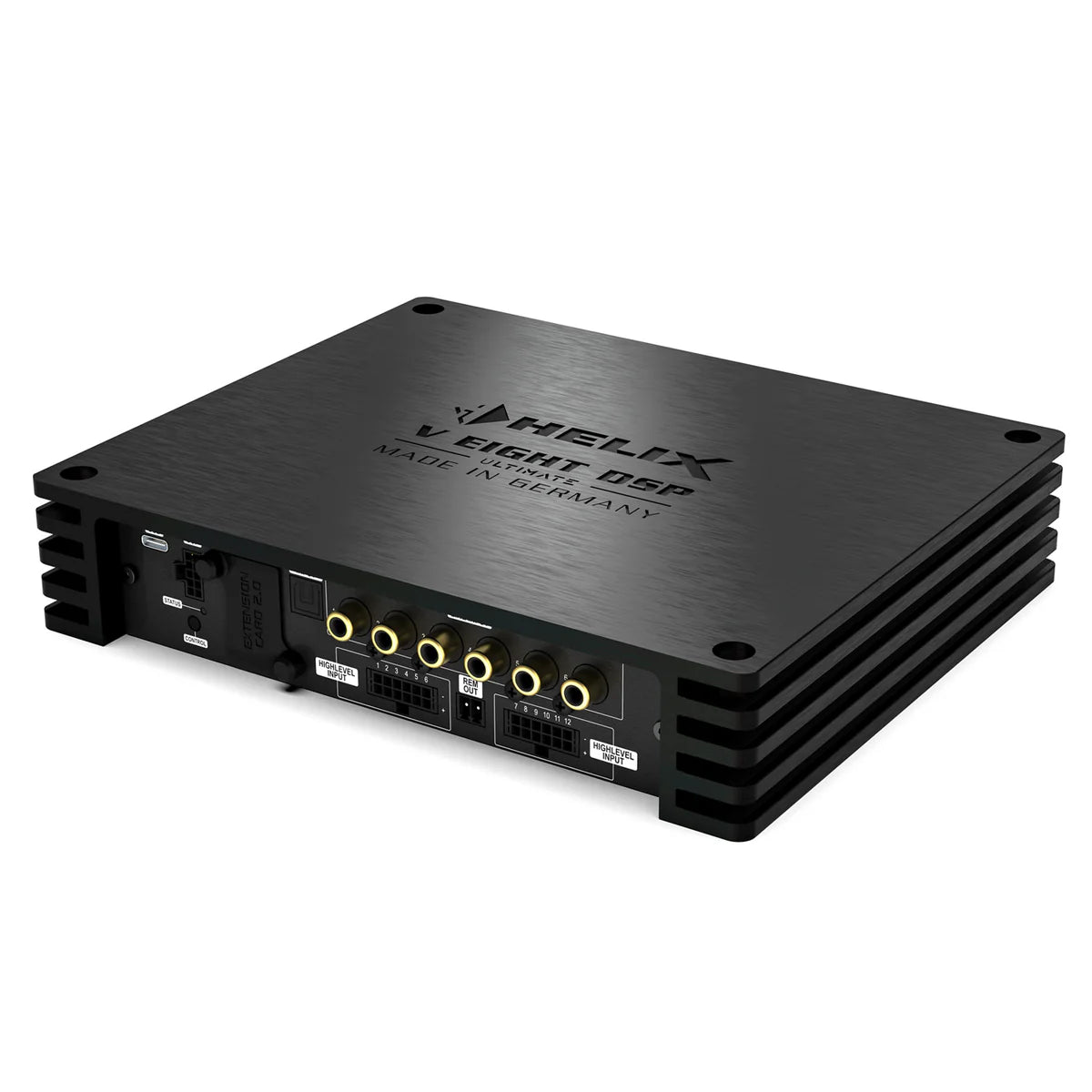

Helix V Eight DSP Ultimate 8-Channel Class HD Amplifier with 14-Channel DSP
The Helix NEXT V Eight DSP Ultimate is an 8-channel Class HD car amplifier with integrated 14-channel DSP, delivering 8 x 110W RMS at 4Ω (channels 5-8 rated to 220W RMS at 2Ω), with 12 high-level ADEP.3 inputs, 6 RCA inputs, optical SPDIF input, USB PerfectStream, 6 RCA outputs, 64-bit DSP with 295 MHz processing power, ACO 32-bit CoProcessor, Extension Card 2.0 slot, VCP, AISA, TuneEQ, RealCenter, Augmented Bass Processing, DLC, RTC, Auto Remote, and DSP PC-Tool 6 compatibility.
Product Overview
The Helix V Eight DSP Ultimate is the flagship evolution of Helix's all-in-one 8-channel DSP amplifier, representing the next generation of the acclaimed V Eight DSP platform. Every element has been reimagined from the ground up, delivering a performance improvement of up to 66% over its predecessor through the adoption of an advanced TI Class HD topology that combines Class H supply rail modulation with Class D efficiency for outstanding power output with minimised heat dissipation.
The amplifier delivers 8 x 110W RMS at 4Ω with channels 5-8 capable of 220W RMS at 2Ω, and maximum output power of up to 140W per channel at 4Ω and 270W per channel at 2Ω. The 14-channel DSP runs on a 64-bit fixed-point audio signal processor at 295 MHz (1.2 billion MAC operations per second) with BurrBrown 24-bit A/D and D/A converters, 48kHz sampling rate, SNR of 107dB from digital input and 102dB from analog input, and THD+N below 0.009%.
The connectivity platform is unprecedented: 12 high-level inputs with ADEP.3 Gen 3 OEM integration circuitry (4-32V sensitivity), 6 RCA inputs (1-8V sensitivity), optical SPDIF (12-96kHz), USB PerfectStream for lossless high-resolution audio streaming at up to 192kHz/32-bit and simultaneous AISA measurement and DSP PC-Tool configuration, 8 speaker outputs, and 6 RCA outputs. The new Extension Card 2.0 slot accepts Bluetooth HD streaming and additional analog input cards for future expandability. The SCP (Smart Control Port) connects remote controls and accessories.
The ACO 32-bit CoProcessor platform manages all control and communication tasks including ultra-fast startup, switching between up to 10 sound setups, AISA input signal analysis and correction, TuneEQ automated equalizer calibration, DLC, RTC, VCP cross-channel group equalizers, multi-way speaker configuration with DSP Sound Effects (SFX), Augmented Bass Processing, and RealCenter. Operating voltage is 10.5-18V with Start-Stop capability (stable to 6V). Fused at 2 x 40A LP-Mini (APS). Dimensions are 44 x 220 x 180mm.
Features & Benefits
Class HD Amplifier Technology - Up to 66% Performance Boost Over Predecessor: The Class HD topology continuously varies the internal supply voltage in response to the input signal amplitude, combining the benefits of Class H rail modulation with Class D efficiency. The result is outstanding efficiency that outperforms conventional Class D designs, with significantly reduced idle losses and low heat dissipation across all operating conditions.
8-Channel Output - 8 x 110W RMS at 4Ω / Channels 5-8 at 220W RMS at 2Ω: The V Eight DSP Ultimate delivers 8 x 110W RMS into 4Ω with channels 5-8 capable of 220W RMS into 2Ω, and maximum output of up to 270W per channel into 2Ω, providing substantial power reserves for complex high-performance multi-channel speaker systems.
14-Channel Integrated DSP - 64-Bit Fixed-Point Processing at 295 MHz: The 14-channel integrated DSP delivers 64-bit fixed-point audio processing at 295 MHz (1.2 billion MAC operations per second), providing the processing power to handle complex multi-channel signal routing, equalization, crossover, and time alignment simultaneously with exceptional precision and speed.
12 High-Level ADEP.3 Inputs - Seamless OEM Integration: The 12 high-level inputs with ADEP.3 Gen 3 circuitry accept 4-32V RMS input sensitivity and are controlled by the ACO platform to adapt to even the most advanced OEM head unit speaker load detection systems, ensuring seamless integration without triggering error messages or loss of factory audio functions.
USB PerfectStream - Lossless Audio Streaming, AISA, and DSP Configuration via USB-C: USB PerfectStream enables lossless high-resolution audio streaming at up to 192kHz/32-bit directly into the DSP from a smartphone, tablet, or PC. It simultaneously enables real-time AISA measurement signal transmission and DSP PC-Tool 6 configuration, eliminating the need for an external measurement interface.
AISA - Advanced Input Signal Analyzer with InputEQ: The AISA system analyses input signals from factory audio systems that already contain factory EQ curves, allowing identification and precise correction of factory signal anomalies before they enter the DSP processing chain, via the integrated InputEQ.
VCP - Virtual Channel Processing for Complex System Configurations: VCP provides cross-channel group equalizers that affect multiple output channels simultaneously, multi-way speaker configuration of DSP Sound Effects, and additional features such as Rear Attenuation, enabling highly complex multi-amplifier, multi-speaker system configurations to be implemented and tuned with precision.
ACO 32-Bit CoProcessor - TuneEQ, DLC, RTC, RealCenter, Augmented Bass Processing: The ACO platform provides the processing foundation for TuneEQ (automated parametric EQ calibration using a measurement microphone), DLC (Dynamic Loudness Control for volume-dependent high and low frequency adjustment), RTC (Remote Tone Control), RealCenter (dynamic center image synthesis), and Augmented Bass Processing (Dynamic Bass Enhancement and SubXpander subharmonic bass extension).
1:1 IOR - Input-to-Output Routing: All high-level inputs can be individually assigned to any amplifier or line output channel, enabling direct signal routing from any input to any output for maximum flexibility in complex system configurations.
SOP Max - Stabilized Output Power Technology: SOP Max ensures consistently stable full output power at all times regardless of input voltage fluctuations, maintaining maximum performance across all modern vehicle platforms including those with Start-Stop systems.

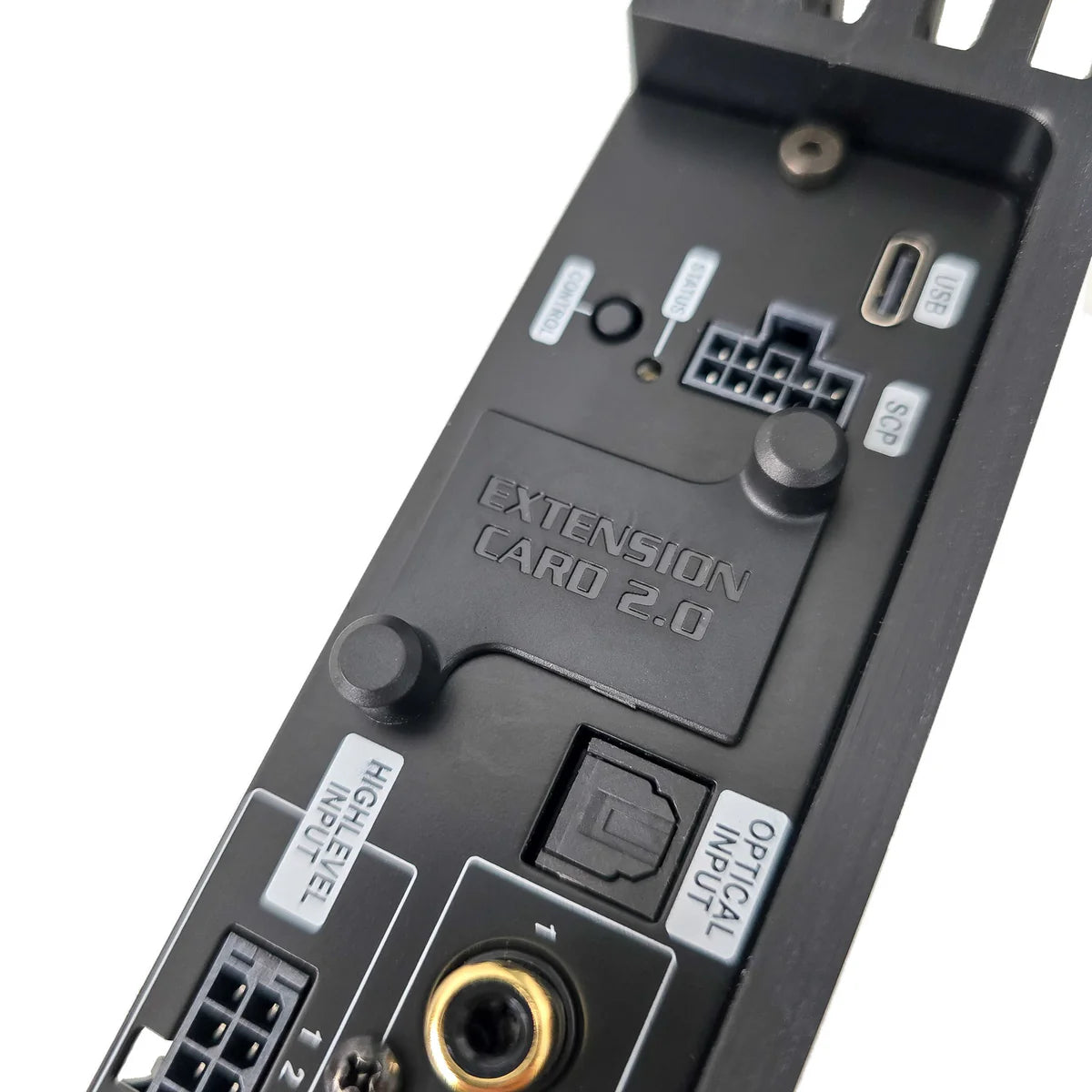

Extension Card 2.0 Slot - Future-Ready Expandability: The new Extension Card 2.0 slot accepts Bluetooth HD audio streaming cards and additional analog input expansion cards, with cross-series compatibility and screw-secured housing for secure installation. Future signal source expansion is supported as new Extension Card 2.0 options become available.
Start-Stop Capable - 10.5-18V Operating Range Stable to 6V: The switched-mode power supply maintains stable internal voltage during short voltage drops to 6V, ensuring uninterrupted operation during engine cranking in Start-Stop vehicles and modern EV platforms with extended voltage ranges up to 18V.
Auto Remote Switch: The Auto Remote function activates the amplifier automatically from the audio signal without requiring an external remote wire from the head unit.
DSP PC-Tool 6 Compatible: The V Eight DSP Ultimate is designed for use with DSP PC-Tool 6, providing a significantly improved user interface, enhanced feature set, smarter tuning tools, and integration with TuneEQ and AISA for professional-grade system configuration and sound tuning.

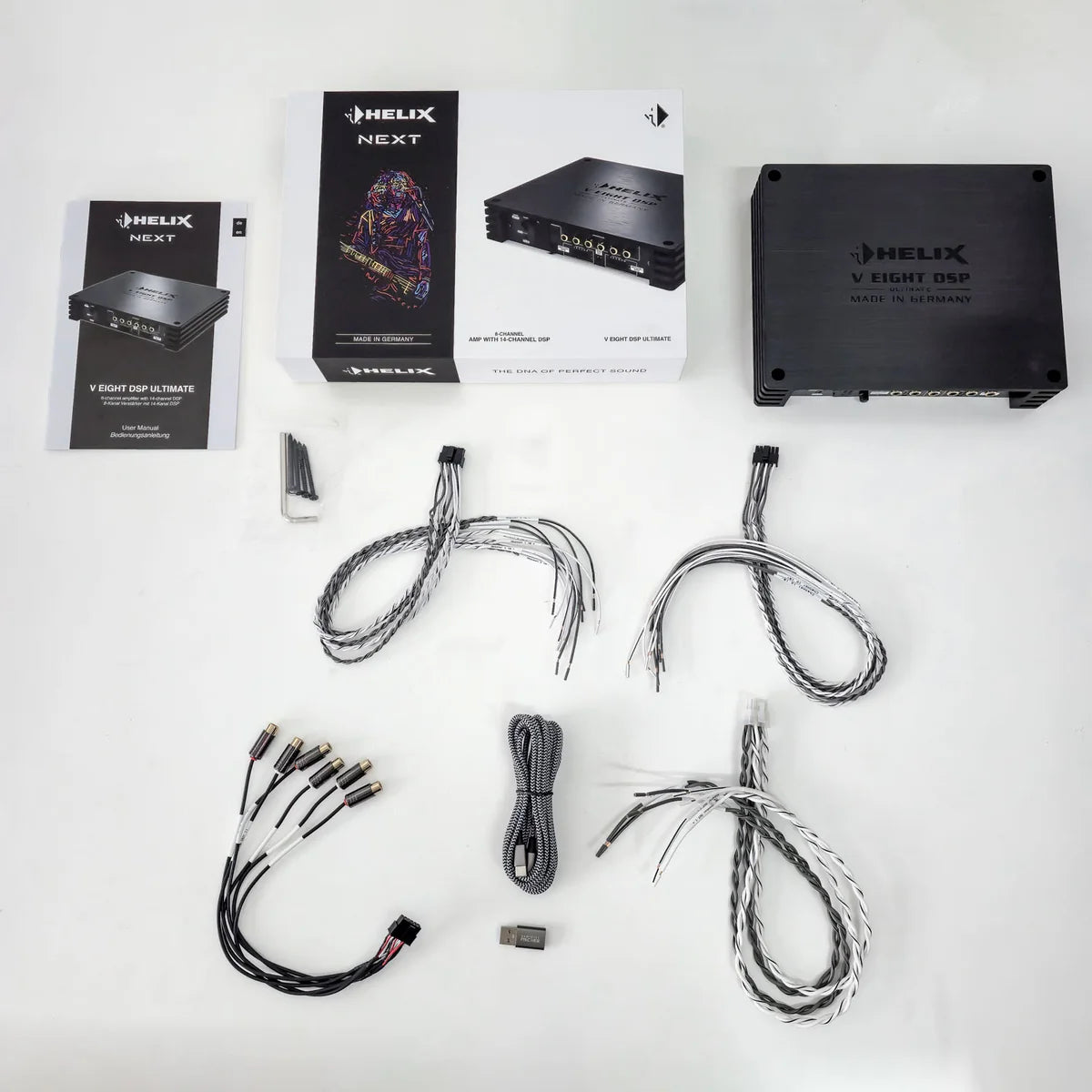

What's in the Box
- Helix NEXT V Eight DSP Ultimate Amplifier
- USB-C Cable with USB-A Adaptor
- 2 x Allen Key

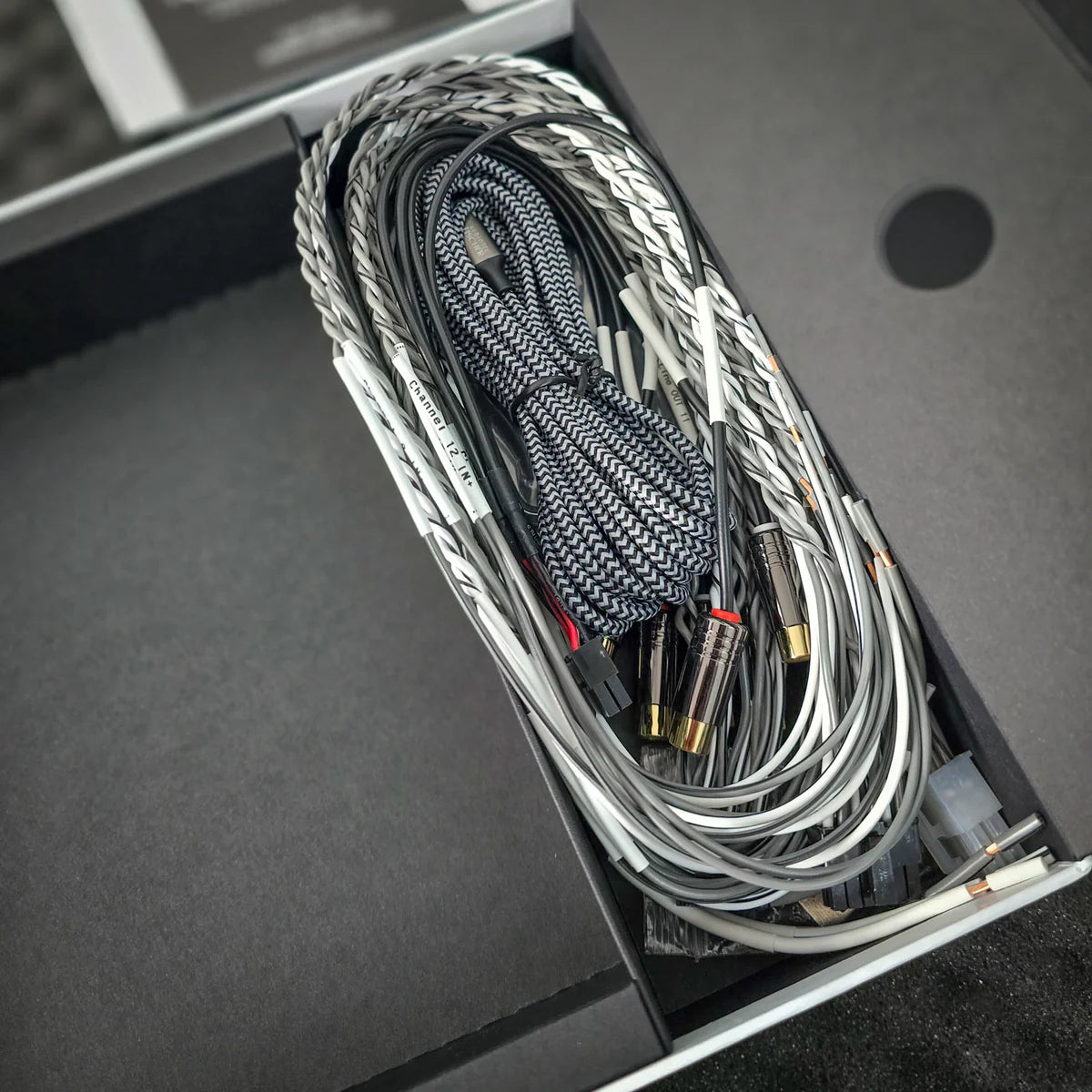

- 4 x Connection Cable
- Mounting Material
- Instruction Manual
Technical Specs
| Specification | Detail |
|---|---|
| SKU | V EIGHT DSP ULTIMATE |
| Brand | Helix |
| Range | NEXT Series |
| Channels | 8 (Amplifier) / 14 (DSP) |
| Amplifier Class | Class HD |
| Power RMS - 8Ch at 4Ω | 8 x 110W |
| Power RMS - Ch5-8 at 2Ω | 4 x 220W |
| Max Output - Ch1-8 at 4Ω | Up to 140W per Channel |
| Max Output - Ch5-8 at 2Ω | Up to 270W per Channel |
| THD at 1kHz, 1W into 4Ω | Less than 0.007% |
| THD+N at 1kHz, 1W into 4Ω | Less than 0.009% |
| Damping Factor | 100 |

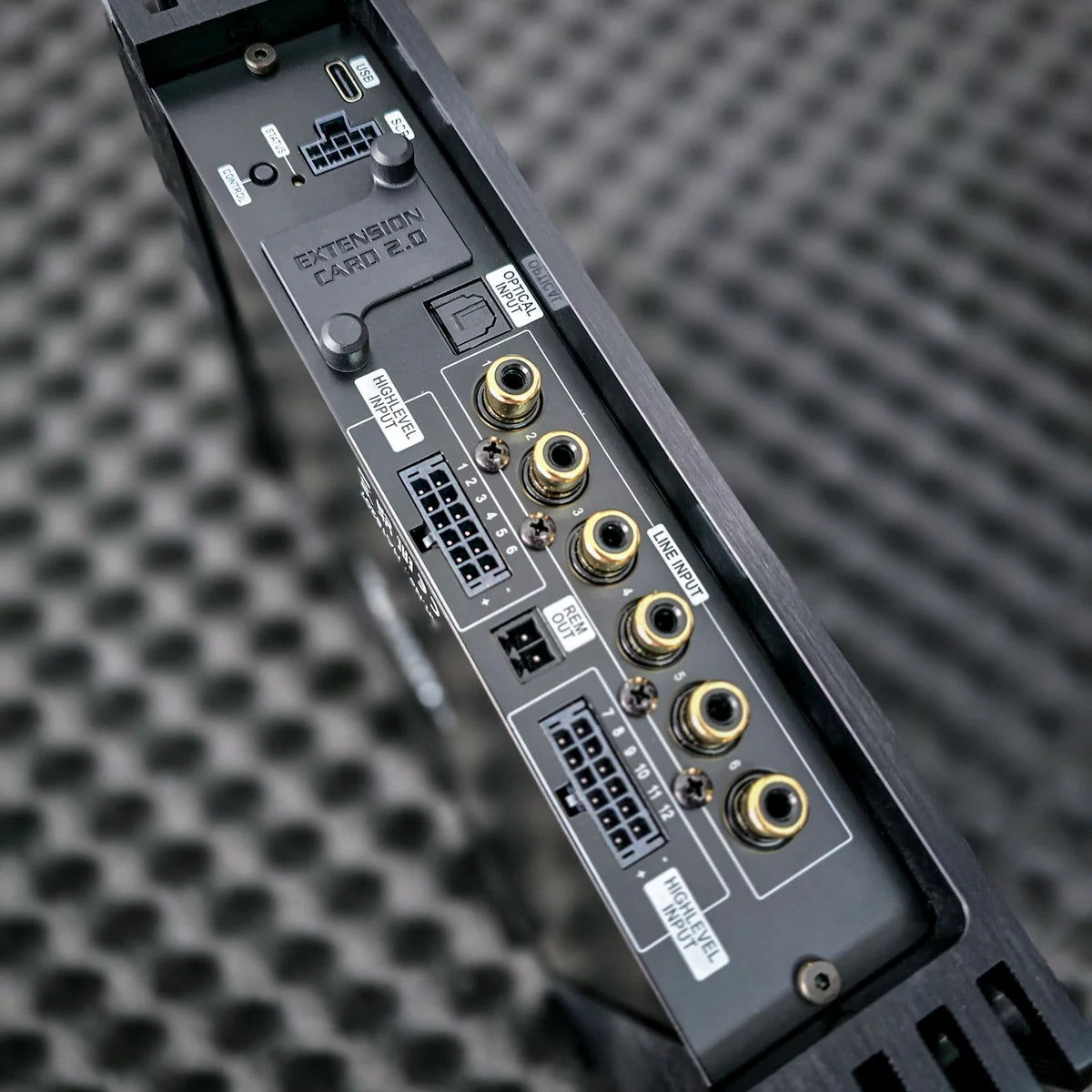

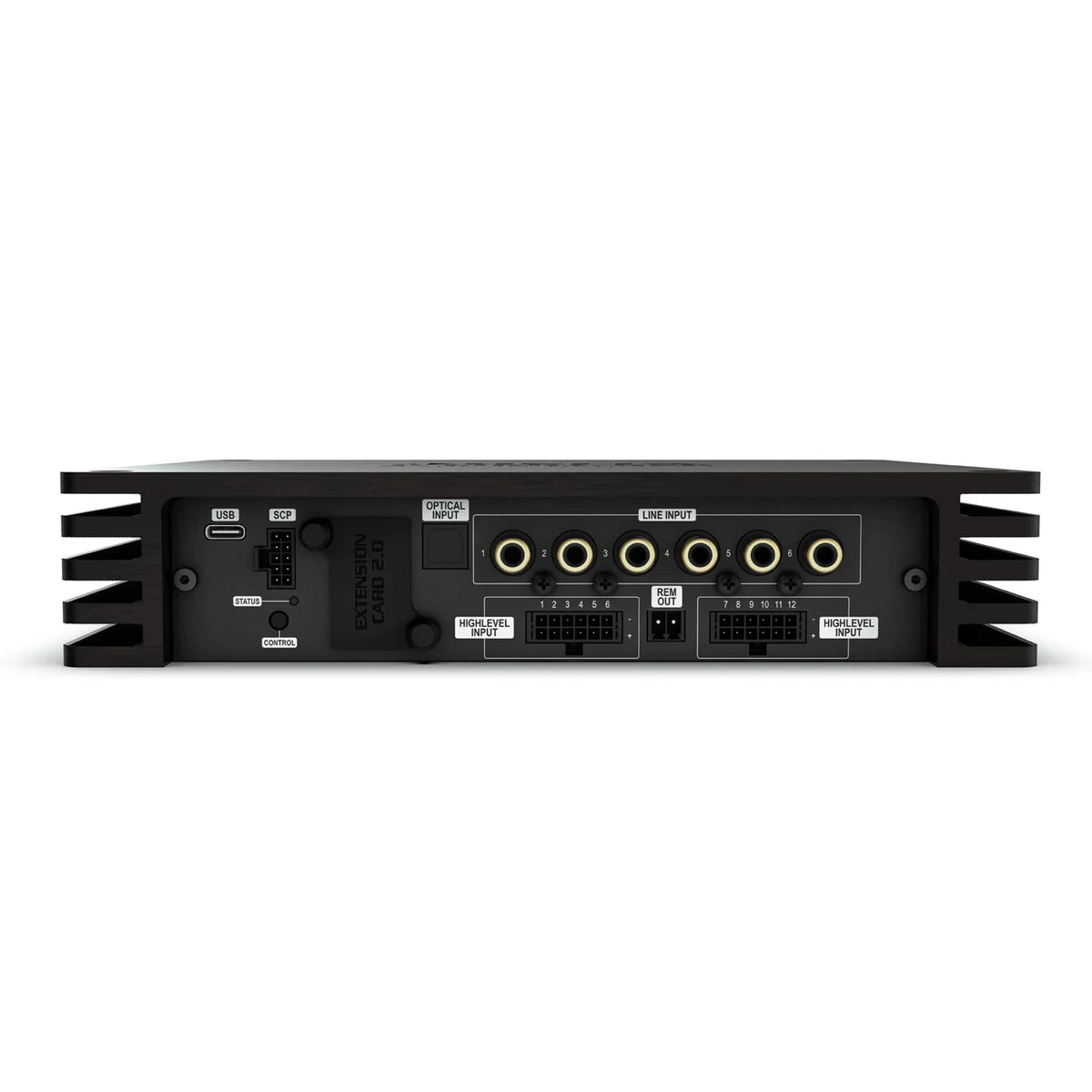

| Inputs | 12 x High-Level (ADEP.3), 6 x RCA, 1 x Optical SPDIF (12-96kHz), 1 x Remote In, 1 x USB Audio (PerfectStream) |
| RCA Input Sensitivity | 1-8V |
| High-Level Input Sensitivity | 4-32V |
| RCA Input Impedance | 25kΩ |
| High-Level Input Impedance | 9-33Ω (with ADEP.3) |

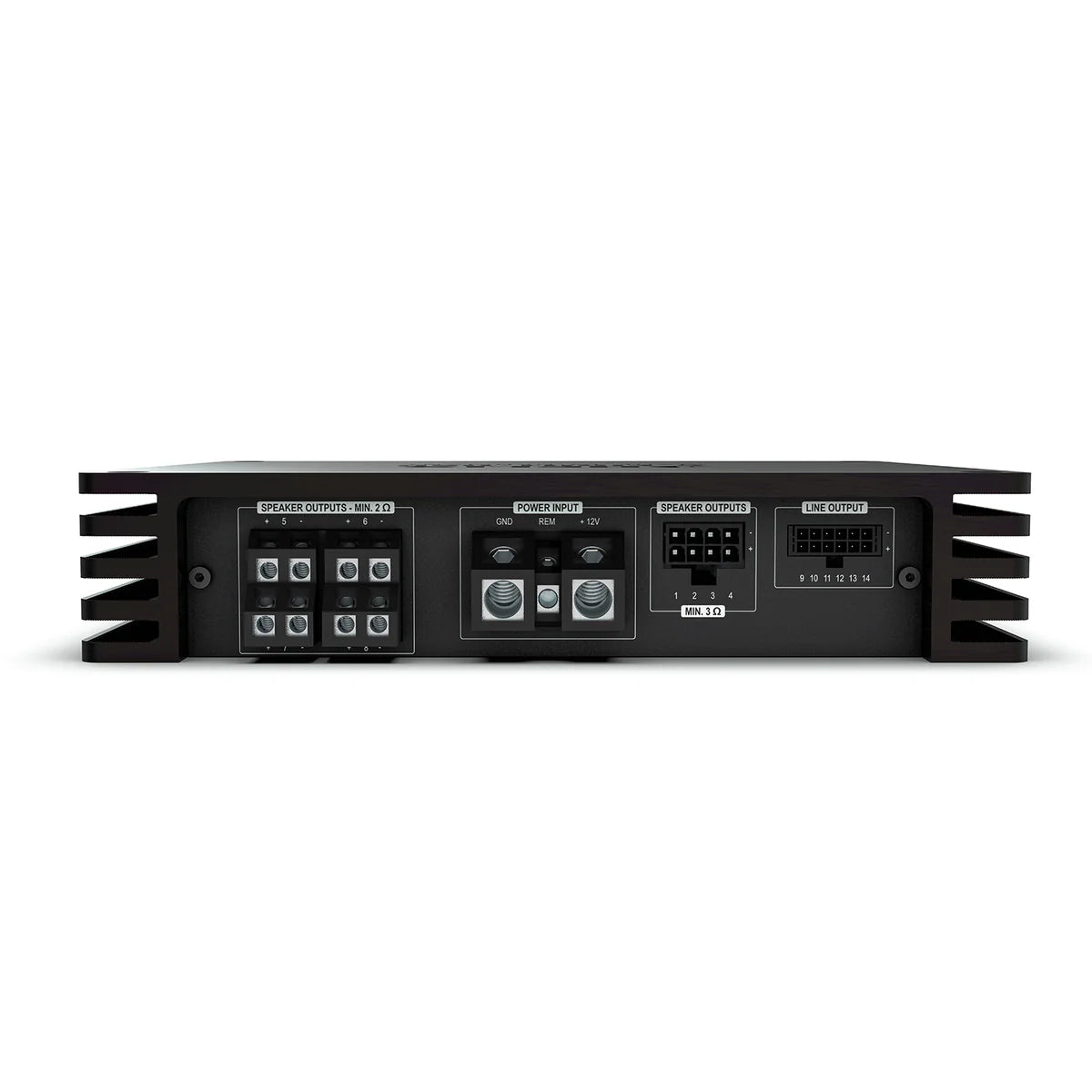

| Outputs | 8 x Speaker, 6 x RCA, 2 x Remote Out |
| RCA Output Voltage | 3V |
| Frequency Response | 15Hz-22,000Hz |
| SNR - Digital Input | 107dB (A-weighted) |
| SNR - Analog Input | 102dB (A-weighted) |
| DSP Resolution | 64-Bit Fixed-Point |
| DSP Processing Power | 295 MHz (1.2 Billion MAC ops/sec) |
| Sampling Rate | 48kHz |
| USB PerfectStream | Up to 192kHz / 32-Bit |
| Signal Converters | BurrBrown 24-Bit A/D and D/A |
| CoProcessor | ACO 32-Bit |
| Extension Card | 2.0 Slot |
| Operating Voltage | 10.5-18V (Stable to 6V for 5 Seconds) |
| Power Rating | DC 12V, 110A Max |
| Idle Current | 750mA |
| Max Remote Output Current | 500mA |
| Fuse | 2 x 40A LP-Mini (APS) |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 44mm x 220mm x 180mm |
DSP Features
| Feature | Detail |
|---|---|
| TuneEQ | Automated parametric EQ calibration via measurement microphone |
| AISA | Advanced Input Signal Analyzer with InputEQ for OEM signal correction |
| VCP | Virtual Channel Processing with cross-channel group EQ and multi-way speaker configuration |
| RealCenter | Dynamic center image synthesis algorithm |
| Augmented Bass Processing | Dynamic Bass Enhancement and SubXpander subharmonic bass extension |
| DLC | Dynamic Loudness Control for volume-dependent frequency adjustment |
| RTC | Remote Tone Control |
| Sound Setups | Up to 10 presets with instant switching via ACO |
| DSP PC-Tool | Version 6 |
Compatible With
The V Eight DSP Ultimate is compatible with 10.5-18V vehicle electrical systems. High-level ADEP.3 inputs support virtually all OEM factory head units at 4-32V sensitivity. RCA inputs suit aftermarket head units at 1-8V. Optical SPDIF input accepts 12-96kHz digital signals. USB PerfectStream is compatible with smartphones, tablets, and PCs via USB-C. Extension Card 2.0 accessories are sold separately. Remote controls and accessories connect via the SCP Smart Control Port.
Frequently Asked Questions
What is Class HD amplifier technology?
Class HD combines the dynamic supply rail modulation of Class H technology with the efficiency of a Class D switching output stage. By continuously varying the internal supply voltage in response to the input signal amplitude, idle losses are dramatically reduced and overall efficiency approaches maximum at all times. The result is an amplifier that outperforms conventional Class D designs in efficiency while delivering exceptional audio performance.
What is USB PerfectStream?
USB PerfectStream is a bidirectional USB-C audio interface that simultaneously enables lossless high-resolution audio streaming (up to 192kHz/32-bit) from a connected device into the DSP, real-time AISA measurement signal transmission, and DSP PC-Tool 6 configuration - without requiring any external measurement interface. It makes the V Eight DSP Ultimate a fully self-contained system configuration and measurement platform.
What is ADEP.3 and why is it important?
ADEP.3 (Generation 3) is Helix's smart high-level input circuit controlled by the ACO platform. It ensures seamless integration with the most advanced OEM head units by correctly simulating the speaker load impedance expected by the factory head unit's speaker load detection system, preventing error messages and loss of factory audio functions when the amplifier is connected to the factory speaker outputs.
What is the ACO platform?
ACO (Advanced CoProcessor) is the 32-bit co-processing platform that handles all system control, communication, and extended DSP features independently of the main audio DSP. It provides ultra-fast startup, instant switching between up to 10 sound setups, AISA signal analysis, TuneEQ automated calibration, DLC, RTC, RealCenter, and Augmented Bass Processing.
How many sound setups can the V Eight DSP Ultimate store?
The V Eight DSP Ultimate can store up to 10 sound setups with instant switching between them via the ACO platform and DSP PC-Tool 6 software.
