HELIX PURE PF K165.2| 165mm 6.5" 2-Way Component Speaker Set| Pure F-Series 3Ω

HELIX PURE PF K165.2| 165mm 6.5" 2-Way Component Speaker Set| Pure F-Series 3Ω

HELIX PURE F Series 6.5" Component Speaker System - Entry-Level Excellence.

When you're ready to enter the legendary HELIX sound world without breaking the bank, the PURE F speaker series delivers the kind of performance that transforms your understanding of what entry-level car audio can achieve. These aren't just budget-friendly speakers – they're engineered with the same German precision that has made HELIX a household name among serious car audio enthusiasts worldwide.

The powerful F-Series gets the maximum power out of your amplifier thanks to its innovative 3 Ohms technology. In combination with the exceptional sound performance featuring powerful bass, clear mids and detailed highs, an exciting sound experience is bound to occur every time you turn the key and fire up your favorite tracks.

Easiest Integration at Its Best

The best sound isn't any good if the installation causes trouble. The PURE F loudspeakers demonstrate with their well-thought-out design in every detail, how it is done the right way. This starts with the low installation depth of the drivers, which considers the increasingly limited space in modern vehicles – a crucial advantage when you're working with today's cramped door panels and dash configurations.

The system offers an extensive range of installation accessories with an innovative bayonet lock for the extremely compact tweeter, which allows any installation option you can imagine, up to simplifications in the wiring thanks to the revolutionary "Flex-Crossover" design that sets these speakers apart from conventional component systems.

Revolutionary Flex-Crossover Technology

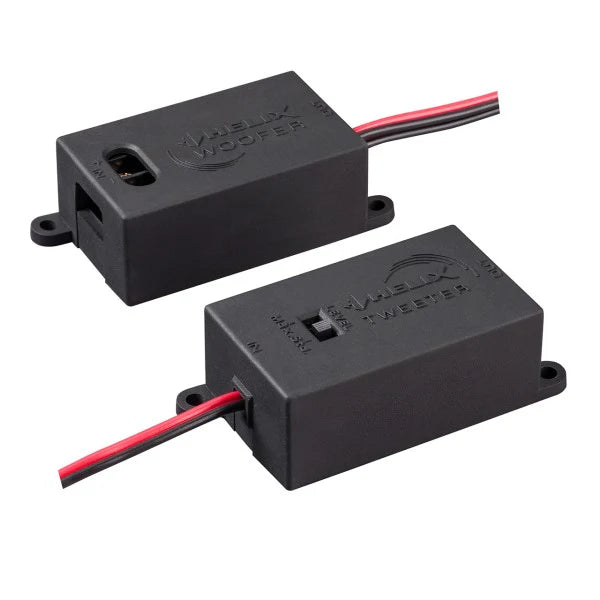

Maximum Flexibility for Perfect Installation The sophisticated, two-part and immensely space-saving "Flex-Crossover" maximizes installation flexibility, perfect for installations where the tweeter is positioned in the A-pillar and the woofer in the door. This offers decisive advantages, especially in space-critical installations where traditional crossovers simply won't fit.

The tweeter crossover is equipped with a two-stage level adjustment, which allows adaptation to both personal listening taste and the installation situation. This flexibility ensures optimal performance whether you're installing in a factory location or creating a custom setup that maximizes your vehicle's acoustic potential.

Premium Materials, Cool Design

Timeless Style Meets Function The timeless and stylish design of the F loudspeaker series with the dynamic Space-Line styling of the woofer cone is by no means an end in itself, but rather the result of using high-quality materials that deliver both visual appeal and acoustic performance.

The carbon fibres embedded in the polypropylene cone of the woofer optimize the midrange reproduction, whereas the coated silk dome of the tweeter guarantees exceptionally airy highs that bring out every detail in your music. The elegant HELIX design with black matt cone finish and black shiny Space Line styling integrates seamlessly into any vehicle interior.

Advanced Component Technologies

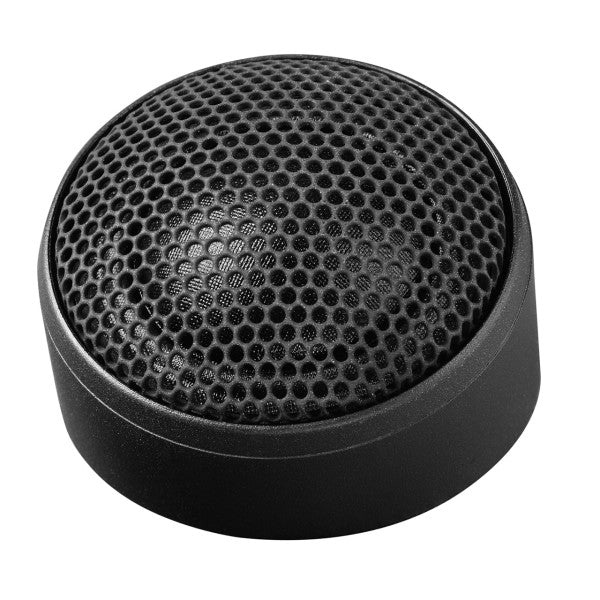

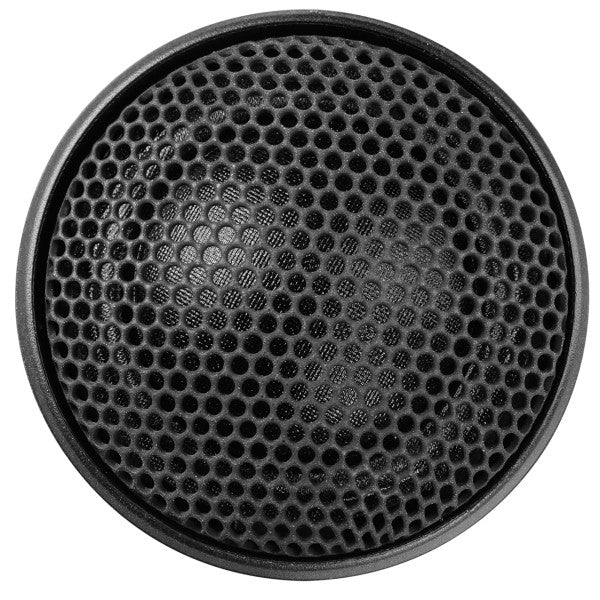

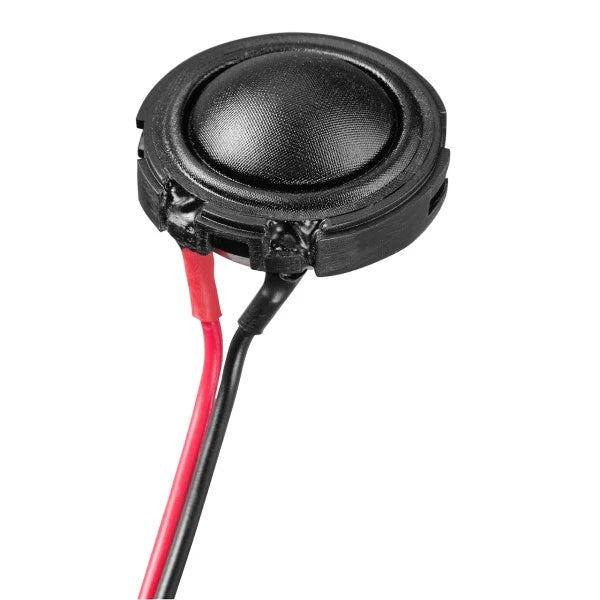

Premium Tweeter Engineering The 0.75" / 20 mm silk dome tweeter with neodymium magnet delivers brilliant and clear treble response even at high levels, ensuring your music maintains its sparkle without harshness. The intelligent, ultra-compact tweeter design and various mounting pods fit a wide variety of installation requirements, while the removable grille allows easy integration behind factory grilles in the vehicle's original mounting locations.

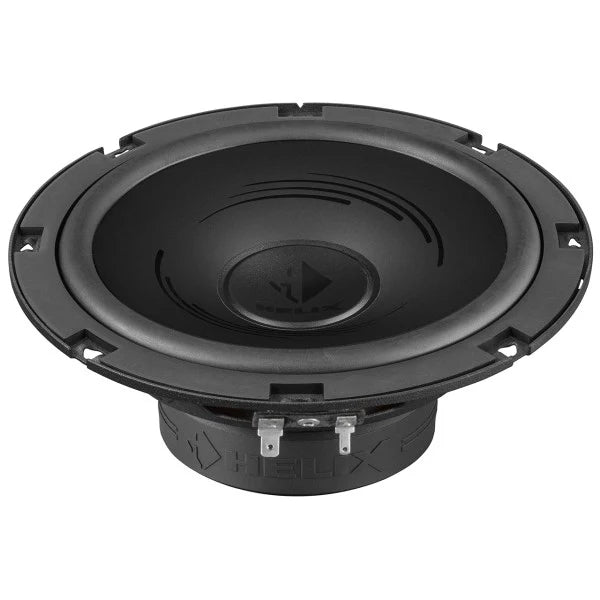

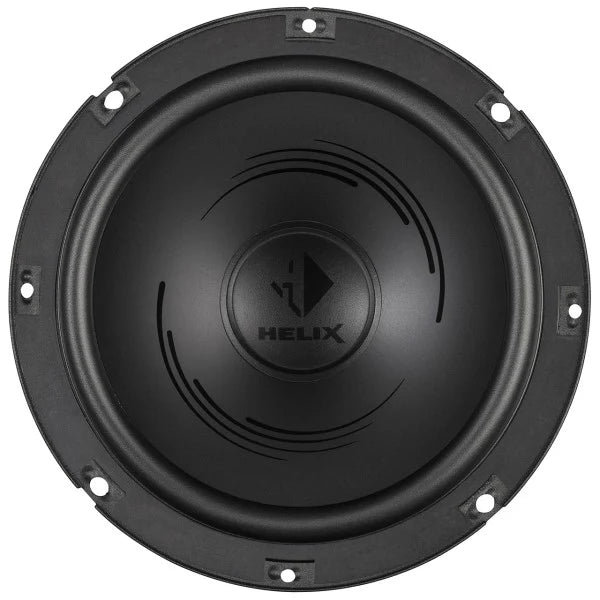

High-Performance Woofer Design The 6.5" / 165 mm woofer features a rigid cone made of injected polypropylene with embedded carbon fibres that provides essential stiffness with high inner damping. This advanced cone material eliminates unwanted resonances while delivering the kind of controlled bass response that brings your music to life. The powerful magnet system with optimum control ensures powerful and clear depths across the entire frequency spectrum.

Individual HELIX Basket Design The custom HELIX basket features additional ventilation holes for better voice coil cooling and high power handling, ensuring consistent performance during extended listening sessions. This thoughtful engineering prevents thermal compression that robs lesser speakers of their dynamics when the music gets loud.

PURE PF K165.2 Features:

• High sound quality with deep bass, clear mids and detailed highs
• Powerful speaker system with high-efficiency thanks to 3 Ohms technology
• Low installation depths for trouble-free installation in almost all vehicles
• Elegant HELIX design with black matt cone finish and black shiny Space Line styling
• Tweeter
• 0.75” / 20 mm silk dome tweeter with neodymium magnet for a brilliant and clear treble response even at high levels

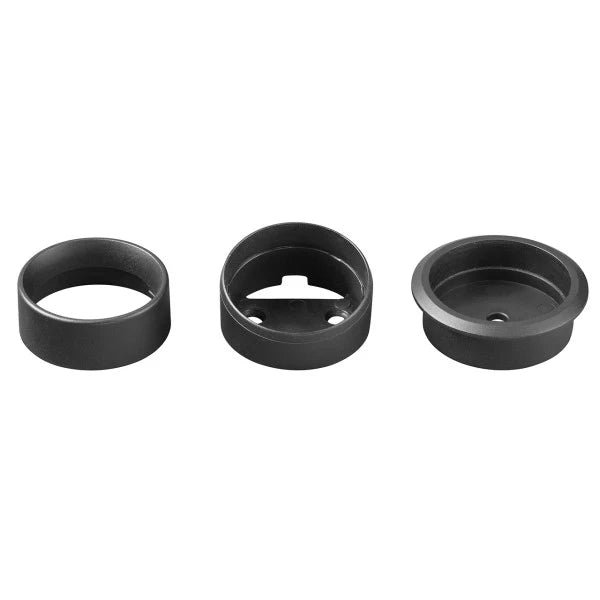

• Intelligent, ultra-compact tweeter design and various mounting pods to fit a wide variety of installation requirements
• Removable grille for easy integration behind factory grilles in the vehicle´s original mounting locations
• Woofer
• 6.5" / 165 mm woofer with a rigid cone made of injected polypropylene with embedded carbon fibres provides essential stiffness with a high inner damping
• Powerful magnet system with optimum control for powerful and clear depths
• Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
• Flex-Crossover
• Separate, two-parted crossover for versatile connection options – well suited for installations in vehicles with separate mounting positions of the tweeter and woofer
• Extensively fine-tuned crossover with 12 dB slope for tweeter and woofer
• 2-stage tweeter level adjustment with integrated tweeter protection for a perfect listening experience

Technical Data:

• Power RMS / Max. 60 / 120 Watts
• Frequency response 55 Hz - 22,000 Hz
• Impedance 3 Ω
• Sensitivity 92.5 dB @ 2.83V / 1m, 88.5 dB @ 1W / 1m
• Cone material TW: Silk dome, W: Injected polypropylene with embedded carbon fibers
• Crossover Separate, 12/12 dB slope and tweeter protection
• Tweeter outer diameter: 33.1 mm / 1.30" (OE mount: 36 mm / 1.42", flush mount: 42 mm / 1.65", angle mount: 36 mm / 1.42")
• Tweeter installation diameter: 33.1 mm / 1.30" (OE mount: 36 mm / 1.42", flush mount: 36 mm / 1.42")
• Tweeter installation depth: 9.8 mm / 0.38" (OE mount: 16.8 mm / 0.66", flush mount: 11 mm / 0.43")
• Woofer outer diameter: 165 mm / 6.50"
• Woofer installation diameter: 142 mm / 5.59"
• Woofer installation depth: 61 mm / 2.40"
• Crossover dimensions: 75.5 x 35.1 x 24 mm / 2.97 x 1.38 x 0.95"

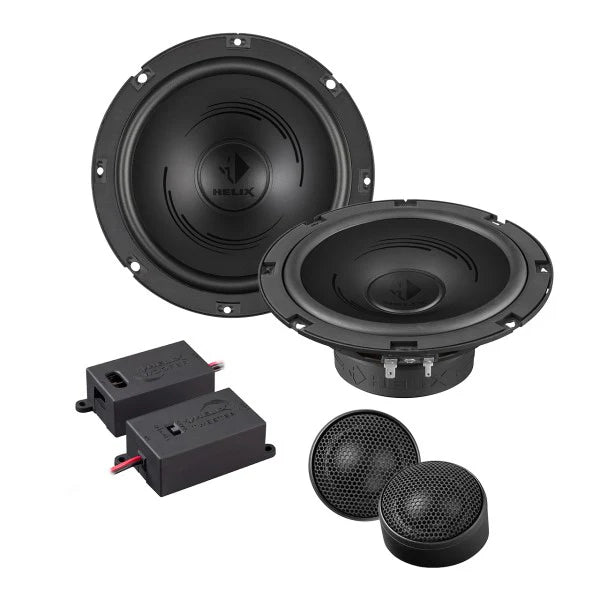

What's in the Box?

• 2 x Tweeter HELIX PF T20-S
• 2 x Woofer HELIX PF W165
• 2 x Two-part Flex-Crossover
• 6 x Tweeter mounting accessories
• 1 x Mounting material
• 1 x Instruction manual
• 1 x Mounting pattern

Why Choose HELIX PURE F Series

When you invest in the HELIX PURE F Series, you're getting authentic German engineering at an accessible price point. These speakers deliver the kind of performance that reveals why HELIX has earned its reputation among serious enthusiasts worldwide. The combination of 3-ohm technology, carbon fiber reinforced cones, silk dome tweeters, and flexible crossover design ensures you'll experience music the way it was meant to be heard.

Perfect for enthusiasts who want to experience the HELIX difference without the premium investment, these speakers prove that exceptional sound quality doesn't require breaking the bank. Transform your car audio system with the precision engineering and uncompromising quality that only HELIX can deliver.
