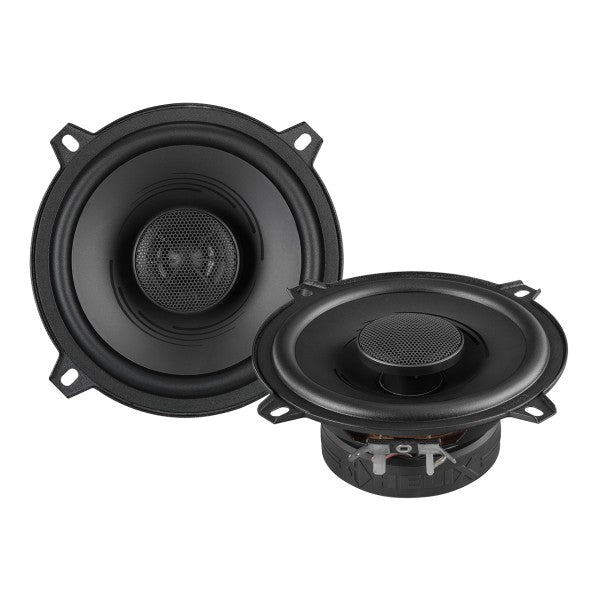

HELIX PF C130.2 pair, one with grille
HELIX PF C130.2 pair, one with grille

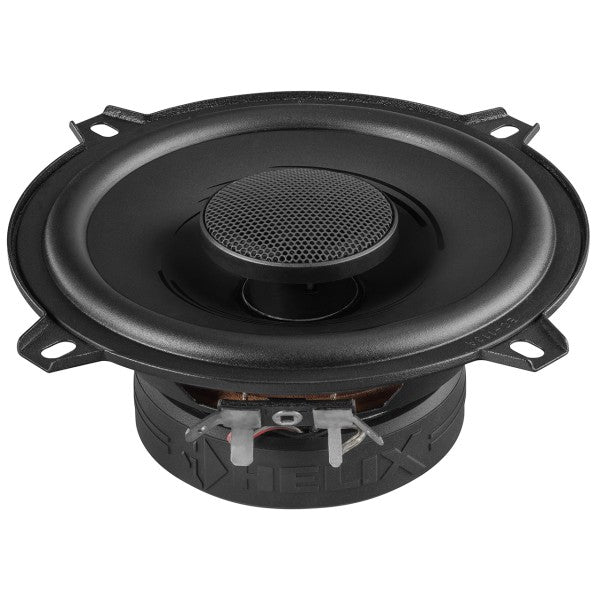

PF C130.2 shown at an angle
PF C130.2 shown at an angle

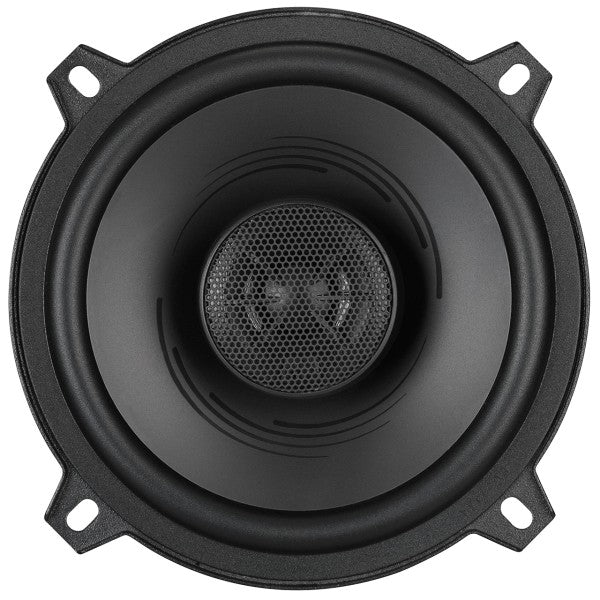

PF C130.2 face on with grille
PF C130.2 face on with grille
Click to open expanded view

HELIX PURE PF C130.2 5.25" 2 Way Coaxial Speakers PURE F Series

SKU: PUREPFC1302
Price
$195
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
HELIX PF C130.2 pair, one with grille

HELIX PURE PF C130.2 5.25" 2 Way Coaxial Speakers PURE F Series

$195

Product features

HELIX built the PURE PF C130.2 as an entry point to its range: a 5.25 inch coaxial pair rated 50W RMS and 100W max. The 3 ohm load and 91dB sensitivity at 2.83V suit factory and aftermarket head units with modest power.

Each 130mm woofer carries a 13mm mylar dome with a neodymium magnet on a carbon reinforced polypropylene cone.

Problems it solves

  • Front doors that only take a slim speaker. A 50mm mounting depth and 112mm cut out suit most 5.25 inch locations.
  • Bass that fades as the music builds. The 130mm cone reaches down to 70Hz.
  • Highs that sound dull through a factory grille. A light mylar tweeter keeps the top end clear.

PUREPFC1302 specifications

  • Size: 5.25 inch, 130mm woofer
  • Power: 50W RMS, 100W max
  • Impedance: 3 ohm
  • Sensitivity: 91dB at 2.83V, 87dB at 1W
  • Frequency response: 70Hz to 22kHz
  • Crossover: integrated, 6dB slope
  • Outer diameter: 129mm
  • Cut out: 112mm
  • Mounting depth: 50mm

Fitment and compatibility

5.25 inch speaker locations with a 112mm opening and 50mm of depth.

What is in the box

  • Pair of PF C130.2 speakers
  • Mounting material
  • Instruction manual
  • Mounting pattern

Install notes

Mark the 112mm opening with the mounting pattern in the box.

Wire straight to the head unit or amplifier; there is no outboard network.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

PUREPFC1302 FAQs

How much depth does the PF C130.2 need behind the panel?

50mm.

Can a 50W amplifier channel drive each PF C130.2?

Yes, each speaker is rated 50W RMS and 100W peak.

Is the PF C130.2 tweeter mylar or silk?

Mylar, 13mm.
