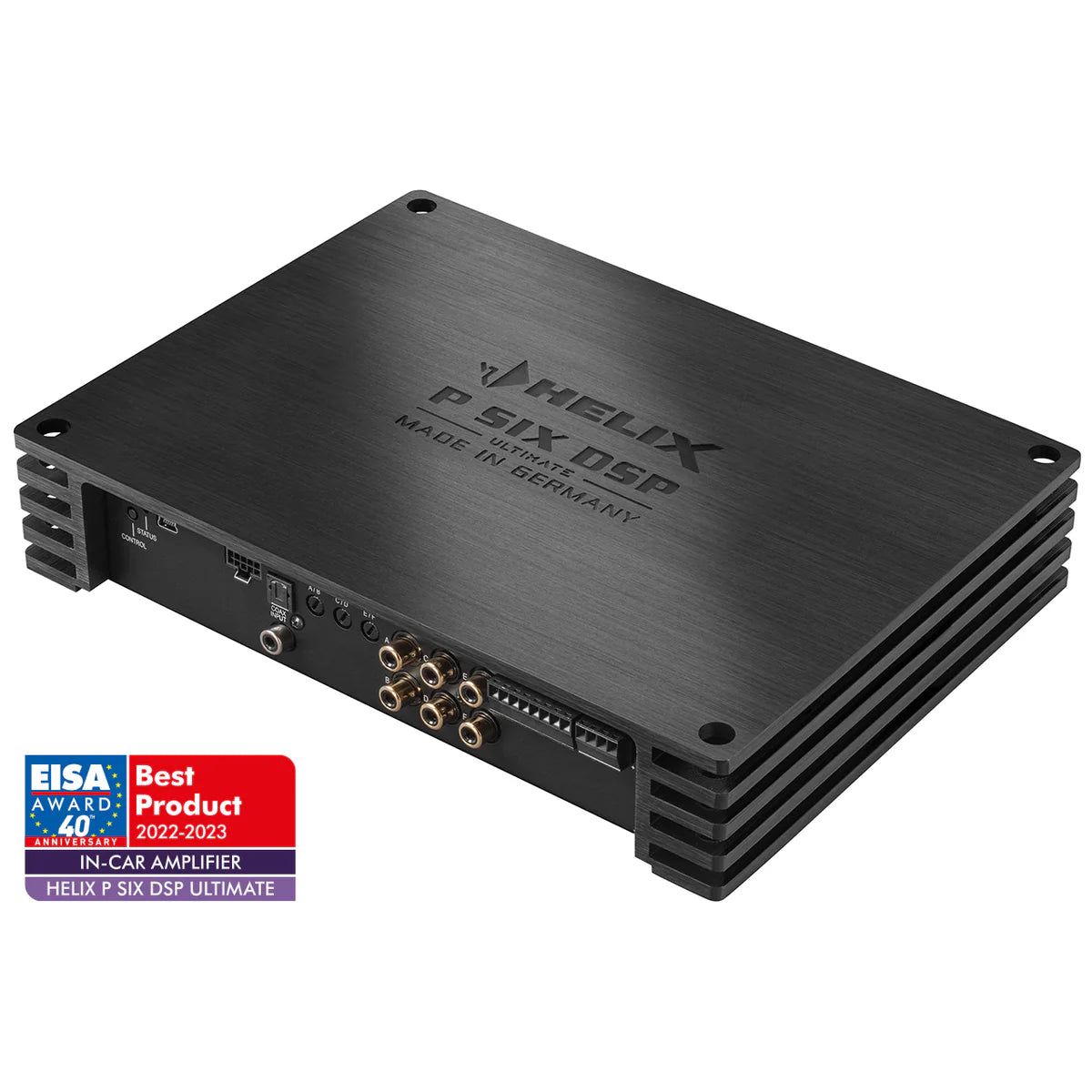

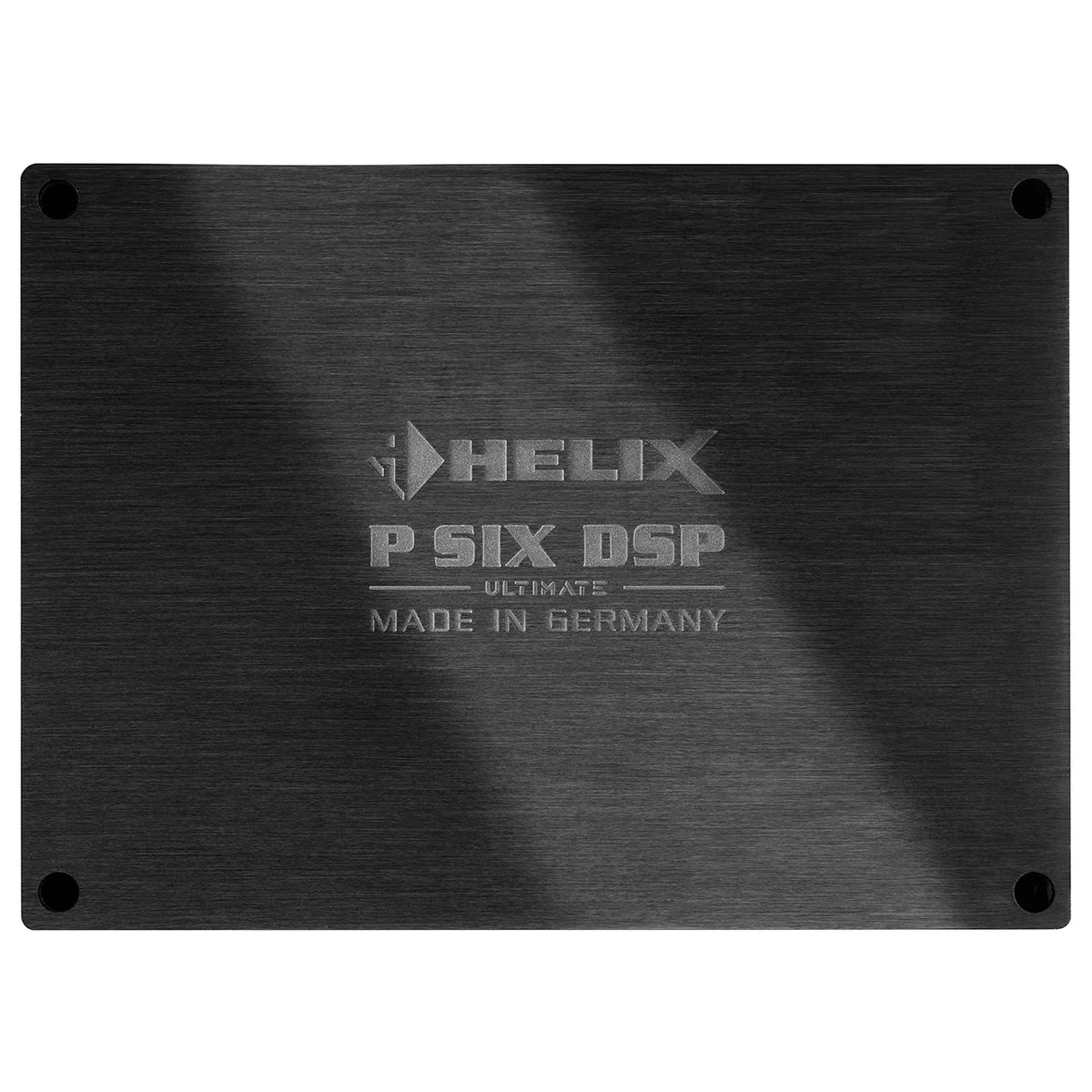

HELIX P SIX DSP Ultimate 6-Channel Ultra HD Class D Amplifier with 12-Channel DSP 12/24V
A 6-channel Ultra HD Class D amplifier with integrated 12-channel DSP from Helix, the P Six DSP Ultimate delivers 6 x 120W RMS at 4Ω (channels C-F up to 285W RMS at 2Ω), with TwinDSP at 2.4 billion MAC operations per second, 6 RCA and 6 high-level ADEP.3 inputs, optical and coaxial SPDIF inputs, optical SPDIF output, 4 RCA outputs, BurrBrown 96kHz converters, ACO CoProcessor, ISA, TuneEQ, VCP, Augmented Bass Processing, RealCenter, HEC slot, 12/24V operation (10.5-32V), and SCP Smart Control Port.
Product Overview
The Helix P Six DSP Ultimate is the flagship 6-channel amplifier from the Helix P Series, delivering enormous power and sophisticated DSP technology in perfect harmony. The Ultra HD Class D topology combines the excellent sound characteristics of Class AB technology with the efficiency of a Class D digital amplifier stage, producing an amplifier with exceptional audio quality and very low heat dissipation. Channels A-F deliver 6 x 120W RMS at 4Ω, with channels C-F capable of 230W RMS at 4Ω and maximum output of up to 285W RMS per channel at 2Ω.
At the heart of the P Six DSP Ultimate is the TwinDSP platform: two independent 64-bit fixed-point audio signal processors running simultaneously at 295 MHz each, delivering a combined processing power of 2.4 billion MAC operations per second at a 96kHz sampling rate. BurrBrown A/D and D/A converters handle signal conversion, with an SNR of 108dB from digital input and 102dB from analog input and THD below 0.004%.

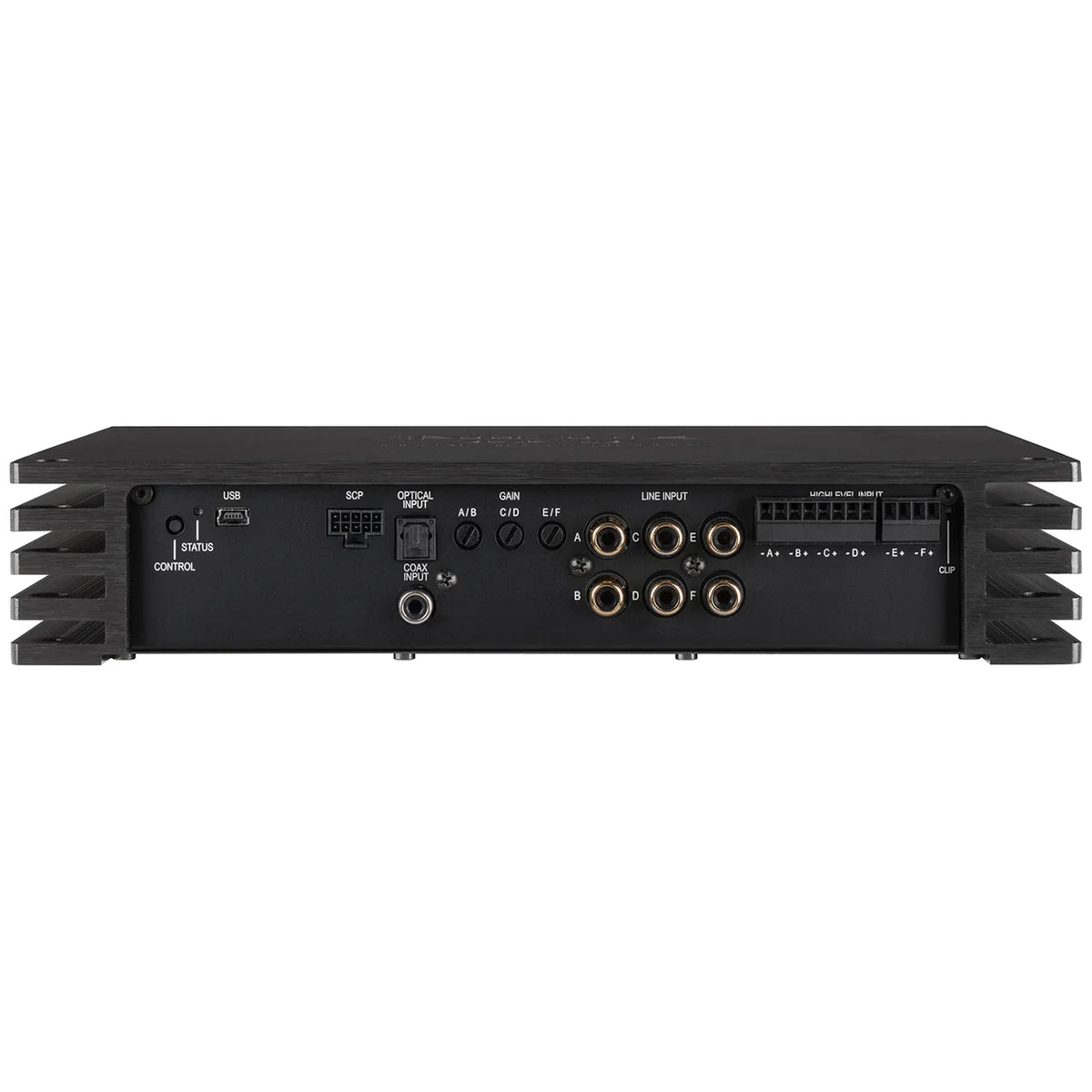

The connectivity platform covers 6 RCA inputs (1-4V or 4-8V dual-sensitivity range), 6 high-level ADEP.3 inputs (4-16V or 8-32V dual-sensitivity range), optical SPDIF (12-96kHz), and coaxial SPDIF (12-192kHz). On the output side: 6 speaker outputs, 4 RCA outputs at 3V, and an optical SPDIF output at 96kHz for connection to additional downstream processors or amplifiers. The HEC (Helix Extension Card) slot accepts optional Bluetooth HD streaming and USB high-resolution audio streaming expansion cards. The SCP Smart Control Port connects optional remote controls and accessories.
The ACO 32-bit CoProcessor manages ISA with InputEQ, TuneEQ automated EQ calibration, VCP cross-channel group equalizers, RealCenter, Augmented Bass Processing, DLC, and RTC. The operating voltage range of 10.5-32V with Start-Stop capability to 6V supports both 12V and 24V vehicle electrical systems, including trucks, coaches, and heavy commercial vehicles. Fused at 3 x 20A LP-Mini (APS). Dimensions are 50 x 260 x 190mm.
Features & Benefits
Ultra HD Class D Technology - Class AB Sound Quality with Class D Efficiency: The Ultra HD Class D concept delivers the sonic character and audio fidelity associated with Class AB amplifier design, combined with the switching efficiency and low heat dissipation of Class D technology, producing a 6-channel amplifier with premium audio performance and manageable thermal output.
6-Channel Output - 6 x 120W RMS at 4Ω / Channels C-F Up to 285W RMS at 2Ω: Channels A-F deliver 6 x 120W RMS at 4Ω, with channels C-F capable of 230W RMS at 4Ω and maximum output of up to 285W RMS at 2Ω, providing substantial power reserves for complex multi-way front, rear, and subwoofer speaker systems.
TwinDSP - Dual 64-Bit Fixed-Point DSPs at 2.4 Billion MAC ops/sec: The TwinDSP platform runs two independent 64-bit fixed-point audio signal processors simultaneously at 295 MHz each, delivering a combined 2.4 billion MAC operations per second at 96kHz sampling rate for processing all 12 DSP channels with extraordinary precision and headroom.
Optical and Coaxial SPDIF Inputs Plus Optical SPDIF Output: The P Six DSP Ultimate provides both optical SPDIF (12-96kHz) and coaxial SPDIF (12-192kHz) inputs, accepting the widest range of digital signal sources including OEM digital audio outputs, aftermarket head units, and external digital processors. The optical SPDIF output at 96kHz enables the processed DSP output to be sent to downstream amplifiers or processors.
6 RCA and 6 High-Level ADEP.3 Inputs with Dual Sensitivity Ranges: RCA inputs offer switchable sensitivity of 1-4V or 4-8V to accommodate both standard and high-output aftermarket head units. High-level ADEP.3 inputs offer 4-16V or 8-32V switchable sensitivity for factory OEM head units across all vehicle platforms. Both input types support simultaneous connection for maximum integration flexibility.
4 RCA Outputs for Downstream Amplifier Expansion: Four RCA outputs at 3V provide connection points for additional external amplifiers in more complex system architectures, enabling the P Six DSP Ultimate to serve as a central DSP hub for multi-amplifier systems.
ACO 32-Bit CoProcessor - ISA, TuneEQ, VCP, RealCenter, Augmented Bass Processing, DLC, RTC: The ACO CoProcessor provides ISA with InputEQ for OEM signal analysis and correction, TuneEQ automated parametric EQ calibration, VCP cross-channel group equalizers and multi-way speaker configuration, RealCenter dynamic center image synthesis, and Augmented Bass Processing (Dynamic Bass Enhancement and SubXpander subharmonic bass extension).
12/24V Operation - 10.5-32V Range for Trucks and Commercial Vehicles: The extended operating voltage range of 10.5-32V supports both standard 12V passenger vehicle electrical systems and 24V commercial vehicle electrical systems including trucks, coaches, and buses, making the P Six DSP Ultimate a true dual-voltage premium amplifier.
VCP - Virtual Channel Processing for Complex Multi-Way Systems: VCP provides cross-channel group equalizers affecting multiple output channels simultaneously and multi-way speaker configuration with DSP Sound Effects, enabling highly complex 3-way front system, rear, and subwoofer configurations to be implemented and tuned with precision.
HEC Slot - Helix Extension Card for Future Expandability: The HEC slot accepts optional Bluetooth HD audio streaming and USB high-resolution audio streaming expansion cards for tailored system configuration.
Start-Stop Capability and Auto Remote Switch: Start-Stop capable power supply maintains stable operation during voltage drops to 6V for up to 5 seconds. Auto Remote activates the amplifier automatically from the audio signal without requiring an external remote wire.
BurrBrown 96kHz A/D and D/A Converters: BurrBrown converters at 96kHz sampling rate provide high-resolution signal conversion with 108dB SNR from digital input for accurate, transparent audio processing throughout the DSP signal chain.
What's in the Box
- Helix P Six DSP Ultimate Amplifier
- 1 x Control Input-to-SCP Adaptor
- 1 x USB Cable
- 2 x Allen Key
- Mounting Material
- Instruction Manual
Technical Specs
| Specification | Detail |
|---|---|
| SKU | P SIX DSP ULTIMATE |
| Brand | Helix |
| Range | P Series |
| Channels | 6 (Amplifier) / 12 (DSP) |
| Amplifier Class | Ultra HD Class D |
| Power RMS - Ch A-F at 4Ω | 6 x 120W |
| Power RMS - Ch C-F at 4Ω | 4 x 230W |
| Power RMS - Ch C-F at 2Ω | 4 x 285W (Max) |
| Max Output - Ch A-F at 4Ω | Up to 145W per Channel |
| Max Output - Ch C-F at 2Ω | Up to 285W per Channel |
| THD | Less than 0.004% |
| Damping Factor | Greater than 100 |
| RCA Inputs | 6 x RCA (1-4V or 4-8V switchable) |
| High-Level Inputs | 6 x High-Level ADEP.3 (4-16V or 8-32V switchable) |
| RCA Input Impedance | 13kΩ |
| High-Level Input Impedance | 9-33Ω (with ADEP.3) |
| Digital Inputs | 1 x Optical SPDIF (12-96kHz), 1 x Coaxial SPDIF (12-192kHz) |

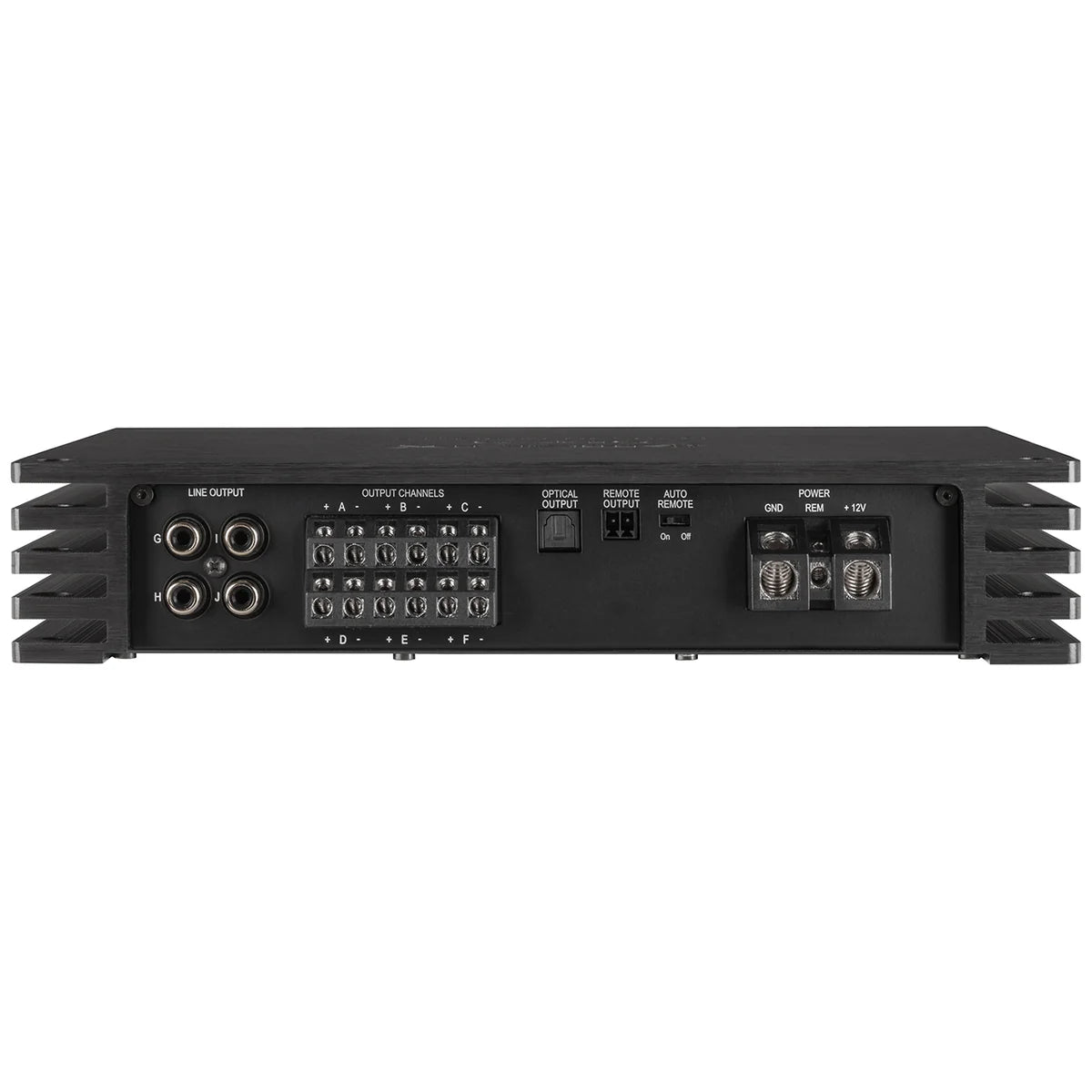

| Outputs | 6 x Speaker, 4 x RCA (3V), 1 x Optical SPDIF (96kHz), 2 x Remote Out |
| Frequency Response | 10Hz-44,000Hz |
| SNR - Digital Input | 108dB (A-weighted) |
| SNR - Analog Input | 102dB (A-weighted) |
| DSP Resolution | 64-Bit Fixed-Point |
| DSP Processing Power | 2 x 295 MHz (2.4 Billion MAC ops/sec) |
| Sampling Rate | 96kHz |
| Signal Converters | BurrBrown A/D and D/A |
| CoProcessor | ACO 32-Bit |
| HEC Slot | Yes (Helix Extension Card) |
| SCP | Yes (Smart Control Port) |
| Operating Voltage | 10.5-32V (Stable to 6V for 5 Seconds) |
| Power Rating | DC 12V/24V, 65A Max |
| Idle Current | 1350mA |
| Max Remote Output Current | 500mA |
| Fuse | 3 x 20A LP-Mini (APS) |
| Dimensions | 50mm x 260mm x 190mm |
DSP Features
| Feature | Detail |
|---|---|
| TwinDSP | Dual 64-Bit Fixed-Point DSPs at 2 x 295 MHz |
| ISA | Input Signal Analyzer with InputEQ for OEM signal correction |
| TuneEQ | Automated parametric EQ calibration via measurement microphone |
| VCP | Virtual Channel Processing with cross-channel group EQ |
| RealCenter | Dynamic center image synthesis |
| Augmented Bass Processing | Dynamic Bass Enhancement and SubXpander |
| DLC | Dynamic Loudness Control |
| RTC | Remote Tone Control |
| Optical SPDIF Output | 96kHz for downstream processors or amplifiers |
Compatible With
The P Six DSP Ultimate is compatible with 10.5-32V vehicle electrical systems including 12V passenger vehicles and 24V commercial vehicles (trucks, coaches, buses). RCA inputs suit aftermarket head units at 1-4V or 4-8V. High-level ADEP.3 inputs support factory OEM head units at 4-16V or 8-32V. Optical SPDIF accepts up to 96kHz signals. Coaxial SPDIF accepts up to 192kHz signals. HEC expansion modules are sold separately. DSP configuration via DSP PC-Tool software (refer to Helix/Audiotec Fischer for version compatibility).
Frequently Asked Questions
What is Ultra HD Class D technology?
Ultra HD Class D is Helix's amplifier topology that combines the sonic character and audio fidelity associated with Class AB amplifier design with the high efficiency and low heat dissipation of Class D switching output stage technology. The result is an amplifier with premium audio performance, THD below 0.004%, and a compact form factor.
What is TwinDSP?
TwinDSP is the dual-processor DSP platform used in the P Six DSP Ultimate, featuring two independent 64-bit fixed-point audio signal processors running simultaneously at 295 MHz each for a combined processing power of 2.4 billion MAC operations per second. This doubles the available processing headroom compared to single-DSP amplifiers, enabling the 12 DSP channels to be processed with maximum precision at 96kHz.
Does the P Six DSP Ultimate work with 24V vehicles?
Yes. The P Six DSP Ultimate operates across 10.5-32V, supporting both standard 12V passenger vehicle electrical systems and 24V commercial vehicle systems including trucks and coaches.
What is the optical SPDIF output on the P Six DSP Ultimate used for?
The optical SPDIF output at 96kHz allows the processed DSP output signal to be sent to additional downstream amplifiers or signal processors, enabling the P Six DSP Ultimate to function as the central DSP hub in a multi-amplifier system architecture.
How does the P Six DSP Ultimate differ from the V Eight DSP Ultimate?
Both are flagship Helix DSP amplifiers. The P Six DSP Ultimate is a 6-channel 12/24V unit with TwinDSP (2.4 billion MAC ops/sec), coaxial SPDIF input (up to 192kHz), optical SPDIF output, 4 RCA outputs, and an extended 10.5-32V operating range for commercial vehicle applications, with a larger 50 x 260 x 190mm footprint. The V Eight DSP Ultimate is an 8-channel 12V-focused unit with a single DSP, USB PerfectStream, 12 high-level inputs, 6 RCA inputs, and Extension Card 2.0 slot in a 44 x 220 x 180mm footprint. Choose the P Six DSP Ultimate for 24V compatibility, highest per-channel power, and dual SPDIF digital input; choose the V Eight DSP Ultimate for 8-channel output, USB PerfectStream, and maximum input channel count.
