HELIX M SIX DSP | 6 Channel Digital Amplifier with DSP | 10 Processed Channels

HELIX M SIX DSP | 6 Channel Digital Amplifier with 10 DSP Processed Outputs

Precision Power Meets DSP Intelligence.

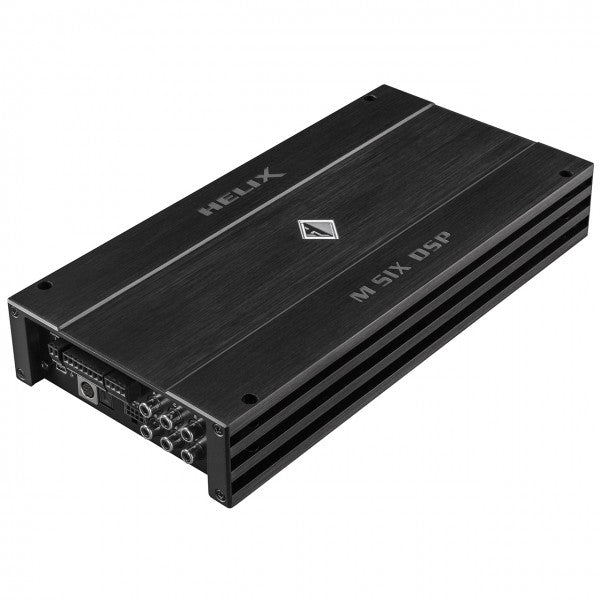

The HELIX M SIX DSP is a professional-grade, compact 6-channel digital amplifier with integrated DSP. Delivering 6 x 100W RMS and up to 10 DSP processed channels, this advanced solution provides exceptional audio flexibility for OEM integration or fully custom car audio systems.

Powered by 64-bit DSP, ACO CoProcessor, and Virtual Channel Processing, this amplifier delivers unmatched signal routing, low distortion, and total control—making it the ultimate multi-channel car amplifier for audiophiles and professional installers.

Key Features & Benefits:

• 6 x 100W RMS @ 4Ω / 2Ω – Pure Class D amplification
• 10 Processed DSP Channels – Flexible signal routing & tuning
• Virtual Channel Processing – Intelligent audio control architecture
• ACO CoProcessor – Fast boot, tuning memory, and diagnostics
• High-Level Input with ADEP.3 – OEM error suppression
• 4 RCA Pre-Outs (6V RMS) – Expand your system with full DSP control
• SFX Features: Augmented Bass, RealCenter, StageXpander, and more
• Optical Input – SPDIF digital audio (12–96 kHz)
• Memory Presets & Power Save Mode – Smart install options

Specifications:

• Amplified Channels: 6 x 100W @ 4Ω / 2Ω
• Bridged Power: 3 x 200W @ 4Ω
• DSP Engine: 64-bit / 295 MHz

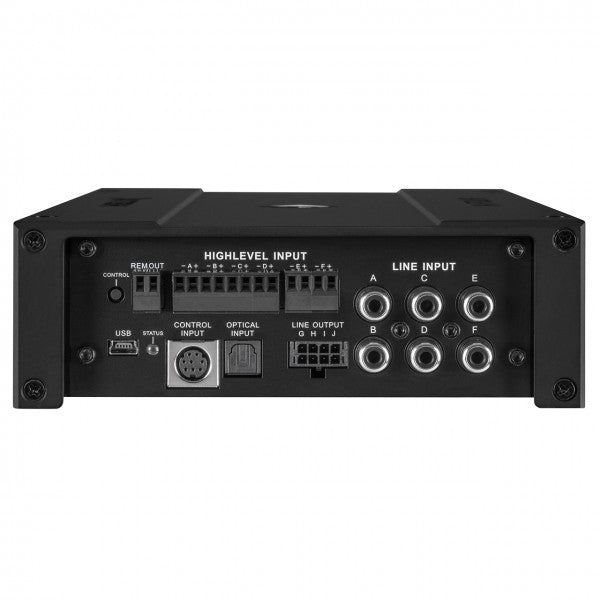

• Inputs: 6 x RCA, 6 x High-Level, 1 x SPDIF Optical

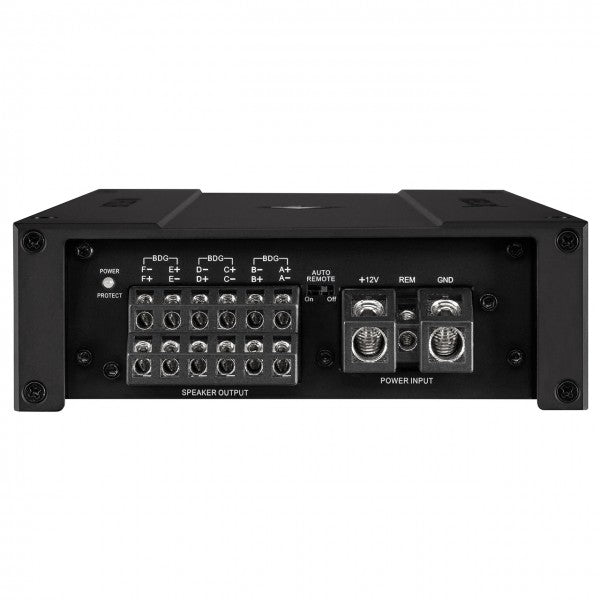

• Outputs: 4 x RCA Pre-Outs, 2 x Remote
• S/N Ratio: 108 dB (Digital), 105 dB (Analog)
• THD+N: <0.03% (Speaker), <0.005% (Pre-Out)
• Frequency Response: 20 Hz – 22 kHz
• Damping Factor: 100
• Operating Voltage: 10.5 – 16V
• Dimensions: 50 x 320 x 154mm
• Fuse: 2 x 35A Maxi-Fuse

What's in the Box:

• 1 x HELIX M SIX DSP Amplifier
• 1 x USB Cable
• 1 x RCA Output Adapter
• 1 x Mounting Kit
• 1 x User Manual

Perfect For:

• OEM Head Unit Integration
• Multi-Amplifier Audio Builds
• Hi-Resolution DSP Sound Control
• Professional Audio Competitions
• Virtual Signal Routing Systems

HELIX M SIX DSP is the elite solution for those demanding superior audio control, powerful output, and a smart installation footprint—all with German-built precision.
