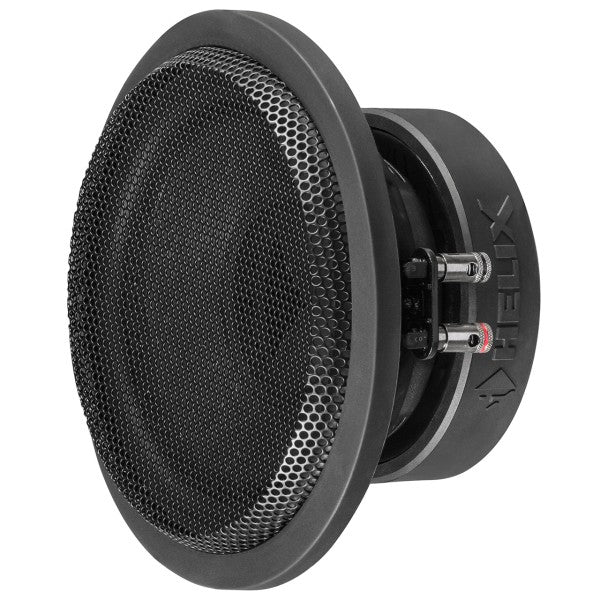

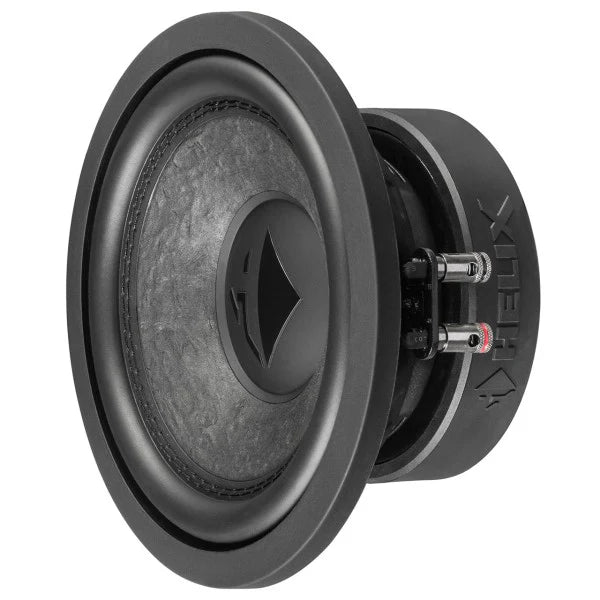

HELIX IK W8-SVC2 8" Subwoofer 2Ω | Powerful Bass & Compact Design for Your Vehicle

Experience stunning deep bass with the HELIX IK W8-SVC2 8" subwoofer. Compact, 300W RMS, 2Ω voice coil – perfect for high-quality car audio systems.

If you’re serious about your car audio and want to unlock powerful bass without sacrificing space, the HELIX IK W8-SVC2 is the subwoofer for you. Designed for enthusiasts who demand deep bass and crystal-clear sound quality, this 8-inch subwoofer packs a punch with 300W RMS power handling and a 2Ω single voice coil, making it ideal for a variety of amplifier configurations.

Why Choose the HELIX IK W8-SVC2?

This subwoofer is perfect for those tight on installation space but unwilling to compromise on bass performance. Thanks to the innovative KW chassis, the HELIX IK W8-SVC2 offers exceptional low frequency extension and sound pressure levels within a compact 101mm installation depth. Whether you’re upgrading your home audio system, enhancing your car’s soundbar setup, or building a custom home theatre system, this subwoofer delivers the powerful bass your music deserves.

Features That Make a Difference

• 1 x 2 Ohms Single Voice Coil: Flexible connection options to match your amplifier setup for maximum performance.

• Extremely Stiff, Hand-Scooped Paper Cone: Ensures outstanding impulse response and natural bass reproduction.

• Double Ventilated Voice Coil: Minimizes compression effects and boosts power handling for clean, distortion-free bass.

• Long-Excursion Rubber Surround: Designed for high mechanical durability and extended cone movement.

• Powerful Magnet System: Optimized for compact enclosures without compromising sound output.

• Solid Push Terminals & Rugged Magnet Cover: Easy, secure connections with added magnet protection featuring the HELIX logo.

• Grille and Gasket Included: Ready for DIY installation with protective accessories included.

Technical Specifications at a Glance

• Driver Size: 200mm (8")

• Power Handling: 300W RMS / 600W max

• Impedance: 1 x 2Ω

• Sensitivity: 91 dB @ 2.83V / 1m

• Resonance Frequency (Fs): 37 Hz

• Max Linear Excursion (Xmax): ±8.0 mm

• Voice Coil Diameter: 50.8 mm

• Installation Diameter: 182 mm (7.17")

• Installation Depth: 101 mm (3.98")

• Cone Area: 219 cm²

• Moving Mass: 86 g

• Recommended Sealed Box Volume: 10 L (Lower limiting frequency -3dB: 45 Hz)

• Recommended Vented Box Volume: 9 L with 60 mm port diameter, 46 cm port length, tuned at 38 Hz (Lower limiting frequency -3dB: 41 Hz)

Optimized Enclosure Recommendations

For the best bass response, pair your HELIX IK W8-SVC2 with either a sealed or vented enclosure:

• Sealed Box: 10L net volume; use a highpass filter at 46 Hz with Q = 1.5 and an additional EQ filter at 90 Hz / Q = 1.0 / -2.5 dB.

• Vented Box: 9L net volume with a 60 mm port, 46 cm length (angled); use a highpass filter at 40 Hz with Q = 1.2 and an EQ filter at 90 Hz / Q = 0.9 / -2 dB.

What’s in the Box?

• 1 x HELIX IK W8-SVC2 Subwoofer

• 1 x Protective Grille

• 1 x Gasket

• 1 x Technical Data Sheet

Perfect For:

• Car audio enthusiasts seeking powerful bass in compact spaces

• DIY installers wanting a subwoofer with all-inclusive accessories

• Those upgrading home theatre or soundbar systems requiring deep bass and clear sound

• Amplifier setups needing flexible impedance options for maximum output

Unlock the true potential of your music with the HELIX IK W8-SVC2. Designed for precision, power, and compactness, this subwoofer is your ticket to deep bass that commands attention without overwhelming your vehicle’s interior space. Order now and feel the difference quality bass makes on every drive!
