HELIX IK W10-DVC2 10" Dual Voice Coil Subwoofer – Powerful Bass in Compact Size

Experience powerful, deep bass with the HELIX IK W10-DVC2 10" subwoofer. Dual 2Ω coils, 300W RMS, perfect for compact car audio systems.

If you’re after stunning bass performance without sacrificing your vehicle’s space, the HELIX IK W10-DVC2 is designed for you. This 10-inch car audio subwoofer packs 300 watts RMS of pure power into a compact 126mm installation depth, making it ideal for enthusiasts who want powerful bass in very compact enclosures.

Part of HELIX’s IMPACT subwoofer lineup, the IK W10-DVC2 offers completely new installation possibilities thanks to its efficient use of available space and individual enclosure design. Whether you’re building a custom car audio setup or upgrading your existing system, this subwoofer delivers outstanding acoustic performance that will impress even the most discerning audiophiles.

Features

• Dual 2Ω Voice Coils for Flexible System Configuration: The 2 x 2 Ohms dual voice coil design allows you to tailor your amplifier configuration for maximum performance, whether you’re running a mono, 2-channel, or multi-channel amplifier.

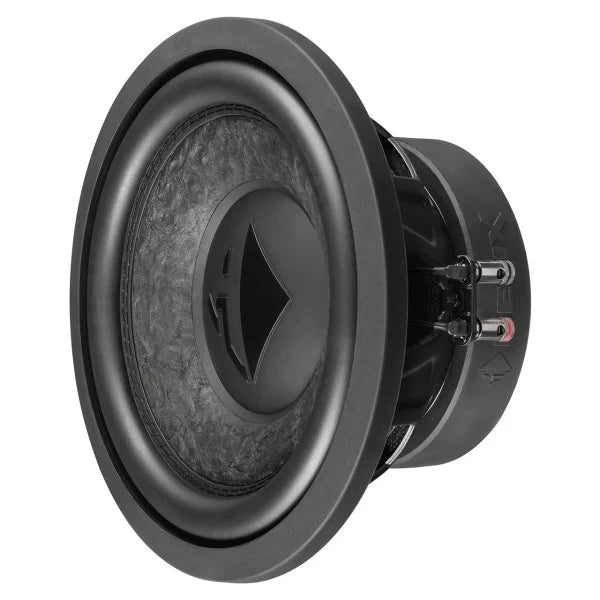

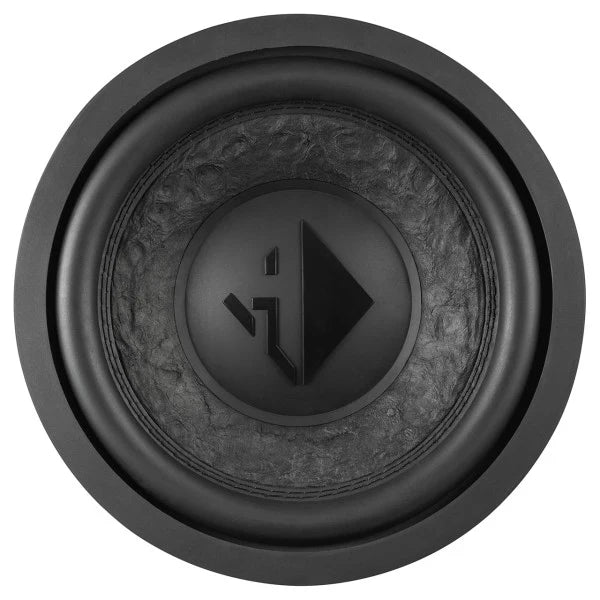

• Extremely Stiff, Hand-Scooped Paper Cone: Crafted from hand-scooped paper fibers, the cone ensures outstanding impulse response, converting amplifier power easily and without compression effects into powerful sound pressure.

• Double Ventilated Voice Coil: Minimizes compression effects and boosts power handling, ensuring your subwoofer performs reliably under high demand.

• Long-Excursion Rubber Surround: Provides the highest mechanical rating for durability and deep bass excursion.

• Solid Push Terminals: For secure and easy wiring connections.

• Powerful Magnet System: Designed for compact enclosures without compromising sound quality.

• Rugged Magnet Cover: Features HELIX lettering for both style and perfect magnet protection.

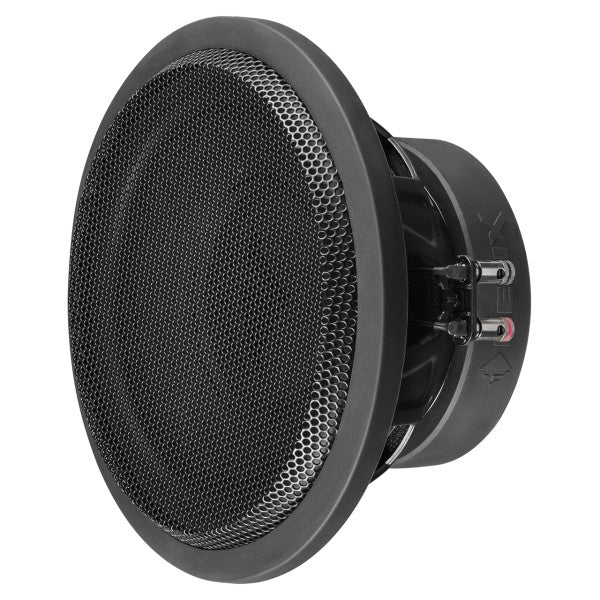

• All-Inclusive Package: Comes with a solid protective grille and gasket, making it perfect for self-made enthusiasts and DIY installations.

Optimal Enclosure Recommendations

• Sealed Box: 12 litres net volume, with a lower limiting frequency of 53 Hz. Recommended DSP settings include a “Self-Define” Highpass at 45 Hz (Q=1.5) and an EQ filter at 120 Hz (Q=1.0, -3 dB) for optimal bass performance.

• Vented Box: 19 litres net volume with a 70mm diameter port, 22 cm length, tuned to 43 Hz. Recommended DSP settings are a “Self-Define” Highpass at 37 Hz (Q=1.5) and an EQ filter at 115 Hz (Q=0.7, -2 dB).

Technical Specifications

• Power Handling RMS / Max: 300 / 600 Watts

• Impedance: 2 x 2 Ω

• DC Resistance (Re): 2 x 1.6 Ω

• Resonance Frequency (Fs): 36 Hz

• Mechanical Q Factor (Qms): 4.50

• Electrical Q Factor (Qes): 0.43

• Total Q Factor (Qts): 0.39

• Compliance (Cms): 218 μm/N

• Equivalent Air Volume (Vas): 34 L

• Force Factor (B*I): 12.3 Tm

• Sensitivity: 91.0 dB @ 2.83V / 1m | 88.0 dB @ 1W / 1m

• Cone Area (Sd): 333 cm²

• Moving Mass (Mms): 91 g

• Cone Material: Hand-scooped paper cone

• Mechanical Resistance (Rms): 4.56 kg/s

• Voice Coil Diameter: 50.8 mm

• Voice Coil Winding Height: 24 mm

• Max. Linear Excursion (Xmax): +/- 8.0 mm

• Outer Diameter: 262 mm / 10.31"

• Installation Diameter: 232 mm / 9.13"

• Installation Depth: 126 mm / 4.96"

What’s in the Box?

• 1 x Subwoofer HELIX IK W10-DVC2

• 1 x Grille

• 1 x Gasket

• 1 x Data Sheet

Why Choose the HELIX IK W10-DVC2?

This subwoofer is perfect for car audio enthusiasts who demand powerful bass without compromising on space. Its extremely stiff cone and heavy-duty driver system convert amplifier power easily into deep bass and subtle beats, ensuring outstanding sound quality. Whether you’re installing in a sealed or vented enclosure, this subwoofer delivers optimal bass performance with minimum compression effects.

For self-made enthusiasts and DIY installers, the included grille and gasket make installation straightforward, while the flexible dual voice coil design adapts to your amplifier configuration seamlessly. If you want to experience powerful low frequency sound waves and deep bass in your vehicle, the HELIX IK W10-DVC2 is the subwoofer to trust.

Upgrade your car audio system today with the HELIX IK W10-DVC2 and enjoy bass that hits hard, sounds clean, and fits perfectly in your ride.
