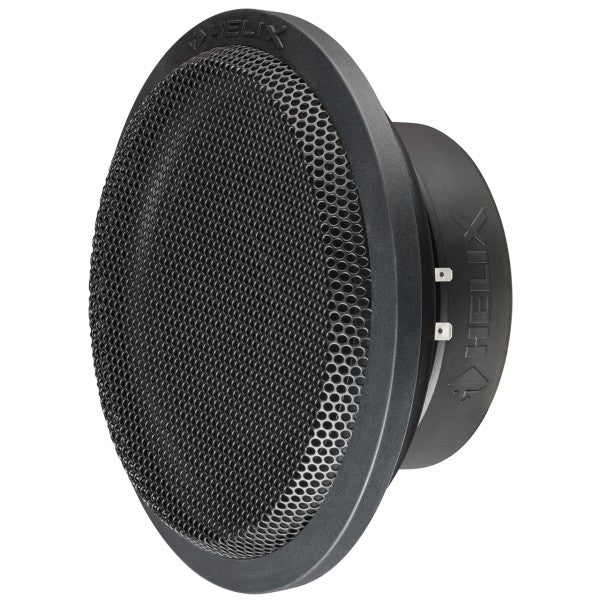

IKS8SVC2, speaker grille profile
IKS8SVC2, speaker grille profile

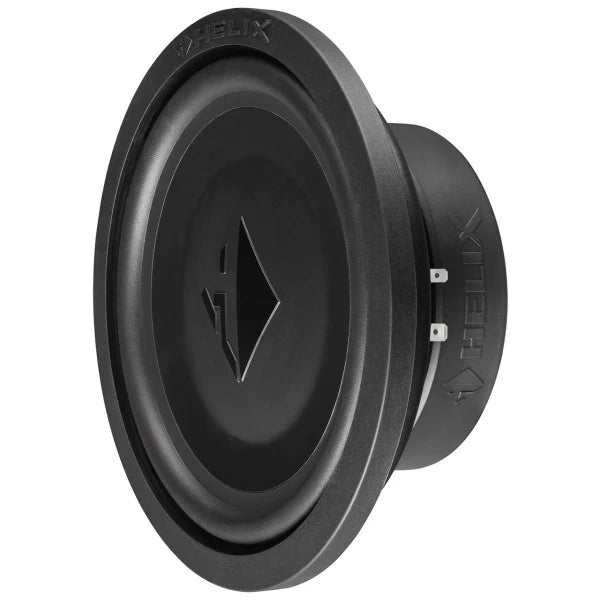

HELIX IK S8-SVC2 8 Inch Slim Subwoofer, 300 W RMS
HELIX IK S8-SVC2 8 Inch Slim Subwoofer, 300 W RMS
Click to open expanded view

HELIX IK S8-SVC2 8 Inch Slim Subwoofer, 300 W RMS

SKU: IKS8SVC2
Price
$395
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail

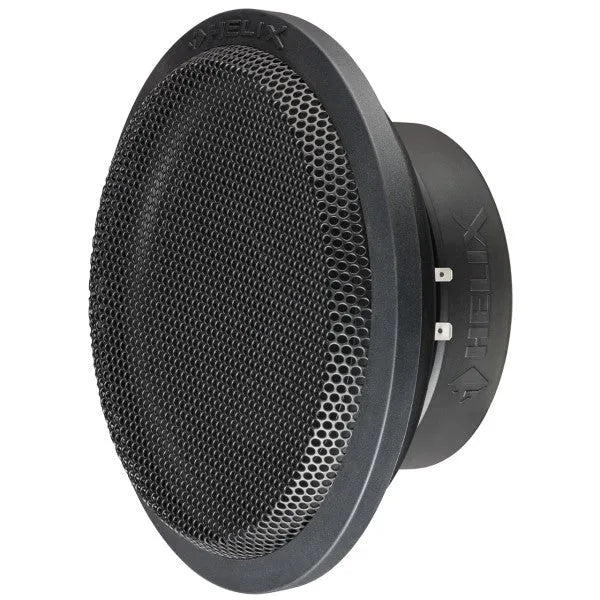

IKS8SVC2, speaker grille profile

HELIX IK S8-SVC2 8 Inch Slim Subwoofer, 300 W RMS

$395

Product features

A shallow driver can save enclosure space, but it still needs the right box and amplifier load. The HELIX IK S8-SVC2 has a single 2 ohm voice coil and a 79.5 mm installation depth, with a 10 litre sealed enclosure recommendation.

What it helps with

  • 300 W RMS and 600 W maximum handling
  • Single 2 ohm voice coil
  • Grille, gasket and enclosure terminal supplied

Specifications

IK S8-SVC2 to 1 x 2 Ohms
Power handling RMS / max. P 300 / 600 Watts
Impedance Z 1 x 2 Ω
DC resistance Re 2.0 Ω
Resonance frequency Fs 43 Hz
Mechanical Q factor Qms 7.79
Electrical Q factor Qes 0.53
Total Q factor Qts 0.50
Compliance Cms 170 μm/N
Equivalent air volume Vas 11 L
Force factor B*I 9.1 Tm
Sensitivity SPL 91.0 dB @ 2.83V / 1m
85.0 dB @ 1W / 1m
Cone area Sd 222 cm²
Moving mass Mms 81 g
Cone material Sandwich paper cone
Mechanical resistance Rms 2.8 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height 19 mm
Max. linear excursion Xmax plus or minus 6,0 mm
Outer diameter ø 213.4 mm / 8.40"
Installation diameter ø 180.4 mm / 7.10"
Installation depth 79.5 mm / 3.13"
Recommended enclosure volumes
Sealed box
Net volume 10 L
Lower limiting frequency (minus 3dB) 46 Hz
Recommended DSP settings Recommended "self define" highpass filter with 46 Hz cut off frequency and Q = 1.5;
additional EQ filter 100 Hz / Q = 1.0 / minus 2.5 dB
Vented box
Net volume 10 L
Port diameter ø 60 mm / 2.36"
Port area 28 cm²
Port length 42 cm / 16.5" (angled port)
Port tuning frequency Fb 39 Hz
Lower limiting frequency (minus 3dB) 45 Hz
Recommended DSP settings Recommended "self define" highpass filter with 40 Hz cut off frequency and Q = 1.2;
additional EQ filter 100 Hz / Q = 0.9 / minus 2 dB

Compatibility and installation

Use the exact SVC2 enclosure and filter recommendations below. Check the net box volume, driver clearance and amplifier stability before wiring.

In the box

Listed by the Australian distributor:

  • 1 x Subwoofer HELIX IK S8-SVC2
  • 1x Grille
  • 1 x Gasket
  • 1x Enclosure connecting terminal
  • 1 x Data sheet

Warranty

Your purchase is covered by the Australian Consumer Law. Contact Frankies for the warranty terms that apply to this exact model.

Questions and answers

How does SVC2 differ from DVC2?

This SVC2 version has one 2 ohm voice coil. The DVC2 model has two separate 2 ohm coils and different wiring options. Choose the exact version for the intended amplifier load.

What impedance is specified?

Impedance: Z 1 x 2 Ω.

What mounting opening does it need?

Installation diameter: ø 180.4 mm / 7.10".

What should I check before fitting?

Use the exact SVC2 enclosure and filter recommendations below. Check the net box volume, driver clearance and amplifier stability before wiring.

What is included?

The Australian distributor lists 1 x Subwoofer HELIX IK S8-SVC2, 1x Grille, 1 x Gasket, 1x Enclosure connecting terminal, 1 x Data sheet.

What warranty applies?

Your purchase is covered by the Australian Consumer Law. Contact Frankies for the warranty terms that apply to this exact model.
