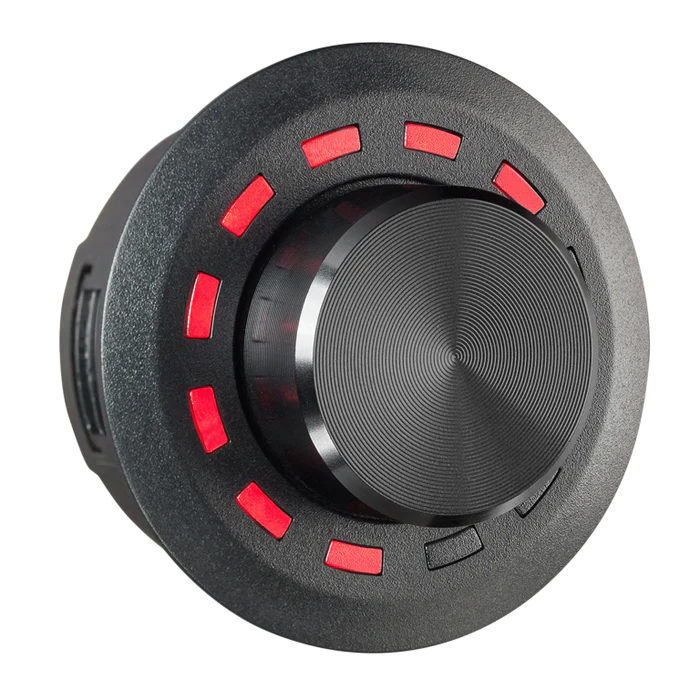

HELIX CONDUCTOR knob lit in red on a black background
HELIX CONDUCTOR knob lit in red on a black background

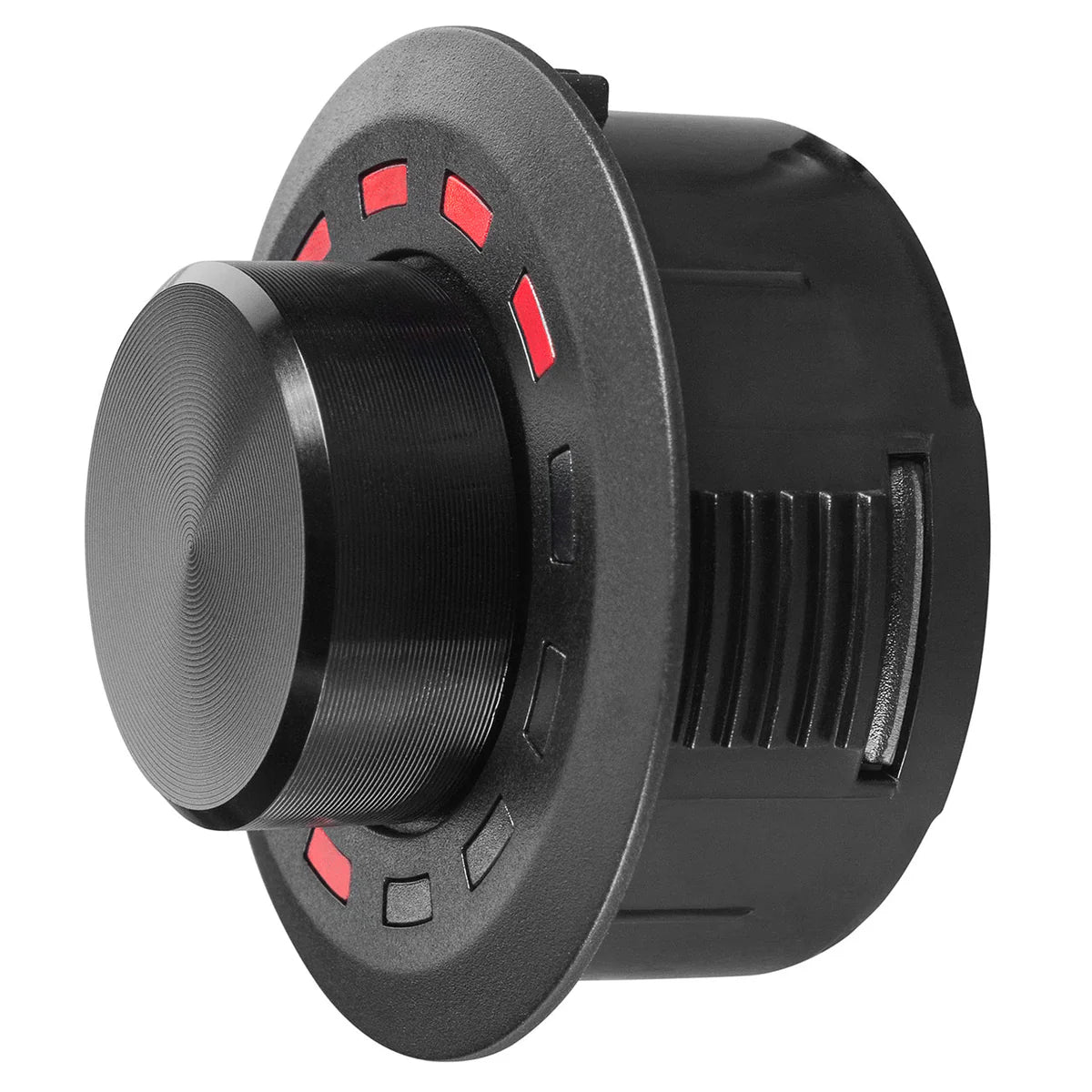

Side view of the CONDUCTOR remote showing its mounting thread
Side view of the CONDUCTOR remote showing its mounting thread

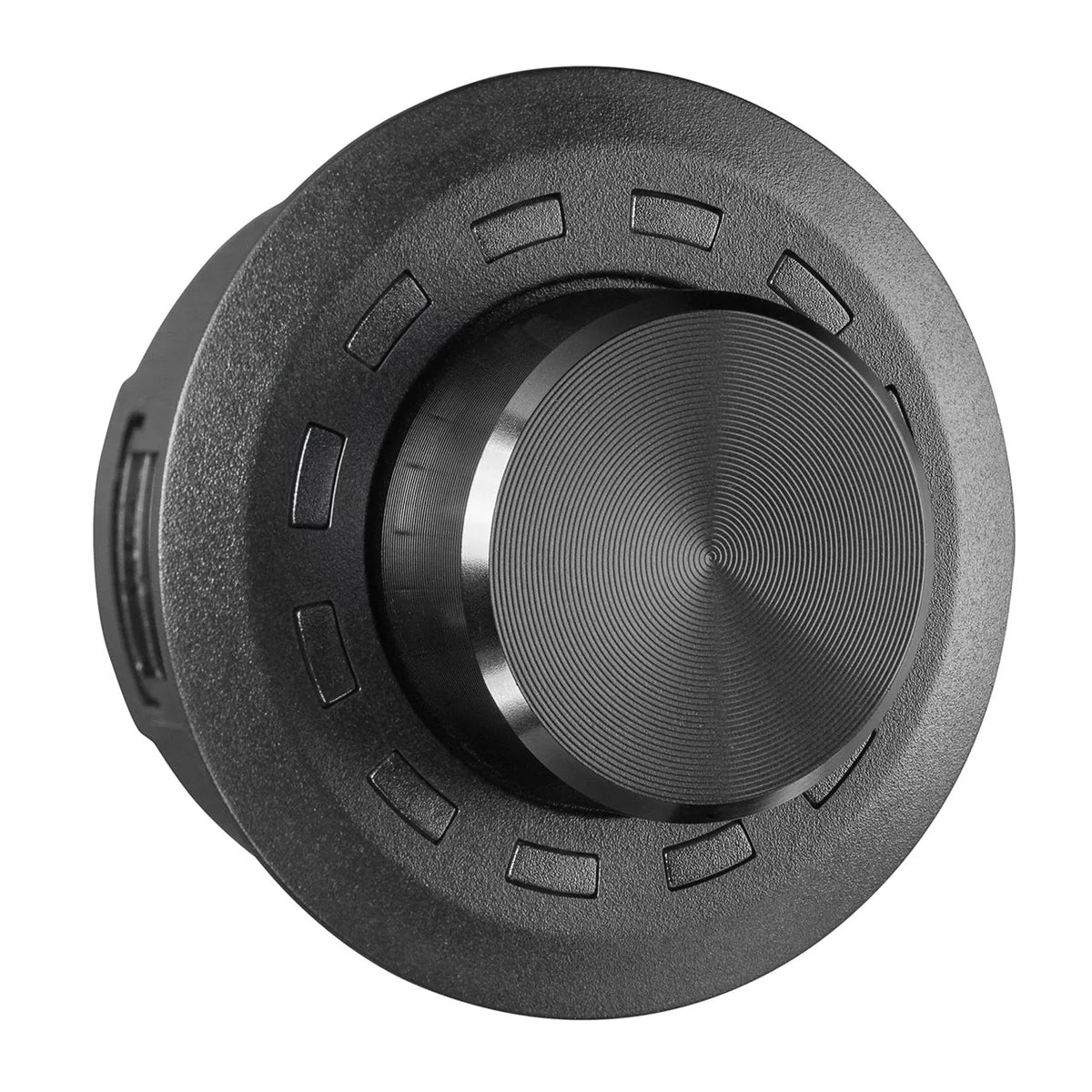

CONDUCTOR remote with its LED ring switched off
CONDUCTOR remote with its LED ring switched off

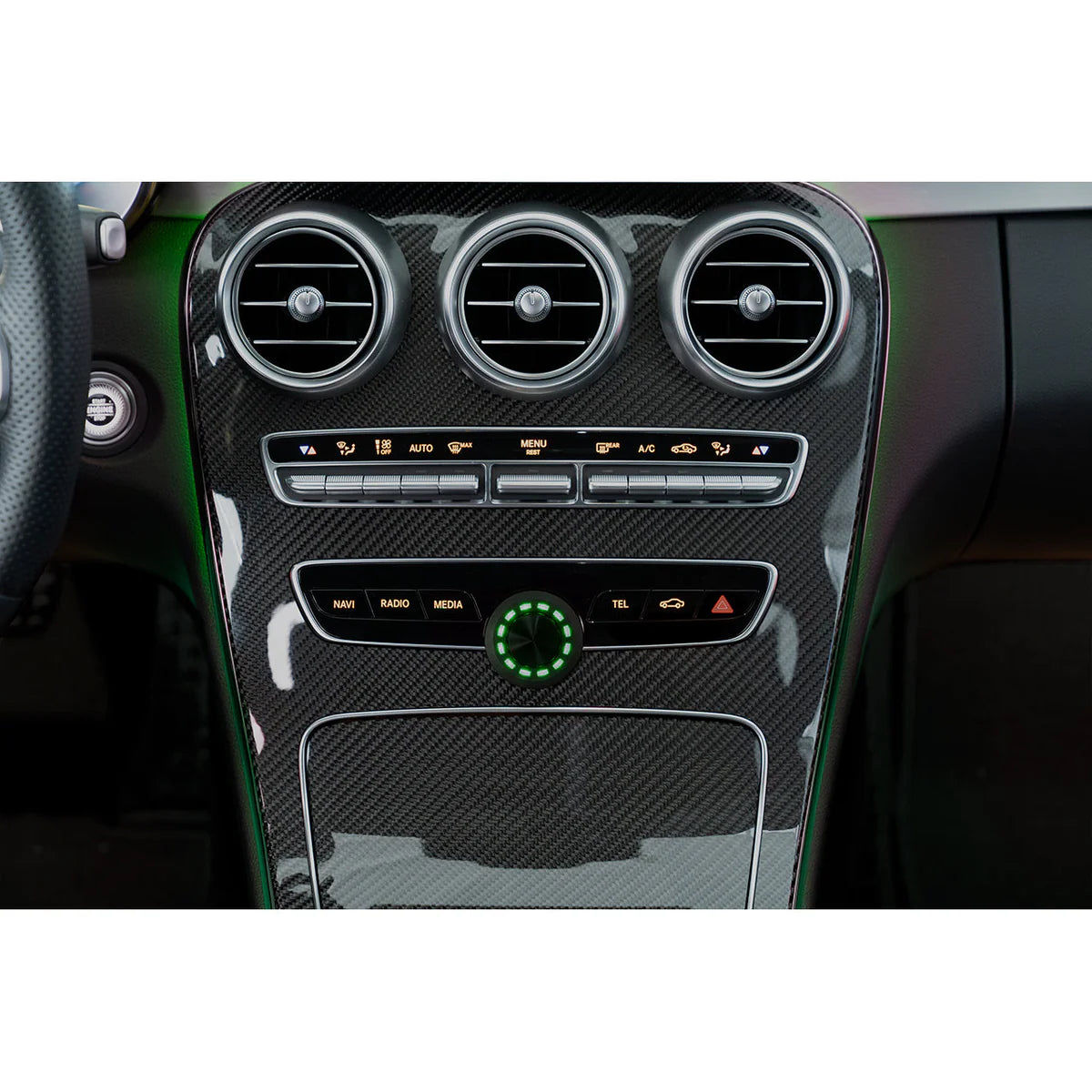

CONDUCTOR fitted in a Mercedes centre console below the vents
CONDUCTOR fitted in a Mercedes centre console below the vents

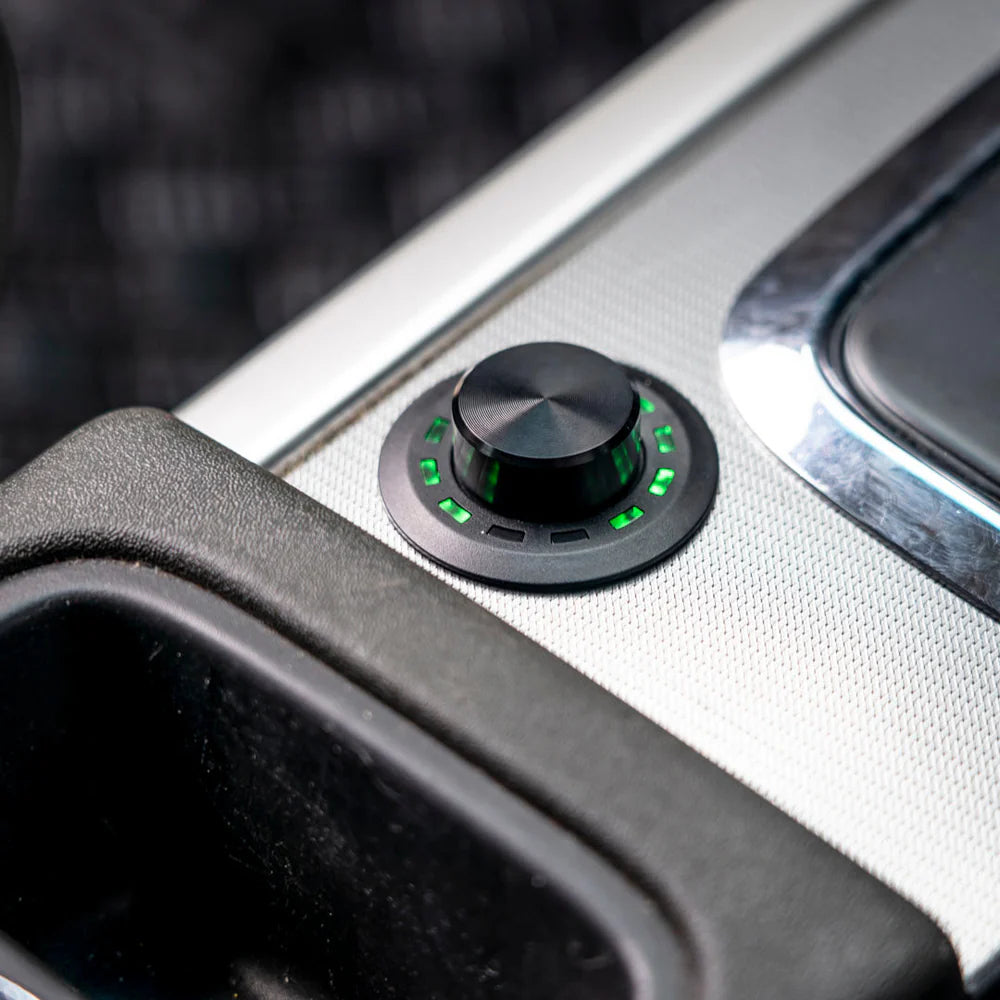

Close view of the CONDUCTOR knob in a console glowing blue
Close view of the CONDUCTOR knob in a console glowing blue

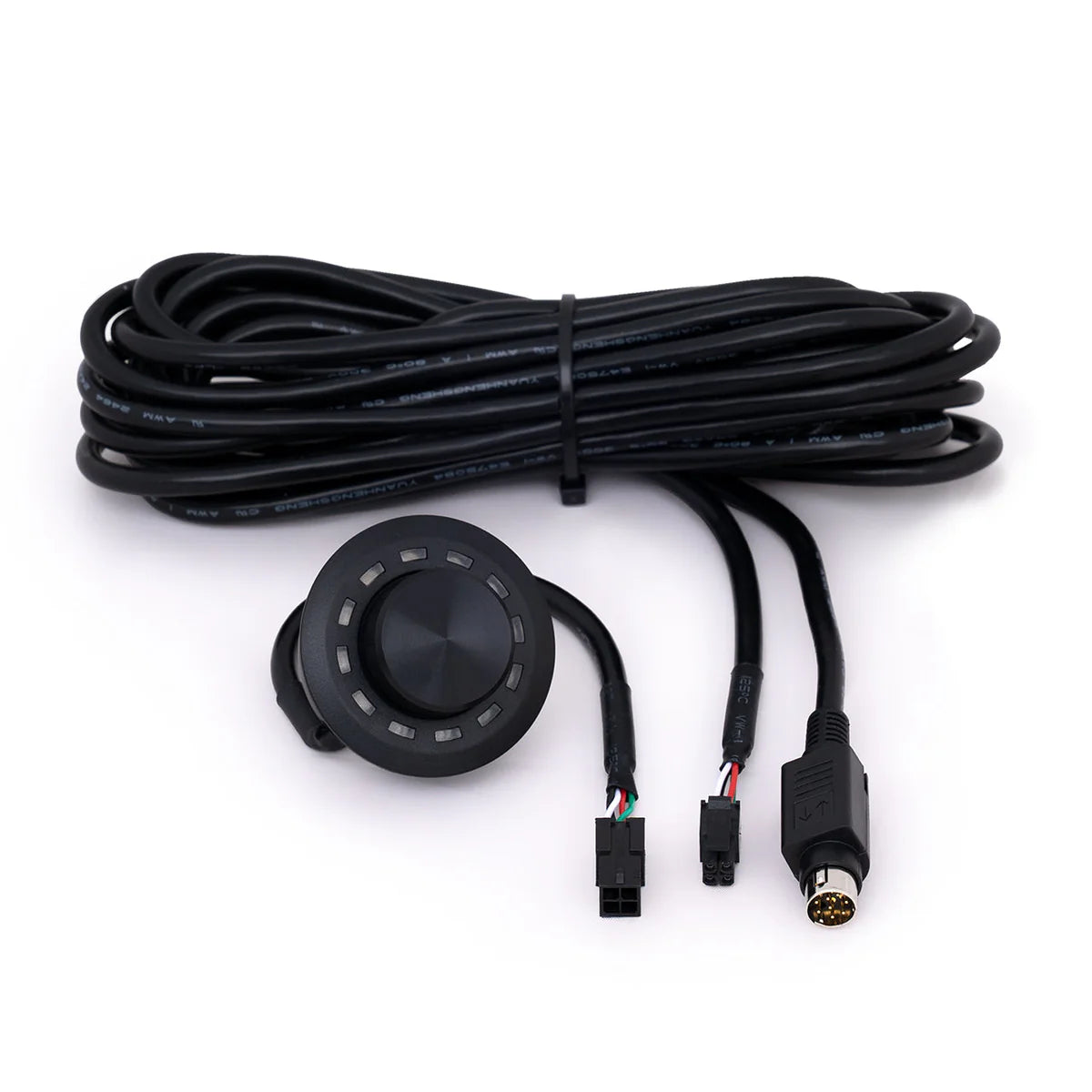

CONDUCTOR lead with split connector and control tail
CONDUCTOR lead with split connector and control tail

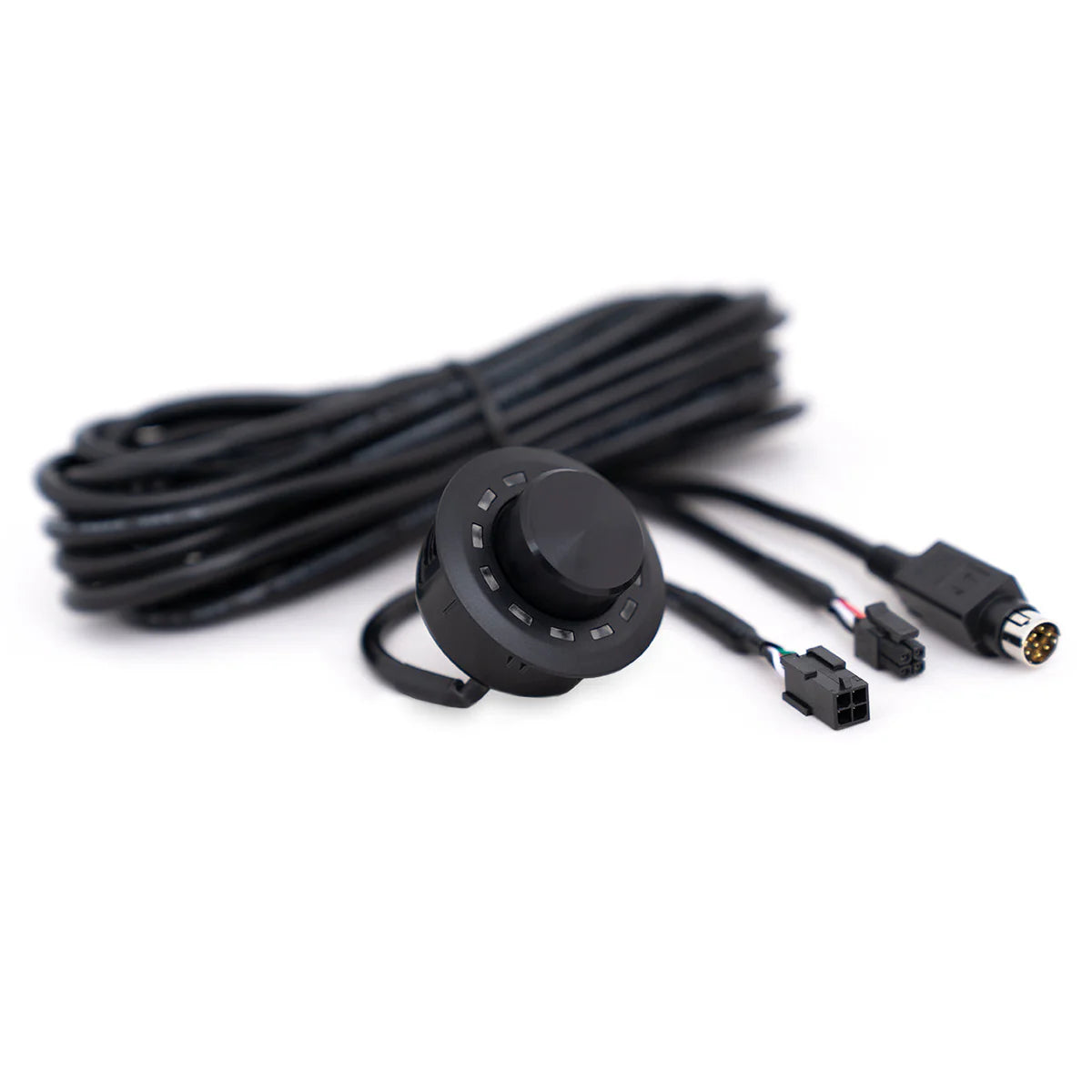

Coiled connection lead supplied with the CONDUCTOR remote
Coiled connection lead supplied with the CONDUCTOR remote
Console view showing the CONDUCTOR beside the gear selector
Console view showing the CONDUCTOR beside the gear selector

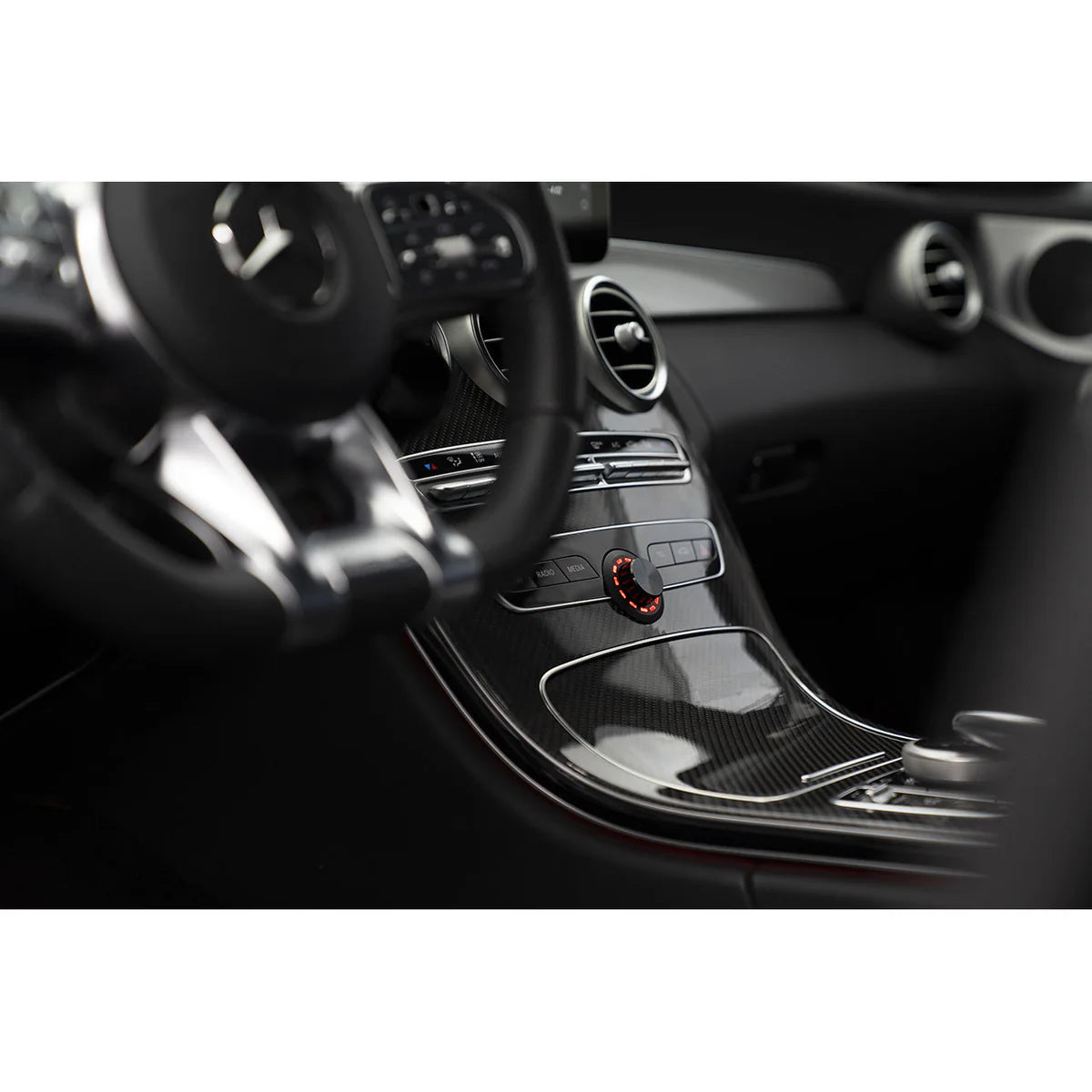

Dash centre stack with the CONDUCTOR set into the console
Dash centre stack with the CONDUCTOR set into the console
Click to open expanded view

HELIX CONDUCTOR Control Input DSP Remote for MATCH and HELIX

SKU: CONDUCTORControlInput
Price
$295
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
HELIX CONDUCTOR knob lit in red on a black background

HELIX CONDUCTOR Control Input DSP Remote for MATCH and HELIX

$295

Product features

Quick answer

The HELIX CONDUCTOR is a one knob DSP remote with 12 RGB LEDs, in the version for HELIX and MATCH processors with a Control Input port.

It handles up to four separate volumes, ten sound presets and source switching, and needs no power supply of its own.

Problems it solves

  • Reaching under a seat to change DSP settings. Presets and sources switch from the knob.
  • One volume for every zone. Up to four volumes such as master, sub and rear can be set apart.
  • Phone playback with no hands on control. Play, pause and track skip work with a HELIX Bluetooth card.

Specifications

  • Control: rotary encoder, 12 RGB LEDs, 48 MHz ARM processor
  • Volumes: up to 4, with mute
  • Volume range: 60, 24 or 12 dB, in 1 or 0.5 dB steps
  • Presets: up to 10 sound setups plus source select
  • Cable: 5 m total, 4.8 m lead plus 0.2 m tail
  • Size: 46 mm diameter, 28.7 mm high, 17 mm install depth
  • Cutout: 40 mm
  • Setup: DSP PC Tool software

Fitment and compatibility

This version suits HELIX and MATCH processors with a Control Input port, including the DSP ULTRA, DSP.3, DSP MINI, V TWELVE DSP, V EIGHT DSP MK2, M SIX DSP, M FOUR DSP and MATCH M 5DSP MK2. Newer SCP units need adaptor M141313, and it cannot be paired with a second control unit.

What is in the box

The CONDUCTOR remote and its connection lead.

Install notes

Drill a 40 mm hole, pass the lead through and lock the remote with its rear ring. The lead plugs into the DSP Control Input, and the knob, LED colours and volumes are set in DSP PC Tool.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the CONDUCTOR

Is the CONDUCTOR Control Input compatible with my DSP?

It suits HELIX and MATCH units with a Control Input port. SCP units need adaptor M141313. This version suits HELIX and MATCH processors with a Control Input port, including the DSP ULTRA, DSP.3, DSP MINI, V TWELVE DSP, V EIGHT DSP MK2, M SIX DSP, M FOUR DSP and MATCH M 5DSP MK2.

Where can I mount the CONDUCTOR remote in the cabin?

Cut a 40 mm hole, feed the lead through and tighten the rear ring.

Does the CONDUCTOR control Bluetooth playback?

Yes, with a HELIX Bluetooth Extension Card. HELIX does not support the BT HD STREAMER here. Play, pause and track skip work with a HELIX Bluetooth card. Newer SCP units need adaptor M141313, and it cannot be paired with a second control unit.
