Universal Speakers Evolved. COMPOSE Technology.

Experience uncompromising high-end treble performance with HELIX COMPOSE Ci7 T20FM-SC's German-engineered design—featuring visco-elastic Acronal coated silk dome, coupling volume with pure lamb's wool, and FlexMount20 compatibility for brilliant smooth treble response.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. Our HELIX COMPOSE i7 series represents uncompromising high-end for an outstanding sound experience in the automobile, with obvious influence of the high-end sister brand BRAX, completely made in Germany and optimized for uncompromising music enjoyment. The i7 tweeter is equipped with a fine-meshed silk dome with visco-elastic Acronal coating on both sides, guaranteeing brilliant and smooth treble response. The integration of pure lamb's wool and dampened coupling volume enables a very low resonance frequency and allows deep acoustic coupling for superior performance.

COMPOSE Ci7 T20FM-SC Features:

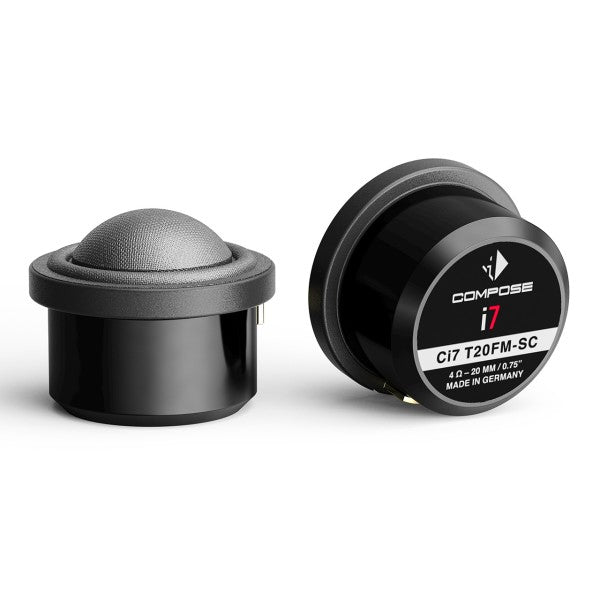

• Super-wide dispersion 0.75" / 20 mm high-end silk dome tweeter with coupling volume for lowest possible resonance frequency
• Exceptionally lightweight and fine-meshed silk dome ensures brilliant and smooth treble response
• High efficient neodymium magnet for high magnetic flux linearity
• Integrated, dampened coupling volume allows a low crossover frequency thanks to its low resonance frequency
• Sturdy Aluminum housing turned from solid
• Compact design and various mounting options for numerous installation demands

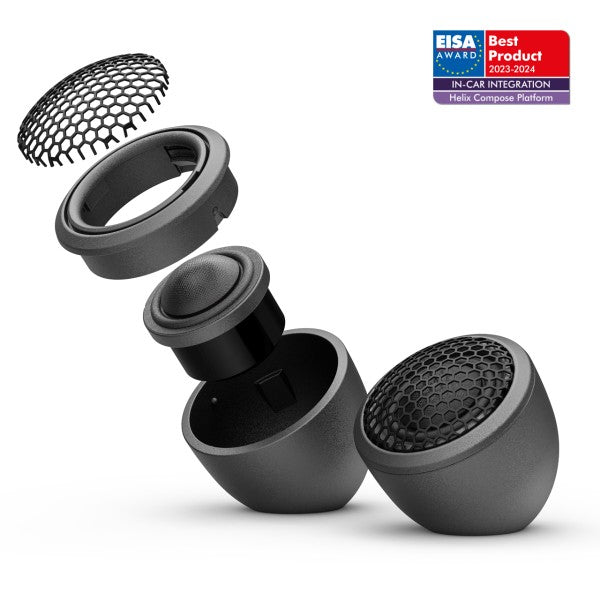

• Mounting pods for flush mount and angle mount included in delivery
• Designed for the optionally available car-specific FlexMount20 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
• Designed for optionally available, car-specific WireKits which allow a non-destructive integration
• Made in Germany
• Visco-elastic Acronal coating on both sides for superior damping
• Pure lamb's wool integration for optimal coupling volume damping
• BRAX high-end influence with German engineering excellence
• Extended frequency response up to 30,000 Hz
• Professional solid aluminum housing construction


Specifications:

• Impedance: 4Ω
• DC Resistance (Re): 3.4Ω
• Frequency Response: 1,500 Hz - 30,000 Hz
• Resonance Frequency (Fs): 950 Hz
• Sensitivity: 91.0 dB @ 2.83V/1m, 88.0 dB @ 1W/1m
• Voice Coil Diameter: 20mm
• Cone Material: Silk dome with coupling volume
• Outer Diameter: 32mm / 1.26"
• Installation Diameter: 27.2mm / 1.07"
• Installation Depth: 19mm / 0.75"
• Recommended Crossover Frequencies:
• 6 dB/Octave: > 4,000 Hz
• 12 dB/Octave: > 3,000 Hz
• 24 dB/Octave: > 2,500 Hz


Compatibility:

• FlexMount20
• WireKits


Scope of Delivery:

• 2 x Ci7 T20FM-SC
• 2 x Tweeter flush mount
• 2 x Tweeter pod
• 2 x Extension cable
• 2 x Mounting material


Perfect for:

• High-end audiophile installations, German-engineered premium systems, professional installations, FlexMount20 compatible vehicles, component system builds requiring superior treble performance, HELIX and MATCH amplifier systems, and any installation demanding uncompromising high-end tweeter performance with brilliant smooth treble response.
