HELIX COMPOSE Ci5 T25FM-CA | 1" Ceramic-Aluminum Dome Tweeter | COMPOSE i5 Series

HELIX COMPOSE Ci5 T25FM-CA | 1" Ceramic-Aluminum Dome Tweeter | COMPOSE i5 Series

Universal Speakers Evolved. COMPOSE Technology.

Experience brilliant treble with excellent dispersion characteristics using HELIX COMPOSE Ci5 T25FM-CA's advanced design—featuring ceramic-coated aluminum dome, FlexMount25 compatibility, and integrated grille protection for sophisticated hi-fi performance.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The HELIX COMPOSE i5 series is the link between i7 and i3, created for sophisticated music lovers with a sparked ambition for a true hi-fi experience. Despite the larger diameter of 25mm / 1", the Ci5 T25FM-CA has excellent wide dispersion and off-axis response, allowing the creation of an impressive sound image and soundstage – even in OEM installation spots. With its ceramic-coated aluminum dome, it features balanced frequency response and excellent decay characteristics, reproducing high frequencies even more clearly and realistically.

COMPOSE Ci5 T25FM-CA Features:

• 1" / 25 mm advanced tweeter with ceramic-coated aluminum dome for balanced frequency response and excellent decay characteristics
• Sturdy aluminum housing with integrated grille for optimum protection of the delicate tweeter dome
• Highly efficient neodymium magnet for high magnetic flux linearity
• Compact design and various mounting options for numerous installation demands

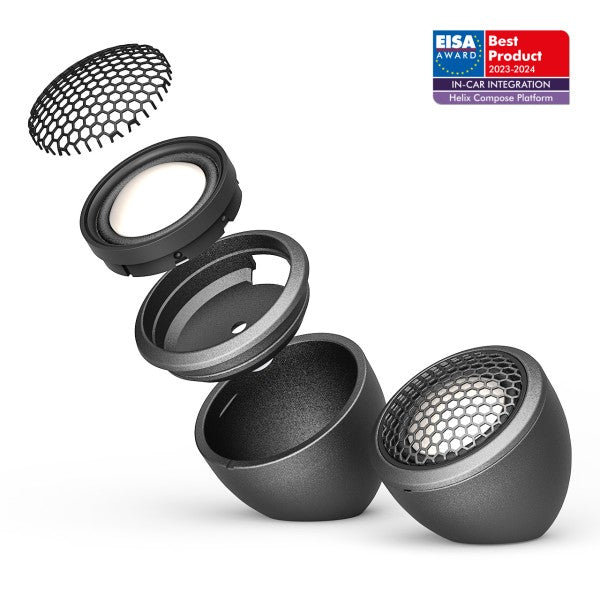

• Mounting pods for flush mount and angle mount included in delivery
• Designed for the optionally available car-specific FlexMount25 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
• Designed for optionally available, car-specific WireKits which allow a non-destructive integration
• Excellent wide dispersion and off-axis response for impressive soundstage
• Balanced frequency response with superior decay characteristics
• Integration-friendly approach with flexible mounting solutions
• Perfect impedance matching for HELIX and MATCH amplifiers
• True hi-fi experience for sophisticated music lovers
• COMPOSE-exclusive mechanical technologies with practical benefits


Specifications:

• Impedance: 4Ω
• DC Resistance (Re): 3.2Ω
• Frequency Response: 2,000 Hz - 25,000 Hz
• Resonance Frequency (Fs): 1800 Hz
• Sensitivity: 94.0 dB @ 2.83V/1m, 91.0 dB @ 1W/1m
• Voice Coil Diameter: 25mm
• Cone Material: Aluminum with ceramic coating
• Outer Diameter: 40mm / 1.57"
• Installation Diameter: 38mm / 1.50"
• Installation Depth: 11.7mm / 0.46"
• Recommended Crossover Frequencies:
• 6 dB/Octave: > 4,000 Hz
• 12 dB/Octave: > 3,000 Hz
• 24 dB/Octave: > 2,500 Hz


Compatibility:

• FlexMount25
• WireKits
• Crossover Ci7 FX-UNI.2


Scope of Delivery:

• 2 x Ci5 T25FM-CA
• 2 x Tweeter flush mount
• 2 x Tweeter pod
• 2 x Mounting material
• 1 x Instruction manual


Perfect for:

• Hi-fi system upgrades, sophisticated music lovers, professional installations, FlexMount25 compatible vehicles, OEM integration projects, advanced tweeter applications, HELIX and MATCH amplifier systems, and any installation requiring superior treble performance with excellent dispersion characteristics.
