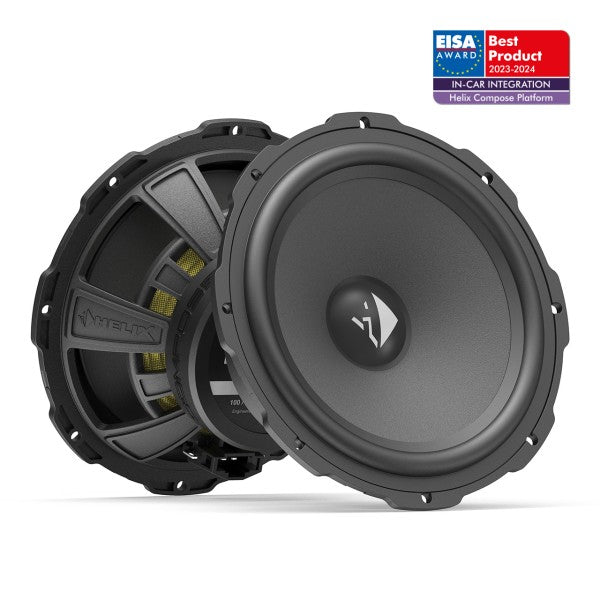

HELIX COMPOSE Ci3 W165FM-S3 | 6.5" Performance Midbass Driver | COMPOSE i3 Series

HELIX COMPOSE Ci3 W165FM-S3 | 6.5" Performance Midbass Driver | COMPOSE i3 Series

Universal Speakers Evolved. COMPOSE Technology.

Experience high-efficiency midbass performance with HELIX COMPOSE Ci3 W165FM-S3's innovative design—featuring 3Ω technology, Cenosphere paper cone, FlexMount165 compatibility, and ProConnect terminal for maximized efficiency and vehicle-specific integration.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Our HELIX COMPOSE i3 series is an absolute price-performance highlight, providing a first-class sound experience thanks to high-quality components and smart engineering. The Ci3 W165FM-S3 features innovative 3Ω technology for maximized efficiency and Cenosphere coating with hollow spheres incorporated into a polyamide layer, creating an exceptionally stable yet lightweight cone for outstanding precision in sound reproduction.

COMPOSE Ci3 W165FM-S3 Features:

• 6.5" / 165 mm performance midbass which combines outstanding sound quality with versatile physical integration options
• High efficiency and 3 Ohms technology for maximized power output of the amplifier
• Unique Cenosphere coated paper cone for precise and detailed sound reproduction
• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
• Specially shaped rubber surround for high linear cone excursion
• Polyurethane dustcap for optimized frequency response in the upper midrange area
• 1" / 25 mm voice coil ensures high power handling
• Automotive grade ProConnect connection terminal allows the use of conventional speaker cables or a fast, secure and fail-safe connection via optionally available WireKits
• Powerful magnet system for high efficiency and optimum impulse response
• Designed for the optionally available car-specific FlexMount165 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
• Designed for optionally available, car-specific WireKits which allow a non-destructive integration
• Maximum stability with minimal self-resonance design
• Reverse polarity protection through ProConnect system
• Perfect impedance matching for HELIX and MATCH amplifiers
• Professional automotive connector with interlocked connection
• FlexMount165 transforms universal driver into vehicle-specific solution


Specifications:

• Power Handling RMS/Max: 100/150 Watts
• Impedance: 3Ω
• DC Resistance (Re): 3.0Ω
• Frequency Response: 60 Hz - 3,500 Hz
• Resonance Frequency (Fs): 70 Hz
• Mechanical Q Factor (Qms): 4.17
• Electrical Q Factor (Qes): 1.05
• Total Q Factor (Qts): 0.84
• Compliance (Cms): 454 µm/N
• Equivalent Air Volume (Vas): 11.2 L
• Force Factor (B*I): 4.0 Tm
• Sensitivity: 92 dB @ 2.83V/1m, 88 dB @ 1W/1m
• Cone Area (Sd): 133 cm²
• Moving Mass (Mms): 11.3 g
• Cone Material: Paper with Cenosphere coating
• Mechanical Resistance (Rms): 1.18 kg/s
• Voice Coil Diameter: 25mm
• Voice Coil Winding Height: 10.5mm
• Max Linear Excursion (Xmax): ±3.2mm
• Outer Diameter: 165mm / 6.5"
• Installation Diameter: 142mm / 5.59"
• Installation Depth: 60.7mm / 2.39"


Compatibility:

• FlexMount165
• WireKits


Scope of Delivery:

• 2 x Ci3 W165FM-S3
• 2 x Mounting material


Perfect for:

• High-efficiency midbass upgrades, professional installations, FlexMount165 compatible vehicles, component system builds, HELIX and MATCH amplifier systems, and any installation requiring superior midbass efficiency with outstanding sound quality and vehicle-specific integration capabilities.
