Universal Speakers Evolved. COMPOSE Technology.

Experience stunning highs with HELIX COMPOSE Ci3 T20FM-TI's innovative titanium dome—featuring FlexMount20 compatibility, neodymium magnet, and outstanding stability for brilliant compression-free treble reproduction in any vehicle.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Our HELIX COMPOSE i3 series is an absolute price-performance highlight, providing a first-class sound experience thanks to high-quality components and smart engineering. The i3 tweeter is equipped with an innovative titan dome that combines outstanding stability with low moving mass and high inner damping as well as enormous thermal resistance – perfectly made for brilliant and compression-free treble reproduction.

COMPOSE Ci3 T20FM-TI Features:

• 0.75" / 20 mm performance tweeter with titanium dome for accurate and dynamic treble response
• High efficient neodymium magnet for high magnetic flux linearity
• Compact design and various mounting options for numerous installation demands

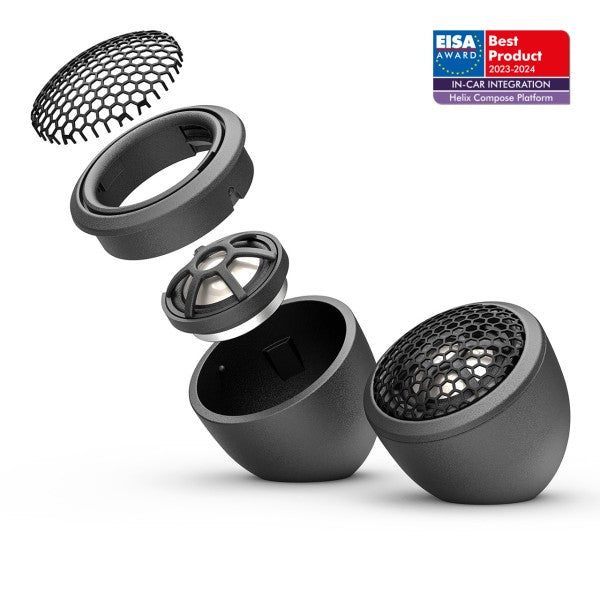

• Mounting pods for flush mount and angle mount included in delivery
• Designed for the optionally available car-specific FlexMount20 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
• Designed for optionally available, car-specific WireKits which allow a non-destructive integration
• Outstanding stability with low moving mass and high inner damping
• Enormous thermal resistance for brilliant treble reproduction
• FlexMount20 compatibility transforms universal tweeter into vehicle-specific solution
• Professional COMPOSE engineering with price-performance excellence
• Perfect impedance matching for HELIX and MATCH amplifiers
• Compression-free treble reproduction across entire frequency range


Specifications:

• Impedance: 4Ω
• DC Resistance (Re): 3.2Ω
• Frequency Response: 2,000 Hz - 25,000 Hz
• Resonance Frequency (Fs): 1800 Hz
• Sensitivity: 91 dB @ 2.83V/1m, 88 dB @ 1W/1m
• Voice Coil Diameter: 20mm
• Cone Material: Titanium
• Outer Diameter: 32mm / 1.26"
• Installation Diameter: 28mm / 1.10"
• Installation Depth: 9.8mm / 0.39"
• Recommended Crossover Frequencies:
• 6 dB/Octave: > 5,000 Hz
• 12 dB/Octave: > 3,500 Hz
• 24 dB/Octave: > 3,000 Hz


Compatibility:

• FlexMount20
• WireKits


Scope of Delivery:

• 2 x Ci3 T20FM-TI
• 2 x Tweeter flush mount
• 2 x Tweeter pod
• 2 x Mounting material


Perfect for:

• Component system upgrades, professional installations, FlexMount20 compatible vehicles, custom tweeter installations, HELIX and MATCH amplifier systems, and any application requiring high-quality titanium dome tweeters with vehicle-specific integration capabilities.
