Universal Speakers Evolved. COMPOSE Technology.

Experience outstanding midrange performance with HELIX COMPOSE Ci3 M100FM-S3's innovative design—featuring 3Ω technology, Cenosphere paper cone, FlexMount100 compatibility, and FlexConnect terminal for versatile integration and precise sound reproduction.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Our HELIX COMPOSE i3 series is an absolute price-performance highlight, providing a first-class sound experience thanks to high-quality components and smart engineering. The Ci3 M100FM-S3 features innovative Cenosphere coating with hollow spheres incorporated into a polyamide layer, creating an exceptionally stable yet lightweight cone for outstanding precision in sound reproduction.

COMPOSE Ci3 M100FM-S3 Features:

• 4" / 100 mm performance midrange speaker which combines outstanding sound quality with versatile physical integration options
• High efficiency and 3 Ohms technology for maximized power output of the amplifier
• Unique Cenosphere coated paper cone for precise and detailed sound reproduction
• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
• Specially shaped rubber surround for high linear cone excursion
• Polyurethane dustcap for optimized frequency response in the upper midrange area
• 1" / 25 mm voice coil ensures high power handling

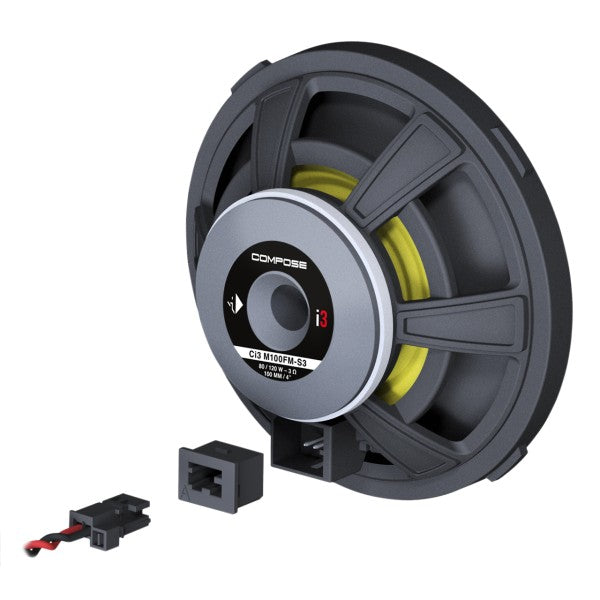

• Automotive grade FlexConnect terminal for fast, secure and fail-safe connection
• Shallow neodymium magnet system for low installation depth and high efficiency
• Universal FlexMount100 mounting ring included in delivery
• Designed for the optionally available car-specific FlexMount100 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
• FlexConnect technology for direct original wiring harness connection
• Maximum stability with minimal self-resonance design
• Reverse polarity protection through FlexConnect system
• Perfect impedance matching for HELIX and MATCH amplifiers


Specifications:

• Power Handling RMS/Max: 80/120 Watts
• Impedance: 3Ω
• DC Resistance (Re): 3.0Ω
• Frequency Response: 120 Hz - 6,000 Hz
• Resonance Frequency (Fs): 146 Hz
• Mechanical Q Factor (Qms): 4.49
• Electrical Q Factor (Qes): 1.02
• Total Q Factor (Qts): 0.83
• Compliance (Cms): 280 µm/N
• Equivalent Air Volume (Vas): 1.1 L
• Force Factor (B*I): 3.4 Tm
• Sensitivity: 91 dB @ 2.83V/1m, 87 dB @ 1W/1m
• Cone Area (Sd): 53 cm²
• Moving Mass (Mms): 4.3 g
• Cone Material: Paper with Cenosphere coating
• Mechanical Resistance (Rms): 0.87 kg/s
• Voice Coil Diameter: 25mm
• Voice Coil Winding Height: 4.8mm
• Max Linear Excursion (Xmax): ±2.0mm
• Outer Diameter: 98mm / 3.86"
• Outer Diameter with Universal Mounting Ring: 104.5mm / 4.11"
• Installation Diameter: 89mm / 3.50"
• Installation Depth: 30mm / 1.18"


Compatibility:

• FlexMount100
• FlexConnect Inlays


Scope of Delivery:

• 2 x Ci3 M100FM-S3
• 2 x Universal FlexMount100 (with standard 4-point mounting)
• 2 x FlexConnect inlay A
• 2 x Universal connection cable
• 2 x Mounting material


Perfect for:

• Midrange speaker upgrades, professional installations, FlexMount100 compatible vehicles, custom midrange applications, component system builds, HELIX and MATCH amplifier systems, and any installation requiring high-quality midrange performance with vehicle-specific integration capabilities.
