Universal Speakers Evolved. COMPOSE Technology.

Experience exceptional low-frequency performance with HELIX COMPOSE Ci3 K200.2FM-S3—featuring innovative 3Ω technology, 8" Cenosphere paper cone woofer, dual FlexMount compatibility, and titanium dome tweeters for maximized efficiency and deep bass reproduction.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. The i3 component systems give you everything you would expect from a great 2-way system: A first-class sound experience that, thanks to the use of high-quality materials and its particularly smart engineering, conveniently finds its way into the automobile. All components harmonize perfectly and form an ideal team with our HELIX and MATCH amplifiers, guaranteeing maximum performance and power output at all times.

COMPOSE Ci3 K200.2FM-S3 Features:

• 2-way performance speaker kit which combines outstanding sound quality with versatile physical integration options
• High efficiency and 3 Ohms technology for maximized power output of the amplifier
• Smart, automotive grade connectors for fail-safe and secure installation – COMPOSE Connect & ProConnect
• 0.75" / 20 mm tweeter with titanium dome for accurate and dynamic treble response
• Highly efficient neodymium magnet for high magnetic flux linearity
• Compact design and various mounting options for numerous installation demands
• Mounting pods for flush mount and angle mount included in delivery
• 8" / 200 mm woofer with unique Cenosphere coated paper cone for precise and detailed sound reproduction
• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
• Powerful magnet system for high efficiency and optimum impulse response
• Polyurethane dustcap for optimized frequency response in the upper midrange area
• Universal mounting ring with grille included in delivery
• Separate, high-grade crossover with compact dimensions for easy integration
• 6-stage tweeter level adjustment with integrated tweeter protection for optimized treble adaptation to mounting position
• Extensively fine-tuned – with 12 dB slope for tweeter
• Designed for optionally available, car-specific WireKits which allow a non-destructive integration
• Designed for the optionally available car-specific FlexMount200 & FlexMount20 adaptors which allow an acoustically optimized and professional integration in the original mounting locations of the vehicle
• COMPOSE Connect technology eliminates soldering for simplified installation
• Ultra compact titanium dome tweeter with neodymium magnet and FlexMount20
• Paper cone with Cenosphere coating, ProConnect terminal, FlexMount200 and grille
• Dual FlexMount compatibility for maximum vehicle integration options


Specifications:

• Power Handling RMS/Max: 100/150 Watts
• Frequency Response: 50 Hz - 25,000 Hz
• Impedance: 3Ω
• Sensitivity: 94 dB @ 2.83V/1m, 90 dB @ 1W/1m
• Tweeter Outer Diameter: 32.0mm / 1.26"
• Woofer Outer Diameter: 195.0mm / 7.68"
• Woofer with Universal Mounting Ring: 208.9mm / 8.22"
• Tweeter Installation Diameter: 32.0mm / 1.26"
• Woofer Installation Diameter: 173.5mm / 6.83"
• Tweeter Installation Depth: 9.8mm / 0.39"
• Woofer Installation Depth: 63.7mm / 2.51"
• Crossover Dimensions: 103.3 x 50.4 x 25.0mm
• Woofer Impedance: 3Ω
• Tweeter Impedance: 4Ω
• Woofer Resonance Frequency: 67 Hz
• Tweeter Resonance Frequency: 1800 Hz
• Total Q Factor (Qts): 0.76
• Equivalent Air Volume (Vas): 19.0 L
• Cone Area (Sd): 214 cm²
• Moving Mass (Mms): 18.8 g
• Voice Coil Diameter: 25mm (woofer), 20mm (tweeter)
• Max Linear Excursion (Xmax): ±3.8 mm
• DC Resistance (Re): 3.0Ω
• Force Factor (B*l): 5.1 Tm
• Voice Coil Winding Height: 11.6mm


Compatibility:

• FlexMount20
• FlexMount200
• WireKits


Scope of Delivery:

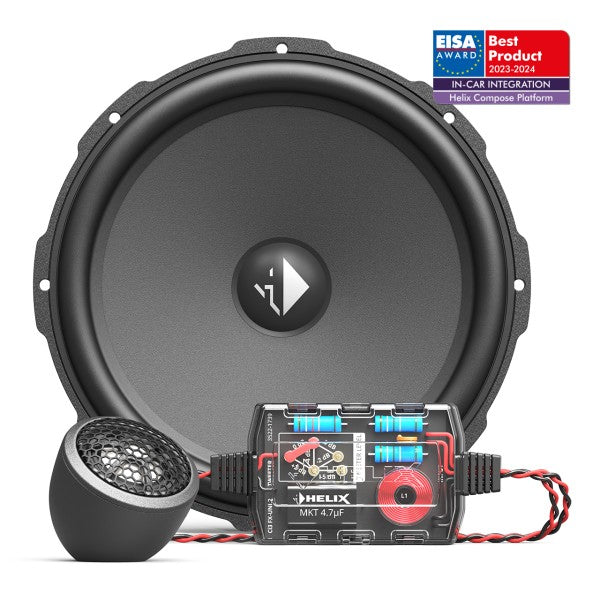

• 2 x Tweeter Ci3 T20FM-TI
• 2 x Woofer Ci3 W200FM-S3
• 2 x Crossover Ci3 FX-UNI.2
• 2 x Woofer connection cable CWK FX.W-550CC
• 2 x Tweeter mounting accessories
• 2 x Woofer mounting ring and grille
• 2 x COMPOSE Connect Kit
• 2 x Mounting material


Perfect for:

• Deep bass car audio upgrades, professional installations, audiophile vehicle systems requiring extended low-frequency response, dual FlexMount compatible vehicles, HELIX and MATCH amplifier systems, and any installation demanding superior woofer performance with outstanding sound quality and dual vehicle-specific integration capabilities.
