Universal Speakers Evolved. COMPOSE Technology.

Experience the perfect harmony of universal flexibility and vehicle-specific precision with HELIX COMPOSE Ci3 K130.2-S3—featuring innovative 3Ω technology, Cenosphere paper cones, and titanium dome tweeters for maximum efficiency and outstanding sound quality.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. The i3 component systems give you everything you would expect from a great 2-way system: A first-class sound experience that, thanks to the use of high-quality materials and its particularly smart engineering, conveniently finds its way into the automobile. All components harmonize perfectly and form an ideal team with our HELIX and MATCH amplifiers, guaranteeing maximum performance and power output at all times.

COMPOSE Ci3 K130.2-S3 Features:

• 2-way performance speaker kit which combines high efficiency with outstanding sound quality
• 3 Ohms technology for maximized power output of the amplifier
• Smart, automotive grade connectors for fail-safe and secure installation – COMPOSE Connect & ProConnect
• 0.75" / 20 mm tweeter with titanium dome for accurate and dynamic treble response
• Highly efficient neodymium magnet for high magnetic flux linearity
• Compact design and various mounting options for numerous installation demands
• Mounting pods for flush mount and angle mount included in delivery
• Designed for the optionally available car-specific FlexMount20 adaptors which allow an acoustically optimized and professional integration in the original mounting locations of the vehicle
• 5.25" / 130 mm midbass with unique Cenosphere coated paper cone for precise and detailed sound reproduction
• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
• Powerful magnet system for high efficiency and optimum impulse response
• Polyurethane dustcap for optimized frequency response in the upper midrange area
• Separate, high-grade crossover with compact dimensions for easy integration
• 6-stage tweeter level adjustment with integrated tweeter protection for optimized treble adaptation to mounting position
• Extensively fine-tuned – with 12 dB slope for tweeter
• Designed for optionally available, car-specific WireKits which allow a non-destructive integration
• COMPOSE Connect technology eliminates soldering for simplified installation
• FlexMount20 compatibility for vehicle-specific tweeter installation
• Ultra compact titanium dome tweeter with neodymium magnet
• Paper cone with Cenosphere coating and ProConnect terminal


Specifications:

• Power Handling RMS/Max: 90/135 Watts
• Frequency Response: 80 Hz - 25,000 Hz
• Impedance: 3Ω
• Sensitivity: 91 dB @ 2.83V/1m, 87 dB @ 1W/1m
• Tweeter Outer Diameter: 32.0mm / 1.26"
• Midbass Outer Diameter: 130.0mm / 5.12"
• Tweeter Installation Diameter: 32.0mm / 1.26"
• Midbass Installation Diameter: 116.5mm / 4.59"
• Tweeter Installation Depth: 9.8mm / 0.39"
• Midbass Installation Depth: 55.4mm / 2.18"
• Crossover Dimensions: 103.3 x 50.4 x 25.0mm
• Midbass Impedance: 3Ω
• Tweeter Impedance: 4Ω
• Midbass Resonance Frequency: 89 Hz
• Tweeter Resonance Frequency: 1800 Hz
• Total Q Factor (Qts): 0.74
• Equivalent Air Volume (Vas): 4.6 L
• Cone Area (Sd): 98 cm²
• Moving Mass (Mms): 9.1 g
• Voice Coil Diameter: 25mm (midbass), 20mm (tweeter)
• Max Linear Excursion (Xmax): ±3.2 mm
• DC Resistance (Re): 3.1Ω
• Force Factor (B*l): 4.0 Tm
• Voice Coil Winding Height: 10.5mm


Compatibility:

• FlexMount20
• WireKits

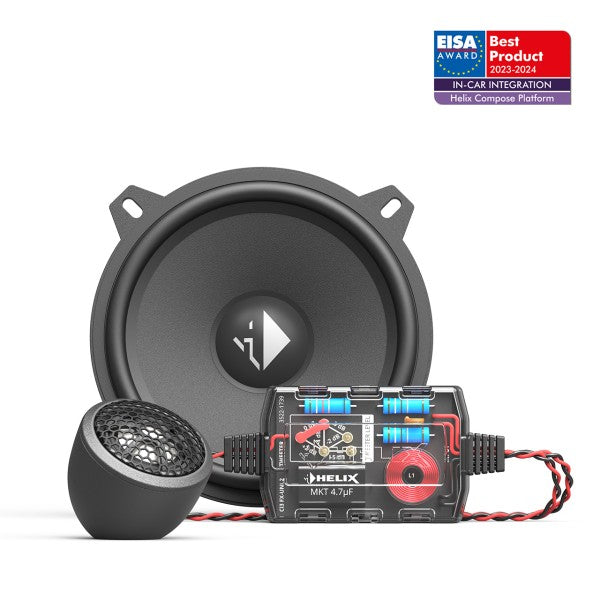

Scope of Delivery:

• 2 x Tweeter Ci3 T20FM-TI
• 2 x Midbass Ci3 W130-S3
• 2 x Crossover Ci3 FX-UNI.2
• 2 x Lowpass cable crossover Ci3 FX-WLP.2
• 2 x Tweeter mounting accessories
• 2 x COMPOSE Connect Kit
• 1 x Mounting material


Perfect for:

• High-quality car audio upgrades, professional installations, audiophile vehicle systems, OEM replacement applications, FlexMount20 compatible vehicles, HELIX and MATCH amplifier systems, and any installation requiring maximum efficiency with outstanding sound quality and vehicle-specific integration capabilities.
