HELIX COMPOSE. The Perfect Speaker for Any Composition.

Experience exceptional sound with HELIX Ci3 K100.2FM-S3's innovative COMPOSE platform—featuring 3Ω technology, Cenosphere paper cone, titanium dome tweeter, dual FlexMount system, and COMPOSE Connect technology for professional component installations.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. The i3 component systems give you everything you would expect from a great 2-way system: A first-class sound experience that, thanks to the use of high-quality materials and its particularly smart engineering, conveniently finds its way into the automobile. All components harmonize perfectly and form an ideal team with our HELIX and MATCH amplifiers, guaranteeing maximum performance and power output at all times.

COMPOSE Ci3 K100.2FM-S3 Features:

• 2-way performance speaker kit which combines outstanding sound quality with versatile physical integration options
• High efficiency and 3 Ohms technology for maximized power output of the amplifier
• Smart, automotive grade connectors for fail-safe and secure installation – COMPOSE Connect & FlexConnect
• Tweeter
• 0.75" / 20 mm tweeter with titanium dome for accurate and dynamic treble response
• Highly efficient neodymium magnet for high magnetic flux linearity
• Compact design and various mounting options for numerous installation demands
• Mounting pods for flush mount and angle mount included in delivery
• Midrange
• 4" / 100 mm midrange with unique Cenosphere coated paper cone for precise and detailed sound reproduction
• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
• Shallow neodymium magnet system for low installation depth and high efficiency
• Polyurethane dustcap for optimized frequency response in the upper midrange area
• Crossover
• Separate, high-grade crossover with compact dimensions for easy integration
• 6-stage tweeter level adjustment with integrated tweeter protection for optimized treble adaptation to mounting position
• Extensively fine-tuned – with 12 dB slope for the tweeter
• Designed for optionally available, car-specific WireKits which allow a non-destructive integration
• Designed for the optionally available car-specific FlexMount100 & FlexMount20 adaptors which allow an acoustically optimized and professional integration in the original mounting locations of the vehicle
• HELIX COMPOSE i3 performance engineering with dual FlexMount capability
• COMPOSE Connect technology eliminates soldering for simplified installation
• Extended frequency response up to 25,000 Hz
• Shallow installation depth (30.0mm midrange) for challenging fitments


Specifications:

• Power Handling RMS / Max: 80 / 120 Watts
• Frequency Response: 120 Hz - 25,000 Hz
• Impedance: 3Ω
• Sensitivity: 91 dB @ 2.83V / 1m, 87 dB @ 1W / 1m
• Tweeter Outer Diameter: 32.0 mm / 1.26"
• Midrange Outer Diameter: 98.0 mm / 3.86"
• Tweeter Installation Diameter: 32.0 mm / 1.26"
• Midrange Installation Diameter: 89.0 mm / 3.50"
• Tweeter Installation Depth: 9.8 mm / 0.39"
• Midrange Installation Depth: 30.0 mm / 1.18"
• Crossover Dimensions: 103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98"
• Midrange Impedance: 3Ω
• Tweeter Impedance: 4Ω
• Tweeter Resonance Frequency: 1800 Hz
• Midrange Resonance Frequency: 146 Hz
• Total Q Factor (Qts): 0.83
• Equivalent Air Volume (Vas): 1.1 L
• Cone Area (Sd): 53 cm²
• Moving Mass (Mms): 4.3 g
• Voice Coil Diameter: 25 mm (midrange), 20 mm (tweeter)
• Max Linear Excursion (Xmax): ±2.0 mm
• Tweeter: Ultra compact, titanium dome, neodymium magnet and FlexMount20
• Midrange: Paper with Cenosphere coating, FlexConnect terminal, neodymium magnet and FlexMount100
• Crossover: Tweeter 12 dB highpass, protection and level adjustment


Compatibility:

• FlexMount20
• FlexMount100
• FlexConnect inlays

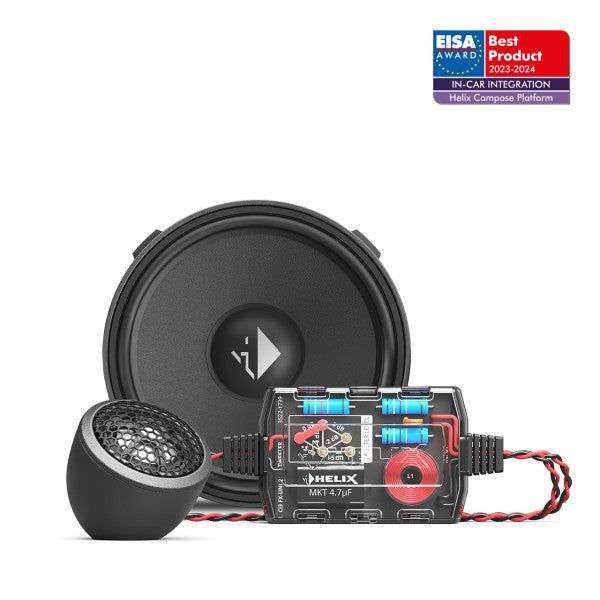

Scope of Delivery:

• 2 x Tweeter Ci3 T20FM-TI
• 2 x Midrange Ci3 M100FM-S3
• 2 x Crossover Ci3 FX-UNI.2
• 2 x Connection cable
• 2 x COMPOSE Connector Kit
• 2 x Tweeter mounting accessories
• 2 x Midrange mounting material
• 2 x FlexConnect inlay A
• 1 x Mounting material


Perfect for:

• Premium 4" component installations, OEM integration projects, dual FlexMount compatible vehicles, professional installations requiring COMPOSE Connect technology, 6-stage tweeter level adjustment applications, HELIX and MATCH amplifier systems, and any installation demanding high-quality component separation with advanced mounting flexibility.
