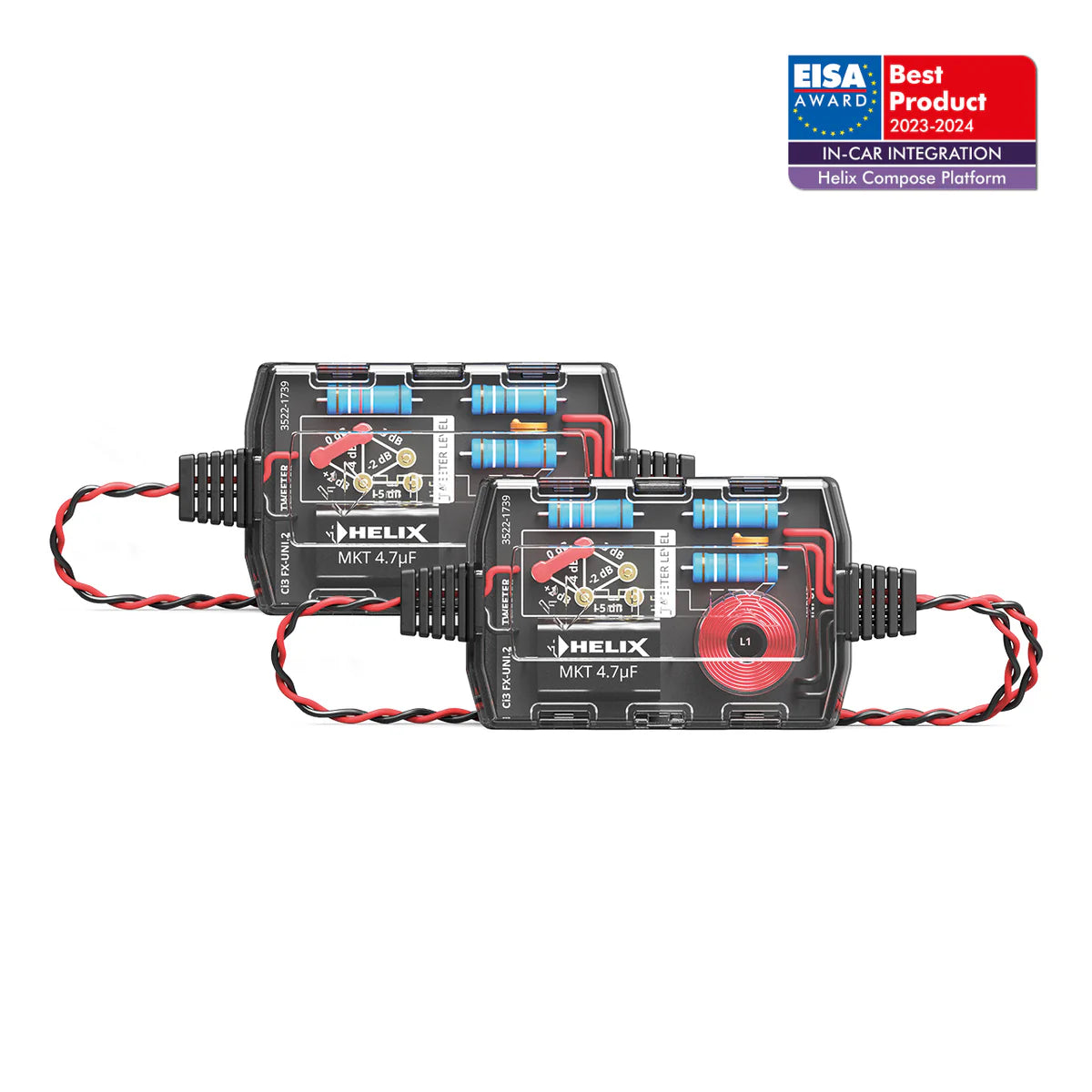

Two HELIX Ci3 FX-UNI.2 crossovers with COMPOSE Connect leads
Two HELIX Ci3 FX-UNI.2 crossovers with COMPOSE Connect leads
Click to open expanded view

HELIX Ci3 FX-UNI.2 COMPOSE Crossover Pair

SKU: COMPOSECi3FXUNI2
Price
$195
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Two HELIX Ci3 FX-UNI.2 crossovers with COMPOSE Connect leads

HELIX Ci3 FX-UNI.2 COMPOSE Crossover Pair

$195

Product features

A passive component system needs the correct filtering as well as matching speakers. The HELIX Ci3 FX-UNI.2 provides a 12 dB tweeter highpass, six stage tweeter level adjustment and protection for the listed COMPOSE i3 combinations.

What it helps with

  • Six stage tweeter level adjustment
  • 12 dB tweeter highpass slope
  • Two crossovers and two COMPOSE Connect kits listed

Specifications

Slope 12 dB highpass for tweeter
Tweeter level adjustment range minus 5 dB up to +2 dB

Compatibility and installation

Tweeter:

  • Ci3 T20FM-TI

Midrange / Midbass / Woofer:

  • Ci3 M100FM-S3
  • Ci3 W130-S3
  • Ci3 W165FM-S3
  • Ci3 W165FM-S2
  • Ci3 W200FM-S3
  • Ci3 W200FM-S2

Use the listed speaker models and the required lowpass parts for the chosen system. Do not substitute a different crossover based on connector appearance.

In the box

Listed by the Australian distributor:

  • 2 x Ci3 FX UNI.2
  • 2 x COMPOSE Connect Kit

Warranty

Your purchase is covered by the Australian Consumer Law. Contact Frankies for the warranty terms that apply to this exact model.

Questions and answers

Is a separate lowpass cable needed for some midbass drivers?

The Ci3 W165FM and Ci3 W130 midbass applications use the separately available Ci3 FX-WLP.2 lowpass cable crossover with the Ci3 FX-UNI.2. Check the exact speaker combination and wiring plan.

What is the stated slope?

Slope: 12 dB highpass for tweeter.

What is the stated tweeter level adjustment range?

Tweeter level adjustment range: minus 5 dB up to +2 dB.

What should I check before fitting?

Use the listed speaker models and the required lowpass parts for the chosen system. Do not substitute a different crossover based on connector appearance.

What is included?

The Australian distributor lists 2 x Ci3 FX UNI.2, 2 x COMPOSE Connect Kit.
