HELIX COMPOSE Ci3 C100.2FM-S3 | 4" 2-Way Performance Coaxial | COMPOSE i3 Series 3Ω

HELIX COMPOSE Ci3 C100.2FM-S3 | 4" 2-Way Performance Coaxial | COMPOSE i3 Series 3Ω

HELIX COMPOSE. The Perfect Speaker for Any Composition.

Experience exceptional sound with HELIX Ci3 C100.2FM-S3's innovative COMPOSE platform—featuring 3Ω technology, Cenosphere paper cone, titanium dome tweeter, FlexMount100 system, and FlexConnect terminals for versatile professional installations.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. The i3 coaxial systems give you everything you would expect from a great 2-way system: A first-class sound experience that, thanks to the use of high-quality materials and its particularly smart engineering, conveniently finds its way into the automobile. All components harmonize perfectly and form an ideal team with our HELIX and MATCH amplifiers, guaranteeing maximum performance and power output at all times.

COMPOSE BASIC Ci3 C100.2FM-S3 Features:

• 2-way performance coaxial speaker system which combines outstanding sound quality with versatile physical integration options
• High efficiency and 3 Ohms technology for maximized power output of the amplifier

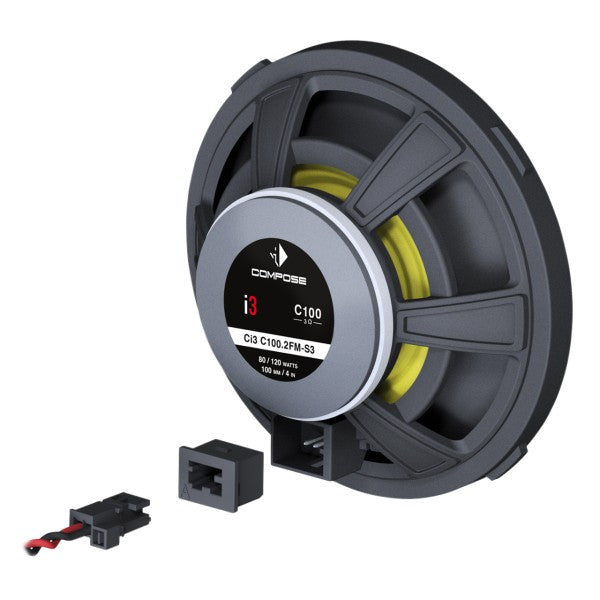

• Automotive grade FlexConnect terminal allow fast and secure connection as well as direct connection to the original cable harness due to optionally available car-specific adaptors
• Tweeter
• 0.75" / 20 mm tweeter with titanium dome for accurate and dynamic treble response
• Highly efficient neodymium magnet for high magnetic flux linearity
• Midrange
• 4" / 100 mm midrange with unique Cenosphere coated paper cone for precise and detailed sound reproduction
• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
• Shallow neodymium magnet system for low installation depth and high efficiency
• Crossover
• Integrated with 6 dB slope
• Designed for the optionally available car-specific FlexMount100 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
• HELIX COMPOSE i3 performance engineering
• Innovative Cenosphere coating for increased cone stiffness and optimized damping
• High-tech polymer basket with glass sphere reinforcement
• FlexMount100 twist-lock system for vehicle-specific adaptation
• FlexConnect terminals for OEM harness compatibility
• Shallow installation depth (30.0mm) for challenging fitments
• Extended frequency response up to 25,000 Hz
• High sensitivity (91 dB) for maximum efficiency


Specifications:

• Power Handling RMS / Max: 80 / 120 Watts
• Frequency Response: 100 Hz - 25,000 Hz
• Impedance: 3Ω
• Sensitivity: 91 dB @ 2.83V / 1m, 87 dB @ 1W / 1m
• Outer Diameter: 98.0 mm / 3.86"
• Installation Diameter: 89.0 mm / 3.50"
• Installation Depth: 30.0 mm / 1.18"
• Midrange Impedance: 3Ω
• DC Resistance (Re): 3.0Ω
• Resonance Frequency (Fs): 137 Hz
• Total Q Factor (Qts): 0.66
• Equivalent Air Volume (Vas): 2.1 L
• Cone Area (Sd): 57 cm²
• Moving Mass (Mms): 3.0 g
• Voice Coil Diameter: 25 mm (midrange), 20 mm (tweeter)
• Max Linear Excursion (Xmax): ±2.0 mm
• Tweeter: Titanium dome with neodymium magnet
• Midrange: Paper with Cenosphere coating, FlexConnect terminal, neodymium magnet and FlexMount100
• Crossover: Integrated, 6 dB highpass


Compatibility:

• lexMount100
• FlexConnect inlays


Scope of Delivery:

• 2 x Ci3 C100.2FM-S3
• 2 x Universal FlexMount100 (with standard 4-point mounting)
• 2 x FlexConnect inlay A
• 2 x Universal connection cable
• 1 x Mounting material


Perfect for:

• Performance 4" installations, OEM integration projects, shallow-mount applications, FlexMount100 compatible vehicles, professional installations requiring FlexConnect terminals, HELIX and MATCH amplifier systems, and any installation demanding high-quality coaxial speakers with advanced mounting flexibility.
