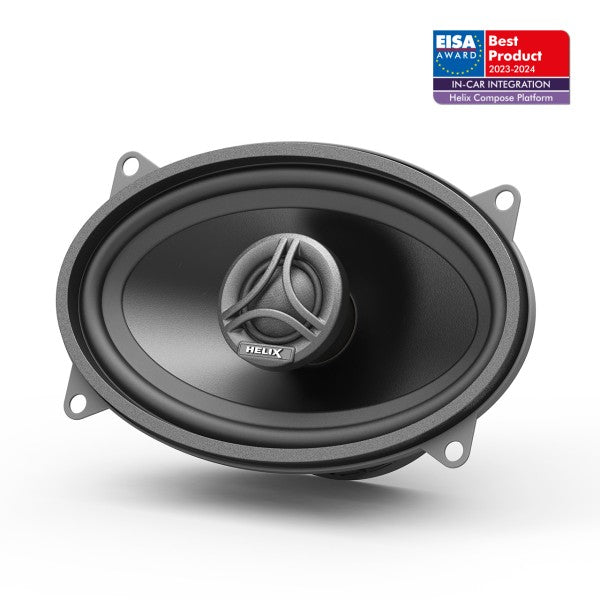

HELIX CB C460.2-S3 4 by 6 Inch Coaxial Speaker Pair, 3 Ohm

SKU: COMPOSEBASICCBC4602S3
Price
$280
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
COMPOSEBASICCBC4602S3, speaker assembly and supplied parts

HELIX CB C460.2-S3 4 by 6 Inch Coaxial Speaker Pair, 3 Ohm

$280

Product features

Oval factory openings need the right mounting measurements, not just the right nominal size. The HELIX CB C460.2-S3 combines a 4 by 6 inch midbass driver with a 20 mm silk dome tweeter and an integrated crossover.

What it helps with

  • 50 W RMS and 75 W maximum handling
  • 141.9 by 86.9 mm installation opening
  • 48.9 mm installation depth

Specifications

Power handling RMS / Max. P 50 / 75 Watts
Frequency response 90 Hz to 22,000 Hz
Impedance Z 3 Ω
Sensitivity SPL 90 dB @ 2.83V / 1m
86 dB @ 1W / 1m
Outer diameter ø 153.5 x 97.5 mm / 6.04 x 3.84”
Installation diameter ø 141.9 x 86.9 mm / 5.58 x 3.42”
Installation depth 48.9 mm / 1.93”
Midwoofer
Impedance Z 3 Ω
DC resistance Re 3.1 Ω
Resonance frequency Fs 120 Hz
Mechanical Q factor Qms 6.18
Electrical Q factor Qes 1.14
Total Q factor Qts 0.96
Compliance Cms 204 μm/N
Equivalent air volume Vas 1.7 L
Force factor B*l 4.2 Tm
Cone area Sd 77 cm2
Moving mass Mms 8.7 g
Mechanical resistance Rms 1.06 kg/s
Voice coil diameter ø 25 mm

Voice coil winding height

 8.9 mm
Max. linear excursion Xmax plus or minus 2.5 mm
Tweeter
Voice coil diameter ø 20 mm
Features
Tweeter Silk dome and neodymium magnet
Midbass

Injected polypropylene cone
Crossover Integrated, 6 dB highpass

Compatibility and installation

Check the opening, mounting holes, 48.9 mm rear depth and trim clearance. Use an amplifier that supports a 3 ohm load.

In the box

Listed by the Australian distributor:

  • 2 x CB C460.2-S3
  • 1 x Mounting material

Warranty

Your purchase is covered by the Australian Consumer Law. Contact Frankies for the warranty terms that apply to this exact model.

Questions and answers

What opening does the oval speaker need?

The specified installation diameter is 141.9 by 86.9 mm. The outer dimensions are 153.5 by 97.5 mm.

What impedance is specified?

Impedance: Z 3 Ω.

What mounting opening does it need?

Installation diameter: ø 141.9 x 86.9 mm / 5.58 x 3.42”.

What should I check before fitting?

Check the opening, mounting holes, 48.9 mm rear depth and trim clearance. Use an amplifier that supports a 3 ohm load.

What is included?

The Australian distributor lists 2 x CB C460.2-S3, 1 x Mounting material.

What warranty applies?

Your purchase is covered by the Australian Consumer Law. Contact Frankies for the warranty terms that apply to this exact model.
