HELIX C ONE 1 Channel High-End Analog Amplifier | 1100W RMS 1Ω Stable

Pure Power. Studio Quality.

Experience the ultimate in analog amplification with HELIX C ONE's 1100W RMS output—featuring 32 hand-selected MOSFET transistors and 1000 damping factor for relentless subwoofer control and audiophile sound quality.

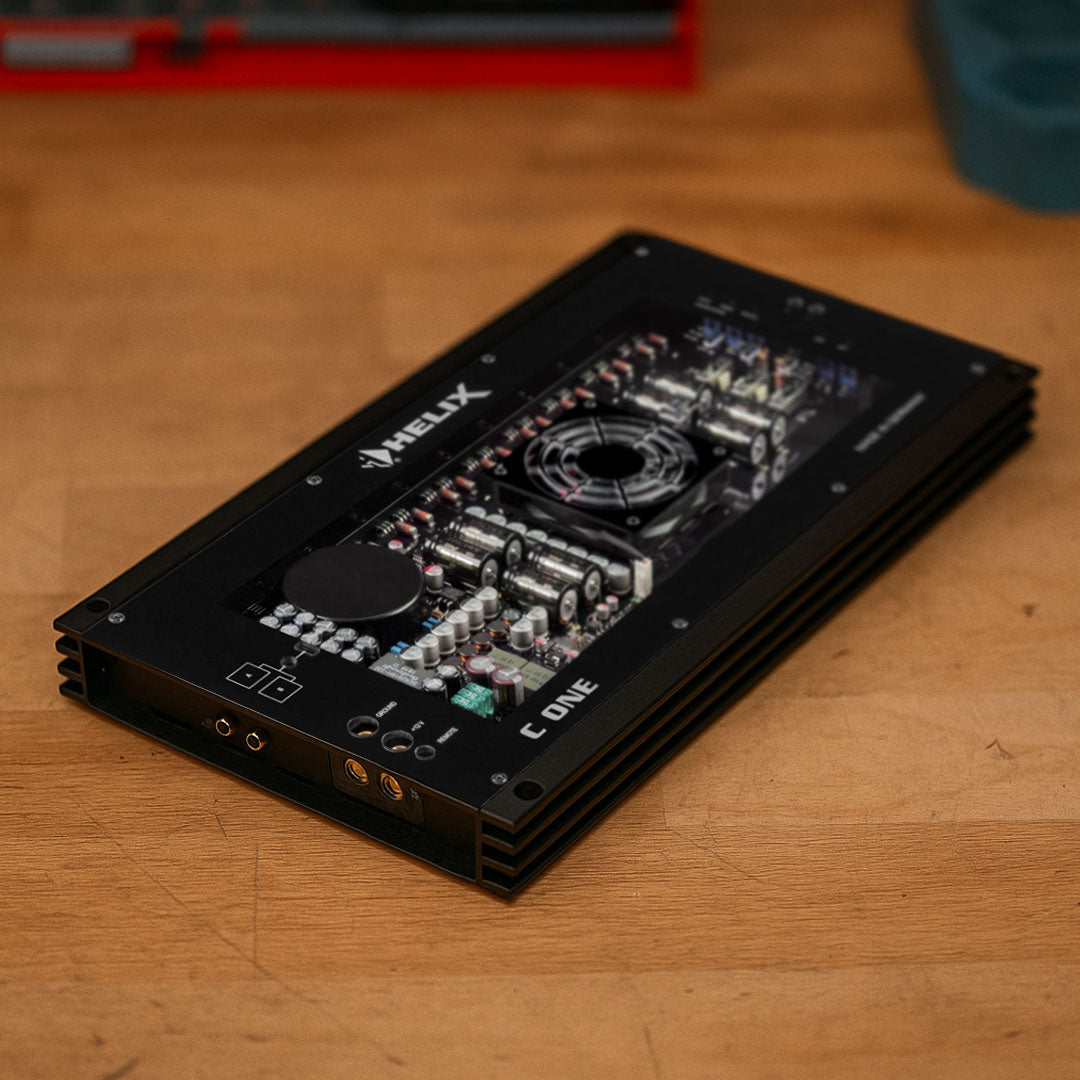

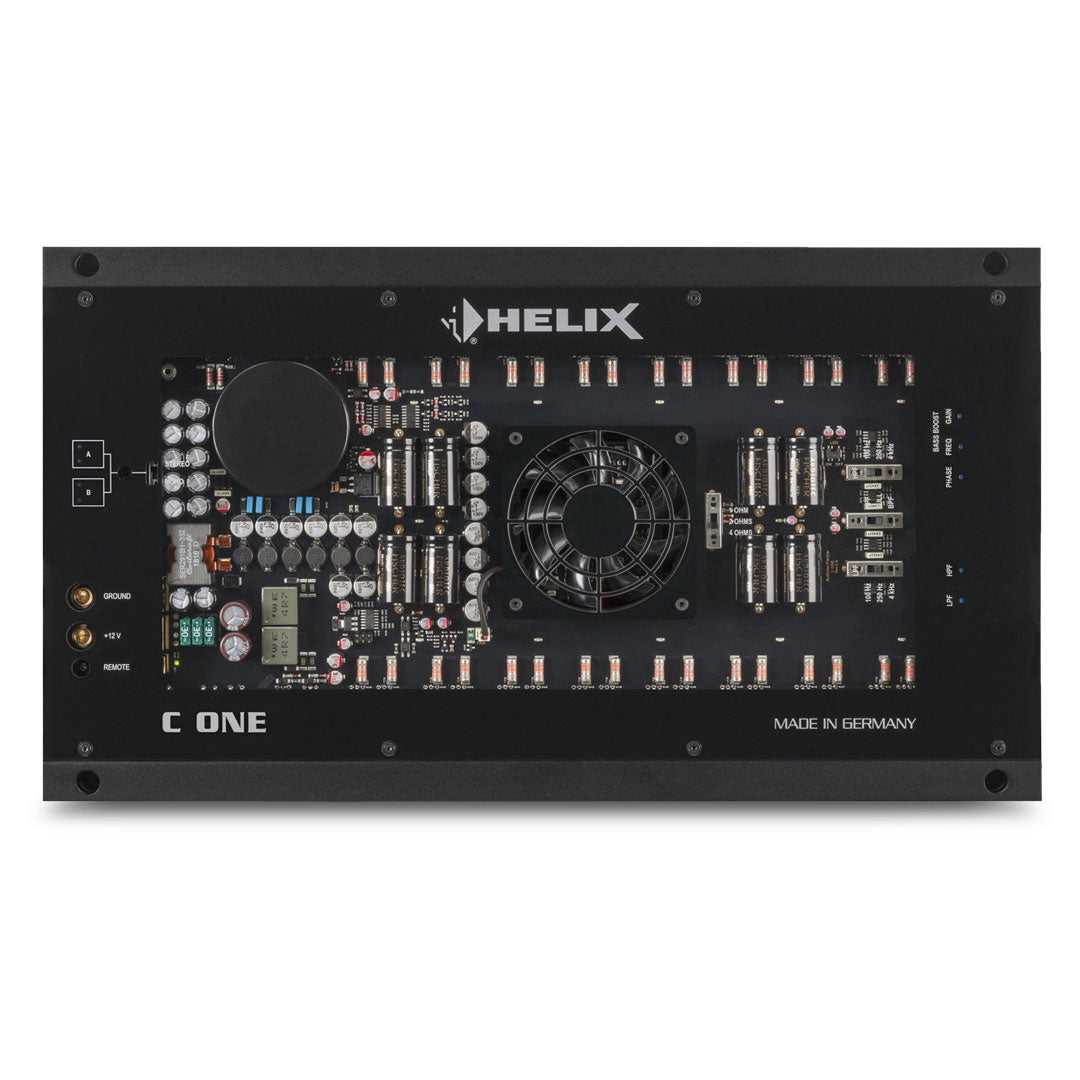

The HELIX C ONE represents the pinnacle of high-end analog amplification, delivering exceptional power and stunning sound quality in a single-channel design. This powerhouse amplifier drives even the most demanding subwoofers to their maximum potential with its ultra low-noise, ultra low-distortion Class A driver stage feeding 32 hand-selected MOSFET power transistors. With an incredible damping factor of 1000 and intelligent power supply regulation, the C ONE ensures stable performance regardless of battery voltage fluctuations. Beyond subwoofer applications, its extended 80kHz frequency response makes it perfect for heavy-duty mid-woofers in audiophile systems, while optional HDM 1 digital input module provides future-proof digital connectivity with 32-bit BurrBrown D/A converters.

C ONE Features:

• Extremely powerful Class AB amplifier with up to 1,100 Watts RMS @ 1 Ohm – a perfect match for all 2 x 2 Ohms subwoofers connected in parallel
• Also usable as an ultra broadband amplifier with exceptional sound quality – ideal for High Resolution Audio
• Ultra low-noise and distortion-free power amp drivers in Class A technology
• Enormous damping factor of 1,000 @ 4 Ohms for maximum speaker control
• Optionally available HELIX Digital Input Module (HDM) to extend the amplifier with an optical digital input in SPDIF format
• Regulated DC / DC switching power supply with Start-Stop capability down to 6V supply voltage
• Microprocessor-based monitoring of amplifier status including temperature-dependent fan control

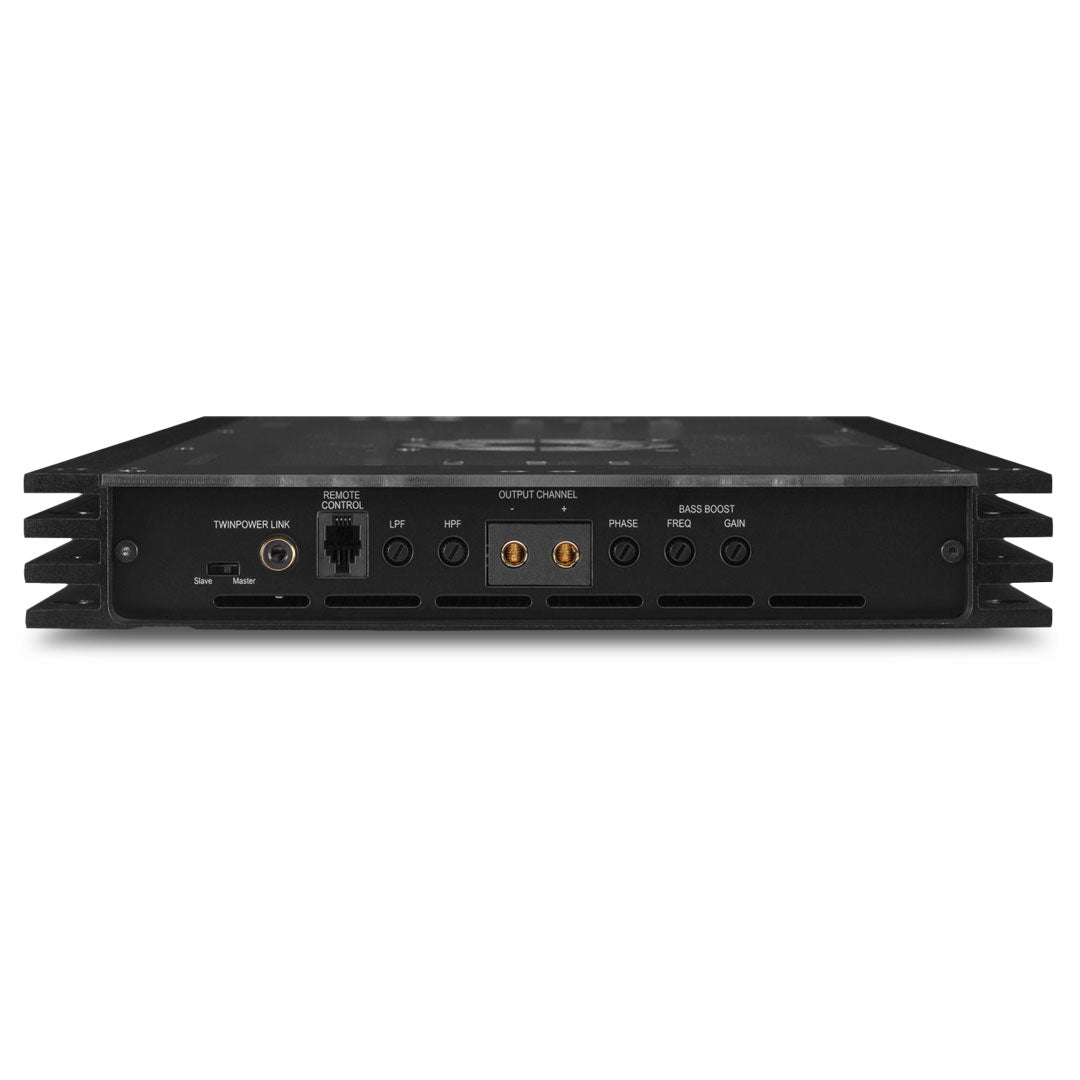

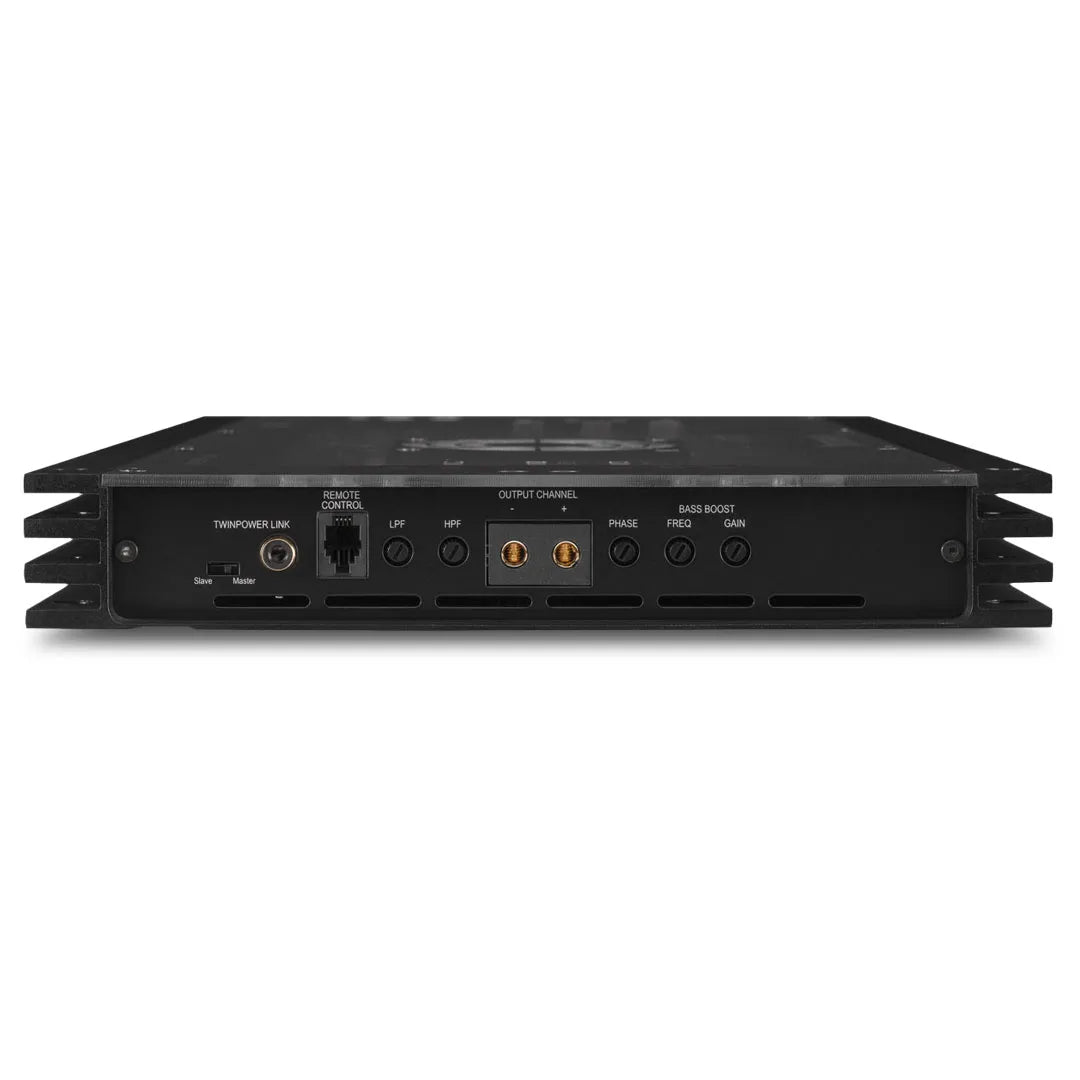

• Integrated, active crossover with highpass, lowpass, bandpass, bass boost and phase control
• TwinPower Link for connecting two amplifiers in bridged mode
• Cutting-edge BurrBrown D/A converters with 32 Bit resolution in combination with the optional HDM 1 module
• Massive 24-carat gold-plated power and speaker terminals

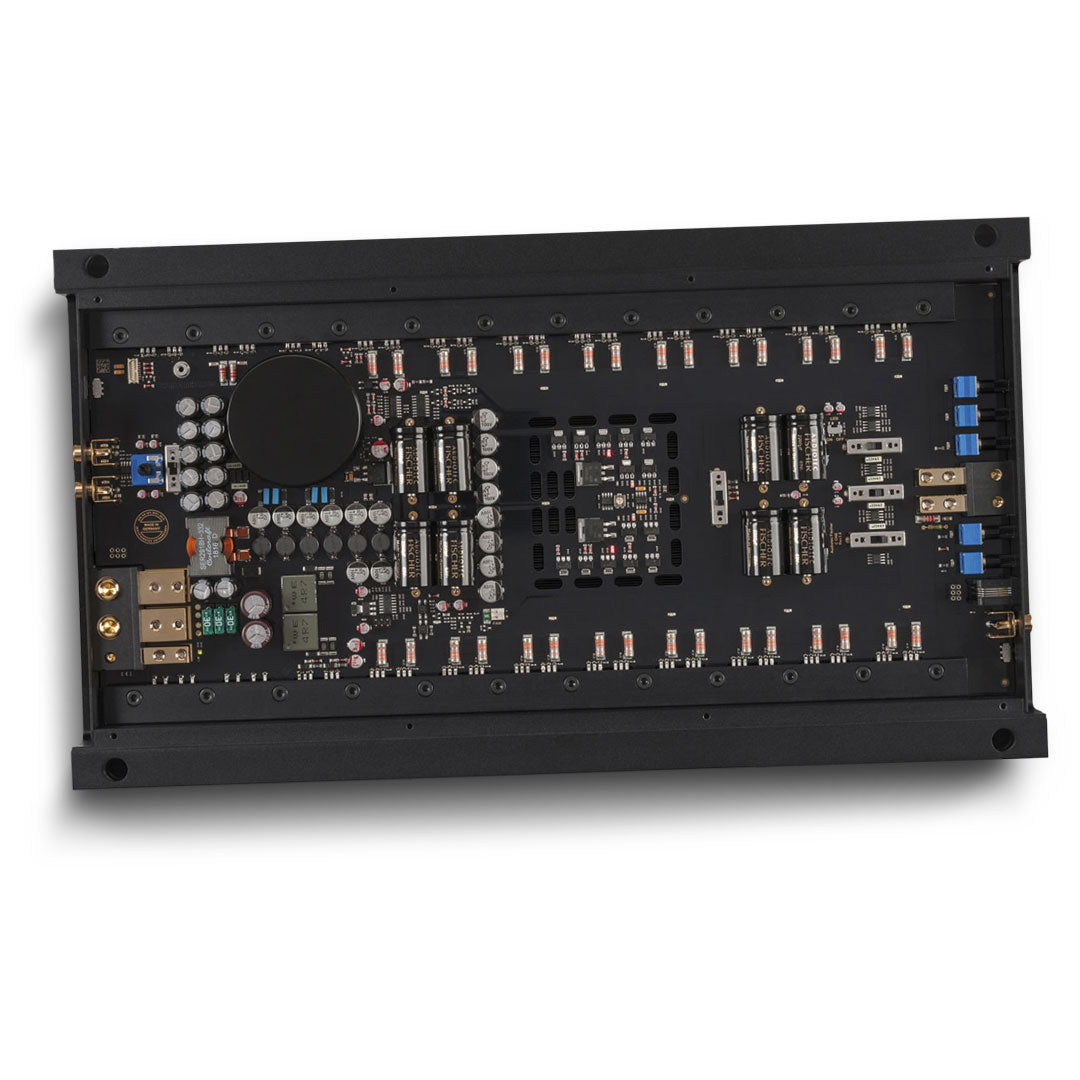

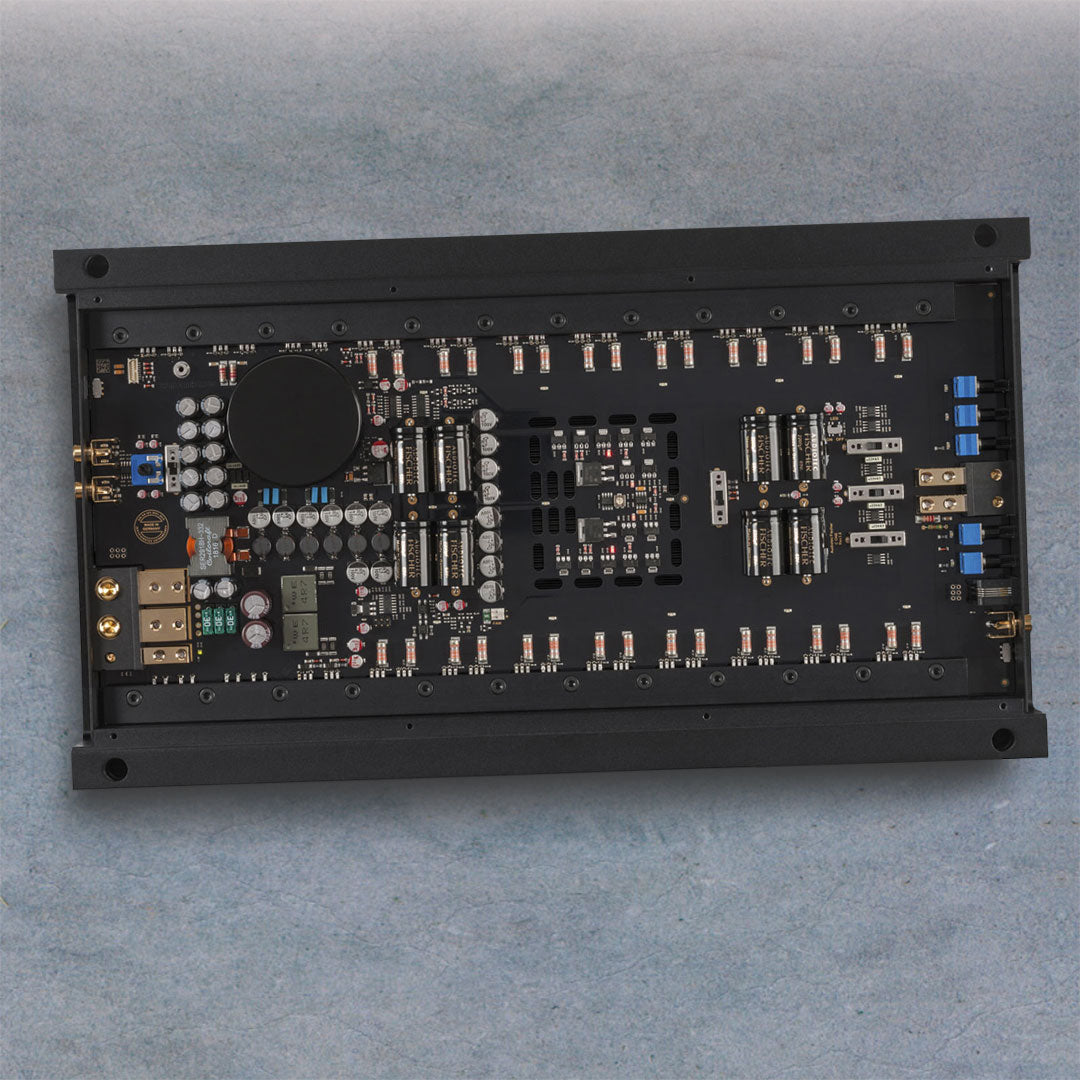

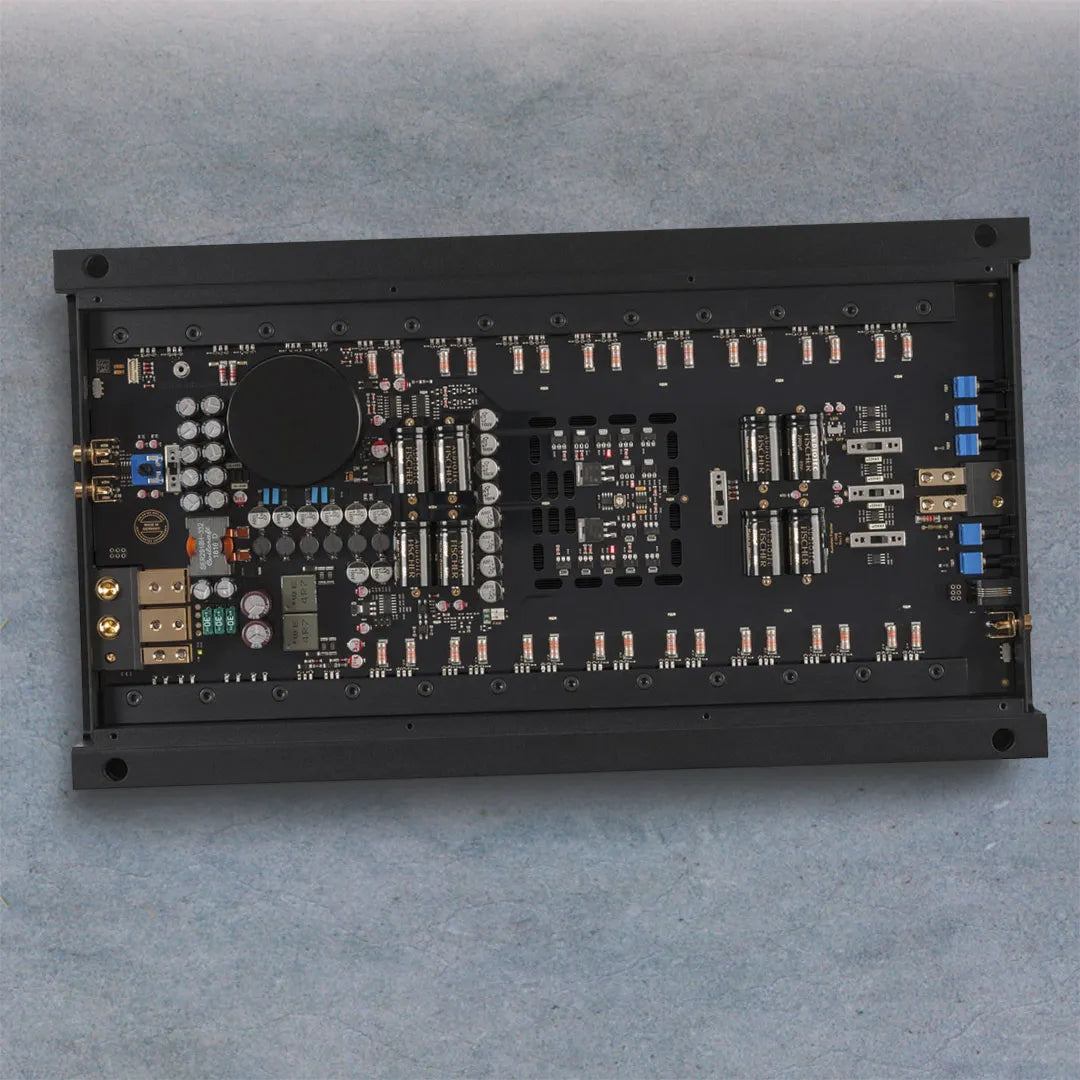

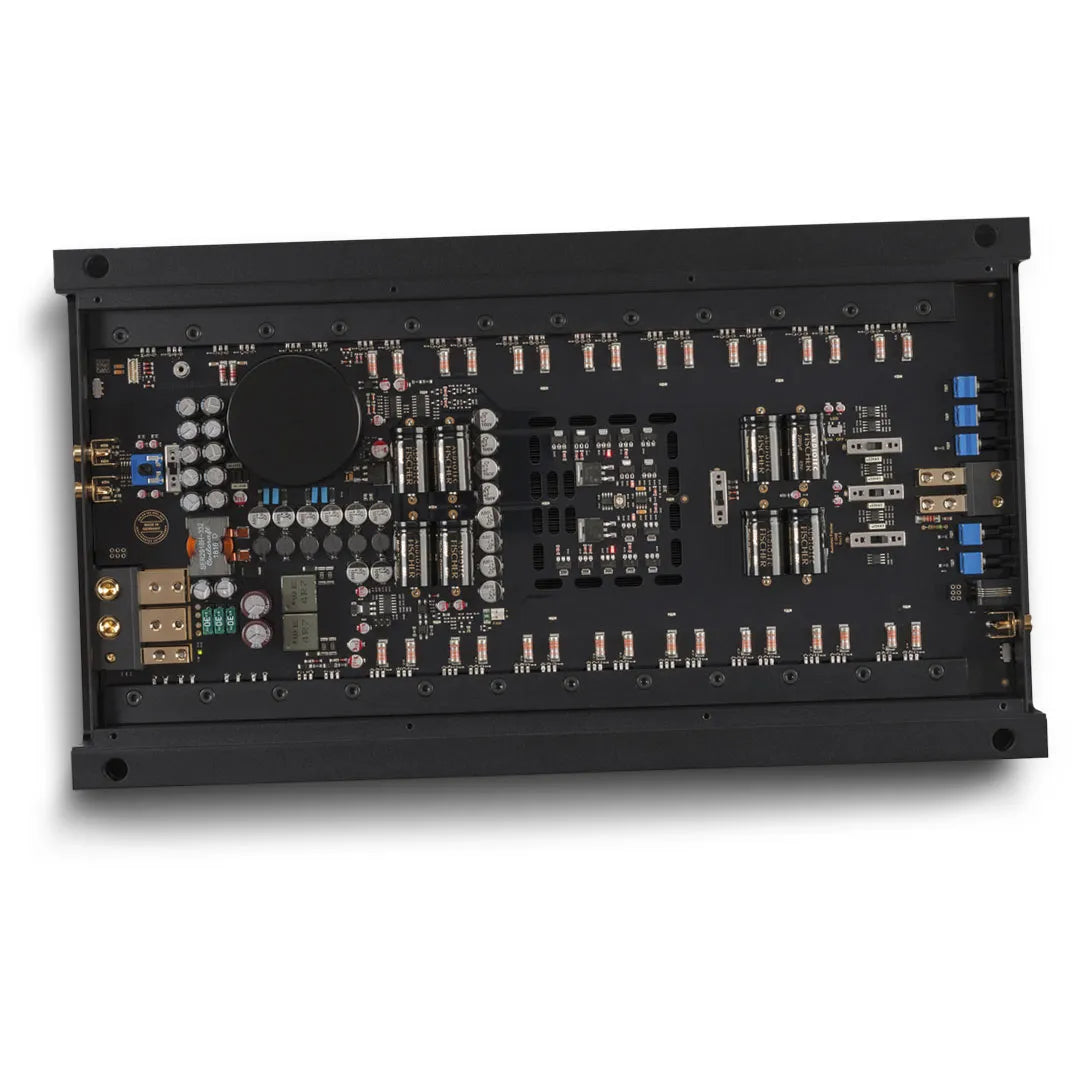

• Quad-layer PCB with extra-solid 70μ copper traces for lowest possible losses and SMD manufacturing technology
• Start-Stop capability ensures operation down to 6V during engine crank
• High-Resolution audio bandwidth for lossless studio-quality reproduction


Specifications:

• Channels: 1 Channel | Mono
• Built-in DSP: No

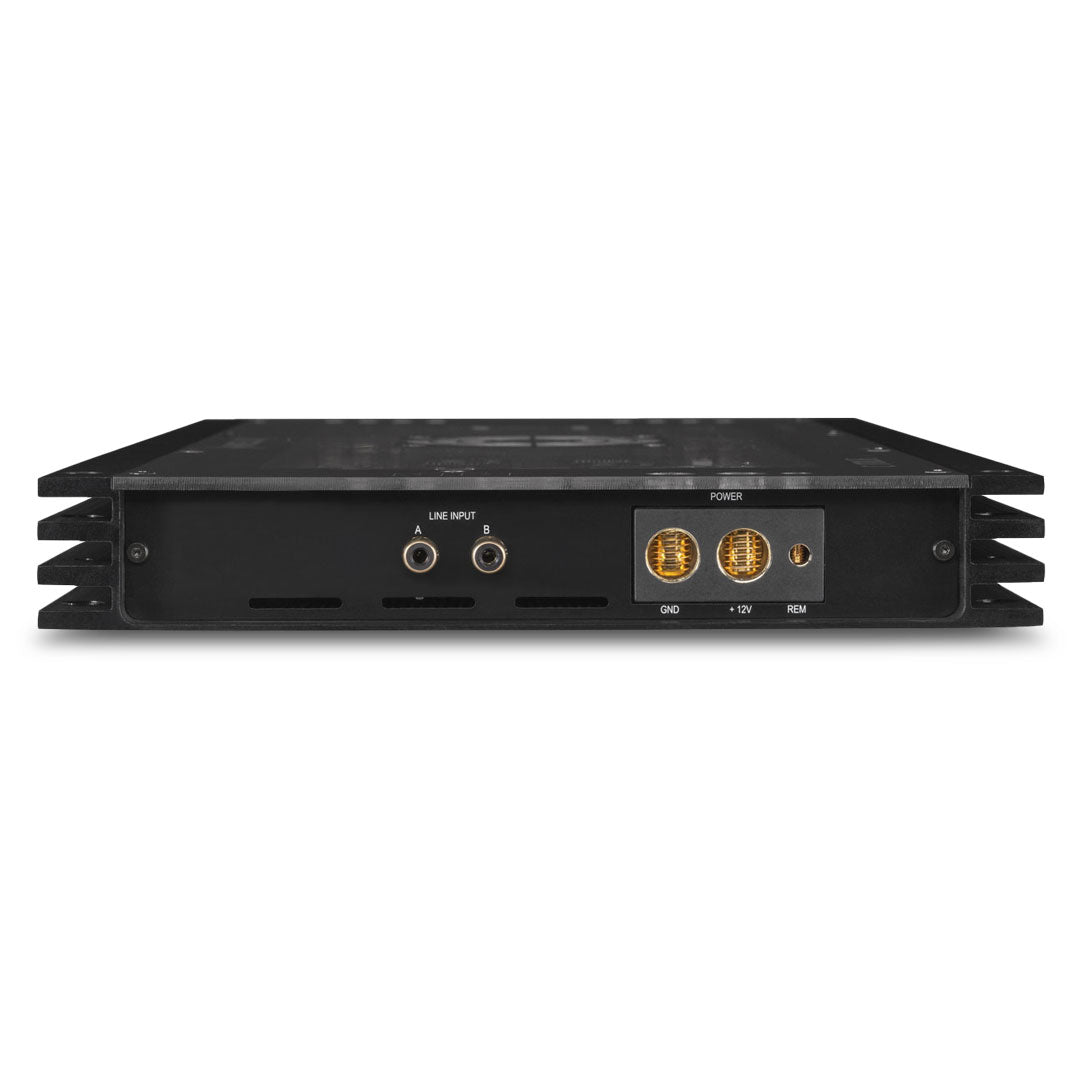

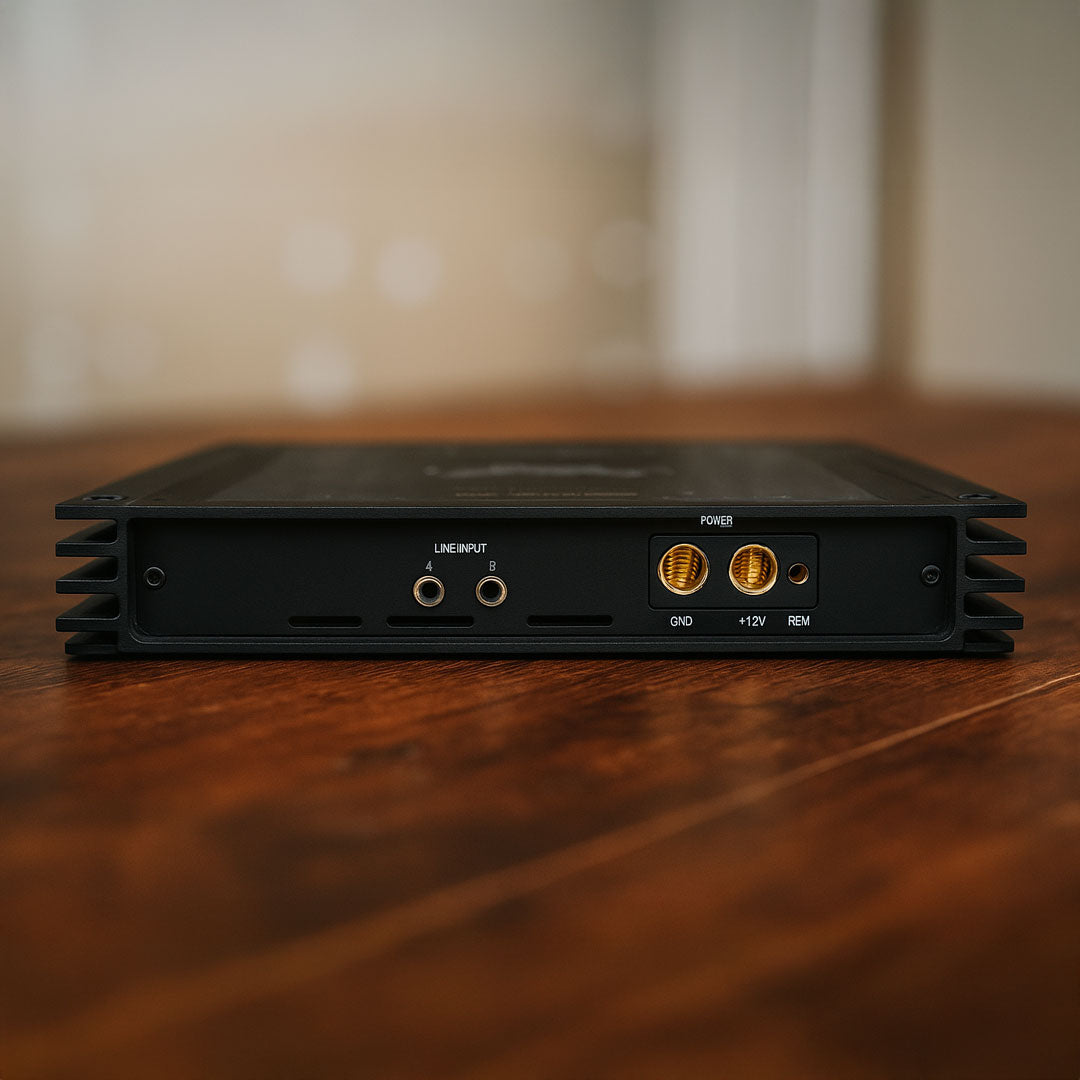

• RCA Input: 2x RCA
• High-Level Input: 0x | RCA only
• Power W RMS/ch | 4Ω: 525W
• Power W RMS/ch | 2Ω: 830W
• Power W RMS/ch | 1Ω: 1100W
• Class: A/B
• Max Input Sensitivity: 8V
• THD+N: 0.006%
• RCA Out: 0x | No Pre-out
• Frequency Response: 10 Hz - 80,000 Hz
• Signal-to-Noise Ratio: 120 dB (A-weighted)
• Damping Factor: >1000
• Operating Voltage: 9-16V (max. 5 sec. down to 6V)
• Dimensions (H x W x D): 37 x 430 x 240mm
• Fuse: 3 x 30A LP-Mini-fuse (APS)


Scope of Delivery:

• 1 x High-end amplifier HELIX C ONE
• 2 x Allen key
• 1 x Mounting material
• 1 x Instruction manual

Perfect for:

• High-end subwoofer applications, audiophile system builds, competition car audio, professional installations, and any application requiring maximum power output with studio-quality sound reproduction and relentless speaker control.
