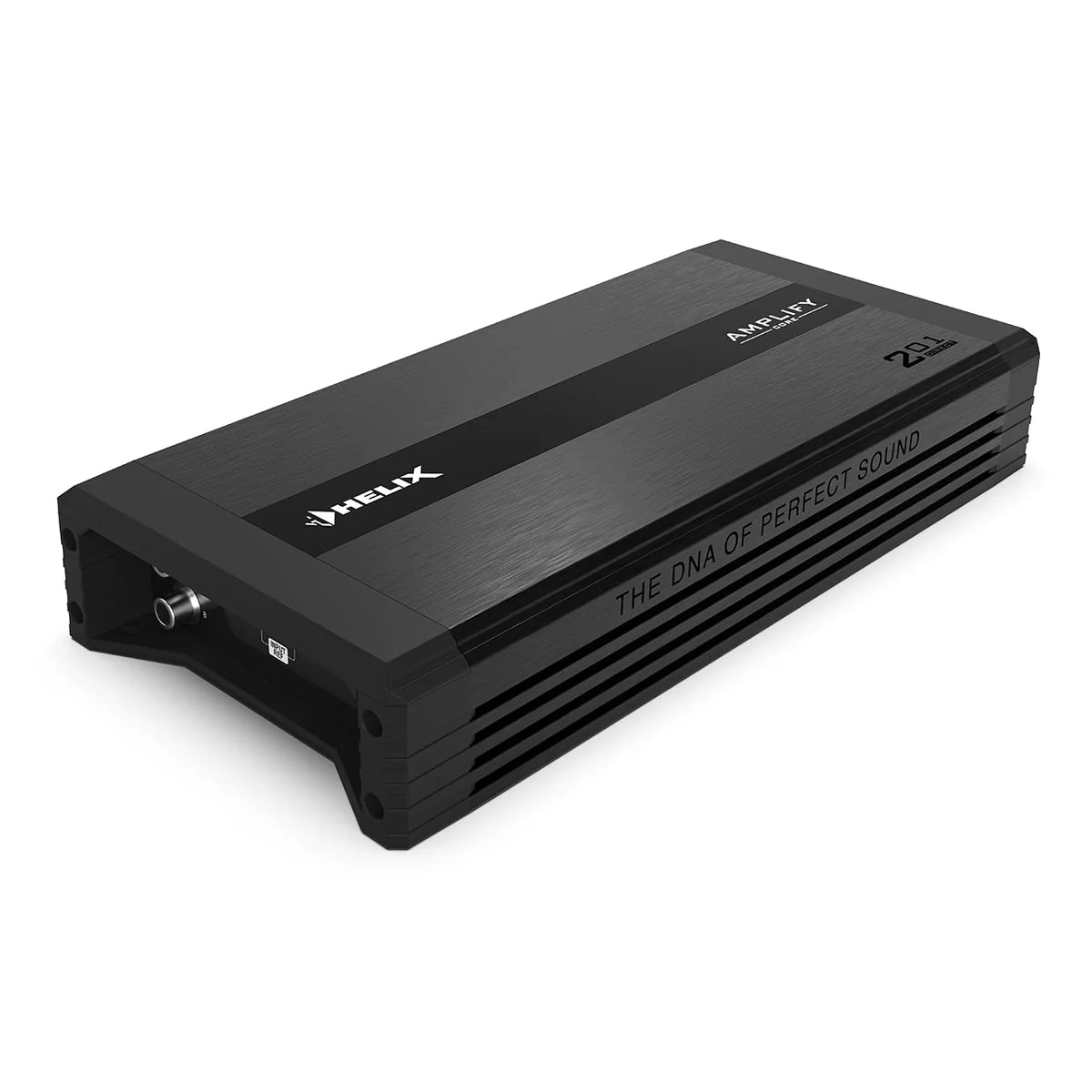

Helix Amplify 201 Direct Mono Class D Subwoofer Amplifier 750W 1 Ohm with DirectDSP Inputs
A mono Class D subwoofer amplifier from the Helix Amplify 2-Series, the Amplify 201 Direct delivers 250W RMS at 4Ω, 450W RMS at 2Ω, and 750W RMS at 1Ω (up to 850W RMS maximum), with DirectDSP inputs for seamless integration with Helix and compatible DSP processors, 114dB SNR at full power, THD below 0.003% at 100Hz, damping factor of 200, clipping LED for gain calibration, Start-Stop capability, and a removable top cover in an ultra-compact 40 x 248 x 114mm housing.
Product Overview
The Helix Amplify 201 Direct is the dedicated subwoofer monoblock from the Helix Amplify 2-Series, specifically designed for DSP-based audio systems that require clean, efficient, and transparent amplification as the final stage of a processed signal chain. As a DIRECT variant, it features DirectDSP inputs that bypass conventional input filtering stages entirely, preserving complete signal integrity and maximum clarity from the DSP processor output through to the speaker. This makes the Amplify 201 Direct the natural companion for Helix and Match DSP amplifiers and processors, particularly the Helix V Eight DSP Ultimate, P Six DSP Ultimate, and Match UP series.
The Class D amplifier stage delivers 750W RMS at 1Ω with music signal (up to 850W RMS maximum), 450W RMS at 2Ω, and 250W RMS at 4Ω at 14.4V with less than 1% THD+N. THD at 100Hz into 4Ω is below 0.003%, and SNR is 114dB at full power, placing the Amplify 201 Direct in a different performance tier from conventional Class D subwoofer amplifiers. The damping factor of 200 provides strong speaker cone control for tight, accurate bass reproduction. The frequency response of 10Hz to 450Hz is optimised for subwoofer applications where the DSP processor handles all crossover and filter functions upstream.
The practical stereo/mono switch allows bridged mono operation from a single RCA input, eliminating the need for external Y-adaptors. A clipping LED provides real-time visual feedback for precise and fast gain adjustment without distortion. The removable top cover conceals all connections and controls, providing a clean streamlined appearance and additional protection. Operating voltage is 10.5-16V with Start-Stop capability to 6V. Fused at 2 x 30A LP-Mini (APS) for up to 80A maximum power draw. Dimensions are 40 x 248 x 114mm.
Features & Benefits
750W RMS at 1Ω - Up to 850W RMS Maximum: The Amplify 201 Direct delivers 250W RMS at 4Ω, 450W RMS at 2Ω, and 750W RMS at 1Ω with music signal, and up to 850W RMS maximum, making it ideal for 2 x 2Ω subwoofers connected in parallel, DVC subwoofers wired to 1Ω, or multiple subwoofers configured to a 1Ω combined load.
DirectDSP Inputs - Designed for External DSP Processors: The DirectDSP input design eliminates conventional input filtering stages to ensure uncompromised signal integrity and maximum clarity from the DSP processor output. This purpose-built input architecture minimises noise and distortion at the input stage, making the Amplify 201 Direct the ideal amplification partner for Helix and Match DSP systems.
114dB SNR at Full Power - THD Below 0.003% at 100Hz: The Amplify 201 Direct delivers 114dB SNR (A-weighted) at full power and THD below 0.003% at 100Hz into 4Ω, providing performance that significantly exceeds conventional subwoofer amplifier standards and supports the signal quality delivered by high-end DSP processors in the Helix ecosystem.
Damping Factor 200 - Precise Subwoofer Control: The damping factor of 200 provides strong resistance to back-EMF from the subwoofer voice coil, resulting in tight, accurate, and well-controlled bass reproduction with fast transient response and minimal overhang.

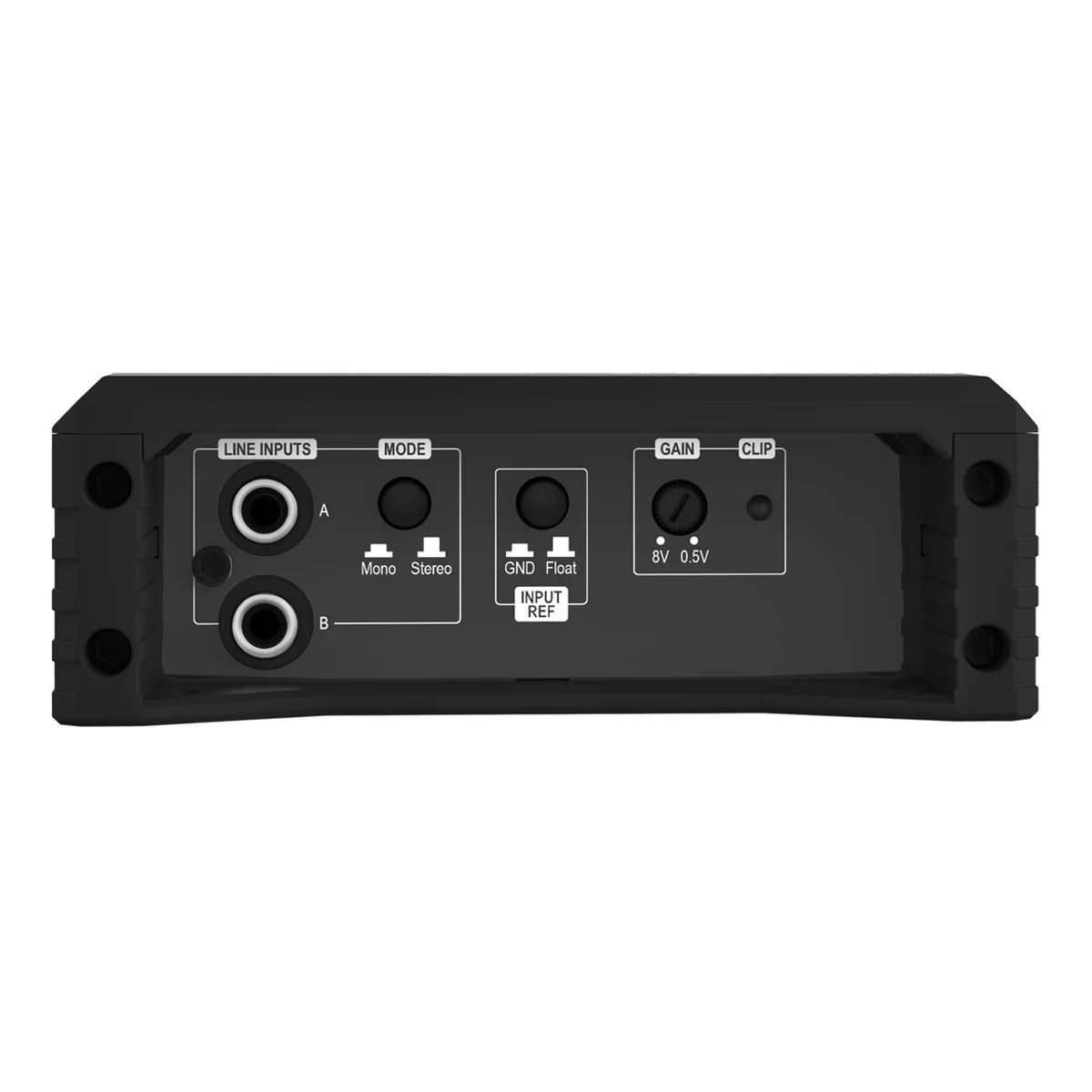

Stereo/Mono Switch - Single RCA Bridged Operation: The stereo/mono switch allows the amplifier to operate in bridged mono mode from a single RCA input, eliminating the need for an external Y-adaptor when only one RCA output channel is available from the upstream DSP processor or head unit.
Clipping LED for Fast and Precise Gain Adjustment: The clipping LED provides real-time visual indication of amplifier clipping during gain setup, enabling precise and fast level calibration without requiring an oscilloscope or audio analyser.
No Input Filtering - Clean Signal Path for DSP Integration: The DIRECT variant eliminates subsonic, lowpass, and highpass filter controls from the amplifier, relying entirely on the upstream DSP processor for all signal processing and crossover functions. This preserves complete signal integrity and prevents double-filtering artefacts in DSP-based systems.
Advanced Class D - High Efficiency and Low Heat Dissipation: The advanced Class D concept delivers high efficiency and very low heat dissipation, enabling 750W RMS output from an ultra-compact 40 x 248 x 114mm housing.
Removable Top Cover - Clean Appearance and Connection Protection: The removable top cover conceals all connections and controls when installed, providing a clean, streamlined appearance and additional protection for wiring and adjustment controls.
Start-Stop Capable - 10.5-16V Operating Range: The Start-Stop capable power supply maintains stable operation during voltage drops to 6V for up to 5 seconds, ensuring uninterrupted bass output during engine cranking.
Ultra-Compact Form Factor - 40 x 248 x 114mm: The compact dimensions allow installation in tight spaces including under seats, boot cavities, and OEM mounting positions where larger subwoofer amplifiers cannot be accommodated.
What's in the Box
- Helix Amplify 201 Direct Amplifier
- 2 x Allen Key
- Mounting Material
- 2 x Fuse
- Instruction Manual
Technical Specs
| Specification | Detail |
|---|---|
| SKU | AMPLIFY 201 DIRECT |
| Brand | Helix |
| Range | Amplify 2-Series |
| Variant | Direct (DirectDSP Inputs) |
| Channels | 1 (Mono) |
| Amplifier Class | Class D |
| Built-in DSP | No |
| Power RMS at 4Ω (14.4V) | 1 x 250W |
| Power RMS at 2Ω (14.4V) | 1 x 450W |
| Power RMS at 1Ω (14.4V) | 1 x 750W (with music signal) |
| Max Output at 1Ω | Up to 850W RMS |
| THD at 100Hz, 1W into 4Ω | Less than 0.003% |
| THD+N at 100Hz, 1W into 4Ω | Less than 0.02% |
| SNR at Full Power | 114dB (A-weighted) |
| Damping Factor | 200 |
| RCA Inputs | 2 x RCA (0.5-8V, 8kΩ) |
| High-Level Inputs | None |
| Input Type | DirectDSP |
| Outputs | 1 x Speaker |
| RCA Preout | None |
| Frequency Response | 10Hz-450Hz |
| Subsonic Filter | None (DIRECT variant) |
| Lowpass Filter | None (DIRECT variant) |
| Stereo/Mono Switch | Yes |
| Clipping LED | Yes |
| Operating Voltage | 10.5-16V (Stable to 6V for 5 Seconds) |
| Power Rating | DC 12V, 80A Max |
| Idle Current | 1100mA |
| Fuse | 2 x 30A LP-Mini (APS) |
| Operating Temperature | -40°C to +70°C |
| Start-Stop Capable | Yes |
| Top Cover | Removable |
| Dimensions | 40mm x 248mm x 114mm |
Compatible With
The Amplify 201 Direct is compatible with 10.5-16V vehicle electrical systems. RCA inputs accept 0.5-8V from DSP processor RCA outputs. The DirectDSP input design is optimised for connection to Helix and Match DSP amplifiers and processors including the Helix V Eight DSP Ultimate, Helix P Six DSP Ultimate, Match UP 8DSP, Match UP 6DSP, and other compatible DSP sources. The Amplify 201 Direct has no RCA preout, no high-level inputs, and no onboard filtering - all crossover and signal processing should be handled upstream by the DSP processor. Confirm subwoofer impedance matches the 1Ω, 2Ω, or 4Ω rated output configurations before purchase.
Frequently Asked Questions
What is the DirectDSP input on the Amplify 201 Direct?
The DirectDSP input design eliminates conventional input filtering stages entirely, preserving uncompromised signal integrity and maximum clarity from the connected DSP processor output. By removing unnecessary input filtering components, the noise floor is minimised and distortion is reduced to its absolute minimum. This design is purpose-built for DSP-based audio systems where all crossover and filter functions are handled upstream by the processor.
Does the Amplify 201 Direct have a built-in lowpass or subsonic filter?
No. The DIRECT variant has no onboard lowpass, subsonic, highpass, or any other filter controls. All crossover and signal processing must be handled by the upstream DSP processor. This is by design to ensure uncompromised signal integrity in DSP-based audio systems.
What is the stereo/mono switch on the Amplify 201 Direct?
The stereo/mono switch allows the amplifier to operate in bridged mono mode from a single RCA input, eliminating the need for an external Y-adaptor when only one RCA output channel is available from the upstream DSP or head unit.
How is the Amplify 201 Direct different from the Amplify 201 X-OVER?
The Amplify 201 Direct is designed for DSP-based systems and features DirectDSP inputs with no onboard filtering, for use as the final clean amplification stage after a DSP processor. The Amplify 201 X-OVER includes onboard lowpass, subsonic, and phase control filters for use in systems without a dedicated DSP processor. Choose the DIRECT variant if using a Helix or Match DSP amplifier upstream; choose the X-OVER variant for standalone installations.
Is the Amplify 201 Direct compatible with the Helix P Six DSP Ultimate?
Yes. The Amplify 201 Direct's DirectDSP RCA inputs are well suited for connection to the RCA outputs of the Helix P Six DSP Ultimate and other Helix and Match DSP amplifiers, creating a complete Helix ecosystem subwoofer system with optimal signal integrity from DSP output to subwoofer.
