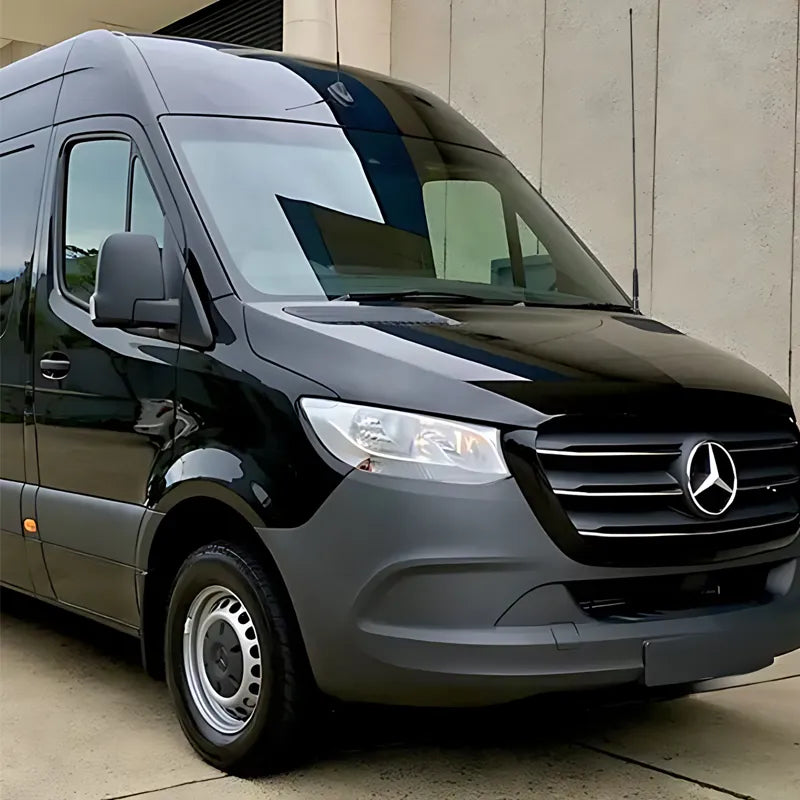

Front corner of a black Sprinter van parked beside a pale wall
Front corner of a black Sprinter van parked beside a pale wall
Camper van on yellow wheel ramps with its side door open on a timber kitchen and an aerial beside the windscreen
Camper van on yellow wheel ramps with its side door open on a timber kitchen and an aerial beside the windscreen
Black high roof van on a white background with a thin aerial rising at the bonnet edge
Black high roof van on a white background with a thin aerial rising at the bonnet edge
Click to open expanded view
GMF4X4 logo

GMF4x4 BB-088P UHF Antenna Bonnet Bracket, Mercedes Sprinter Van 2019 Onwards, Passenger Side

SKU: BB088P
5.0 (1)
Price
$110
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Grey four wheel drive Sprinter camper parked on gravel among gum trees

GMF4x4 BB-088P UHF Antenna Bonnet Bracket, Mercedes Sprinter Van 2019 Onwards, Passenger Side

$110

Product features

The GMF4x4 BB-088P (also sold as 088P-BB) is a UHF antenna bracket for the 2019 onwards Mercedes-Benz Sprinter van. It bolts to the passenger side bonnet hinge with no drilling, is pressed from 5mm steel, comes black powder coated, and is made in Australia. Hardware and instructions are included.

Why a bonnet hinge mount

A Sprinter's roof is a long way up and drilling it for an aerial is a step most owners would rather skip. A hinge bracket puts the antenna up high, clear of the bodywork, with the cable run close to the engine bay. GMF4x4 states it does not stop the bonnet opening.

Specifications

Part number BB-088P, 088P-BB
Vehicle Mercedes-Benz Sprinter Van, 2019 onwards
Position Passenger side bonnet hinge
Material 5mm pressed steel
Finish Black powder coat
Drilling None
Made in Australia
Antennas Standard 4WD UHF antennas

What is in the box

  • BB-088P bracket
  • 2 x M8 x 20 countersunk bolts
  • Instructions

Install notes

GMF4x4 quotes about 5 minutes to fit. Once your antenna is mounted, open the bonnet slowly to full height and check the antenna clears the A pillar and door. One owner with gas bonnet struts on a 2025 Sprinter found the antenna rubbed and adjusted the holes, so check yours before you drive. Use a short spring base if you need extra clearance.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ

Do I need to drill the van?

No. It bolts to the bonnet hinge.

Which side of the Sprinter does this bracket mount on?

The passenger side. GMF4x4 says it bolts to the passenger side bonnet hinge.

Will my antenna fit?

GMF4x4 states standard 4WD UHF antennas fit.
