GME XRS-RJ45T7 RJ45 Pass Through Adaptor MAZDA and ISUZU

GME XRS-RJ45T7 Pass-Through Adaptor Mazda Isuzu 23mm

A pass-through adaptor for GME XRS Connect UHF CB radios, the XRS-RJ45T7 is designed to integrate directly into the small 23mm x 23mm factory switch blank locations on selected Isuzu D-Max and Mazda BT-50 models, featuring a CAT.6 compliant fully-shielded housing with metal shielding and Australian made construction.

Product Overview

The GME XRS-RJ45T7 is part of GME's XRS Connect pass-through adaptor range, purpose designed for the small 23mm x 23mm factory switch blank locations found on selected Isuzu D-Max and Mazda BT-50 models. This allows an XRS Connect controller microphone to be integrated directly into the factory dash, providing a neat and professional finish rather than a bulky aftermarket mount.

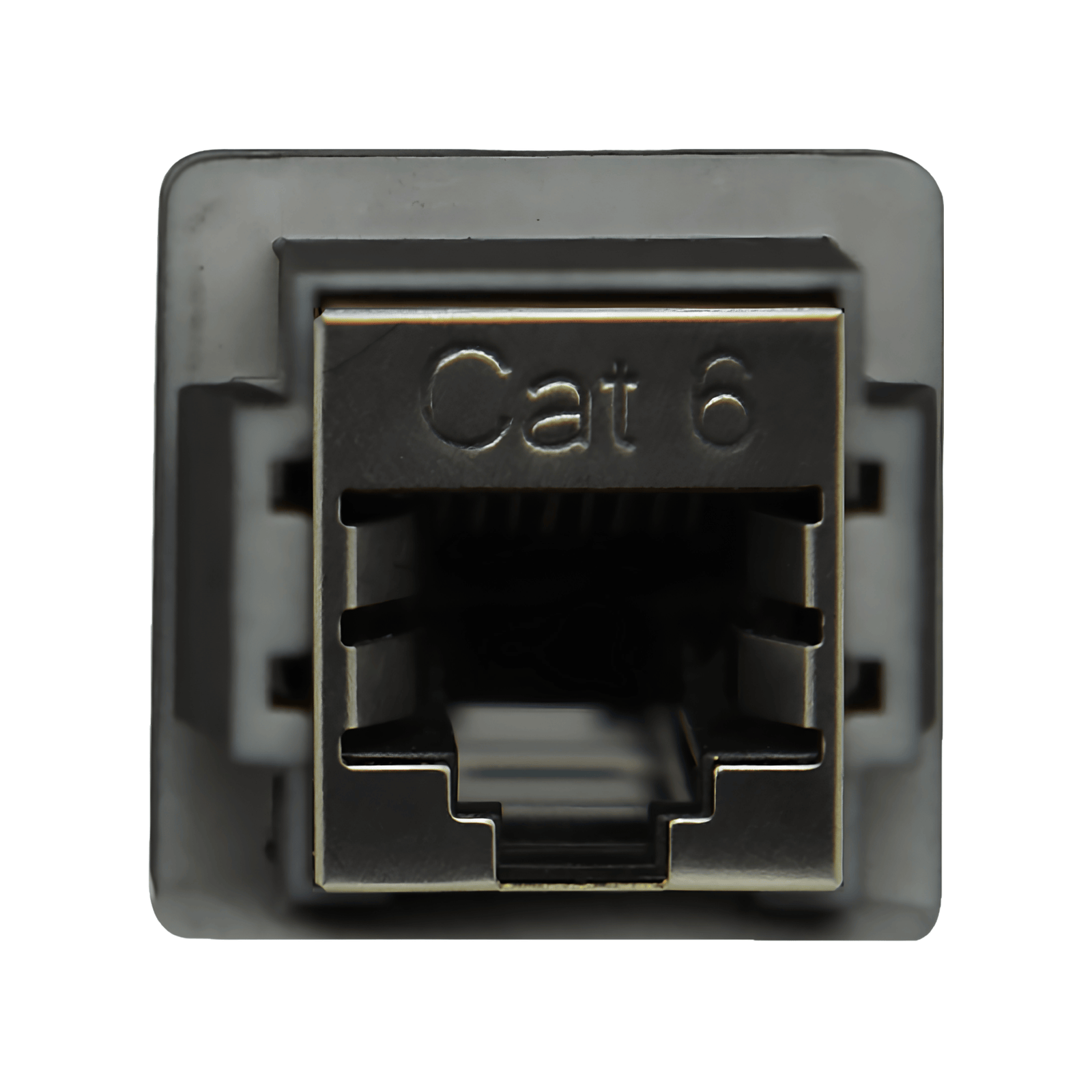

Featuring a CAT.6 compliant, fully-shielded housing with dual lateral supports front and rear, the XRS-RJ45T7 uses metal shielding to minimise RF interference and ensure an extremely stable connection for trouble-free communication. The adaptor is made in Australia.

Features & Benefits

Integrates with Existing Factory Switches: The XRS-RJ45T7 integrates directly into the small factory switch blank location, giving the XRS Connect controller microphone a neat, professional, factory-look finish.

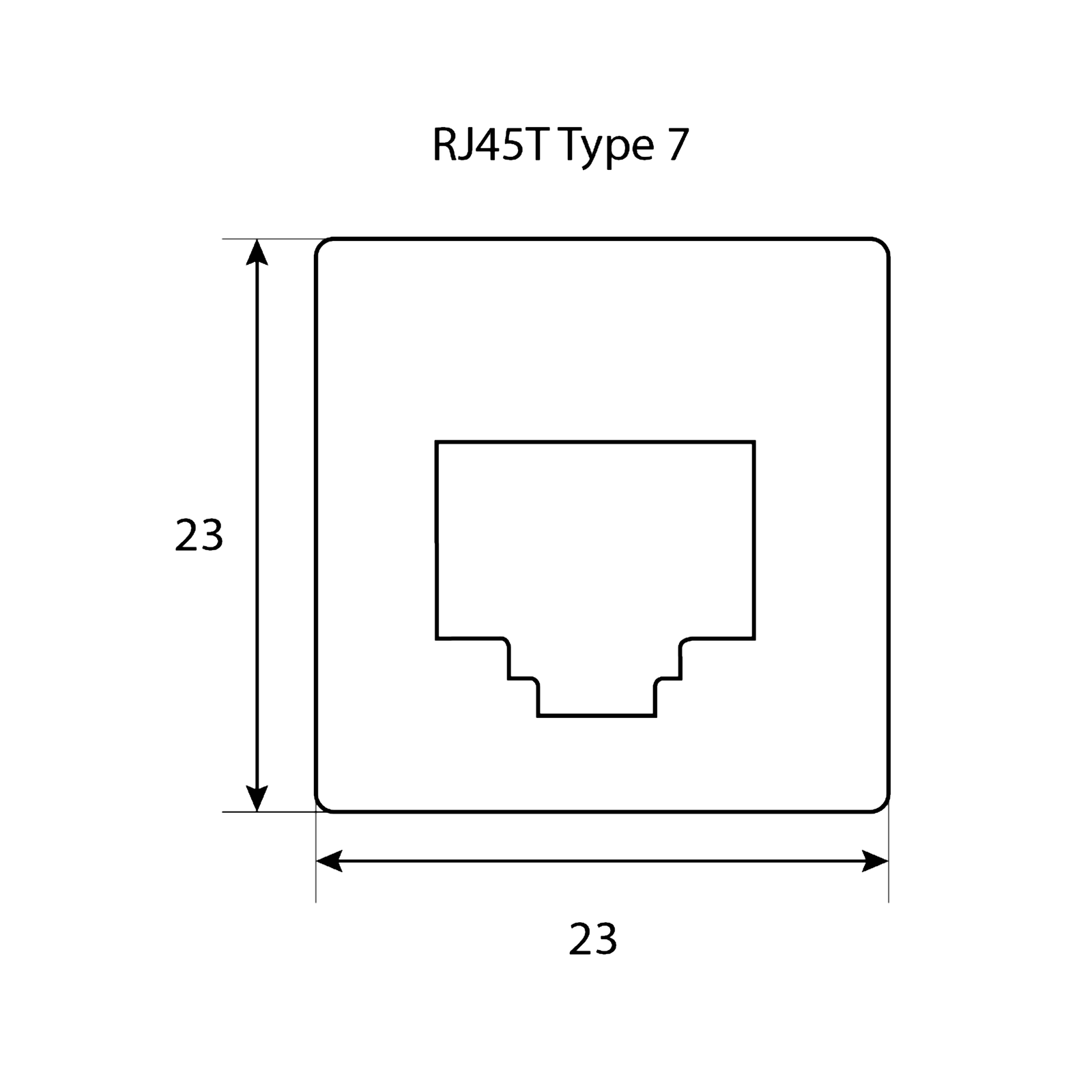

Suits 23mm x 23mm Factory Blanks: Purpose sized for the compact 23mm x 23mm factory switch blank found on selected Isuzu and Mazda models.

Metal Shielding to Minimise RF Interference: Metal shielding within the CAT.6 compliant, fully-shielded housing minimises RF interference for reliable, trouble-free UHF communication.

Dual Lateral Support Construction: Internal dual lateral supports front and rear provide an extremely stable RJ45 connection that resists vibration and everyday use.

Suits Specific Mazda and Isuzu Models: Designed specifically for selected Mazda BT-50 and Isuzu D-Max and MU-X models, matching the factory switch layout on these vehicles.

Made in Australia: The XRS-RJ45T7 is manufactured in Australia to GME's quality standards.

Compatible with Other 8 Pin RJ45 UHF Radios: Beyond XRS Connect, the adaptor is also compatible with other UHF CB radios using an 8 pin RJ45 connection.

Technical Specs

Compatible With

The XRS-RJ45T7 is compatible with the following models per GME's compatibility matrix: Mazda BT-50 3rd Generation (10/2021-Current), Isuzu D-Max 3rd Generation (9/2021-Current), and Isuzu MU-X 2nd Generation (2022-Current, models without heated seats). It is also compatible with other UHF CB radios using an 8 pin RJ45 connection. Confirm your vehicle model, year, and seat configuration against GME's compatibility matrix before purchase.

Frequently Asked Questions

What does the XRS-RJ45T7 do?

The XRS-RJ45T7 lets an XRS Connect controller microphone be integrated into the small 23mm x 23mm factory switch blank found on selected Isuzu and Mazda models, giving a neat, factory-look finish instead of a dash-mounted mic.

Which vehicles does it suit?

Per GME's compatibility matrix, the XRS-RJ45T7 suits the Mazda BT-50 3rd Generation, Isuzu D-Max 3rd Generation, and Isuzu MU-X 2nd Generation (models without heated seats).

Why does the MU-X have a heated seats exclusion?

On MU-X 2nd Generation models fitted with heated seats, the switch blank location used by the XRS-RJ45T7 is occupied by the heated seat controls, so the adaptor only suits models without heated seats.

Can it be used with other UHF radios?

Yes. Beyond GME's XRS Connect range, the XRS-RJ45T7 is also compatible with other UHF CB radios that use an 8 pin RJ45 connection.

What size factory blank does the XRS-RJ45T7 fit?

The XRS-RJ45T7 is designed to integrate directly into the small 23mm x 23mm factory switch blank locations found on the compatible Isuzu and Mazda models.
