GME XRS-RJ45R4 XRS Pass through Adaptor, Type 4 (Red)

GME XRS-RJ45R4 Pass Through Adaptor Isuzu Red LED

A pass through adaptor for GME XRS Connect UHF CB radios, the XRS-RJ45R4 integrates an XRS Connect controller microphone directly into a factory blank switch location on selected Isuzu models, featuring a CAT.6 compliant fully shielded housing, red LED back light, and Australian made construction.

Product Overview

The GME XRS-RJ45R4 is part of GME's accessory range complementing their XRS Connect UHF CB radios. The pass through adaptor allows an XRS Connect controller microphone to be integrated directly into a range of blank OEM switch locations on selected Isuzu models, providing a neat and professional finish that looks factory fitted rather than aftermarket.

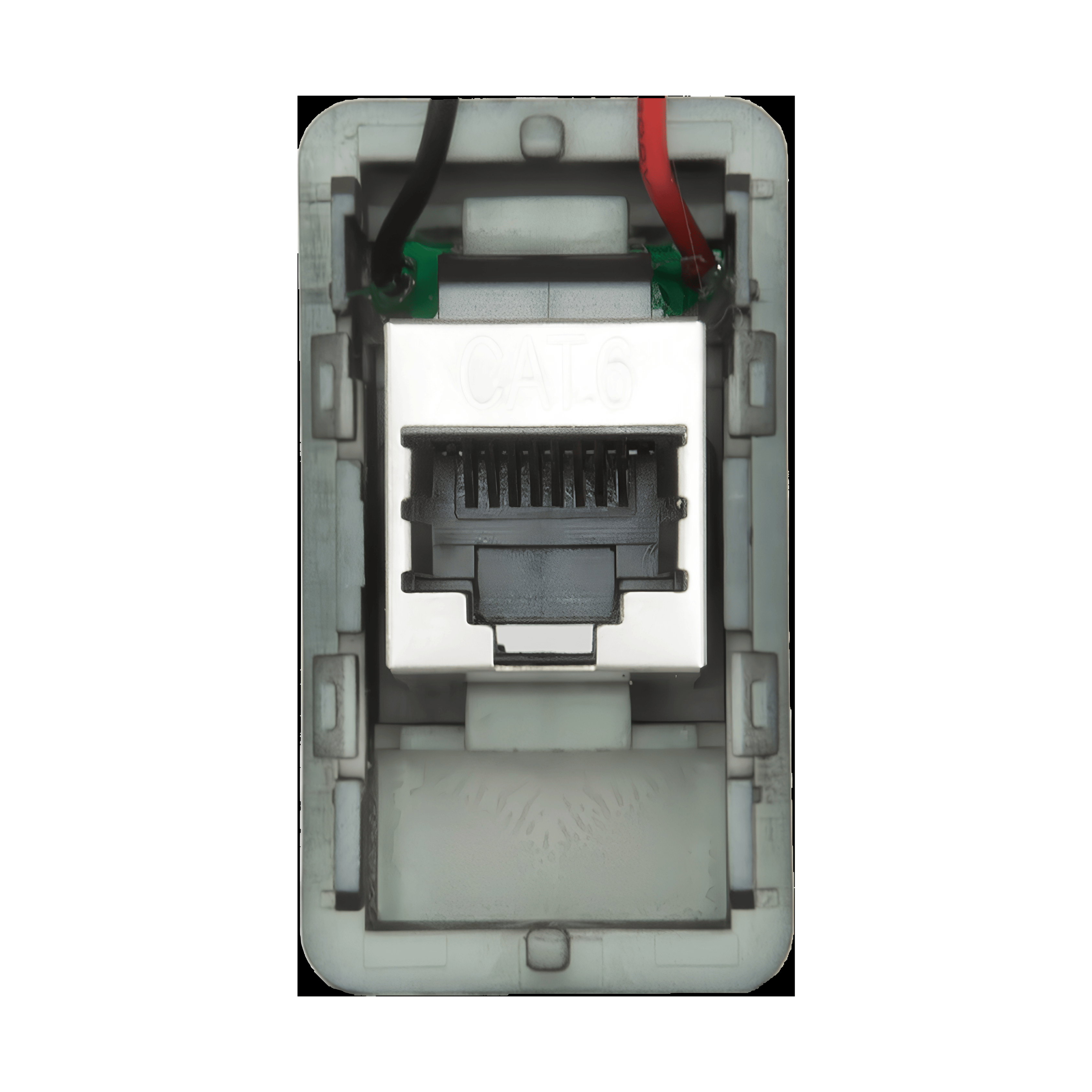

Featuring a CAT.6 compliant, fully shielded housing with internal supports, the XRS-RJ45R4 ensures an extremely stable connection for trouble free communication. The red LED back light illuminates the switch, and installation is a simple two wire connection, with the red wire connected to the existing 12V dash light circuit and the black wire to the negative circuit. The adaptor is made in Australia.

Features & Benefits

Integrates with Existing Factory Switches: The XRS-RJ45R4 integrates directly into a blank OEM switch location on selected Isuzu models, giving the XRS Connect controller microphone a neat, professional, factory look finish.

CAT.6 Compliant Fully Shielded Housing: The fully shielded, CAT.6 compliant housing with internal supports ensures an extremely stable connection for reliable, trouble free UHF communication.

Red LED Back Light: The red LED back light illuminates the switch for clear visibility on the factory dash.

Simple Two Wire Installation: Connect the red wire to the existing 12V dash light circuit and the black wire to the negative circuit for straightforward fitment.

Made in Australia: The XRS-RJ45R4 is manufactured in Australia to GME's quality standards.

Compatible with Other 8 Pin RJ45 UHF Radios: Beyond XRS Connect, the adaptor is also compatible with other UHF CB radios using an 8 pin RJ45 connection.

Technical Specs

Compatible With

The XRS-RJ45R4 is compatible with the following Isuzu models per GME's compatibility matrix: D-Max 2nd Generation (2012 to 2020) and MU-X 1st Generation (2012 to 2021), both fitting the lower switch fascia under the A/C controls where fitted. It is also compatible with other UHF CB radios using an 8 pin RJ45 connection. Confirm your vehicle model and year, and check that your vehicle has the lower switch fascia fitted, before purchase.

Frequently Asked Questions

What does the XRS-RJ45R4 do?

The XRS-RJ45R4 lets an XRS Connect controller microphone be integrated into a factory blank switch location on selected Isuzu models, giving a neat, factory look finish instead of a dash mounted mic.

Which Isuzu models does it suit?

Per GME's compatibility matrix, the XRS-RJ45R4 suits the D-Max 2nd Generation (2012 to 2020) and MU-X 1st Generation (2012 to 2021), both at the lower switch fascia under the A/C controls where fitted.

Can it be used with other UHF radios?

Yes. Beyond GME's XRS Connect range, the XRS-RJ45R4 is also compatible with other UHF CB radios that use an 8 pin RJ45 connection.

How does the red LED back light work?

The red LED back light is wired via a simple two wire installation, with the red wire connected to the existing 12V dash light circuit and the black wire to the negative circuit.

Is there a white LED version available?

Yes. GME also offers the XRS-RJ45W4, the same pass through adaptor with a white LED back light instead of red, for the same range of Isuzu models.

Warranty: GME covers this product with a one year manufacturer's warranty, on top of your rights under the Australian Consumer Law.
