GME XRS-RJ45R3 XRS Pass through Adaptor, Type 3 (Red)

GME XRS-RJ45R3 Pass Through Adaptor Nissan Red LED

A pass through adaptor for GME XRS Connect UHF CB radios, the XRS-RJ45R3 integrates an XRS Connect controller microphone directly into a factory blank switch location on selected Nissan models, featuring a CAT.6 compliant fully shielded housing, red LED back light, a compact 40.5 x 21.3mm size, and Australian made construction.

Product Overview

The GME XRS-RJ45R3 is part of GME's accessory range complementing their XRS Connect UHF CB radios. The pass through adaptor allows an XRS Connect controller microphone to be integrated directly into a range of blank OEM switch locations on selected Nissan models, providing a neat and professional finish that looks factory fitted rather than aftermarket.

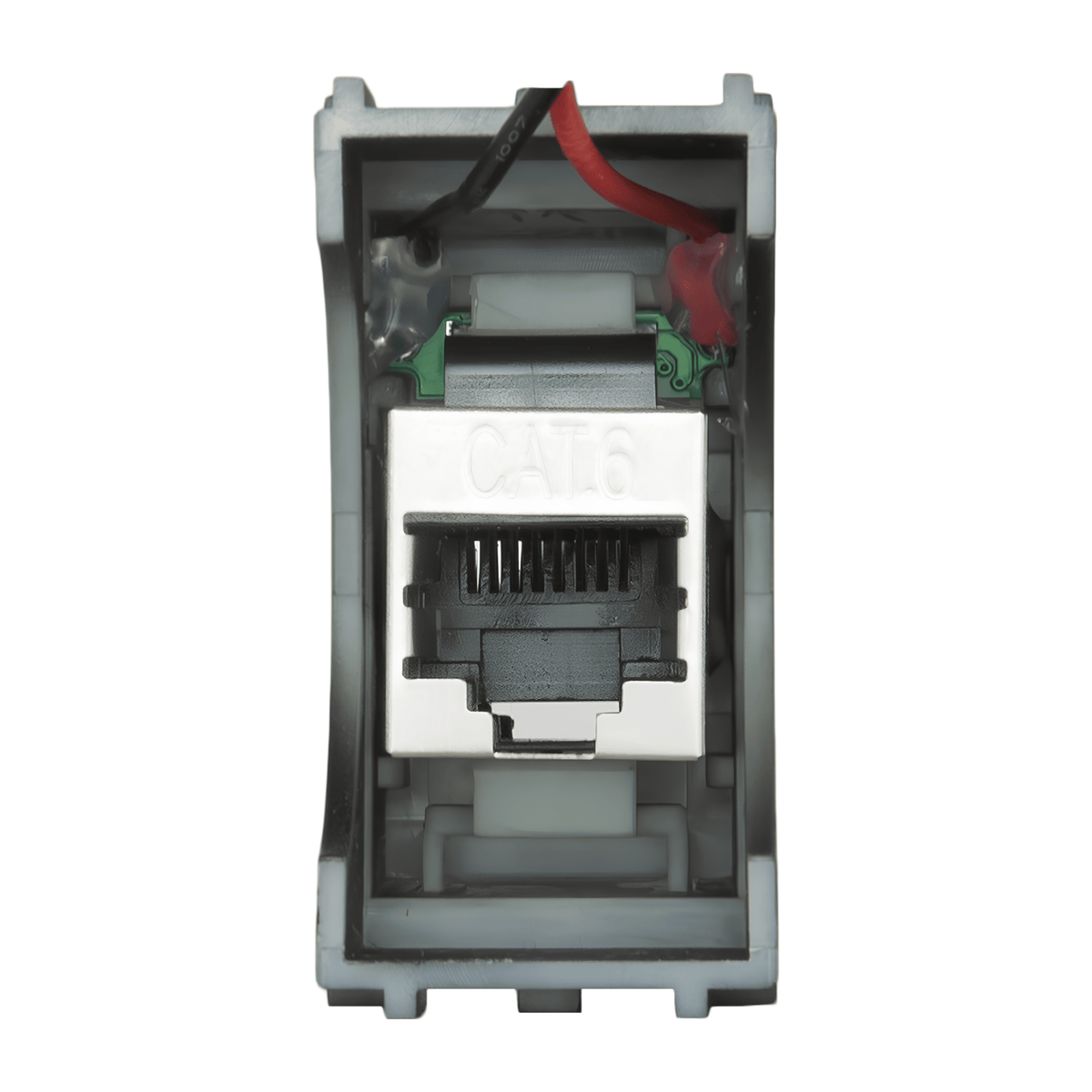

Featuring a CAT.6 compliant, fully shielded housing with internal supports, the XRS-RJ45R3 ensures an extremely stable connection for trouble free communication. The red LED back light illuminates the switch, and installation is a simple two wire connection, with the red wire connected to the existing 12V dash light circuit and the black wire to the negative circuit. The compact 40.5 x 21.3mm adaptor is made in Australia.

Features & Benefits

Integrates with Existing Factory Switches: The XRS-RJ45R3 integrates directly into a blank OEM switch location on selected Nissan models, giving the XRS Connect controller microphone a neat, professional, factory look finish.

CAT.6 Compliant Fully Shielded Housing: The fully shielded, CAT.6 compliant housing with internal supports ensures an extremely stable connection for reliable, trouble free UHF communication.

Red LED Back Light: The red LED back light illuminates the switch for clear visibility on the factory dash.

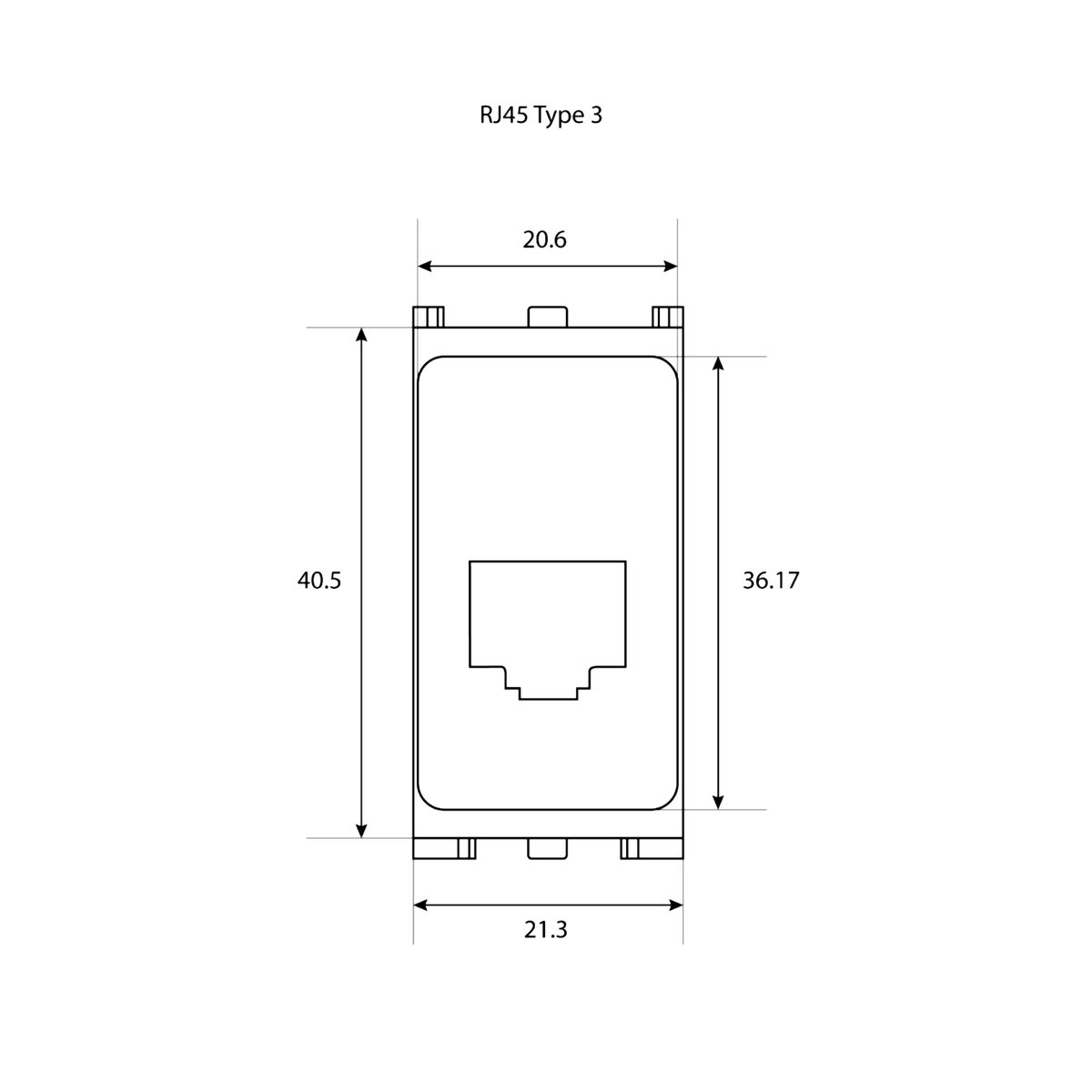

Compact 40.5 x 21.3mm Size: The compact adaptor size fits neatly into the factory blank switch location without disrupting the surrounding dash layout.

Simple Two Wire Installation: Connect the red wire to the existing 12V dash light circuit and the black wire to the negative circuit for straightforward fitment.

Made in Australia: The XRS-RJ45R3 is manufactured in Australia to GME's quality standards.

Compatible with Other 8 Pin RJ45 UHF Radios: Beyond XRS Connect, the adaptor is also compatible with other UHF CB radios using an 8 pin RJ45 connection.

Technical Specs

Compatible With

The XRS-RJ45R3 is compatible with the following Nissan models per GME's compatibility matrix: Patrol GU Series 4 to 8 (2004 to 2018), Patrol Y62 (2016 Current), X-Trail T31 (2007 to 2014), Pathfinder R51 (2005 to 2012), and Navara NP300 (2016 Current, handbrake console location). It is also compatible with other UHF CB radios using an 8 pin RJ45 connection. Confirm your vehicle model and year against GME's compatibility matrix before purchase.

Frequently Asked Questions

What does the XRS-RJ45R3 do?

The XRS-RJ45R3 lets an XRS Connect controller microphone be integrated into a factory blank switch location on selected Nissan models, giving a neat, factory look finish instead of a dash mounted mic.

Which Nissan models does it suit?

Per GME's compatibility matrix, the XRS-RJ45R3 suits the Patrol GU Series 4 to 8, Patrol Y62, X-Trail T31, Pathfinder R51, and the Navara NP300 at the handbrake console location.

Can it be used with other UHF radios?

Yes. Beyond GME's XRS Connect range, the XRS-RJ45R3 is also compatible with other UHF CB radios that use an 8 pin RJ45 connection.

How does the red LED back light work?

The red LED back light is wired via a simple two wire installation, with the red wire connected to the existing 12V dash light circuit and the black wire to the negative circuit.

Is there a white LED version available?

Yes. GME also offers the XRS-RJ45W3, the same pass through adaptor with a white LED back light instead of red, for the same range of Nissan models.

Warranty: GME covers this product with a one year manufacturer's warranty, on top of your rights under the Australian Consumer Law.
