GME TX6165XY 5/1 Watt IP67 UHF CB Handheld Radio, Yellow

GME TX6165XY 5W and 1W IP67 MIL-STD810G UHF CB Handheld Radio in High Visibility Yellow with 2600mAh lithium ion Battery VOX LED Torch Complete Kit

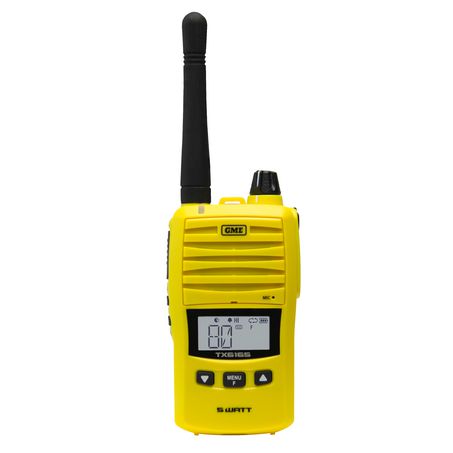

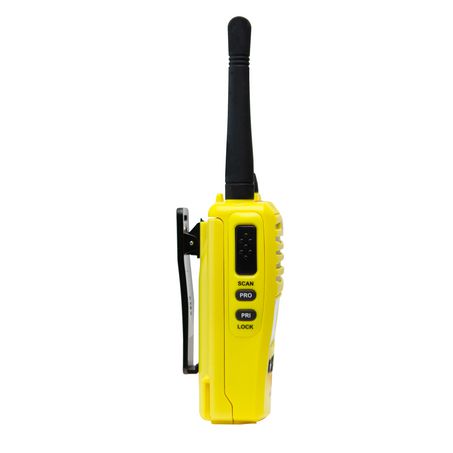

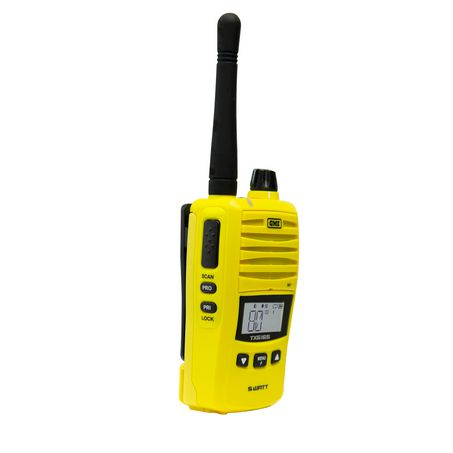

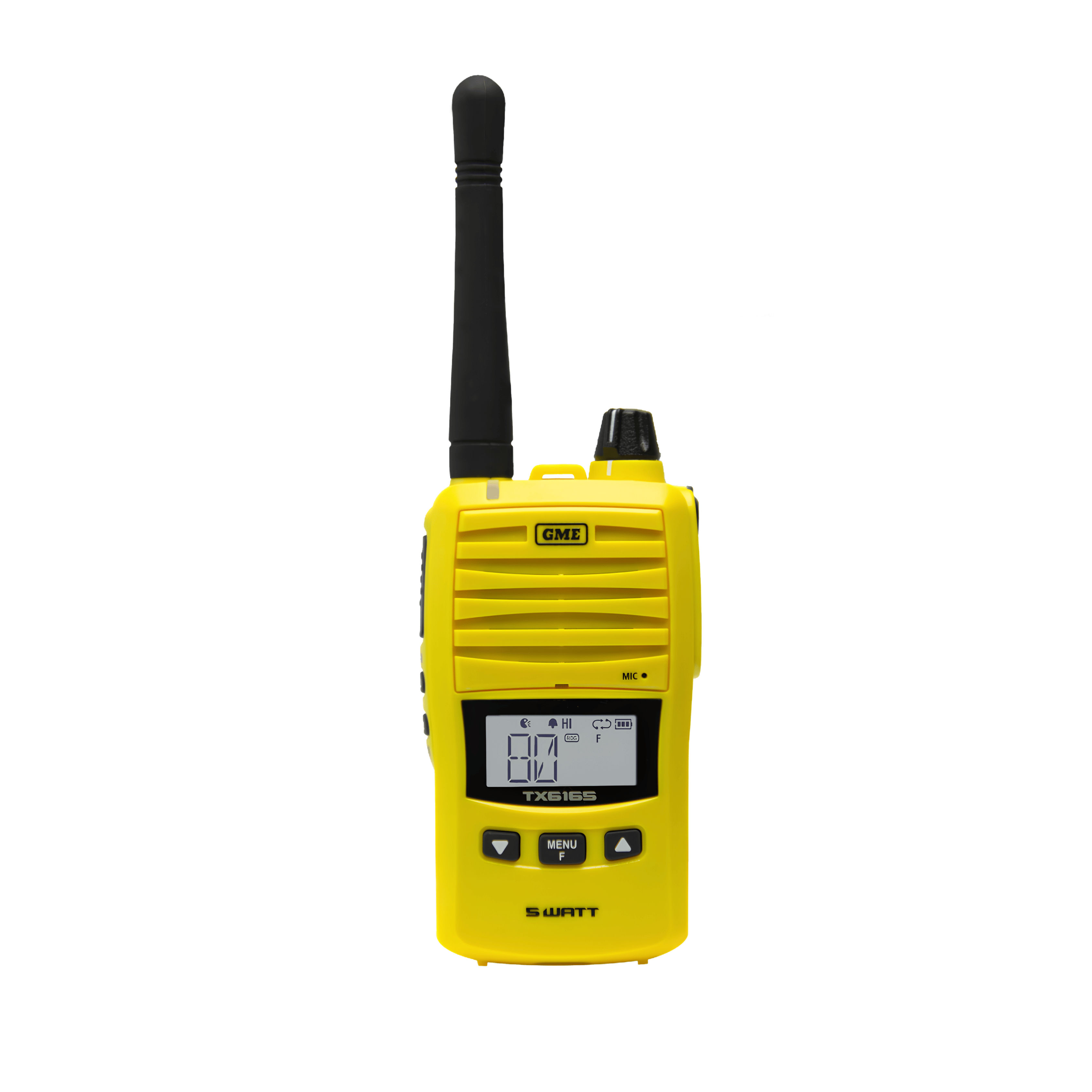

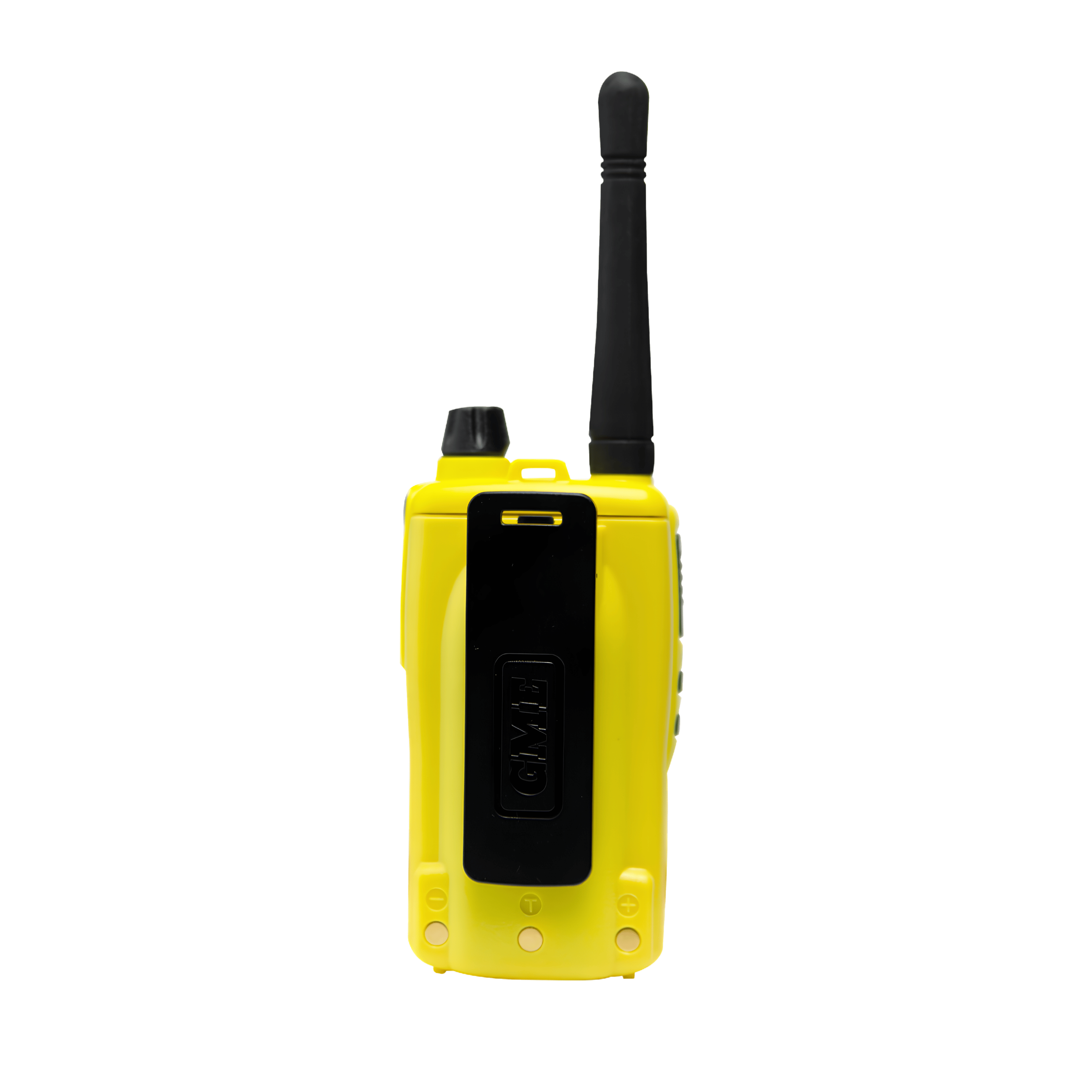

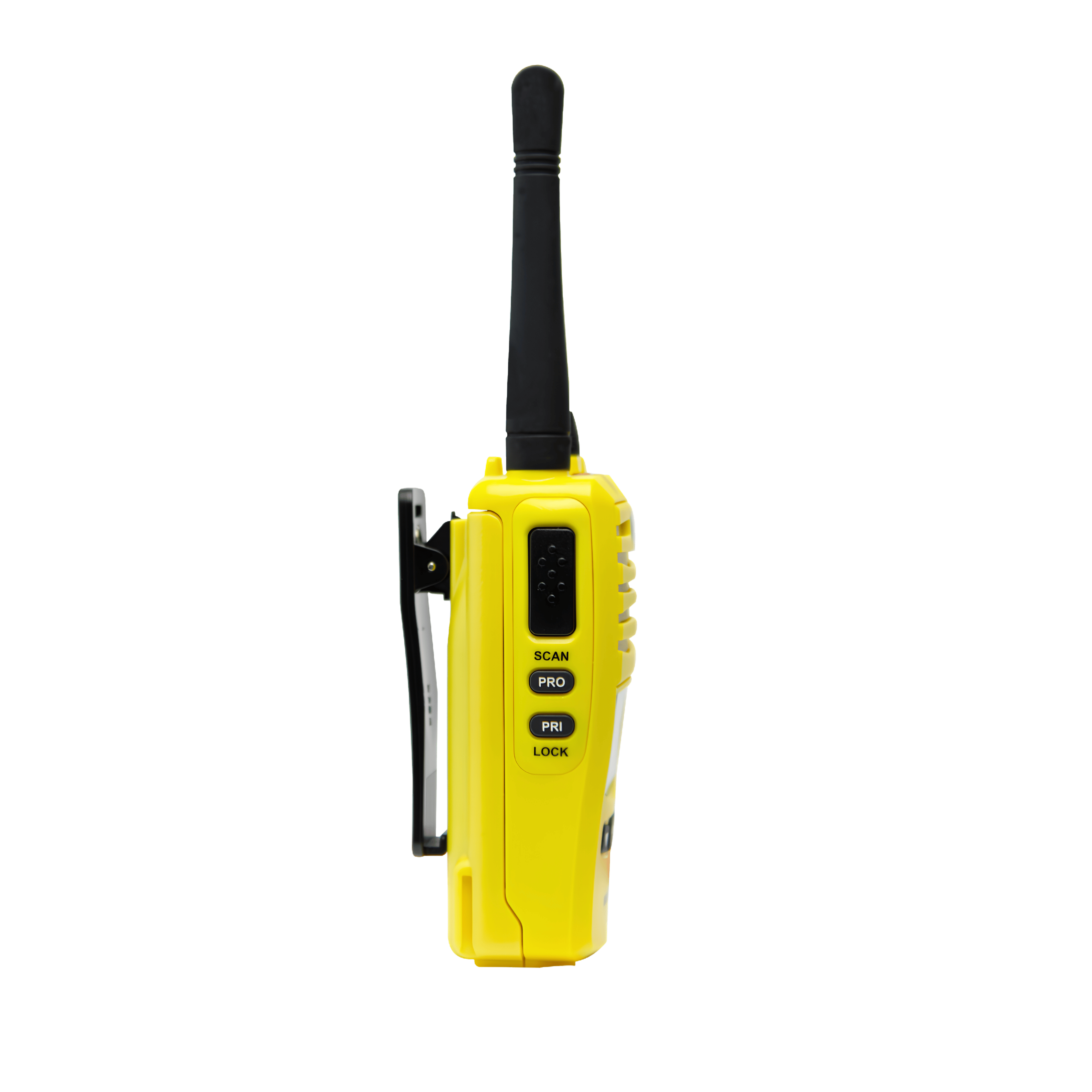

The GME TX6165XY is a 5W/1W switchable IP67 rated UHF CB handheld radio in high visibility yellow, certified to MIL-STD810G military durability standards. The 2600mAh lithium ion battery pack delivers up to 30 hours of typical use, and the complete kit includes the BP026 battery pack, BCD020 desktop charger, PS002 AC adaptor, AE4021 antenna, and MB060 belt clip ready to use from the box. No licence required for operation on the Australian UHF CB band.

Product overview

The TX6165XY covers the full 80 channel Australian UHF CB band (476.425 to 477.4125 MHz) with switchable 5W/1W output. Five watts delivers maximum range across open terrain, farmland, and coastal areas; one watt conserves battery in close range communication. IP67 certification means the radio is fully dust tight and protected against temporary water immersion to 1 metre for 30 minutes, while MIL-STD810G testing covers drop impact, vibration, thermal shock, temperature extremes from 30°C to +60°C, humidity, and dust.

The 2W front speaker cuts through engine noise, wind, and worksite clatter. The high contrast LCD remains readable in direct sunlight, showing channel, signal strength, and battery status at a glance. VOX hands free mode transmits automatically on voice detection for one handed operation in vehicles and while working. Dual Watch and Triple Watch scan two or three channels simultaneously without manual switching. Priority channel monitoring watches a nominated priority channel while the radio operates on a working channel. The built in LED torch operates independently from radio functions for after dark use. A user programmable function button can be assigned to scan, monitor, torch, or other functions to match specific workflows. The 2600mAh lithium ion BP026 battery pack has no memory effect, so partial charging between shifts causes no capacity loss.

Features and benefits

IP67 ingress protection, fully dust tight and waterproof to 1 metre: Handles dust storms, rain, mud, and accidental water immersion for 30 minutes at 1 metre depth.

MIL-STD810G certified, military durability standard: Tested against drop impact, vibration, thermal shock, and temperature extremes from 30°C to +60°C for professional worksite and field use.

5W/1W switchable output, range or battery conservation: Five watts for maximum range in open terrain; one watt for close range communication with reduced battery draw.

2600mAh lithium ion battery pack (BP026), up to 30 hours typical use: Rated at up to 30 hours on a 5/5/90 duty cycle. No memory effect when topping up between shifts.

2W speaker output, audible in noisy environments: Cuts through engine noise, wind, and worksite clatter for clear receive audio.

VOX hands free mode: Transmits automatically on voice detection, freeing both hands for driving or working.

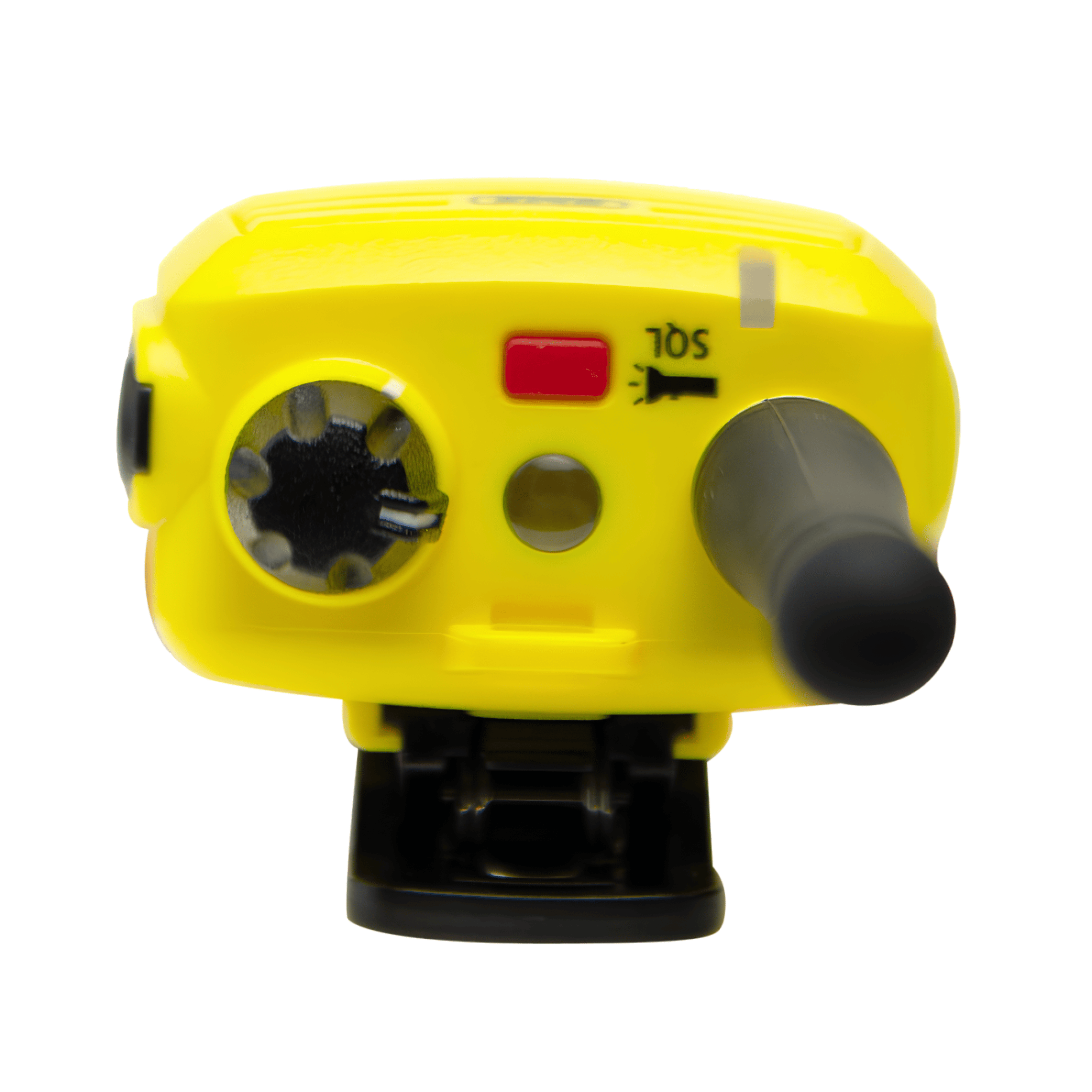

Built in LED torch, independent from radio functions: Available for after dark work and navigation without interrupting radio operation.

Dual Watch and Triple Watch scanning: Monitors two or three channels simultaneously without manual switching.

Priority channel monitoring: Watches a nominated priority channel while operating on a separate working channel.

High contrast LCD display, readable in direct sunlight: Shows channel, signal strength, and battery status clearly in bright Australian sunlight conditions.

User programmable function button: Assign scan, monitor, torch, or other functions to match individual workflow requirements.

Rotary power and volume control: Tactile rotary knob for power and volume adjustment.

High visibility yellow housing: Easy to locate on worksites, in vehicles, and in the field.

Complete kit included: BP026 battery pack, BCD020 desktop charger, PS002 AC adaptor, AE4021 antenna, and MB060 belt clip all included.

No licence required: Operates on the Australian UHF CB band under ACMA licence free regulations.

What's in the box

• UHF CB Handheld Radio (TX6165XY)
• Battery Pack (BP026, 2600mAh lithium ion)
• Desktop Charger (BCD020)
• AC Adaptor (PS002)
• Antenna (AE4021)
• Belt Clip (MB060)

Technical specs

Frequently asked questions

Is a licence required to use the TX6165XY in Australia? No. The TX6165XY operates on the UHF CB band (476 to 477 MHz, 80 channels), which is licence free in Australia under ACMA regulations. Anyone can purchase and operate this radio without obtaining a radio communications licence.

What does the 30 hour battery life mean in practice? GME rates the battery at up to 30 hours based on a 5/5/90 duty cycle, meaning 5% transmitting, 5% receiving, and 90% standby. Heavy continuous transmission will reduce runtime significantly, while light monitoring use may extend it beyond 30 hours. The 2600mAh lithium ion chemistry means partial charging between shifts causes no memory effect or capacity loss.

What does MIL-STD810G certification cover? MIL-STD810G is a US military testing standard certifying equipment against drop impact, vibration, thermal shock, temperature extremes from 30°C to +60°C, humidity, dust, and water immersion. Combined with IP67, the TX6165XY is rated for professional use in demanding outdoor and worksite environments.

What range can I expect from the TX6165XY? Range depends on terrain and obstructions. In dense bush or urban environments expect 1 to 3 km; across open farmland or coastal areas 5 to 10 km is typical; between hilltops with line of sight and extended antennas up to 15 to 25 km is achievable. Switching to 5W maximises range in open terrain, while 1W is adequate for close range communication and conserves battery.

Can the radio be used while charging in the desktop cradle? Yes. The TX6165XY can operate while connected to the BCD020 desktop charger, making it suitable for base station monitoring or extended operation without drawing down the battery.

Warranty: GME covers this product with a three year manufacturer's warranty, on top of your rights under the Australian Consumer Law.
