Product features

Elevated-Feed Stainless Antenna Base with PL259 Ground Independent, 4.5m Low-Loss Foam Coax, BSW Thread

Product Overview

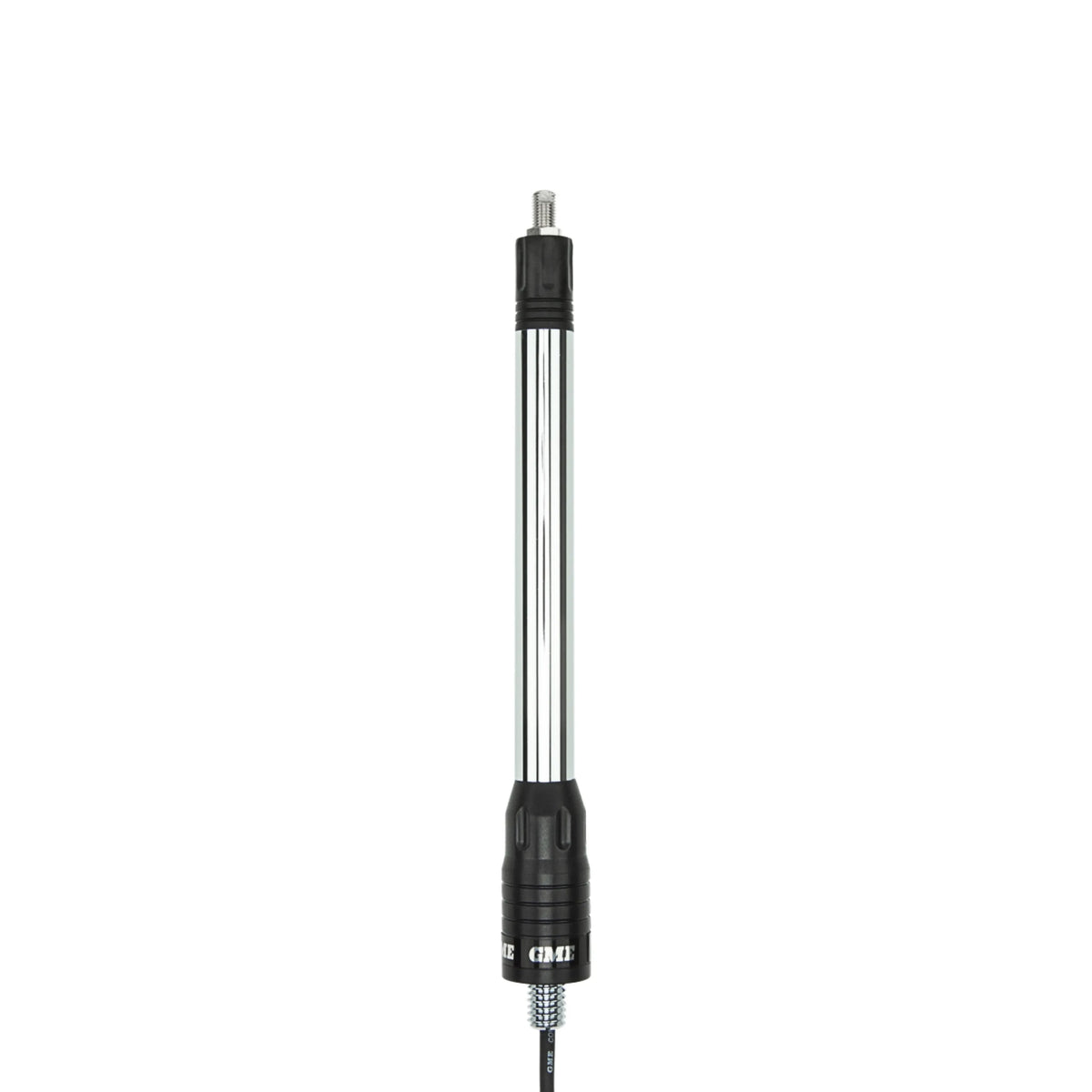

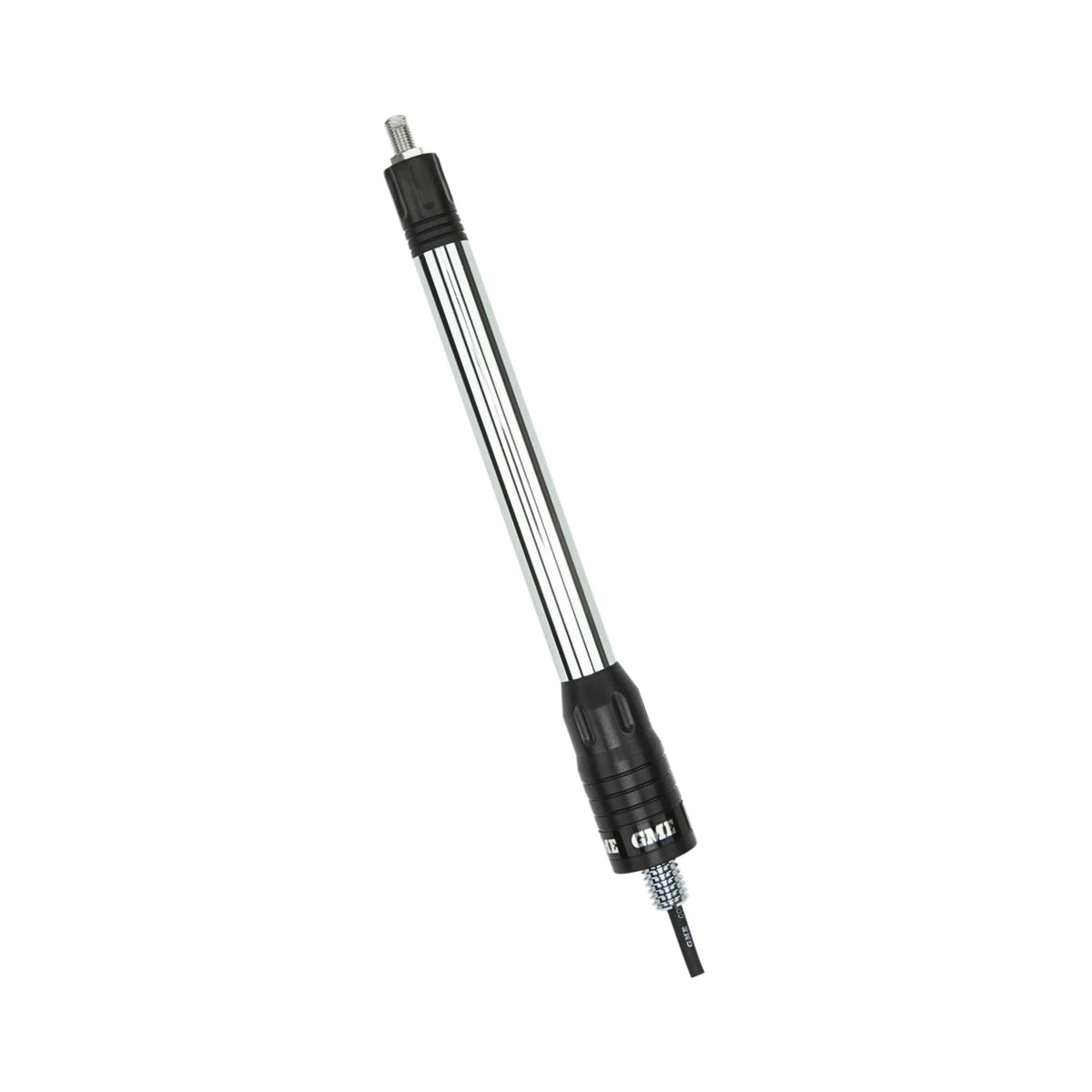

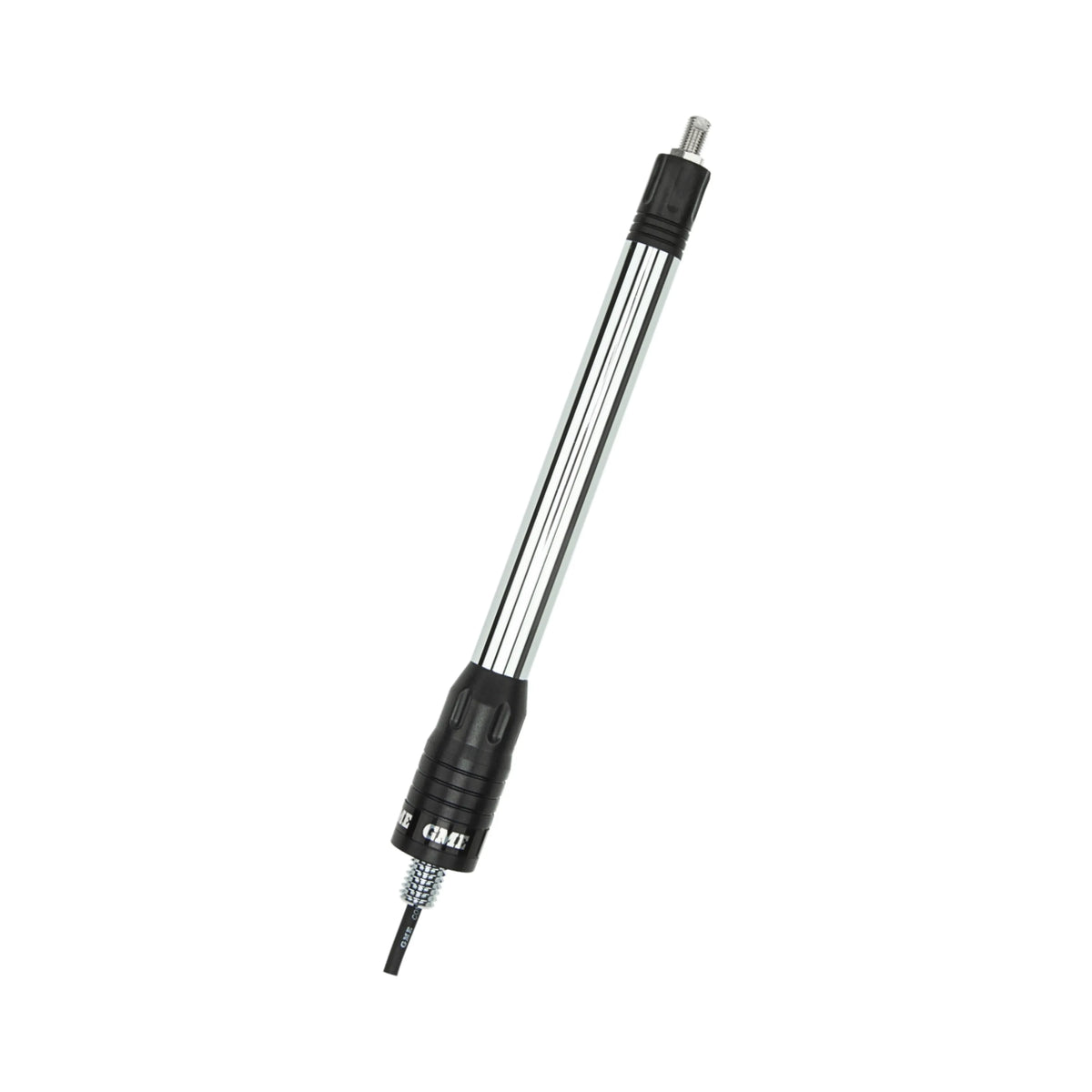

The GME ABL017 is an elevated-feed stainless steel antenna base with 4.5 metres of low-loss foam coaxial cable and a PL259 connector (GME part number PL25292S). Like the ABL002 and ABL002F, the ABL017 uses the same ground-independent elevated-feed design and BSW thread but with a PL259 connector included in the box, rather than the unspecified connector of the ABL002 or the FME of the ABL002F.

The ground-independent design means the ABL017 does not rely on a conductive (steel) vehicle or vessel body for antenna ground plane, making it suitable for fibreglass, aluminium, and non-metallic surfaces across 4WD, marine, and recreational applications.

Features & Benefits

  • Elevated-feed / ground-independent design — no conductive vehicle or vessel body required for ground plane; suits fibreglass, aluminium, and non-metallic surfaces
  • Stainless steel construction — corrosion-resistant for marine, coastal, and outdoor environments
  • PL259 connector included (PL25292S) — the PL259 is pre-supplied in the box; no separate connector purchase required for standard radio connections
  • 4.5m low-loss foam coaxial cable — minimises signal attenuation over the full cable run
  • BSW thread — confirm your antenna uses BSW thread before purchasing; not compatible with 5/16" TPI or other thread standards
  • Suits 4WD, marine, and recreational applications — the ground-independent design is appropriate across all of these

Technical Specs

Specification Detail
Brand GME
Part number ABL017
Product type Elevated-feed antenna base and lead
Lead length 4.5m
Cable type Low-loss foam coaxial cable
Connector PL259 — GME part no. PL25292S (included)
Thread BSW (British Standard Whitworth)
Design Ground independent (elevated feed)
Construction Stainless steel
Shipping note Additional freight may apply due to item length
Weight Not specified

Compatible With / Goes Well With

  • Antennas with BSW thread base — confirm your antenna uses BSW thread before purchasing
  • Radios with standard PL259 antenna socket
  • Fibreglass, aluminium, steel, and non-metallic vehicle and vessel bodies
  • 4WD, marine, and recreational installations where ground-dependent bases are not suitable

Weight

Not specified

Frequently Asked Questions

How does the ABL017 differ from the ABL002 and ABL002F?

All three are elevated-feed stainless steel bases with ground-independent design, BSW thread, and 4.5m low-loss foam coax. The ABL002's connector is unspecified in supplier data; the ABL002F has an FME connector; the ABL017 has a PL259 connector (PL25292S). Choose the ABL017 for installations connecting to a standard PL259 radio socket, the ABL002F for radios with an FME socket.

What is the PL25292S connector?

PL25292S is the GME part number for the specific PL259 connector included with the ABL017. PL259 is the standard "UHF series" coaxial connector widely used across CB and UHF radio installations in Australia. It threads into the SO239 socket on most standard mobile and base station CB/UHF radios.

Why might this item incur additional shipping charges?

The ABL017 is an antenna base with 4.5m of coaxial cable, making the packaged item longer than standard parcel dimensions. Some freight services apply surcharges or use dimensional weight pricing for long, slim packages. Confirm the shipping cost for your specific location before ordering.

Does the BSW thread accept 5/16" TPI antenna whips?

No — BSW (British Standard Whitworth) and 5/16" TPI are different, incompatible thread standards. Always confirm that your intended antenna whip uses a BSW thread before purchasing this base. The ABL001 (5/16" TPI, ground-dependent) is the appropriate choice for standard 5/16" TPI antennas.

What applications is this base designed for?

The ABL017 suits any application where a ground-independent antenna mounting is required — including fibreglass boats and vessels, aluminium ute canopies, non-metallic roof structures, and any 4WD or recreational vehicle body where a conventional ground-dependent base would not perform correctly.
