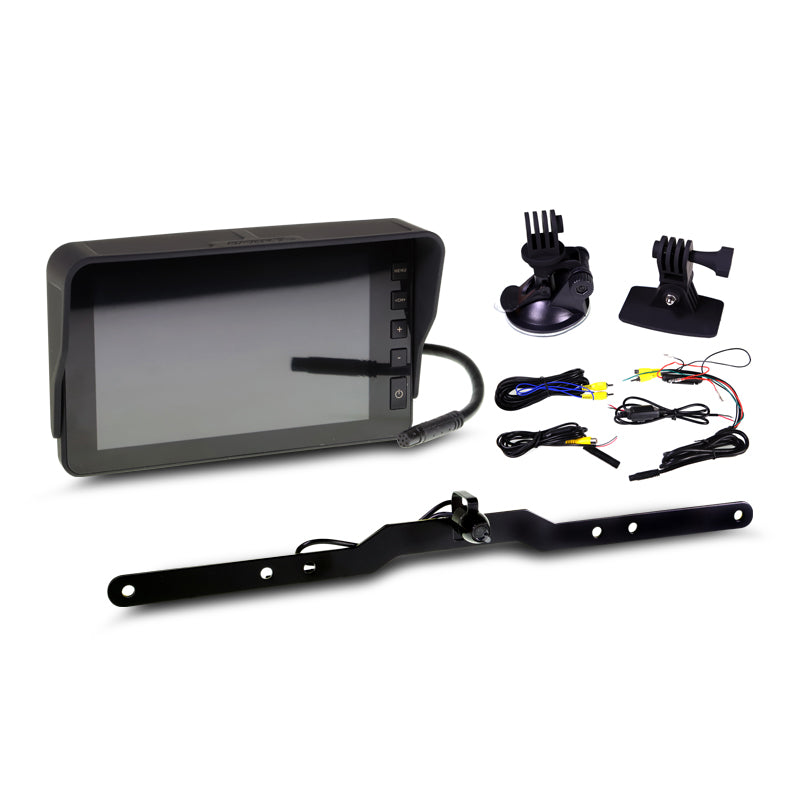

Gator GX5HDKT 5 inch monitor with number plate camera, mounts and wiring
Gator GX5HDKT 5 inch monitor with number plate camera, mounts and wiring
Click to open expanded view
GATOR logo

Gator GX5HDKT High-Res 5" Monitor with Stealth Mount Reversing Camera

SKU: GX5HDKT
Price
$199.99
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Gator GX5HDKT 5 inch monitor with number plate camera, mounts and wiring

Gator GX5HDKT High-Res 5" Monitor with Stealth Mount Reversing Camera

$199.99

Product features

Gator GX5HDKT 5" 800cd Super-Bright Monitor with Stealth Plate Mount Camera Kit

A premium passenger car reverse camera kit featuring an 800cd super-bright 5-inch widescreen monitor and stealth registration plate mount camera CANBUS noise filter, windscreen suction and adhesive dash mounts included.

Product Overview

The Gator GX5HDKT is a complete reverse camera kit from the GX Series, designed for cars, 4WDs, and small vans. The standout feature is the 800cd display brightness significantly brighter than most reversing monitors, providing a clearly visible image even in direct sunlight.

The kit includes a stealth registration plate mount camera that hides entirely behind any standard Australian registration plate no drilling required, no visible hardware. The kit also includes a CANBUS noise filter to address interference in modern CANBUS vehicles.

Two mounting options are provided for the monitor a windscreen suction mount and a flexible adhesive surface mount for flexible installation in any vehicle. Two guideline modes are selectable on the monitor.

Note on mirror image: The GX5HDKT monitor does not support reverse (mirror) image the camera outputs in standard (non-mirrored) rear view orientation.

Features & Benefits

  • 800cd super-bright 5-inch widescreen monitor, clearly visible in direct sunlight
  • Stealth registration plate mount camera, no drilling, invisible mounting hardware
  • CANBUS noise filter included
  • Two monitor mounting options: windscreen suction and flexible adhesive surface mount
  • Two guideline modes
  • Two video inputs
  • PAL/NTSC auto-switching
  • Reverse trigger wire on camera cable
  • Removable sunshade (pre-installed on monitor)
  • Complete cable kit included

Technical Specs

Monitor:

Specification Detail
Display Size 5 inch (diagonal)
Mounting Options Windscreen suction mount and adhesive surface mount (both included)
Resolution 800(H) × 480(V)
Brightness 800 candela
Aspect Ratio 16:9
Input Voltage 12V
Video Inputs 2 (RCA)
Video Triggers 1
Video Standard PAL/NTSC auto-switching
Guideline Modes 2
Reverse Mirror Image No
Image Adjustment Brightness, contrast, saturation
Monitor Dimensions 85mm (H) × 140mm (W) × 15mm (D)

Camera:

Specification Detail
Mount Type Stealth numberplate bracket
Camera Type Rear view
Lens Angle 120° horizontal / 60° vertical
Image Sensor CMOS
Parking Gridlines No (guideline modes on monitor)
Video Standard PAL
IP Rating IP67
Input Voltage 12V
Minimum Illumination 0.2 lux
LEDs None
Camera Connector Micro DIN
Video Cable Length 5.5m
Reverse Trigger on Cable Yes
Camera Dimensions 15mm (H) × 15mm (W) × 21mm (L)
Camera & Bracket 85mm (H) × 365mm (W) × 35mm (L)

Kit:

Specification Detail
Includes 5" monitor, stealth plate camera, windscreen suction mount, flexi adhesive surface mount, thumbscrew, removable sunshade (pre-installed), 1.6m main input harness, 5.5m RCA video harness, 1.8m camera power harness with Micro DIN to RCA adaptor, 1m CANBUS filter harness, user manual

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Universal: suitable for cars, 4WDs, and small trucks and vans with centrally mounted registration plates

Goes Well With:

  • Second camera (for the spare second RCA video input)
  • Gator GRCANFLT standalone CANBUS filter (if additional filtering is needed)

Frequently Asked Questions

Why is 800cd brightness significant for a reversing monitor?

Most aftermarket reversing monitors are rated at 300 to 500cd. At 800cd, the GX5HDKT's display is significantly brighter, making it clearly readable in direct sunlight conditions where lower-brightness monitors appear washed out. This is particularly useful for utes and 4WDs that operate in bright outdoor environments.

Does the camera require drilling for installation?

No. The stealth registration plate mount hides behind any standard Australian registration plate, all hardware is behind the plate and invisible from outside. No additional holes are required.

Does the monitor support a mirrored reverse image?

No. The GX5HDKT monitor does not support a reverse (mirror) image. The camera outputs in standard rear view orientation. This is consistent with other Gator passenger car monitors in this range.

Does the kit include a CANBUS filter?

Yes. A 1m CANBUS noise filter harness is included in the kit, installed inline in the camera circuit to reduce or eliminate interference experienced in CANBUS-equipped vehicles.

Can a second camera be added to this system?

Yes. The GX5HDKT monitor has two RCA video inputs, a second camera (such as a front view camera) can be added and used via the second input.
