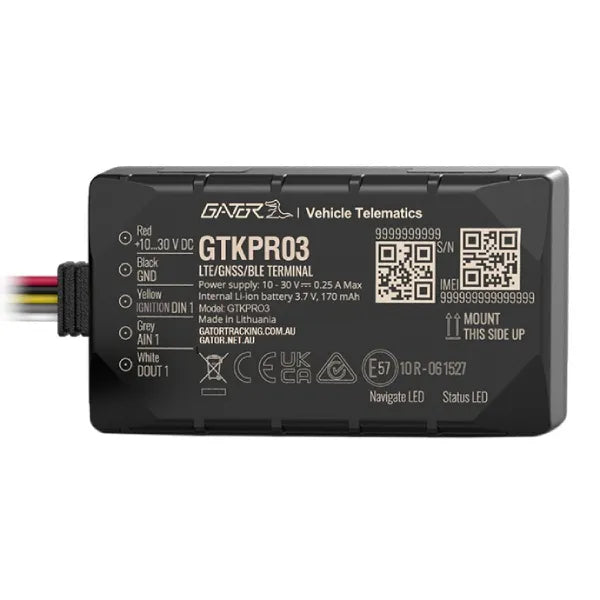

Gator GTKPRO3 4G LTE CAT-1 Vehicle GPS Tracking System

Australian-Based Server For Reliable & Secure Tracking Australia-Wide!

4G LTE CAT-1 GPS Vehicle Tracking Device

The GTKPRO3 is the latest 4G LTE CAT-1 GPS Vehicle Tracking Device that comes supplied with a SIM Card operating on the Telstra 4G M2M Network and 30-day tracking included. Suitable for fleet management, car rental companies, taxi companies, public transport, logistics companies, and personal vehicles, the GTKPRO3 is a feature-packed tracking solution that can be connected to any 12 or 24-volt vehicle including cars, utes, vans, and trucks. Similar to its predecessor the GTKPRO3 comes with most of the features you saw in the GTKPRO2 but we have simplified the electronics to provide an economical solution for the Australian market.

Tracking your vehicle couldn't be easier thanks to our Advanced Web Portal and Free Smartphone App. The Web Portal can be accessed from any device that has an internet connection and web browser, while the Smartphone App is available for iOS and Android Smartphones on the App Store & Play Store. Geo-fence zones, Predetermined Routes, and Places can be set up so you receive an alert when the vehicle enters/exits a zone, deviates off a route, or arrives/leaves a pinpoint location. These alerts can be set up to only activate on certain days and during specific times.

The tracker also has a host of safety and protection measures for your vehicle and driver including; behavior monitoring, crash detection, and door status detection as well as anti-theft features including tow away detection, remote ignition disable, and battery backup. 1 relay can also be configured to activate selected electrical systems within the vehicle. For example, the horn or headlights could be turned on remotely.

The tracker will work instantly upon installation with the included SIM Card without any sign-up for up to 30 days. After 30 days, a subscription is required to continue using the Gator Tracking Service (Ongoing fees and charges apply, CLICK HERE for details.). The GTKPRO3 and Gator GPS Tracking Portal are not compatible with 3rd Party SIM cards.

Important Information:

• The GTKPRO3 Tracking Module and access to the Gator Tracking Portal (Via Smartphone APP and Web) require a valid (paid) subscription to the Gator Tracking Service. Ongoing fees and charges apply. 3rd Party SIM Cards are not supported on this device. CLICK HERE to view subscription costs, terms, and conditions.

Smartphone App:

DOWNLOAD THE GATOR TRACKING APP HERE:

Features:

• 4G LTE CAT-1 Tracker operating exclusively on the Telstra M2M Network, providing extensive coverage throughout Australia
• Sim card included with 30 days included tracking, once 30 days expires subscription is required (Fees and charges apply, CLICK HERE for details.)
• Suitable for fleet management, car rental companies, taxi companies, public transport, logistics companies and personal vehicles
• Free Smartphone App for iOS and Android devices, locate vehicles, receive alerts, and set up geofences
• Web-Based Tracking Portal that can be accessed via computer, tablet, or smartphone, features both Advanced and Basic modes
• Australian-based server for reliable and secure tracking Australia-wide
• Track unlimited vehicles from a single log-in
• Review up to 14 months of tracking history
• Offline Memory, continues tracking even when a data connection is lost and uploads the tracking details when the connection is re-established
• Fleet Management Tools, create sub-accounts, group fleets, and generate advanced reports
• 1 AUX Relay Output, connect and control electrical systems in the vehicle
• Vehicle Location Alerts, geo-fences, routes, and places can be set to create alerts
• Vehicle Monitoring, driver behaviour, and crash impact alerts
• Tow Away Detection, will send an alert if the vehicle is being towed
• Ignition Disable cut off the vehicle ignition circuit remotely
• 12-24V Compatible can be used in powered vehicles including construction equipment, trailers, caravans, boats, motorcycles, cars, trucks, and more
• Battery Back-Up continues tracking for a short period of time when power is disconnected
• Get comprehensive reports, including detailed vehicle logs, trip overviews, geo-fencing overviews, and many more

Specifications:

Technical:

• GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Receiver: Tracking: Up to 33 Satellites
• Tracking Sensitivity: -165dBM
• Accuracy: < 3M (Accuracy Depends On PDOP Metrics - Satellite Qty & Spread)
• Hot Start: < 1 Sec.
• Warm Start: < 25 Sec.
• Cold Start: < 35 Sec.
• Cellular Technology: LTE Cat 1, GSM (Configured For 4G CAT-1, Telstra Network Only)

4G Bands:

• LTE FDD: B1/B3/B7/B8/B20/B28
• LTE TDD: B2/B3/B4/B5/B7/B8/B28/ B66 (Configured to focus only on Telstra 4G CATM1 bands only)
• Data Transfer: LTE: Max. 375Kbps (DL)/Max. 375Kbps (UL)
• GPRS: Max. 85.6Kbps (DL)/Max. 85.6Kbps (UL)
• Data Support: SMS (Text/Data) SMS Limited to Administration Only
• SIM Supplied: M2M SIM Card (Requires subscription to work beyond 30 days from activation)
• Input Voltage Range: 10V - 30V DC (10 - 30V DC With Overvoltage Protection)
• Back-Up Battery: 170mAh Li-Ion Battery 3.7V (0.63Wh)

Interface:

• Digital Outputs: 1
• GNSS Antenna: Internal High Gain
• Cellular Antenna: Internal High Gain
• USB: 2.0 Micro-USB (Used For Config / Debug Only)
• LED Indication: 2 Status LED Lights
• SIM: Micro-SIM
• Memory: 128MB Internal Flash Memory (Capable of storing tracking data when the data link is severed temporarily from the server)

Physical:

• Dimensions: (L) 79mm x (W) 43mm x (H) 12mm
• Weight: 0.05kg

Operating Environment:

• Operating Temperature: -40C ~ +85C (Without Battery)
• Storage Temperature: -40C ~ +85C (Without Battery)
• Operating Humidity: 5% ~ 95% Non-Condensing
• Ingress Protection Rating: IP54
• Battery Charge Temperature: 0C ~ +45C
• Battery Discharge Temperature: -20C ~ +60C
• Battery Storage Temperature: -20C ~ +35C (1 Month) / -20C ~ +30C (6 Months)

Inclusions:

• Tracking Module
• SIM Card
• Product Manual
