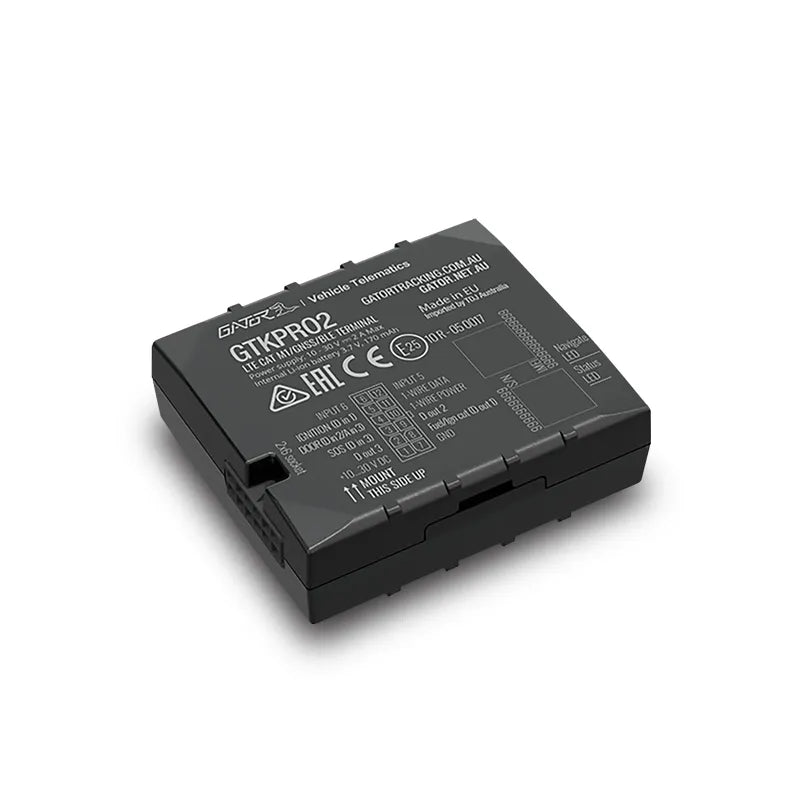

Gator GTKPRO2 4G LTE CAT-M1 Advanced Vehicle GPS Tracking System

Tracking Your Vehicle Couldn’t Be Easier Thanks to Our Advanced Web Portal & Free Smartphone App!

GPS Vehicle Tracking Device
The GTKPRO2 is a 4G LTE CAT-M1 GPS Vehicle Tracking Device that comes supplied with a SIM Card operating on the Telstra 4G M2M Network and 30 Days tracking included. Suitable for fleet management, car rental companies, taxi companies, public transport, logistics companies and personal vehicles, the GTKPRO2 is a feature packed tracking solution that can be connected to any 12 or 24 volt vehicle including cars, utes, vans and trucks.

Tracking your vehicle couldn't be easier thanks to our Advanced Web Portal and Free Smartphone App. The Web Portal can be accessed from any device that has an internet connection and web browser, while the Smartphone App is available for iOS and Android Smartphones on the App Store & Play Store. Geo-Fence Zones, Predetermined Routes, and Places can be set up so you receive an alert when the vehicle enters/exits a zone, deviates off a route, or arrives/leaves a pinpoint location. These alerts can be set up to only activate on certain days and during specific times.

The tracker also has a host of safety and protection measures for your vehicle and driver including; behaviour monitoring, crash detection, and door status detection as well as anti-theft features including tow away detection, remote ignition disable, and battery backup. Two additional relays can also be configured to activate selected electrical systems within the vehicle. For example, the horn or headlights could be turned on remotely.

The tracker will work instantly upon installation with the included SIM Card without any sign-up for up to 30 days. After 30 days, a subscription is required to continue using the Gator Tracking Service (ongoing fees and charges apply, CLICK HERE for details.). The GTKPRO2 and Gator GPS Tracking Portal are not compatible with 3rd Party SIM cards.

Important Information:

• The GTKPRO2 Tracking Module and access to the Gator Tracking Portal (via Smartphone APP and Web) require a valid (paid) subscription to the Gator Tracking Service. Ongoing fees and charges apply. 3rd Party SIM Cards are not supported on this device. CLICK HERE to view subscription costs, terms, and conditions.

Smartphone App.
Download the Gator Tracking App here:

Features:

• 4G LTE CAT-M1 Tracker operates exclusively on the Telstra M2M Network, providing extensive coverage throughout Australia.
• Sim card included with 30 days included tracking, once 30 days expires subscription is required (Fees and charges apply, CLICK HERE for details.).
• Suitable for fleet management, car rental companies, taxi companies, public transport, logistics companies, and personal vehicles.
• Free Smartphone App for iOS and Android devices, locate vehicles, receive alerts, and set up geo-fences.
• Web-Based Tracking Portal which can be accessed via computer, tablet, or smartphone, features both Advanced and Basic modes.
• Australian-based server for reliable and secure tracking Australia-wide.
• Track unlimited vehicles from a single login.
• Review up to 14 months of tracking history.
• Offline Memory, continues tracking even when data connection is lost and uploads the tracking details when connection is re-established.
• Fleet Management Tools, create sub-accounts, group fleets, and generate advanced reports.
• 2 AUX Relay Outputs, connect and control electrical systems in the vehicle.
• Vehicle Location Alerts, geo-fences, routes, and places can be set to create alerts.
• Vehicle Monitoring, driver behaviour, and crash impact alerts.
• Tow Away Detection, will send an alert if the vehicle is being towed.
• Ignition Disable cut off the vehicle ignition circuit remotely.
• 12-24V Compatible can be used pin owered vehicles including construction equipment, trailers, caravans, boats, motorcycles, cars, trucks and more.
• Battery Back-Up continues tracking for a short period of time when power is disconnected.
• Get comprehensive reports, including detailed vehicle logs, trip overviews, geo-fencing overviews, and many more.

Specifications:

Technical:

• GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS (Configured For GPS & GLONASS only)
• Receiver: Tracking: Up to 33 Satellites
• Tracking Sensitivity: -165 dBM
• Accuracy: < 3M (Accuracy Depends On PDOP Metrics - Satellite Qty & Spread)
• Hot Start:< 1S
• Warm Start: < 25S
• Cold Start: < 35S

Cellular:

• Technology: LTE CAT M1/NB-IoT/GSM (Configured for 4G CATM1, Telstra Network only)
• 4G Bands:
  LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B28
  LTE TDD: B39 (Configured to focus only on Telstra 4G CATM1 bands only)
• Data Transfer: LTE - Max. 375Kbps (DL)/Max. 375Kbps (UL)
• GPRS: Max. 85.6Kbps (DL)/Max. 85.6Kbps (UL)
• Data Support: SMS (Text/Data) SMS is limited to administration only
• SIM Supplied: M2M SIM Card (Requires subscription to work beyond 30 days from activation)
• Input Voltage Range: 10V - 35V DC (10 - 30 V DC with overvoltage protection)
• Back-Up Battery: 170 mAh Li-Ion Battery 3.7 V (0.63 Wh)

Bluetooth/CAN:

• Bluetooth / CAN: 4.0 + LE
• Supported BT Peripherals: Temperature and Humidity sensors, Universal BLE sensors support (Requires extra configuration and server admin approval)
• Supported CAN Peripheral: Peripheral data to the server is not supported under all subscription plans. CAN data plans on request. (Requires extra configuration and server admin approval)

Power Consumption @ 12V:

• 3 mA (Ultra Deep Sleep)
• 5 mA (Deep Sleep)
• 11 mA (Online Deep Sleep)
• 18 mA (GPS Sleep)
• 34 mA (Nominal With No Load)
• 2A Max. (With Full Load / Peak)

Interface:

• 3 Sensor Inputs: (Digital High/Lo) D1 - Ignition Detection (High), D2 Door Open Sensing (Gnd), D3 SOS Help Button (High)
• Digital Outputs: 3 (D1 Reserved For Ignition Disable)
• CAN Adapter Inputs: 1
• 1-Wire Data Expansion Ports: 1
• GNSS Antenna: Internal High Gain
• Cellular Antenna: Internal High Gain
• USB: 2.0 Micro-USB (Used For Config/ Debug Only)
• LED Indication: 2 Status LED Lights
• SIM: Micro-SIM
• Memory: 128MB Internal Flash Memory (Capable of storing tracking data when the data link is severed temporarily from the server)

Operating Environment:

• Operating Temperature: -40C ~ +85C (Without Battery)
• Storage Temperature: -40C ~ +85C (Without Battery)
• Operating Humidity: 5% ~ 95% Non-Condensing
• Ingress Protection Rating: IP41
• Battery Charge Temperature: 0C ~ +45C
• Battery Discharge Temperature: -20C ~ +60C
• Battery Storage Temperature: -20C ~ +45C (1 Month) / -20C ~ +35C (6 Months)

Physical:

• Dimensions: (L) 65mm x (W) 56.6mm x (H) 20.6mm
• Packaging Type: Giftbox
• Weight: 0.06kg

Inclusions:

• Tracking Module
• Wiring Harness
• Immobilisation Relay
• SIM Card
• Product Manual
