Gator GT904SD 9" Commercial Grade Dash Mount Quad Display Reverse Camera Kit

Improve the Safety of Your Vehicle When Parking & the Safety of those Walking Around Your Vehicle!

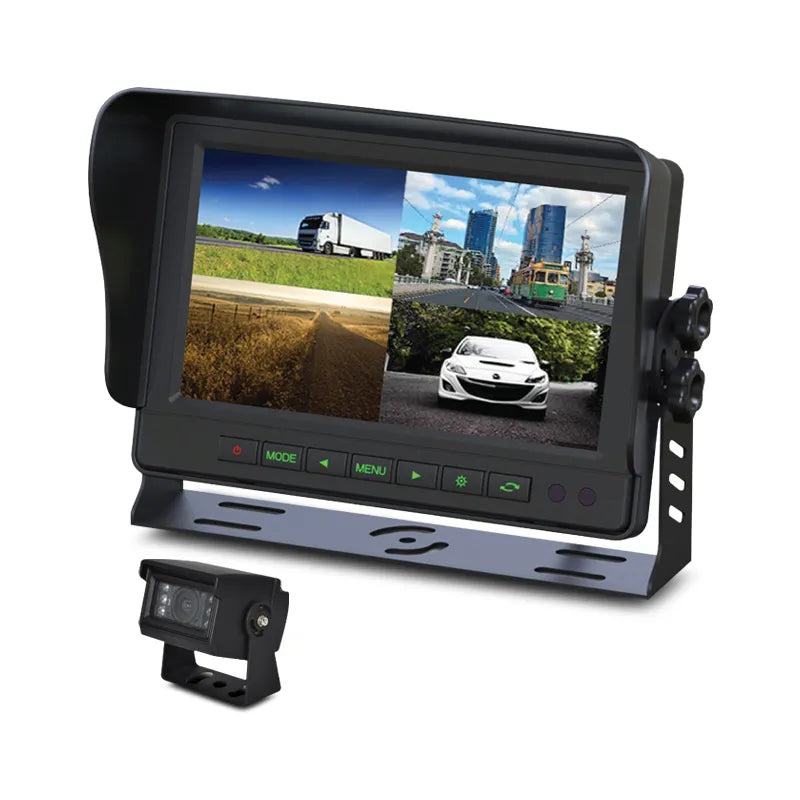

9" Quad Display Monitor Reverse Camera Kit
Gator GT904SD can make it a lot easier for drivers to operate heavy-duty trucks, mining loaders, and industrial or construction; hence, safer for people and infrastructure alike. Coming from a wide array of innovative enhanced vision systems for superior and all-round vehicle awareness, GT904SD helps promote safety across the board with its ability to provide much greater vantage and awareness around the vehicle, enabling drivers or heavy equipment operators to do what they do best with ease and peace of mind.

On top of it, this will also keep untoward incidents from happening which may result in loss of lives or damage to properties, particularly in high-risk work areas such as construction sites. GT904SD comes with a huge 9" heavy-duty quad display monitor with an adjustable metal mounting bracket, battery-operated IR remote control, small footprint heavy-duty camera, removable sunshade for the display, and a 6-metre input harness. The kit features PROLINK II screw connection cables which are dustproof and waterproof resulting in an extremely reliable connection to withstand harsh operating environments.

Features:

• Provides an unobstructed rear view of the vehicle for safer reversing and peace of mind
• 9" commercial grade quad display that can display up to 4 cameras at one time
• Small footprint commercial grade reverse camera with 10 IR LEDs for night vision
• QUAD video camera input-enabled allowing additional cameras to be added to the system
• Rated IP69K dust and waterproof camera that withstands harsh environmental conditions
• High/low voltage cut-off and built-in circuit protection
• PROLINK II screw connection cables for reliable dustproof and waterproof connections
• 12 & 24V Compatible suitable for commercial vehicles, 4WDs, and cars
• Optional Windscreen Suction Mount Available (GTSM1)
• Easy wired installation for DIY enthusiasts

Specifications:

• Monitor Specifications:
  Monitor Size: 9.0"
  Mounting Type: Adjustable Metal Bracket
  Resolution: 1024 (H) x 600 (V)
  Brightness: 450 Candela
  AHD: No
  Input Voltage: 12V/24V
  Video Inputs: 4
  Display Configuration (Single, Dual, or Quad): Single, Dual, or Quad
  Image Flip: Yes
• Display Image Adjustment:
  Brightness: Yes
  Contrast: Yes
  Saturation: Yes
  Reverse (Mirror) Image: Yes
  PAL or NTSC: PAL/NTSC
  Connection Type: PROLINK II
  Dimensions (Monitor Only): 155mm (H) x 241mm (W) x 30mm (D)
  Dimensions (Monitor & Bracket): 184mm (H) x 263mm (W) x 73mm (D)
  Other Features: N/A
• Camera Specifications:
  Mount Type: Surface Mount U-Shaped Bracket
  Camera Type (Reverse or Rearview): Rear
  AHD / Resolution: No / N/A
  Camera Angle: 120 Degree
  Image Sensor (CMOS or CCD): CMOS
  Parking Gridlines: No
  PAL or NTSC: NTSC
  IP Rating: IP69K
  Input Voltage: 12V
  Minimum Illumination: 0LUX
  Number of LED's: 10
  LED Type: Infrared
  Plug Type Camera End: PROLINK II
  Plug Type Monitor End: PROLINK II
  Video Cable Length: 400mm
  Reverse Trigger On Video Cable: N/A
  Dimensions (Camera Only): 42mm (H) x 52mm (W) x 55mm (L)
  Dimensions (Camera & Bracket): 60mm (H) x 63mm (W) x 55mm (L)
• Wired or Wireless: Wired
• Weight: 2.00kg

Package Inclusions:

• 9" Monitor
• Adjustable Metal Bracket For Monitor
• 4x Thumbscrews
• Removable Sunshade
• IR Remote Control With CR2025 Battery
• GT14SD - GT Series Smaller Footprint Heavy-Duty Camera
• 2M (L) Input Harness
• 10M PROLINK II Extension Cable
• User Manual
