Gator GT70SDTK 7" Commercial Grade Dash Mount Display Dual Reverse Camera Trailer Kit

Improve the Safety of Your Vehicle when Parking & the Safety of Those Walking Around Your Vehicle

7" Monitor Dual Reverse Camera

GT70SDTK is a commercial grade complete reverse camera solution for towing a caravan, trailer or horse float, as it comes supplied with two cameras, one for the vehicle and one for the trailer, as well as trailer connection and extension cables.

Gator GT70SDTK features a commercial grade 7" monitor with three video inputs, one for the vehicle camera, one for the trailer camera and a spare input should an additional camera be required. The included butterfly mount camera for the vehicle has a 120 degree field of view, while the heavy duty trailer camera sports 8 infrared LED lights for a vivid vantage even in low-light environments.

The kit is a wired solution and includes a detailed installation manual making it simple to install.

Features:

• Great reverse camera solution for vehicles that tow trailers, caravans and horse floats
• Provides clear rear view of the vehicle for safe reverse parking
• 7" commercial grade display with angle adjustable metal mounting bracket
• Includes two cameras, a stealth-mount registration plate reverse camera for the vehicle and a heavy duty reverse camera for the trailer
• Triple video camera input-enabled allowing additional cameras to be added to the system
• High/low voltage cut off and built in circuit protection
• PROLINK II screw connection cables for reliable dustproof and waterproof connections
• Easy connect/disconnect trailer connection plugs and curly cable
• 12 & 24V Compatible suitable for light commercial vehicles, 4wds and cars
• Simple DIY wired installation

Specifications:

• Monitor Specifications:
  • Monitor Size: 7.0"
  • Mounting Type: Adjustable Metal Bracket & Windscreen Suction Mount (GTSM1 Sold Separately)
  • Resolution / Brightness: 800(H) X 480(V) / 350 Candela
  • AHD: No
  • Input Voltage: 12v/24v
  • Video Inputs: 3
  • Display Configuration (Single, Dual or Quad): Single
  • Image Flip: Yes
  • Display Image Adjustment:
    • Brightness: Yes
    • Contrast: Yes
    • Saturation: Yes
  • Reverse (Mirror) Image: Yes
  • PAL or NTSC: PAL/NTSC
  • Connection Type: PROLINK II
  • Dimensions (Monitor Only): 129mm(H) X 195mm(W) X 30mm(D)
  • Dimensions (Monitor & Bracket): 156mm(H) X 215mm(W) X 73mm(D)
  • Other Features: N/A
• Camera 1 Specifications (Smaller Camera):
  • Mount Type: Surface Mount with Flexible Bracket
  • Camera Type (Reverse or Rearview): Rear
  • AHD / Resolution: No / N/A
  • Camera Angle: 120 Degree
  • Image Sensor (CMOS or CCD): CMOS
  • Parking Gridlines: No
  • PAL or NTSC: PAL
  • IP Rating: IP67
  • Input Voltage: 12v
  • Minimum Illumination: 0.2LUX
  • Number of LED's: 0
  • LED Type: N/A
  • Plug Type Camera End: PROLINK II
  • Plug Type Monitor End: PROLINK II
  • Video Cable Length: 500mm (Without PROLINK II Adapter)
  • Reverse Trigger on Video Cable: N/A
  • Dimensions (Camera Only): 43mm(H) X 70mm(W) X 58mm(L)
  • Dimensions (Camera & Bracket): 80mm(H) X 78mm(W) X 58mm(L)
• Camera 2 Specifications:
  • Mount Type: Surface Mount U-Shaped
  • Camera Type (Reverse or Rearview): Rear
  • AHD / Resolution: No / N/A
  • Camera Angle: 120 Degree
  • Image Sensor (CMOS or CCD): CMOS
  • Parking Gridlines: No
  • PAL or NTSC: PAL
  • IP Rating: Ip68
  • Input Voltage: 12V
  • Minimum Illumination: 0lux
  • Number of LED's: 10
  • Led Type: Infrared
  • Plug Type Camera End: PROLINK II
  • Plug Type Monitor End: PROLINK II
  • Video Cable Length: 400mm
  • Reverse Trigger on Video Cable: N/A
  • Dimensions (Camera Only): 42mm(H) X 52mm(W) X 55mm(L)
  • Dimensions (Camera & Bracket): 60mm(H) X 63mm(W) X 55mm(L)
• Kit Specifications
  • Wired or Wireless: Wired

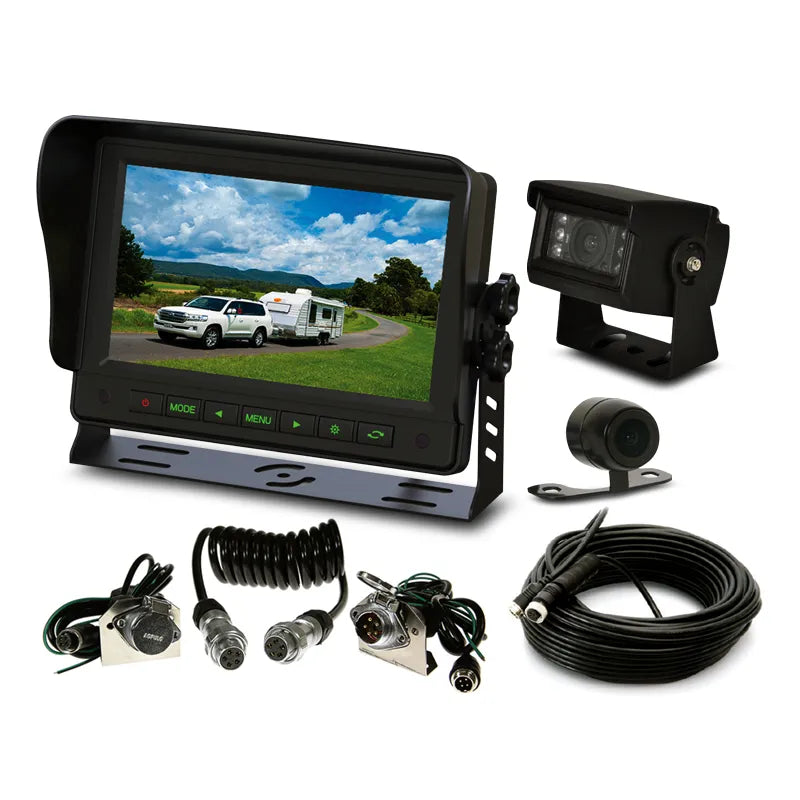

What's in The Box:

• 7" Monitor
• Adjustable Metal Bracket for Monitor
• 4x Thumbscrews
• Removable Sunshade
• IR Remote Control with CR2025 Battery
• GT14SD - GT Series Smaller Footprint Heavy Duty Camera
• G354C GT Series Compact Butterfly Mount Camera
• 1.5M Micro DIN to PROLINK II Adapter
• 6M(L) Input Harness,
• 2x Trailer Cable Connectors with Mounting Brackets
• Curly Cable
• 10M PROLINK II Extension Cable
• User Manual
